Arducam 18MP AR1820HS camera module for Raspberry Pi Pivariety

Looking for Ar1820hs Module? Arducam 18MP AR1820HS camera module for Raspberry Pi Pivariety is available at Zbotic with fast shipping across India.

Arducam Pivariety is a Raspberry Pi camera solution to take the advantage of using its hardware ISP functions. Using Arducam Pivariety camera modules, users can get better performance and a wider variety of camera, and lens options. For a long time, Raspberry Pi users are limited to using the closed-source official supported camera driver and camera modules (V1/V2/HQ). Now Arducam made it possible to provide a well-tuned ISP for Pivariety camera modules with Auto Exposure, Auto White Balance, Lens Shading Correction, etc.

What is Pivariety?

Download Link:

1. First you need to do Hardware setup. You need to make the connections as shown in the link . For  Software setup, you can go to the same link.
2. If you want to access and program the pivariety camera through the Command Line, Python, OpenCV and GStreamer, please follow the link .

Note: If you face any problem while installing the driver then there are few ways to install it. To do that follow the procedure given  in the link .

Applications

1. Digital video cameras
2. Digital still cameras
3. Industrial camera
4. Medical camera
5. Microscopy camera
6. UAV camera

Features:

1. 18MP AR1820HS color sensor, up to 4986 x 3684@6fps.
2. Auto Exposure, Auto White Balance.
3. Gstreamer support.
4. Upcoming V4L2 support(Although the V4L2 interface is supported, only RAW format images can be obtained, without ISP support).
5. Compatible with all libcamera-based apps maintained by the RPi foundation.

Specifications:

1. Sensor Type: 18MP AR1820HS
2. Pixel Size: 1.25um x 1.25um
3. Optical Size: 1/2.3”
4. Active Pixels: 4912 H x 3684 V
5. Lens Spec: Focal length: 3.9mm, F.NO: 2.8, FOV: 75° (H)
6. IR Sensitivity: Integral IR filter, visible light only
7. Video Frame Rate: H.264 Max. 30fps@1920 x 1080
8. Sensor Frame Rate: 4986 x 3684@6fps 2432 x 1840@20fps 1920 x 1080@50fps 1216 x 920@60fps
9. ISP Frame Rate: 4986 x 3684@6fps 2432 x 1840@30fps 1920 x 1080@50fps 1216 x 920@60fps
10. Sensor Output Format: RAW10
11. ISP Output  Format: Output image format of JPG, YUV420, RAW, DNG; output video format of MJPEG, H.264
12. Interface Type: 2-Lane MIPI
13. Board Size: 40x40mm

Package Includes:

1 x Arducam 18MP AR1820HS ISP Camera Module

1 x 200mm 15pin 1.0mm FPC cable

1 x 73mm 15pin 1.0mm to 22pin 0.5mm pitch FPC cable

1 x acrylic case kit with assembly accessories

About Ar1820hs Module

Arducam 18MP AR1820HS camera module for Raspberry Pi Pivariety is available at Zbotic, India’s trusted electronics and robotics store. Manufactured by Raspberry Pi, this product is designed for hobbyists, students, and professionals working on electronics, robotics, and DIY projects.

Product Details

• Brand: Raspberry Pi
• SKU: AI1874
• Category: Arducam Cameras and Accessories

Why Buy from Zbotic?

Zbotic offers a wide range of electronics components, development boards, sensors, and robotics parts. All products are quality-checked and shipped within 24 hours. Free shipping on qualifying orders. We offer COD (Cash on Delivery) and secure online payment options. Our customer support team is available to help with technical queries about Ar1820hs Module and other products.

Applications

Ar1820hs Module can be used in a variety of projects including Arduino projects, Raspberry Pi builds, drone assembly, 3D printing, IoT applications, and educational experiments. Whether you are a beginner or an advanced user, this component provides the reliability and performance you need. Order your Ar1820hs Module today and start building.

Arducam 18MP AR1820HS camera module for Raspberry Pi Overview

The Arducam 18MP AR1820HS camera module for Raspberry Pi Pivariety is a high-resolution imaging solution that leverages the 18MP AR1820HS sensor for detailed stills and video capture. Designed for Raspberry Pi boards, it offers advanced hardware ISP functions—including auto exposure, auto white balance, and lens shading correction—to deliver vivid, low-noise images.

Key Features of Arducam 18MP AR1820HS camera module for Raspberry Pi

• High-resolution AR1820HS 18MP sensor with 4912 × 3684 active pixels for sharp detail
• 1.25 µm pixel size on a 1/2.3″ optical format sensor for improved light sensitivity
• 3.9 mm focal length lens, F/2.8 aperture, 75° horizontal field of view for wide-angle coverage
• Fully compatible with Raspberry Pi Pivariety interface and official CSI port
• Built-in ISP tuning: auto exposure, auto white balance, and lens shading correction for optimal image quality
• Genuine product stocked at Zbotic with fast shipping across India

Applications and Use Cases

• Wildlife and nature photography with detailed zoom-ins on distant subjects
• Home and business surveillance systems requiring clear 18 MP stills
• Robotics vision modules for object recognition and navigation
• Industrial inspection setups detecting surface defects on manufactured parts
• Microscopy imaging where high pixel count reveals fine specimen structures
• Time-lapse and panoramic photography projects running on Raspberry Pi

How to Use Arducam 18MP AR1820HS camera module for Raspberry Pi

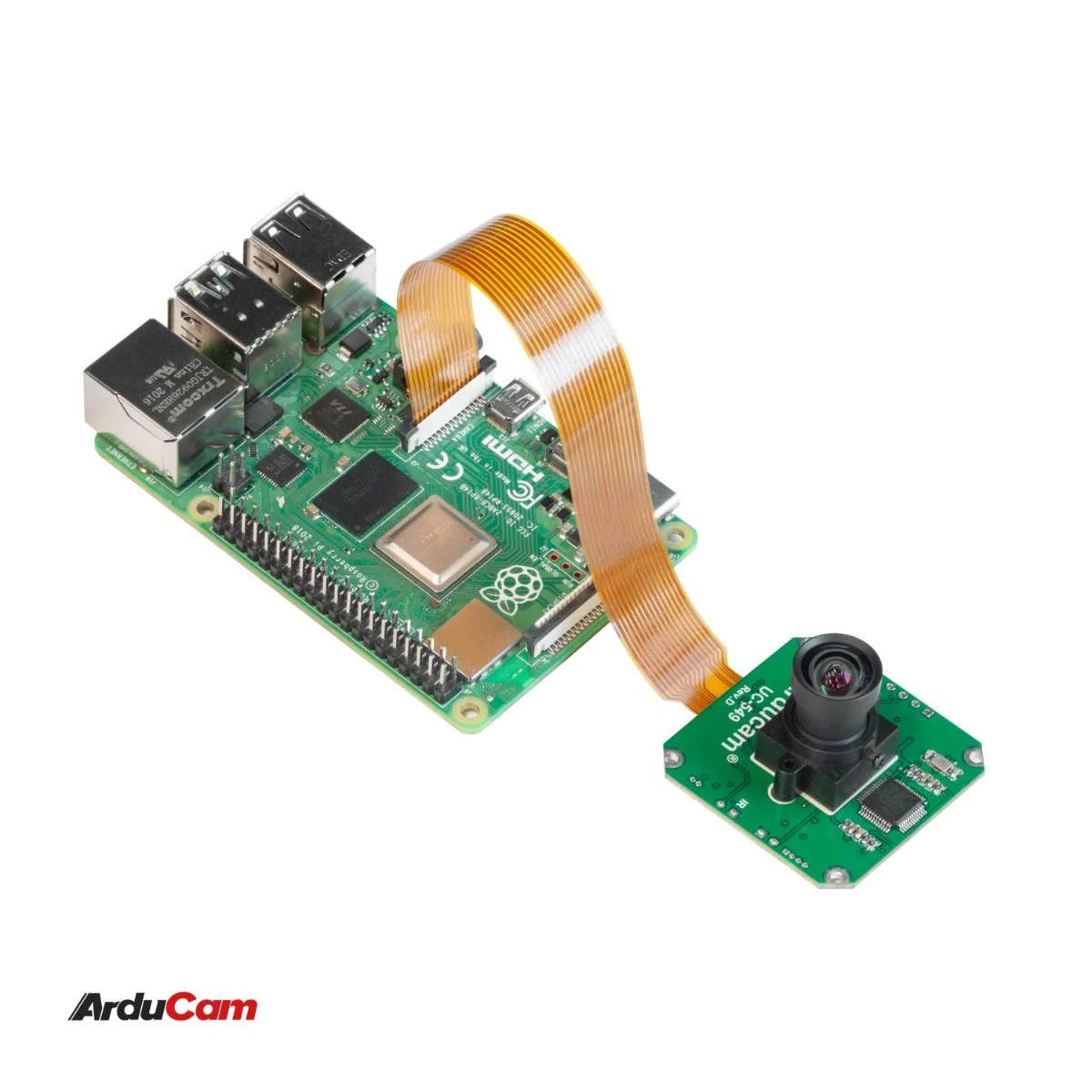

Begin by attaching the module’s FPC cable to your Raspberry Pi’s CSI interface, securing the connector latch. Install the Arducam Pivariety driver and ISP firmware following the provided download link, then reboot. Launch the camera utility on your Pi to configure resolution and exposure settings, and start capturing 18MP images or 1080p video streams.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

Which Raspberry Pi models support the AR1820HS module?

This camera module works with any Raspberry Pi featuring a CSI-2 port, including Pi 4 Model B, Pi 3 Model B+, Pi Zero W (with adapter), and Pi Compute Modules with the Pivariety interface.

What software is needed to enable hardware ISP functions?

Install the Arducam Pivariety driver package—available from the official Arducam download page—to activate auto exposure, auto white balance, and lens shading correction on your Raspberry Pi.

Can I adjust focus or change lenses on this module?

The AR1820HS module comes with a fixed-focus 3.9 mm F/2.8 lens. For interchangeable lenses, consider Arducam’s C- or CS-mount adapters and compatible sensor modules.
