Arducam 1080P Day & Night Vision USB Camera Module, 2MP Automatic IR-Cut Switching All-Day Image USB2.0 Webcam with IR LEDs
Description:
Looking for Arducam 1080p Day Module? Arducam 1080P Day & Night Vision USB Camera Module, 2MP Automatic IR-Cut Switching All-Day Image USB2.0 Webcam with IR LEDs is available at Zbotic with fast shipping across India.
The B0205 is a new member of Arducam’s USB camera family. Based on 1/2.7” OV2710, it’s a 2MP, UVC-compliant, wide-angle USB 2.0 camera with a motorized IR-Cut filter and infrared LEDs. The motorized (switchable) IR-CUT filter and infrared LEDs can be triggered by the photoresistor according to the light environment to be ON/OFF to block or pass the infrared light. It can be widely used in wildlife photography, home security systems, baby cameras, etc.
Application:
- Video conference
- Home video surveillance system
- Day&night vision security camera system
- Dash camera
- Monitoring 3D printer
- Baby Camera
- Robot and machine vision
Features & Specifications:
Camera:
- Sensor: 1/2.7” OV2710
- Resolution: 2MP 1920 x 1080
- Data Format: MJPG/YUY2
- Frame Rate: MJPG 30fps@1920 x 1080; YUY2 30fps@640 x 480.
- connector: SWR201-NRTN-S04-RL-WH
Lens:
- Field of View (FOV): H= 100°, D=138°
- Lens Mount: M12
- Focusing Range: 3.3ft (1M) to infinity
- IR Sensitivity: Integral IR filter, switch automatically based on light conditions (only visible light during the daylight and IR sensitivity during the night
Functionality and Compatibility:
- Auto Control: Saturation, Contrast, Acutance, White balance, Exposure.
- System Compatibility: Windows, Linux, Mac, and Android with UVC.
Power:
- Power Supply: USB-powered 5V
- Working Current: MAX 500mA
Physical:
- Operating Temp.: -4°F~158°F (-20°C~+70°C).
- Dimension: 38mmx38mm
- Cable Length: 3.3ft (1M)
- Connector No: S4B-ZR(LF)(SN)
Tutorial:
Package Includes:

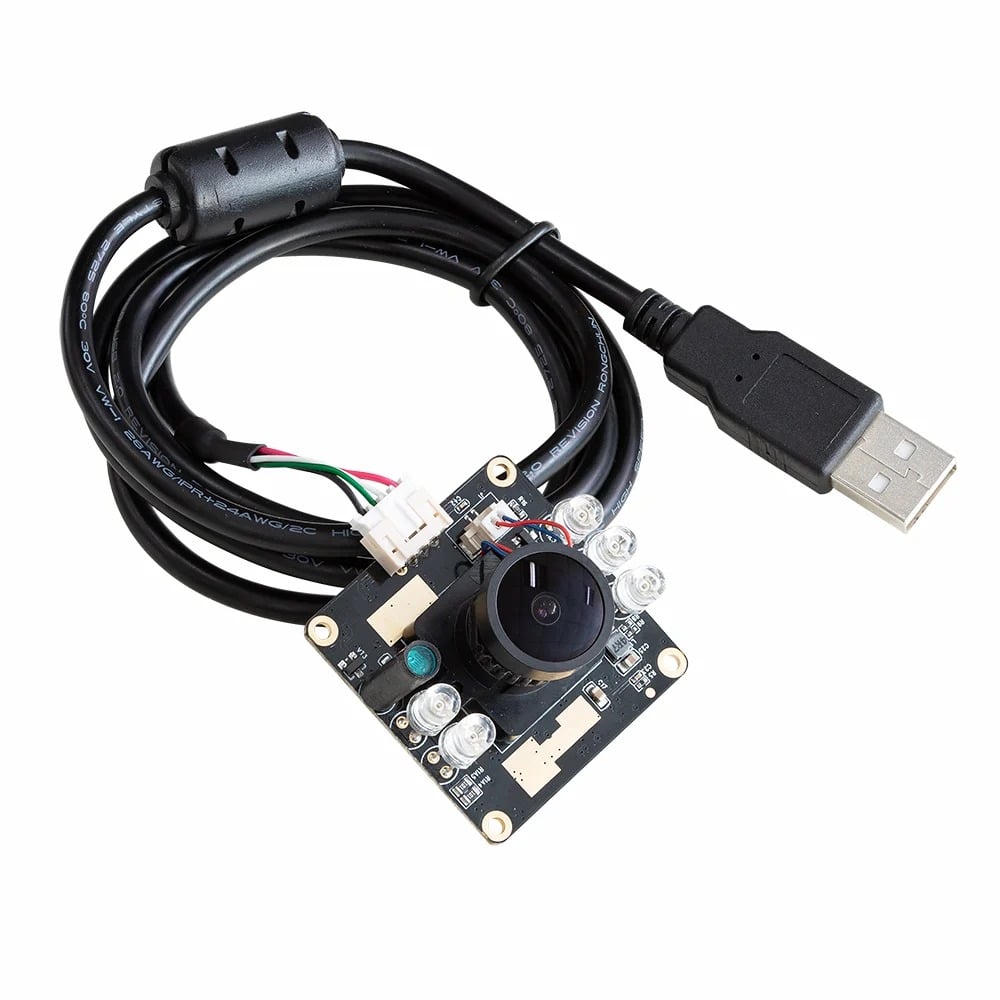

1 x 2MP OV2710 USB 2.0 camera board
1 x 3.3ft (1M) USB 2.0 cable
About Arducam 1080p Day Module
Arducam 1080P Day & Night Vision USB Camera Module, 2MP Automatic IR-Cut Switching All-Day Image USB2.0 Webcam with IR LEDs is available at Zbotic, India’s trusted electronics and robotics store. Manufactured by Arducam, this product is designed for hobbyists, students, and professionals working on electronics, robotics, and DIY projects.
Product Details
- Brand: Arducam
- SKU: AI1865
- Category: Arducam Cameras and Accessories
Why Buy from Zbotic?
Zbotic offers a wide range of electronics components, development boards, sensors, and robotics parts. All products are quality-checked and shipped within 24 hours. Free shipping on qualifying orders. We offer COD (Cash on Delivery) and secure online payment options. Our customer support team is available to help with technical queries about Arducam 1080p Day Module and other products.
Applications
Arducam 1080p Day Module can be used in a variety of projects including Arduino projects, Raspberry Pi builds, drone assembly, 3D printing, IoT applications, and educational experiments. Whether you are a beginner or an advanced user, this component provides the reliability and performance you need. Order your Arducam 1080p Day Module today and start building.
About Arducam 1080p Day Module
Arducam 1080P Day & Night Vision USB Camera Module, 2MP Automatic IR-Cut Switching All-Day Image USB2.0 Webcam with IR LEDs is available at Zbotic, India’s trusted electronics and robotics store. Manufactured by Arducam, this product is designed for hobbyists, students, and professionals working on electronics, robotics, and DIY projects.
Product Details
- Brand: Arducam
- SKU: AI1865
- Category: HMI LCD Display
Why Buy from Zbotic?
Zbotic offers a wide range of electronics components, development boards, sensors, and robotics parts. All products are quality-checked and shipped within 24 hours. Free shipping on qualifying orders. We offer COD (Cash on Delivery) and secure online payment options. Our customer support team is available to help with technical queries about Arducam 1080p Day Module and other products.
Applications
Arducam 1080p Day Module can be used in a variety of projects including Arduino projects, Raspberry Pi builds, drone assembly, 3D printing, IoT applications, and educational experiments. Whether you are a beginner or an advanced user, this component provides the reliability and performance you need. Order your Arducam 1080p Day Module today and start building.
Arducam 1080P Day & Night Vision USB Camera Module, 2MP Overview
The Arducam 1080P Day & Night Vision USB Camera Module, 2MP is a UVC-compliant USB2.0 webcam featuring a 1/2.7” OV2710 sensor and built-in infrared LEDs for continuous monitoring in varied light conditions. Its motorized IR-Cut filter automatically switches based on ambient light, delivering clear 1920×1080 video by day and enhanced visibility at night.
Key Features of Arducam 1080P Day & Night Vision USB Camera Module, 2MP
- 1/2.7” OV2710 2MP sensor for sharp Full HD captures
- Automatic IR-Cut filter driven by photoresistor for seamless day/night switching
- Built-in infrared LEDs illuminate scenes in low light or complete darkness
- High frame rates: MJPG at 30 fps@1080P, YUY2 at 30 fps@640×480
- Wide-angle lens coverage for broader field of view
- Fast USB 2.0 interface for plug-and-play connectivity
- Genuine product with fast shipping from Zbotic across India
Applications and Use Cases
- Home and office video conferencing with HDR-quality daytime video
- Indoor and outdoor security systems requiring night vision
- Wildlife observation and time-lapse photography in low-light environments
- Baby monitoring with automatic transition to infrared mode at night
- Robotics vision and computer vision prototyping on PC or embedded boards
- Dashcam prototypes or POV mounts where day/night capture is needed
How to Use Arducam 1080P Day & Night Vision USB Camera Module, 2MP
Simply connect the module to a USB2.0 port on your computer or embedded system—no drivers required on UVC-compatible platforms. Position the camera using the integrated mounting bracket, and allow the built-in photoresistor to trigger IR-Cut filter changes automatically as light levels vary. Launch your preferred video application to begin capturing Full HD footage.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Is the Arducam camera plug-and-play on Windows and Linux?
Yes. The Arducam 1080P Day & Night Vision USB Camera Module is UVC-compliant, so it works out of the box on Windows, Linux, and macOS without additional drivers.
How does the automatic IR-Cut filter work?
An onboard photoresistor measures ambient light and triggers the motorized IR-Cut filter to switch positions. In bright conditions the filter blocks IR light; in low light it disengages and activates the IR LEDs for night vision.
What is the maximum frame rate at 1080P?
When using MJPG encoding, this camera delivers up to 30 fps at 1920×1080 resolution over the USB2.0 interface.
Technical Specifications
| Brand | Arducam |
|---|---|
| Interface / Protocol | USB |
| Connector Type | USB-C |
| SKU | AI1865 |
| Weight | 0.040 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Arducam 1080P Day & Night Vision USB Camera Module, 2MP Automatic IR-Cut Switching All-Day Image USB2.0 Webcam with IR LEDs is a versatile arducam cameras and accessories used across a wide range of applications including computer vision, surveillance, machine learning inference, time-lapse photography, and barcode scanning.
Common use cases:
- Adding vision to a Raspberry Pi robot
- Building a wildlife camera trap
- Implementing QR code scanning in a project
This product is ideal for computer vision developers and Raspberry Pi enthusiasts.
Technical Tip: Arducam cameras support various interfaces (MIPI CSI, USB, SPI). Higher megapixel count improves detail but increases processing requirements.
