This is the XT60 connector variant of the XT60 Female Connectors –(Pack of 2) in Battery Connector. Available at ₹59.00 (₹50.00 + GST) with free shipping across India.
These are not cheap copy XT60 plugs. These original Nylon XT60 plugs can handle over 60A current for extended periods without exceeding 80DegC thanks to their better contact surface area. The plug is also less likely to deform or melt in comparison to copied non-Nylon XT60 plugs.
Features:
- Mechanical mounting for cable
- Electrical mounting soldered
- Contact plating Gold flash
- Spatial Orientation Straight
- Compatible for Wire size up to 12AWG
Package Includes:
1 x XT60 Female Connectors-2pcs
XT60 Female Connectors – Overview

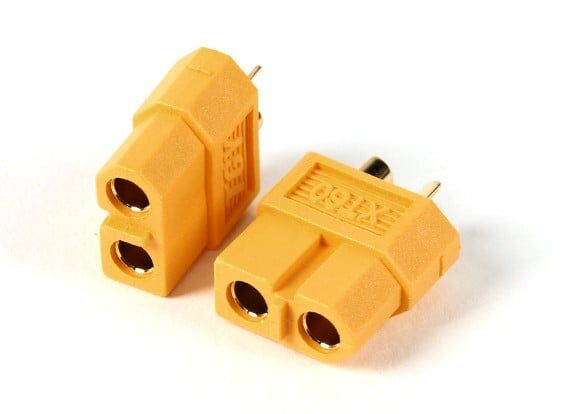

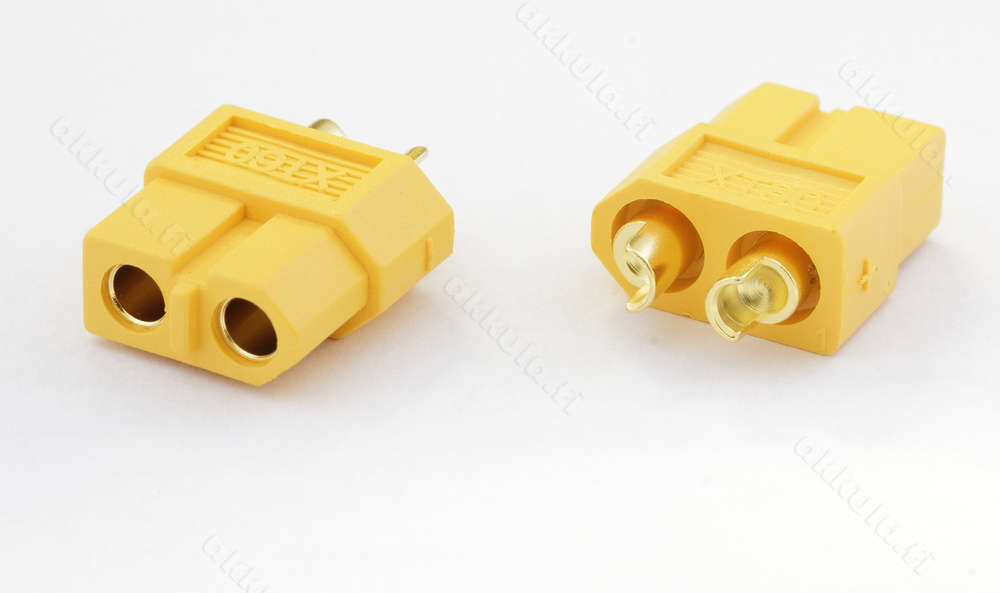

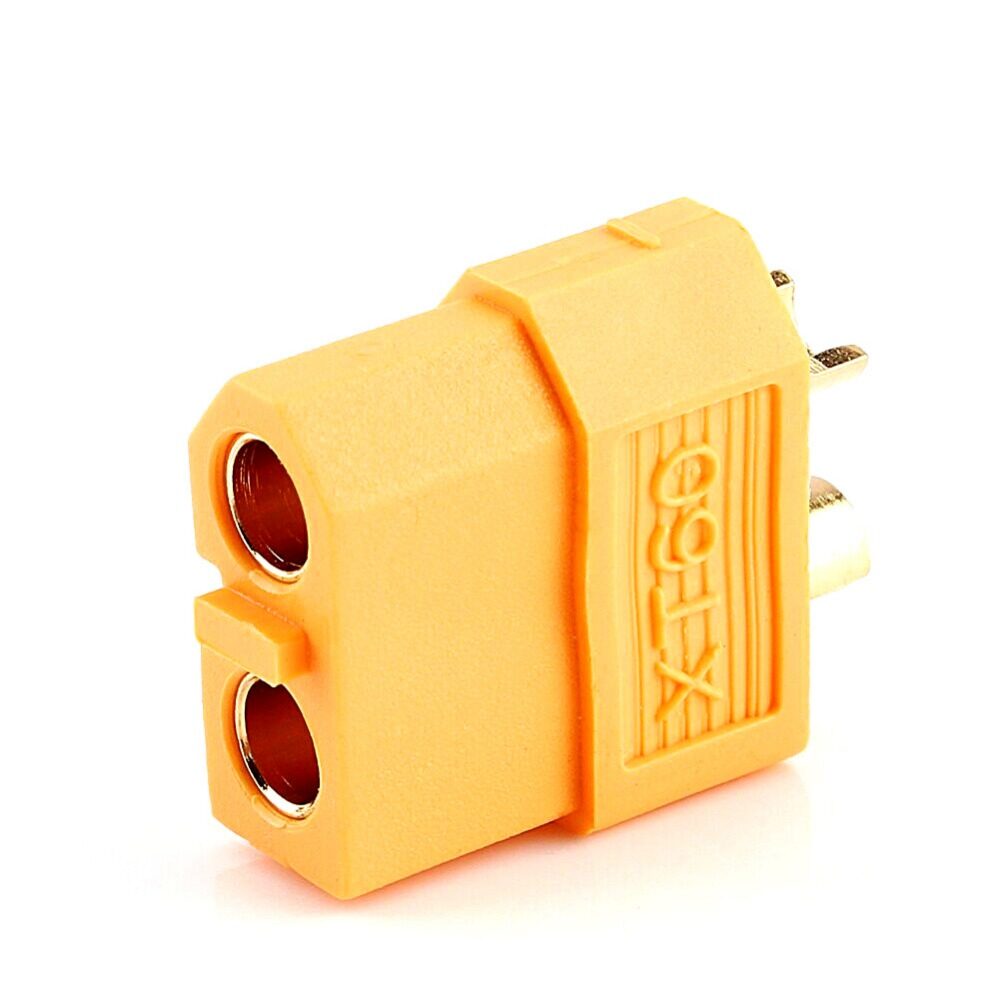

The XT60 Female Connectors (Pack of 2) from AMASS are DC power connectors designed for reliable, high-current cable connections. Molded from high-temperature nylon and fitted with gold-flash plated spring contacts, this two-pin female connector delivers consistent performance up to 65 A constant for RC, drone, robotics, and battery applications.
Key Features of XT60 Female Connectors –
- Original AMASS XT60H series design in high-temp nylon housing
- Gold flash–plated contacts for low electrical resistance and corrosion resistance
- Two-pin female configuration for standard XT60 male plugs
- Mechanical cable mounting plus soldered electrical connections
- Handles over 60 A continuous current without exceeding 80 °C
- Bright yellow colour for quick identification; sold as a pack of 2
- Fast shipping from Zbotic to your doorstep
Applications and Use Cases
- Battery connectors on multirotor drones and quadcopters
- Power leads for RC cars, boats, and airplanes
- DIY robotics power distribution boards
- High-current 3D printer heated bed or extruder setups
- Custom electric skateboard and scooter battery packs
- Portable power banks and DIY UPS systems
How to Use XT60 Female Connectors –
Strip approximately 5 mm of insulation from your 12–14 AWG power cable, tin the conductor with rosin-core solder, then insert it into the connector’s solder cup. Hold the connector in a clamp or third-hand tool, heat the joint until the solder flows smoothly, and allow it to cool. Match the female XT60 housing to a corresponding male plug—ensuring polarity alignment—for a secure, low-resistance DC connection.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Are these connectors compatible with all XT60 male plugs?
Yes, the AMASS XT60H female connectors follow standard XT60 dimensions and mate perfectly with any quality XT60 male plug for a snug, low-resistance fit.
Can these XT60 female connectors handle continuous high current?
Absolutely. The nylon housing and gold-flash plated contacts are rated for over 60 A continuous duty, making them suitable for demanding RC and robotics power systems.
What tools and solder should I use for installation?
Use a 12–14 AWG compatible soldering iron (30–60 W) and rosin-core solder. A helping hand or vise ensures stable positioning during soldering for a reliable connection.
Solar Battery Backup System: 12V 100Ah LiFePO4 DIY Guide India
Building a solar battery backup system LiFePO4 India DIY project has never been more practical. With electricity tariffs...
Read More →
LiPo Battery Connector Types: XT60 vs T-Plug vs JST Compared
Choosing the wrong connector for your LiPo battery can mean anything from a loose connection that wastes energy...
Read More →
Battery Insulation: Fish Paper and Barley Paper Guide
Proper battery insulation is the invisible safety layer that prevents short circuits, arcing, and thermal events in lithium...
Read More →Technical Specifications
| Model | XT60 |
|---|---|
| Connector Type | XT60 |
| Package Quantity | 2 pcs |
| SKU | AI2073 |
| Availability | Out of Stock |
Applications & Use Cases
The XT60 Female Connectors –(Pack of 2) is a versatile battery connector used across a wide range of applications including drone battery connections, RC vehicle wiring, power distribution boards, battery pack assembly, and DIY power cables.
Common use cases:
- Replacing worn connectors on a LiPo battery
- Building custom battery harnesses
- Soldering connectors for a new drone build
This product is ideal for drone builders, RC hobbyists, and electronics technicians.
Technical Tip: XT60 handles up to 60A continuous; XT30 up to 30A. Always solder male connectors to the battery side and female to the ESC/charger side.
