Looking for Xt30aw Connector Amass? Amass XT30AW Male Connector is available at Zbotic with fast shipping across India.
Xt30aw Connector Amass – Description:
XT30AW male connectors with the tiny Measurement take a small area and could place anywhere. This Connector is Made from high-temp Nylon and gold-plated bullet connectors, both included in the injection mold at the time when forming the connector. Product coating is 24K real gold, a thickness of 0.05um, plugged thousands of times, the coating will not fall off, prevent oxidation, and good electrical conductivity.
Features:
- It is perfect for small lipo applications.
- This Connector is Made of high-temperature nylon the plug is also less likely to deform or melt.
Specifications:
- Connector: XT30AW-M
- Material: Nylon and Brass
- Gender: Male
- Color: Yellow
- Current Handling: 30A+

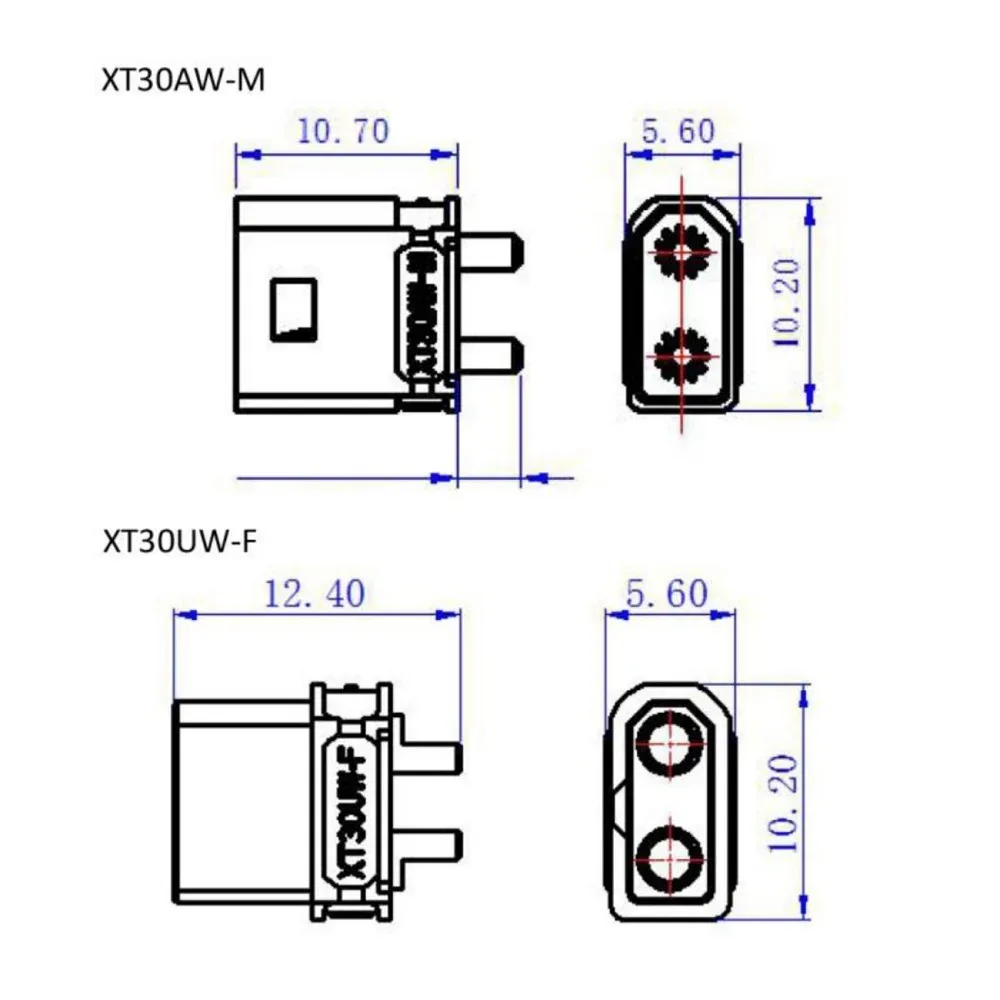

- Size: 12x10x5mm
Package Includes:
- 1 x Amass XT30AW Male Connector

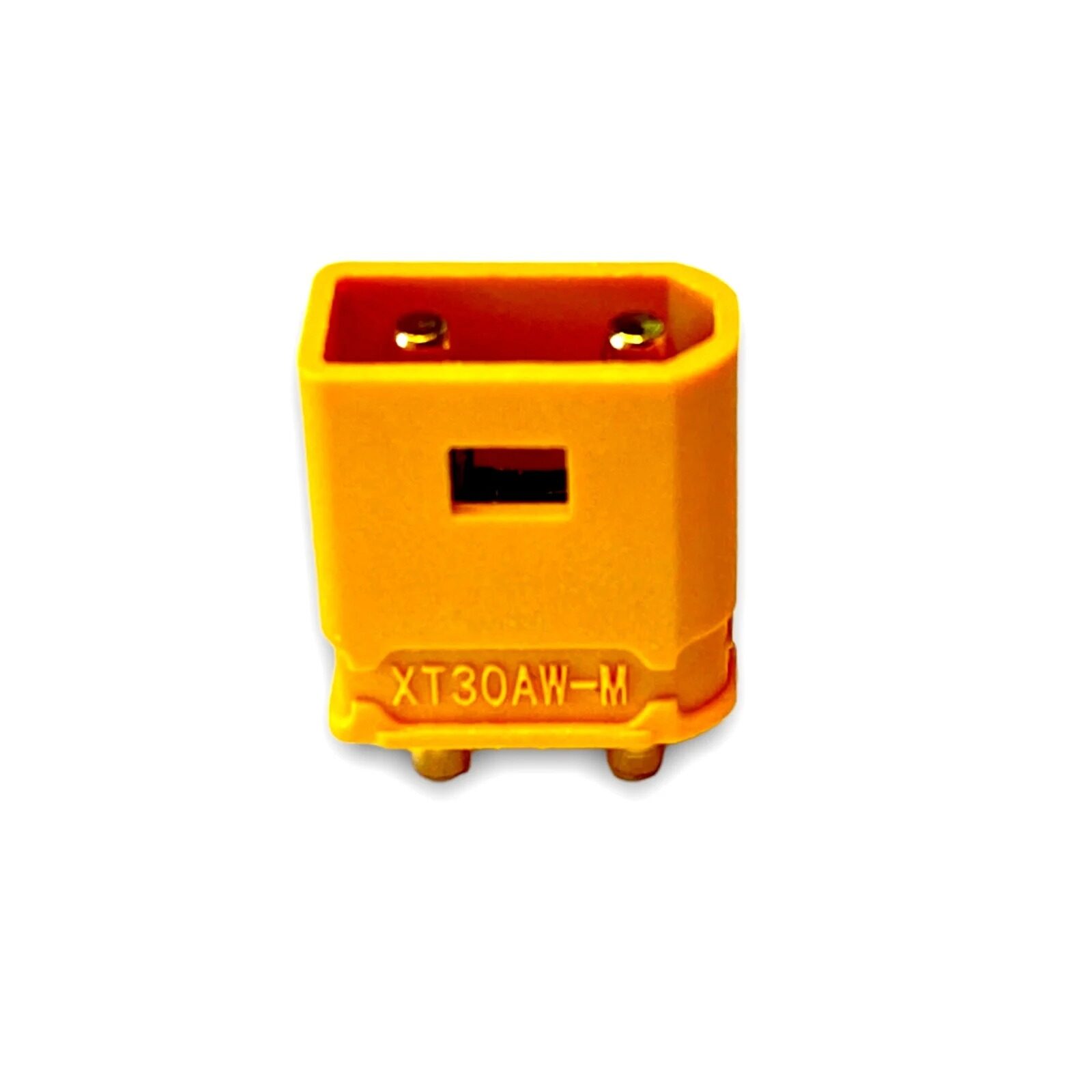

Amass XT30AW Male Connector Overview
The Amass XT30AW Male Connector is a compact, high-current power connector designed for tight-space battery connections. Its durable nylon housing and gold-plated brass contacts ensure reliable performance in small LiPo and RC applications.
Key Features of Amass XT30AW Male Connector
- Compact design (12×10×5mm) saves board space and weight
- Gold-plated brass bullet contacts with 0.05μm 24K coating for oxidation resistance
- High-temperature nylon shell resists deformation and melting
- Supports continuous currents over 30A for efficient power delivery
- Robust mating cycle durability—maintains conductivity after thousands of plugs
- Fast shipping from Zbotic across India, ready to ship within 24 hours
Applications and Use Cases
- Connecting small LiPo battery packs to drone flight controllers or ESCs
- Power links in micro RC airplanes, racing drones, and quadcopters
- Battery-to-PCB connections in portable robotics and handheld devices
- High-current connections for FPV camera rigs and LED lighting systems
- Replacement or upgrade connectors in RC cars, boats, and helicopters
How to Use Amass XT30AW Male Connector
Strip and tin the power wires, then solder them to the brass bullet terminals, ensuring proper polarity and secure joints. Slide the nylon shell over the soldered contacts, snap into place, and use heat-shrink tubing for extra insulation before mating with the female XT30AW connector.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Is the XT30AW male connector compatible with standard XT30AW female plugs?
Yes, the Amass XT30AW Male Connector mates precisely with XT30AW female sockets, providing a snug, low-resistance connection for any XT30AW system.
What soldering techniques are recommended for best performance?
Use a quality rosin-core solder and a temperature-controlled iron set around 350–370°C. Pre-tin both wire and contacts, then apply steady heat to ensure a strong, low-impedance joint.
How durable is the gold plating on the contacts?
The 24K real gold plating, with a thickness of 0.05 µm, withstands thousands of mating cycles without peeling or corrosion, guaranteeing long-term conductivity.
UPS Build: 12V Battery Backup for Router and Modem
Building a 12V UPS for your router and modem ensures uninterrupted internet during the frequent power cuts that...
Read More →
Voltage Regulator Dropout: LDO vs Standard Comparison
Table of Contents What is Dropout Voltage? Standard Linear Regulators: The Classic 78xx Series LDO Regulators: Low Dropout...
Read More →
Supercapacitor Guide: When to Use Instead of Batteries
Table of ContentsWhat Are Supercapacitors Supercapacitors vs Batteries Types and Specifications When to Use Supercapacitors Charging and Discharging...
Read More →Technical Specifications
| Brand | Amass |
|---|---|
| Model | XT30AW |
| Connector Type | XT30 |
| SKU | AI1714 |
| Weight | 0.015 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Amass XT30AW Male Connector is a versatile battery connector used across a wide range of applications including drone battery connections, RC vehicle wiring, power distribution boards, battery pack assembly, and DIY power cables.
Common use cases:
- Replacing worn connectors on a LiPo battery
- Building custom battery harnesses
- Soldering connectors for a new drone build
This product is ideal for drone builders, RC hobbyists, and electronics technicians.
Technical Tip: XT60 handles up to 60A continuous; XT30 up to 30A. Always solder male connectors to the battery side and female to the ESC/charger side.
