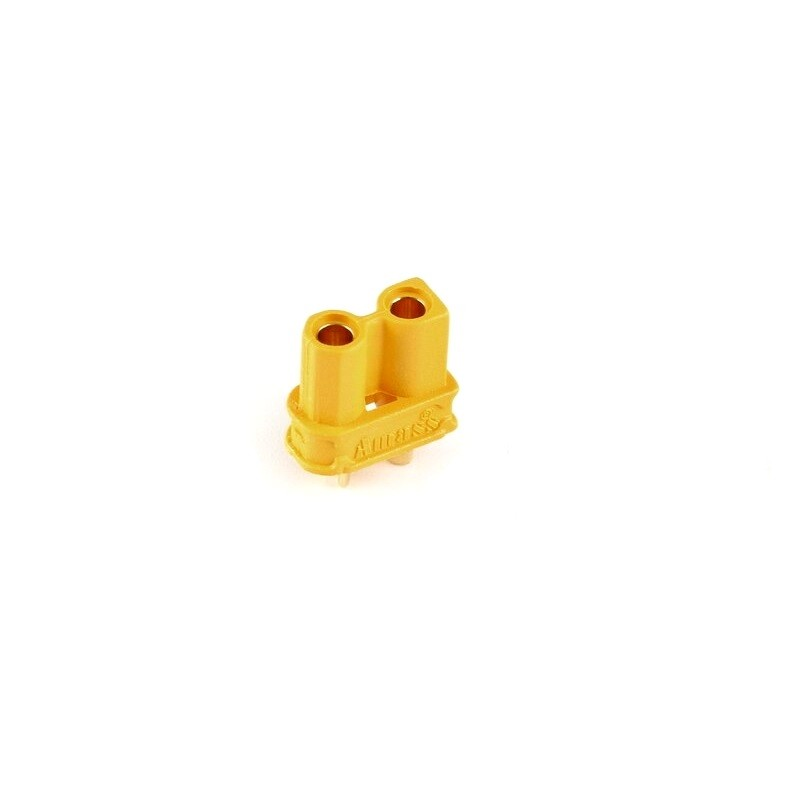

This is the XT30 connector variant of the Amass XT30-U Female Bullet Connector in Battery Connector. Available at ₹28.91 (₹24.50 + GST) with free shipping across India.
Description:
Amass XT30-U Female Bullet Connector. For the tiny Measurement, It could take a small area and could place anywhere. This Connector Made from high-temp Nylon and gold-plated bullet connectors, both included in the injection mold at the time when forming the connector. Product coating is 24K real gold, the thickness of 0.05um, plug thousands of times, the coating will not fall off, prevent oxidation, good electrical conductivity.
Features:
- It is perfect for small lipo applications.
- This Connector Made of high-temperature nylon the plug is also less likely to deform or melt.
Specifications:
| Model | XT30-U |
|---|---|
| Material | Nylon and Gold plated |
Package Includes:
- 1 x XT30-U Female Bullet Connector
Amass XT30-U Female Bullet Connector Overview
The Amass XT30-U Female Bullet Connector is a compact 30A+ rated connector designed for small LiPo battery and micro RC applications. Its high-temp nylon housing combined with integrated gold-plated bullets ensures reliable electrical contact and resistance to deformation.
Key Features of Amass XT30-U Female Bullet Connector
- High-temperature nylon body resists melt and deformation
- Gold-plated bullets with 24K plating (0.05μm) for superior conductivity
- Compact dimensions of 12×10×5mm save build space
- Handles continuous currents above 30A with low voltage drop
- Durable coating prevents oxidation over thousands of cycles
- Genuine product, fast shipping from Zbotic ensures timely delivery
Applications and Use Cases
- Connecting small LiPo batteries in micro FPV drones
- Power delivery for miniature RC cars and trucks
- Supply lines for DIY robotics and wearable electronics
- Integration into custom PCBs for compact power modules
- Portable LED lighting and sensor projects
How to Use Amass XT30-U Female Bullet Connector
Strip approximately 5 mm of insulation from the cable, solder the bare wire into the gold-plated bullet housing, and ensure a solid mechanical and electrical joint. Insert the bullet assembly into the nylon housing until it clicks, then mate with the corresponding XT30-U male connector, observing correct polarity for a secure, low-resistance connection.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Is the Amass XT30-U Female compatible with standard XT30-U male connectors?
Yes. This female connector mates precisely with any XT30-U male connector, ensuring a snug fit and reliable electrical contact.
What maximum current can this connector safely carry?
The XT30-U female connector is rated for continuous currents above 30A, making it ideal for high-demand micro LiPo setups when properly soldered and cooled.
How does the gold plating benefit performance?
The 24K gold plating (0.05 μm thickness) on the bullets prevents oxidation, reduces contact resistance, and maintains conductivity over thousands of mating cycles.
Solar Battery Backup System: 12V 100Ah LiFePO4 DIY Guide India
Building a solar battery backup system LiFePO4 India DIY project has never been more practical. With electricity tariffs...
Read More →
How to Build a 18650 Battery Pack with BMS: Step-by-Step
Building your own 18650 battery pack with BMS is one of the most rewarding DIY electronics projects you...
Read More →
Lithium Battery Safety: Handling, Storing & Shipping Guidelines
Understanding lithium battery safety guidelines in India is not optional — it is a responsibility that every maker,...
Read More →Technical Specifications
| Brand | Amass |
|---|---|
| Model | XT30-U |
| Connector Type | XT30 |
| SKU | AI5893 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Amass XT30-U Female Bullet Connector is a versatile battery connector used across a wide range of applications including drone battery connections, RC vehicle wiring, power distribution boards, battery pack assembly, and DIY power cables.
Common use cases:
- Replacing worn connectors on a LiPo battery
- Building custom battery harnesses
- Soldering connectors for a new drone build
This product is ideal for drone builders, RC hobbyists, and electronics technicians.
Technical Tip: XT60 handles up to 60A continuous; XT30 up to 30A. Always solder male connectors to the battery side and female to the ESC/charger side.
