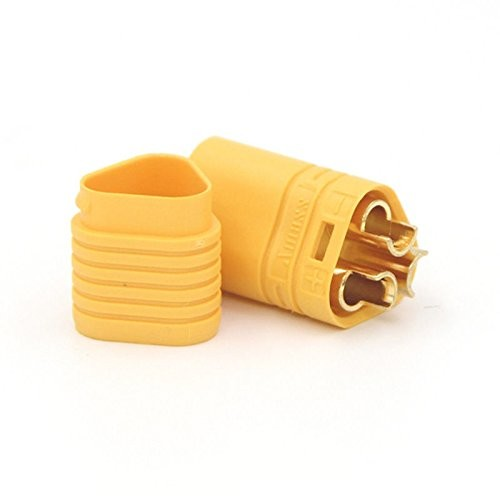

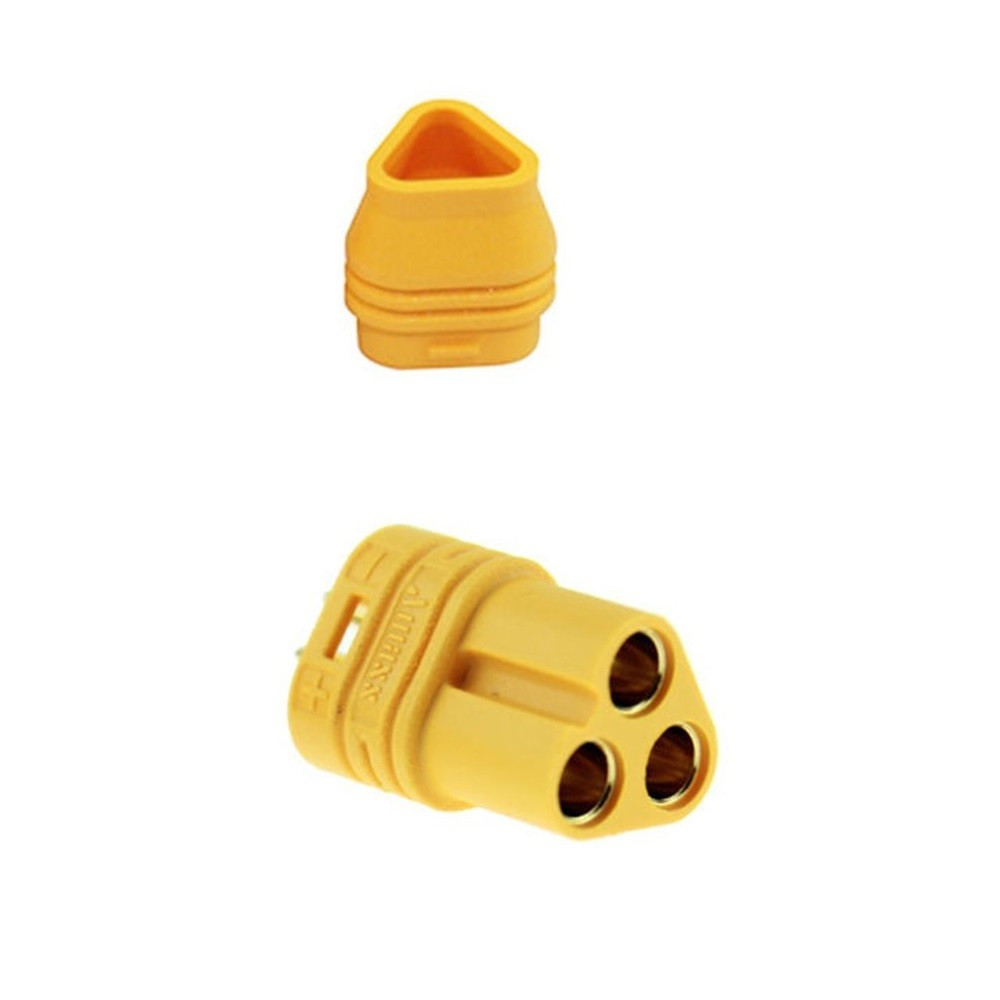

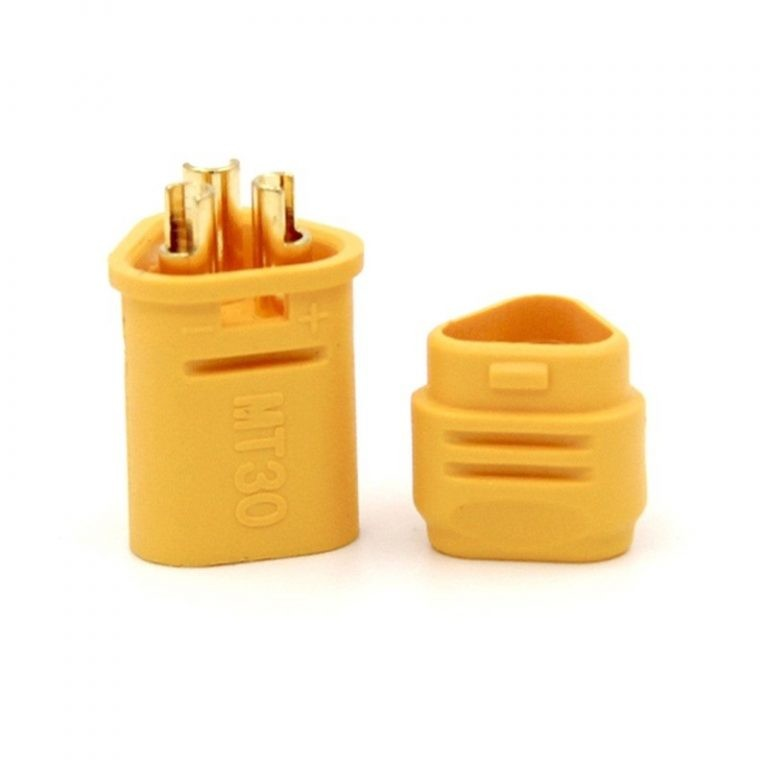

This is a Amass MT30 3 Pole Motor/ESC Connector Set Female
The MT30 3 Pole Motor Connector set is the perfect solution for securing your brushless motor / ESC connections for up to 16AWG wires. The connector set featured with gold plated connecting points, high-quality plastic with ideal design by Amass. Both male and female connectors are fitted with 2mm bullet points to solder the wires and supplied with a cable tidy attachment Cap to keep things nice and neat!
The connectors are manufactured from toughened plastic and provide a very secure fit making them perfect for EDF and multi-rotor applications.
Note: Connector back Cap’s Lock is designed to be very tight, Once you locked it then it is little tough to reopen it.
Features:
- Brand: Amass
- Suitable for: 16AWG wire (Max)
- Color: Yellow
- Gender: Female
- Gold Plated Connector
- High-Quality Material
Specifications:
| Operating Voltage (VDC): | 500 |
|---|---|
| Current Handling Capacity (A) | 60 |
| No. of Contact Points | 3 |
| Connector Type | MT30 |
| Contact Material | Brass |
| Contact Plating | Gold flash |
| Operating Temperature (°C) | -20 to 120 |
| Flammability Rating | UL94V-0 |
| Color: | Yellow |
| Dimensions (LxWxH) mm | 20 x 10 x 10mm (assembled) |
| Weight (g): | 2.96 per pcs. |
Package Includes:
1 x MT30 3 Pole Motor/ESC Connector Set-Female
Amass MT30 3 Pole Motor/ESC Connector Set Female – 1 Pcs. Overview
The Amass MT30 3 Pole Motor/ESC Connector Set Female offers a reliable, gold-plated interface for connecting brushless motors to ESCs using up to 16 AWG wire. Its toughened plastic housing and precise 2 mm bullet sockets ensure a secure, vibration-resistant fit for multirotor and EDF applications.
Key Features of Amass MT30 3 Pole Motor/ESC Connector Set Female – 1 Pcs.
- Gold-plated 2 mm bullet sockets for low resistance and corrosion resistance
- High-quality, toughened plastic shell for mechanical robustness
- Compact footprint (20 × 10 × 10 mm) and lightweight (2.96 g) design
- Compatible with up to 16 AWG wire for standard brushless motor currents
- Includes cable tidy attachment cap to keep wiring neat and secure
- Fast shipping from Zbotic with genuine Amass components
Applications and Use Cases
- Connecting brushless motors to ESCs on racing drones and quadcopters
- Wiring electric ducted fan (EDF) units in model aircraft
- Retrofitting or upgrading multirotor power systems with reliable connectors
- DIY robotics projects requiring secure three-phase motor connections
- RC car brushless drive installations where vibration resistance is essential
How to Use Amass MT30 3 Pole Motor/ESC Connector Set Female – 1 Pcs.
Solder each 16 AWG wire to the gold-plated 2 mm bullet sockets, ensuring solid joints. Insert the soldered bullets into the female housing until they click, then slide on the cable tidy cap and lock it to secure all three connections in place. Verify the latch is fully engaged for maximum vibration resistance.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Q: Can I use thinner wire than 16 AWG with this connector?
A: Yes, you can solder thinner wires into the 2 mm bullet sockets, but ensure a snug fit and solid solder joints. Always verify current requirements before down-gauging wire size.
Q: How do I unlock the cable tidy cap if it’s too tight?
A: Gently insert a small flathead screwdriver or spudger into the back-cap latch slot, pry lightly to release the lock, and slide the cap off. Avoid excessive force to prevent shell damage.
Q: Is this connector suitable for high-vibration environments?
A: Yes, the toughened plastic housing and secure bullet retention provide excellent vibration resistance, making it ideal for EDF units and high-performance multirotors.
Best LiPo Battery Chargers: ISDT, SkyRC & Budget Options
Choosing the right LiPo battery charger is arguably more important than choosing the battery itself. Charge a LiPo...
Read More →
Power Wall Build: Home Battery Storage from 18650 Cells
A power wall build creates a large home battery storage system from reclaimed or new 18650 cells, providing...
Read More →
LiPo Battery Charging Safety: Dos and Don’ts Complete Guide
Lithium Polymer (LiPo) batteries power everything from racing drones and RC cars to FPV quads and robotic arms...
Read More →Technical Specifications
| Brand | Amass |
|---|---|
| Model | MT30 |
| Package Quantity | 1 pcs |
| SKU | AI5897 |
| Weight | 0.0 kg |
| Availability | In Stock |
Applications & Use Cases
The Amass MT30 3 Pole Motor/ESC Connector Set Female - 1 Pcs. is a versatile battery connector used across a wide range of applications including drone battery connections, RC vehicle wiring, power distribution boards, battery pack assembly, and DIY power cables.
Common use cases:
- Replacing worn connectors on a LiPo battery
- Building custom battery harnesses
- Soldering connectors for a new drone build
This product is ideal for drone builders, RC hobbyists, and electronics technicians.
Technical Tip: XT60 handles up to 60A continuous; XT30 up to 30A. Always solder male connectors to the battery side and female to the ESC/charger side.
