This is the Blue variant of the Ai-Thinker TB-05 Module TLSR8250 Bluetooth in Ai Thinker ESP Modules. Available at ₹135.70 (₹115.00 + GST) with free shipping across India.
Description:

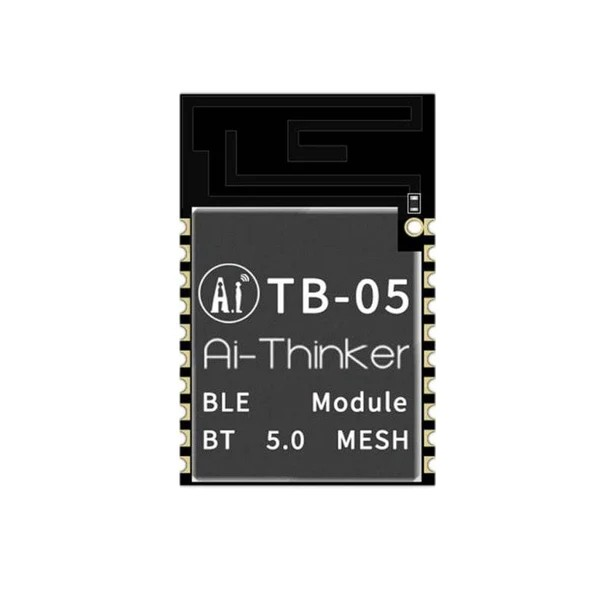

The TB-05 Module is a BLE5.0 low-power Tmall Genie Mesh Bluetooth module utilizing the TLSR8250 chip. It enables direct control by Tmall Genie and supports Bluetooth mesh networking. Communication is facilitated through a peer-to-peer star network and Bluetooth broadcasting, ensuring prompt responses among multiple devices. Primarily used in smart lighting control, the TB-05 Module fulfills the needs for low power consumption, minimal delay, and short-range wireless communication.
Specifications:
- Model: TB-05
- Wireless standard: Bluetooth 5.0
- Frequency:2400~2483.5MHz
- Maximum Tx power: Maximum 10.5dBm
- Receiving Sensitivity: -93dBm
- Interface: GPIO/PWM/SPI/ADC
- Operating temperature: -40 ℃ ~ 85 ℃
- Storage environment: -40 ℃ ~ 125 ℃ , 90%RH
- Power supply: The power supply voltage is 2.7V ~ 3.6V, and the power supply current is ≥ 50mA
- Power consumption: Sleep mode: 1.8 μA TX:21.56mA
- Transmission distance: Outdoor open sight distance: ≥ 100 m
Features:
- It can be directly controlled by the Tmall Genie without a gateway

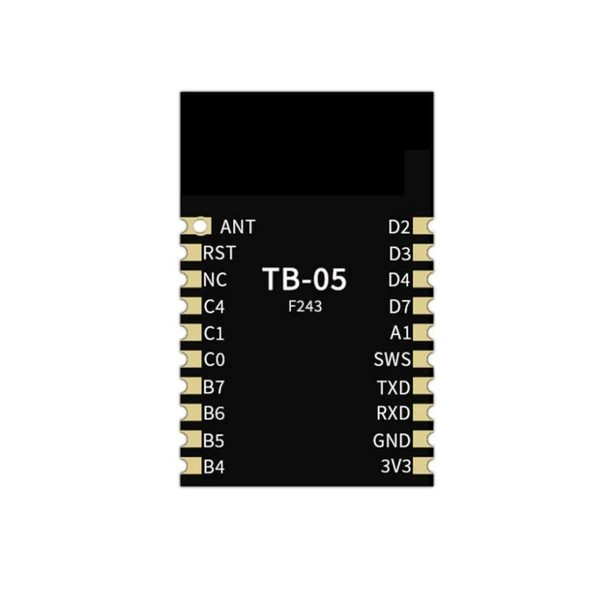

- 1mm pitch SMD-20 package
- 6 PWM outputs
- Onboard antenna, compatible with half-hole pad/through-hole pad
- Brightness (duty cycle) adjustment range 5%-100%
- Factory default cold colour warm colour duty cycle 50%
- PWM output frequency 1KHz
- With night light function
- Colour temperature switching function with wall switch
Package Included:
1 x Ai-Thinker TB-05 Module TLSR8250 Bluetooth
Datasheet:
Ai-Thinker TB-05 Module TLSR8250 Bluetooth Overview
The Ai-Thinker TB-05 Module TLSR8250 is a Bluetooth 5.0 low-power mesh communication module designed for smart lighting and home automation. Equipped with the TLSR8250 chip, it enables direct control via Tmall Genie and supports both peer-to-peer star networks and Bluetooth mesh for rapid device responses.
Key Features of Ai-Thinker TB-05 Module TLSR8250 Bluetooth
- Bluetooth 5.0 low-power operation with TLSR8250 chipset for extended battery life
- Built-in support for Tmall Genie mesh networking and peer-to-peer broadcasting
- Flexible GPIO, PWM, SPI and ADC interfaces for LED drivers, sensors and peripherals
- High sensitivity (–93 dBm) and up to 10.5 dBm Tx power for outdoor range ≥ 100 m
- Wide operating temperature from –40 °C to 85 °C and robust storage up to 125 °C/90 %RH
- Genuine Ai-Thinker module with fast shipping from Zbotic within 24 hours
Applications and Use Cases
- Smart lighting systems with mesh-based group control and dimming functions
- Voice-controlled fixtures and appliances integrated with Tmall Genie
- Distributed sensor nodes for temperature, humidity or motion monitoring
- Bluetooth mesh prototypes for building management or industrial automation
- Wireless PWM LED drivers for architectural and decorative lighting
- Battery-powered devices requiring ultra-low sleep current and quick wake-up
How to Use Ai-Thinker TB-05 Module TLSR8250 Bluetooth
To get started, power the TB-05 with 2.7 V–3.6 V and connect its GPIO/PWM/SPI/ADC lines to your microcontroller or LED driver. Use the Ai-Thinker SDK or AT commands to provision the module into a Bluetooth mesh network via Tmall Genie, assign device IDs, and configure I/O pins for lighting or sensor tasks.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What power supply voltage does the TB-05 require?
The TB-05 operates on a supply voltage of 2.7 V to 3.6 V, draws ≥ 50 mA when active, around 21.56 mA during TX, and just 1.8 μA in sleep mode.
How do I integrate the TB-05 with Tmall Genie?
Use the built-in Bluetooth mesh provisioning in the Ai-Thinker SDK or AT command set to join the TB-05 to your Tmall Genie network, then control devices directly through the Tmall Genie app or voice commands.
Which interfaces are available for controlling LEDs and sensors?
The module provides multiple GPIO pins that can be configured for PWM output to drive LEDs, SPI for advanced peripherals, and ADC channels for analog sensor readings.
Technical Specifications
| Brand | Ai- Thinker |
|---|---|
| Model | TB-05 |
| Interface / Protocol | Bluetooth |
| Color | Blue |
| SKU | AI5663 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
