Anxinke LoRa series modules (Ra-01S) are designed and developed by AnxinkeTechnology. This module is used for ultra-long-distance spread-spectrum communication. Its radio chip SX1268 mainly uses LoRa remote mode for ultra-long-distance spread-spectrum communication. It has strong anti-interference and can minimize current consumption. With SEMTECH’s LoRa patented modulation technology, SX1268 has a high sensitivity of over -148dBm, a power output of +22dBm, a long transmission distance, and high reliability.
At the same time, compared to traditional modulation technology, LoRa modulation technology also has obvious advantages in anti-blocking and selection, which solves the problem of distance, anti-interference, and power consumption that traditional designsolutionscannot simultaneously take into account. Application areas are used in automatic meter reading, home building automation, security systems, and remote irrigation systems.
Features:
- LoRa modem
- Support FSK, GFSK, MSK, GMSK, LoRa and OOK modulation methods Support frequency band 410MHz~525MHz
- Working voltage is 3.3V, maximum output is +22dBm, maximumworkingcurrent is140mA
- Low power consumption characteristics in receiving state, the minimumreceivingcurrent is 4.5 mA, standby current is 1.6mA
- High sensitivity: as low as -140dBm
- Small volume dual row stamp hole patch package
- The module adopts SPI interface, half-duplex communication, with CRC, upto256-byte packet engine
Specification:
- Model: Ra-01S
- Package: SMD16
- Size: 17 x 16 x 3.2(±0.2)MM
- Antenna: Compatible with half-hole pads/through-hole pads (need tosolder the antenna)/IPEX socket
- Spectrum range: 410MHz~525MHz
- Operating temperature: -40 ℃ ~ 85 ℃
- Storage environment: -40 ℃ ~ 125 ℃ , < 90%RH
- Power supply: 2.7~3.6V,default 3.3V,current > 200mA
- Interface SPI Programmable bit rate: Up to 300kbps
Packages Includes:

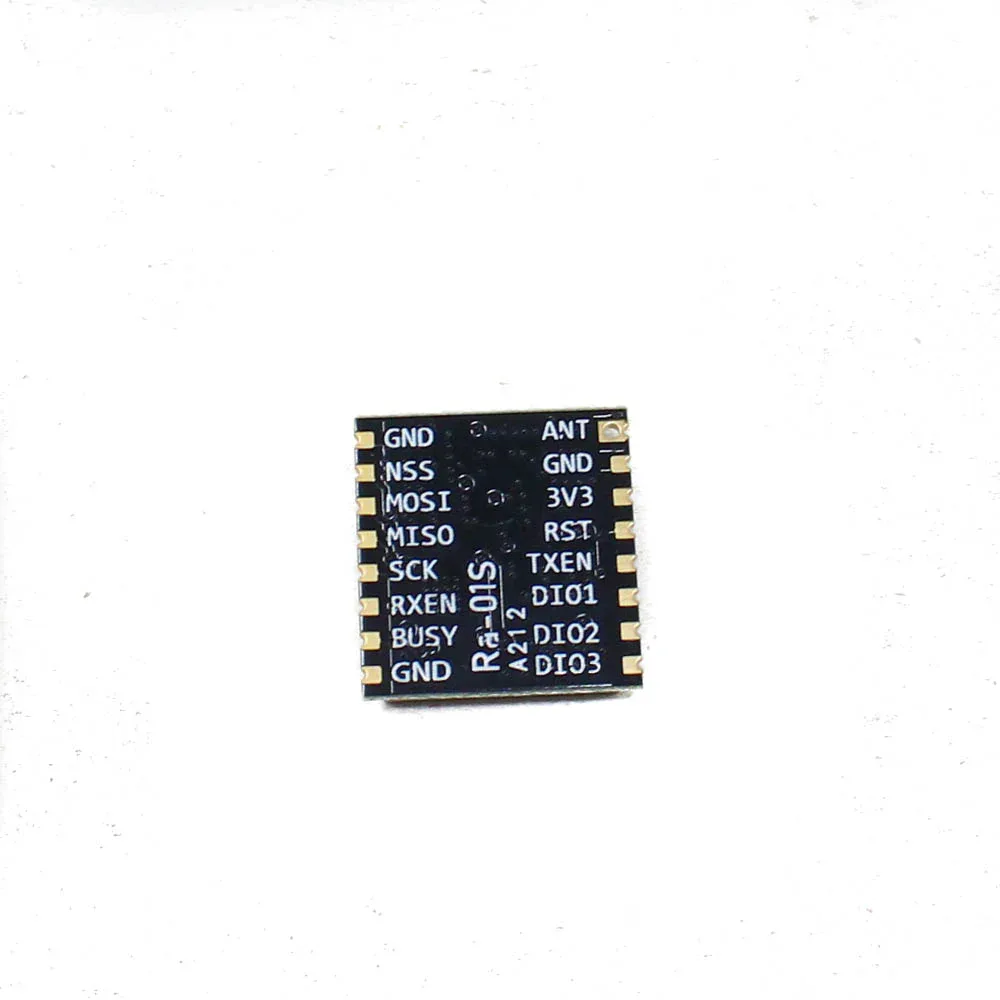

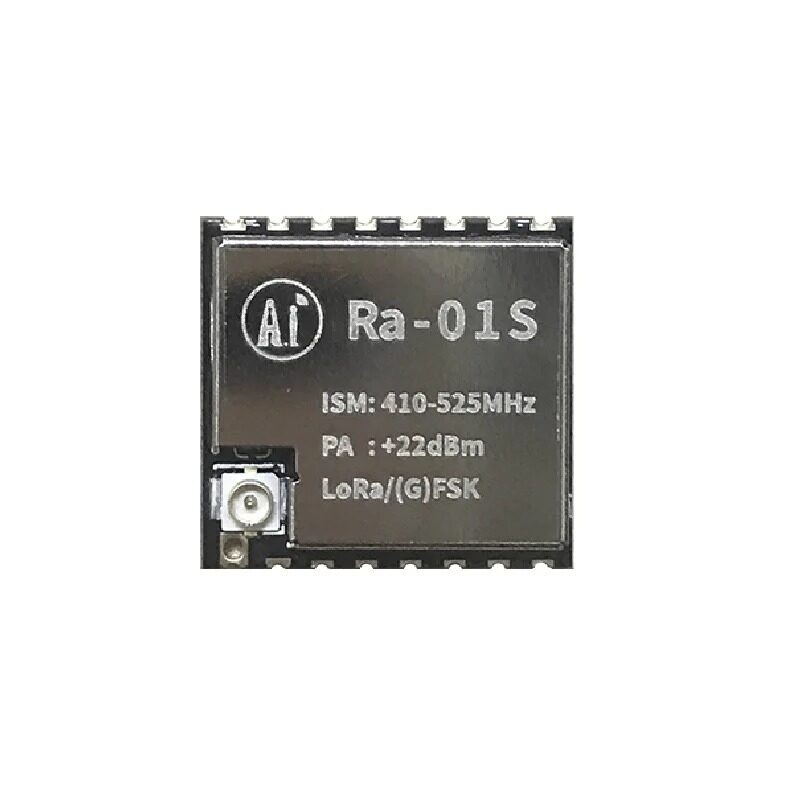

1 x Ai-Thinker LoRa Ra-01S
