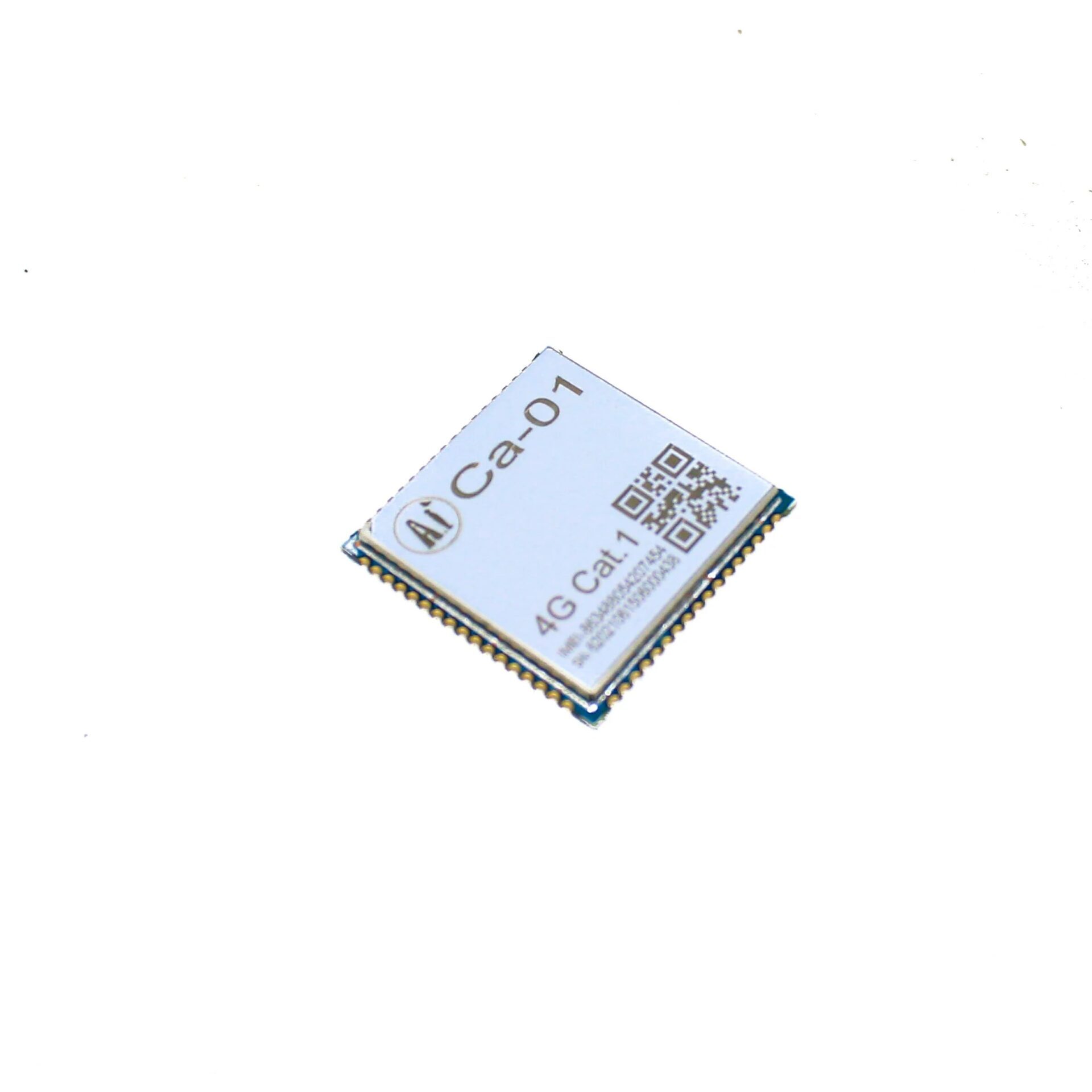

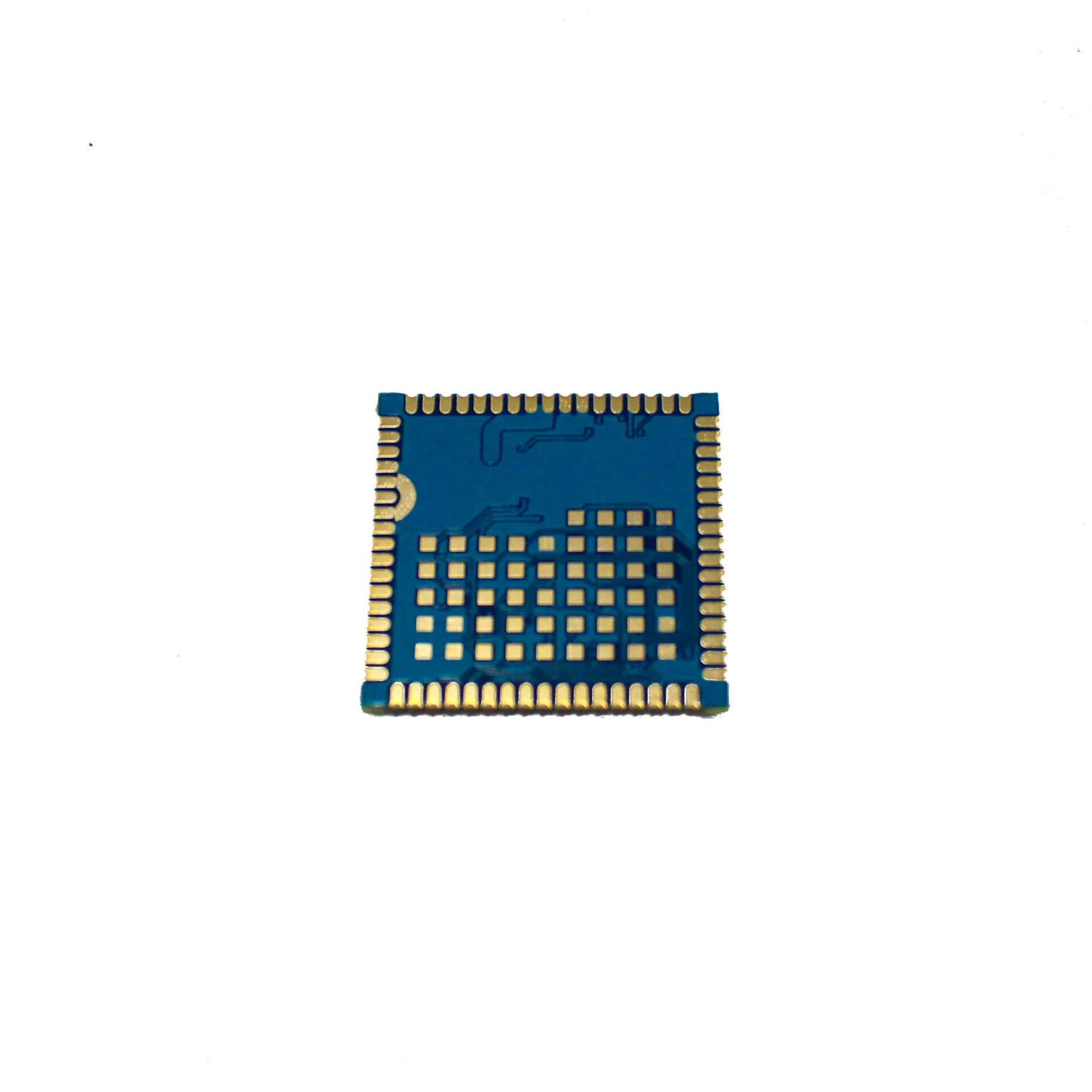

Ca-01 is an ultra-small package LTE Cat.1 bis module launched by Ai-Thinker. It uses Ziguang’s UIS8910 platform and supports LTE 3GPP Rel.13 technology. It is a 4G full Netcom module, which can adapt to different operators and products Maximum flexibility in product design.
Features:
- Support Cat.1
- Support VoLTE
- Support 1.4 ~ 20MHz RF bandwidth
- LTE-TDD: uplink and downlink configuration 2
- Maximum upstream rate 2Mbps, maximum downstream rate 8Mbps
- LTE-TDD: uplink and downlink configuration 1
- Maximum upstream rate 4Mbps, maximum downstream rate 6Mbps
- Network protocol features
- Support: TCP/UDP/PPP/FTP/HTTP/NITZCMUXINDIS/NTP/ HTTPS/
- In development: SMTP/SMTPS/MMS/DTMF
- USIM card interface
- Support USIM / SIM card: 1.8V and 3V
- USB interface
- Compatible with USB2.0 (only supports slave mode), the data transfer rate is up to 480Mbps
- Used for AT commands, data transmission, software debugging, software upgrade
- USB virtual serial port driver: support USB driver under Windows 7 / 8.1 / 10, Linux 2.6.x / 3.x / 4.1, Android 4.x / 5.x /6.x17.x and other operating systems
- Serial port
Packages Includes:
1 x Ai-Thinker Ca-01 4G Cat.1 LTE Module
