Looking for Ai Thinker Aipiscp Screen? Ai Thinker AiPiSCP-Knob(Screen) is available at Zbotic with fast shipping across India.

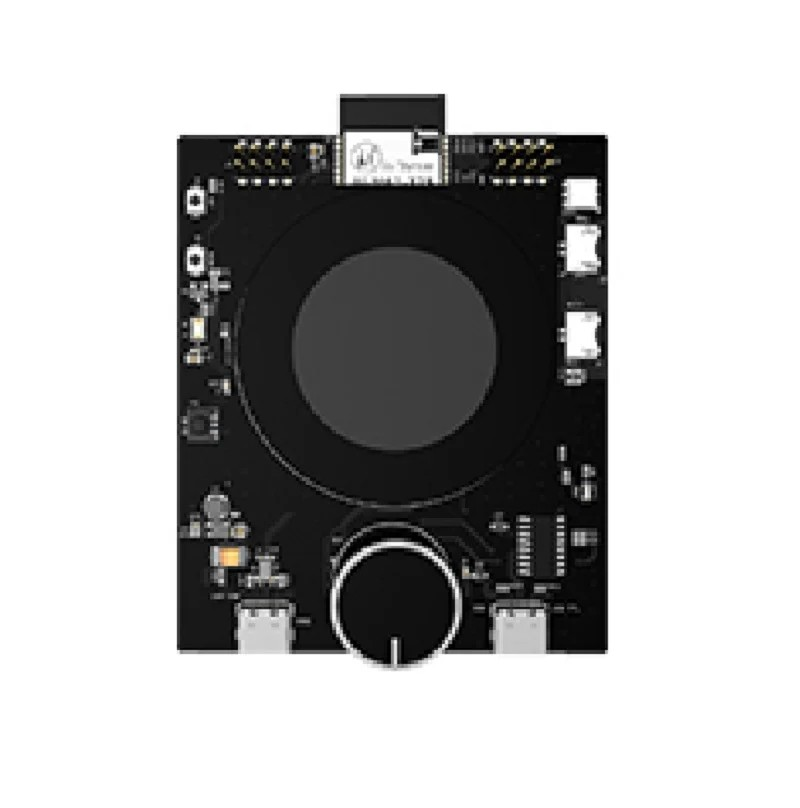

The AiPi-Knob is a rotary encoder driver board, also known as ‘Knob,’ created by the Ai-Thinker open source team. It features a 1.28-inch circular screen, pin interfaces, a rotary encoder, RGB lighting, built-in audio, and both infrared emission and reception capabilities. It also includes a download pin, IO pin, a USB interface for serial port downloads, and an additional USB interface. The AiPi-Knob comes preloaded with firmware and showcases four demo interfaces: a washing machine interface, an RGB light interface, a TV control interface, and an air conditioning control interface.
The Ai-M61-32S module boasts a comprehensive array of peripheral interfaces, including DVP, MJPEG, Display, AudioCodec, USB2.0, SDU, Ethernet (EMAC), SD/MMC (SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP, and GPIO. The AiPi-SCP-Knob combines a screen pin interface, rotary knobs, RGB lighting, built-in audio, infrared emission and reception, a download pin, an IO pin, a USB interface for serial downloads, and a USB interface for outgoing connections.
Features:
- built-in audio
- Infrared emission and infrared reception
- serial download a USB interface
- outgoing USB interface.
- AiPi-SCP-Knob integrates a screen pin interface
Specifications:
- Model: AiPiSCP-Knob
- Module: Ai-M61-32S
- Circular screen: 1.28 inch
- Length: 88mm
- Width: 72mm
- Height: 17mm
- Weight: 51g
Package Includes:
1 x Ai Thinker AiPiSCP-Knob(Screen)
Manual:
Ai Thinker AiPiSCP-Knob Overview
The Ai Thinker AiPiSCP-Knob is a rotary encoder driver board equipped with a 1.28-inch circular screen for intuitive visual feedback. Designed by the Ai-Thinker open source team, it provides pin interfaces, RGB lighting, audio output, and infrared transmission/reception for rapid prototyping of control panels and remote devices.
Key Features of Ai Thinker AiPiSCP-Knob
- 1.28-inch circular display for vivid graphics and status indicators
- Rotary encoder for precise user input and menu navigation
- Integrated RGB LED ring for customizable lighting effects
- Built-in audio module and infrared emitter/receiver for sound feedback and remote control
- Preloaded firmware with four demo UIs and dual USB ports for easy programming and power
- Genuine Ai Thinker product with fast shipping across India from Zbotic
Applications and Use Cases
- Prototype smart appliance interfaces (washing machine, TV, air conditioning)
- Create custom rotary input controls for IoT devices (volume knobs, menu selectors)
- Develop infrared remote emulation and reception for home automation projects
- Interactive learning platform for embedded systems and firmware development
- Rapidly showcase device functionalities using the preloaded demo interfaces
How to Use Ai Thinker AiPiSCP-Knob
Connect the AiPiSCP-Knob to your PC or power source via the USB serial port, then use the dual USB interfaces for firmware updates and power. Rotate the encoder to navigate the circular screen’s menus and select one of the four built-in demo interfaces. For custom projects, wire additional modules to the IO and download pin headers, then upload your own firmware using the Ai-Thinker development tools.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can I update the firmware on the AiPiSCP-Knob?
Yes. Use the USB serial download port to connect the board to your computer and upload new firmware via Ai-Thinker’s recommended development toolchain. The dual USB interface ensures stable power and data transfer.
What type of power and communication interfaces does the AiPiSCP-Knob provide?
The module features two USB ports—one dedicated to serial programming and one for power input—along with IO and download pin headers for external peripherals and sensors.
How do I use the infrared emitter and receiver?
The onboard IR LED and photodiode let you transmit and receive remote control signals. Simply select the IR demo interface on the circular screen and rotate the encoder to choose and send commands.
Technical Specifications
| Brand | Ai- Thinker |
|---|---|
| SKU | AI5654 |
| Availability | Out of Stock |
Applications & Use Cases
The Ai Thinker AiPiSCP-Knob(Screen) is a versatile ai thinker esp modules used across a wide range of applications including WiFi-enabled IoT devices, smart home sensors, web servers, mesh networks, and wireless data logging.
Common use cases:
- Connecting an Arduino project to WiFi
- Building a smart plug or switch
- Creating a wireless sensor network
This product is ideal for IoT developers, home automation enthusiasts, and embedded engineers.
Technical Tip: ESP32 supports both WiFi and Bluetooth. ESP8266 is WiFi-only but more affordable. Both are programmable via Arduino IDE or ESP-IDF.
