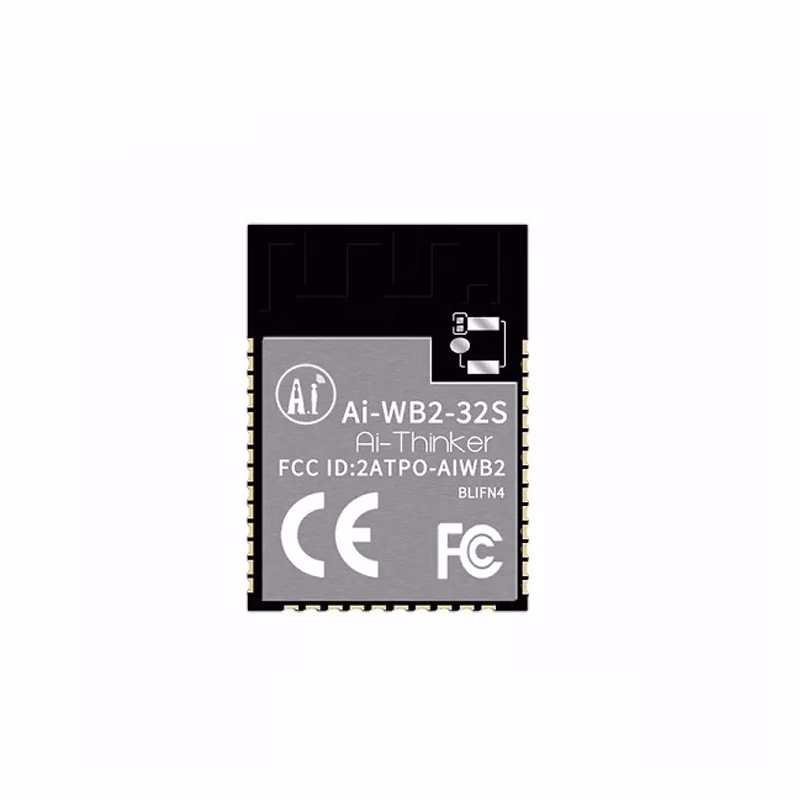

Ai-WB2-32Sis a Wi-Fi and BT module developed by Shenzhen Ai-Thinker Technology Co., LTD.The module is equipped with BL602 chip as the main processor and supports Wi-Fi.802.11b/g/n protocol and BLE 5.0 protocol.The BL602 chip has a low power 32-bit RISCCPU, 276KB RAM, and a variety of peripheral interfaces including SDIO, SPI, UART, I2C, IR Remote, PWM, ADC, DAC, PIR, and GPIO.It can be widely used in the Internet of things (IoT), mobile devices, wearable electronic devices, smart home and other fields.
Features:
- Support IEEE 802.11 b/g/n protocol
- Wi-Fi security supports Wi-Fi WMM/WMM-PS/WPA/WPA2 /WPS
- Supports 20/40MHz bandwidth with a maximum speed of 150 Mbps
- Support BLE working mode, support BLE4.2 protocol
- Support Station , Station + SoftAP , SoftAP mode
- Support 32-bit XT804 CPU288KB RAM
- MCU has built-in Tee security engine, and the code can distinguish security events fromnon-security events
- Integrated SASC/TIPC, memory and internal modules/interfaces can be configuredwithsecurity attributes to prevent unsafe code access
- Enable firmware signature mechanism for secure Boot/upgrade
- With firmware encryption function to enhance code security
- Firmware encryption keys are distributed using asymmetric algorithms for enhancedkeysecurity
- Hardware encryption module: RC4256, AES128, DES/3DES, SHA1/MD5, CRC32, 2048RSA, true random number generator
- Integrated Wi-Fi MAC/BB/RF/PA/LNA/Bluetooth
- Supports secondary development and integrates Windows and Linux development
environments - Supply voltage: 2.7V ~ 3.6V,
- Antenna: PCB on board, IPEX connector
Package Includes:
1 x Ai-Thinker Ai-WB2-32S Module
Technical Specifications
| Brand | Ai- Thinker |
|---|---|
| Model | WB2-32S |
| SKU | AI6115 |
| Weight | 0.01 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Ai-Thinker Ai-WB2-32S Module is a versatile ai thinker esp modules used across a wide range of applications including WiFi-enabled IoT devices, smart home sensors, web servers, mesh networks, and wireless data logging.
Common use cases:
- Connecting an Arduino project to WiFi
- Building a smart plug or switch
- Creating a wireless sensor network
This product is ideal for IoT developers, home automation enthusiasts, and embedded engineers.
Technical Tip: ESP32 supports both WiFi and Bluetooth. ESP8266 is WiFi-only but more affordable. Both are programmable via Arduino IDE or ESP-IDF.
