Ai Thinker Ai-M61-32S-Kit

Description:

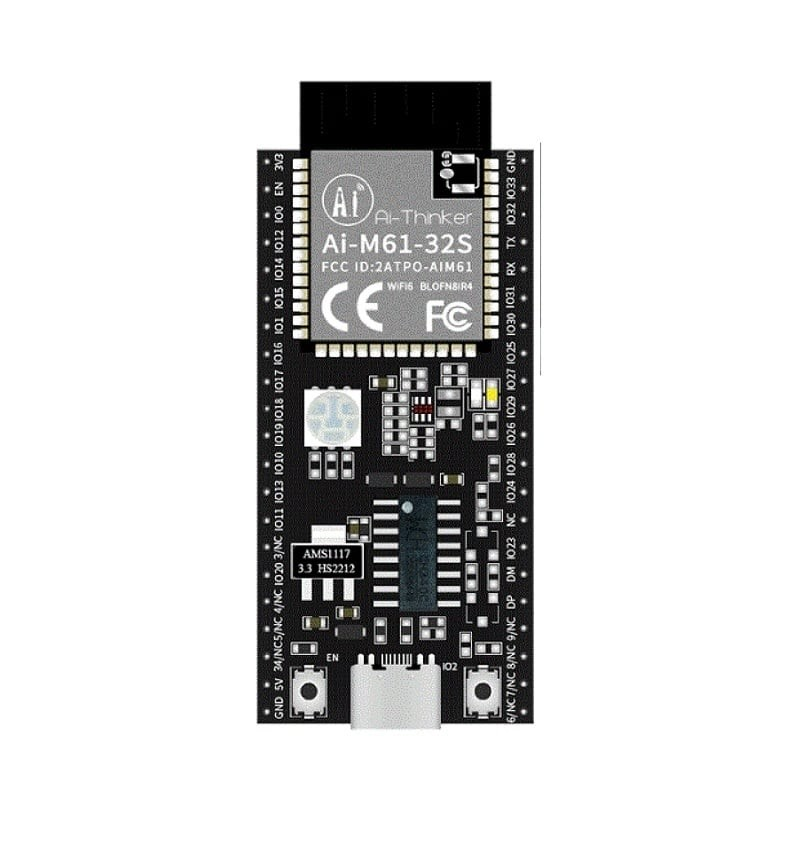

The Ai-M61-32S-Kit is a development board tailored for the Ai-M61-32S modules. The Ai-M61-32S is a Wi-Fi 6 + BLE 5.3 module created by Shenzhen Ai-Thinker Technology Co., Ltd. This module features the BL618 chip as its core processor, supporting Wi-Fi 802.11b/g/n/ax protocol, BLE protocol, and Thread protocol. The BL618 chip comprises a low-power 32-bit RISC-V CPU with a floating-point unit, DSP unit, cache, and memory, boasting a maximum operating frequency of 320M.

The Ai-M61-32S module offers an array of peripheral interfaces, including DVP, MJPEG, Display, Audio Codec, USB 2.0, SDU, Ethernet (EMAC), SD/MMC (SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP, GPIO, and more. Its versatility makes it suitable for a wide range of applications such as audio and video multimedia, Internet of Things (IoT), mobile devices, wearable electronics, smart homes, among others. Additionally, the Ai-M61-32S module’s Security Engine supports AES/SHA/PKA/TRNG, among other functions, facilitating image encryption and secure boot, thereby catering to diverse security needs within the IoT domain.

Features:

1. Support Wi-Fi/BLE/Thread coexistence
2. Wi-Fi security support WPS/WEP/WPA/WPA2/WPA3
3. Supports 20/40MHz bandwidth, 1T1R, maximum rate 229.4 Mbps
4. Support STA, SoftAP, STA + SoftAP, and sniffer modes
5. 32-bit RISC-V CPU with FPU and DSP, with a maximum dominant frequency of 320M• 4MB pSRAM,532KB SRAM,128KB ROM,4Kb eFuse
6. Supports DVP, MJPEG, Display, Audio Codec, USB2.0, SDU, Ethernet (EMAC), SD/MMC(SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP, GPIO, etc. • Support Camera Sensor DVP interface

Specification:

Datasheet:

Package Includes:

1 x Ai Thinker Ai-M61-32S-Kit

Ai Thinker Ai-M61-32S-Kit Overview

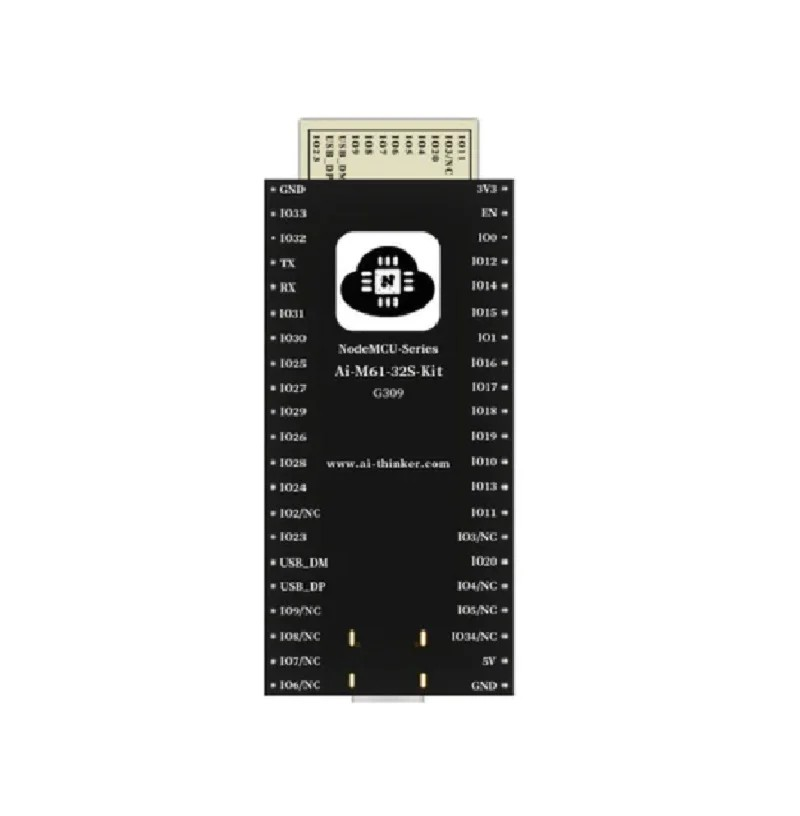

The Ai Thinker Ai-M61-32S-Kit is a compact development board built around the Ai-M61-32S Wi-Fi 6 + BLE 5.3 module featuring the BL618 RISC-V processor. Designed for rapid prototyping and evaluation, this kit offers high-performance wireless connectivity and extensive peripheral support for embedded and IoT applications.

Key Features of Ai Thinker Ai-M61-32S-Kit

• Built-in onboard antenna for stable 2.4 GHz Wi-Fi and BLE communication
• BL618 core: 32-bit RISC-V CPU with FPU, DSP, cache, and 320 MHz max frequency
• Supports Wi-Fi 802.11 b/g/n/ax, Bluetooth Low Energy 5.3, and Thread protocol
• Rich interfaces including DVP camera, MJPEG codec, display, audio codec, USB 2.0, SD/MMC, Ethernet (EMAC)
• Multiple serial and control buses: SPI, UART, I²C, I²S, PWM, GPIO
• Fast shipping across India from Zbotic with genuine product guarantee

Applications and Use Cases

• Smart home hubs and voice-controlled assistants with Wi-Fi 6 and BLE
• Wireless sensor nodes and telemetry devices in industrial automation
• Edge computing platforms handling audio, video (MJPEG), and display output
• Mesh networking prototypes using Thread protocol
• Camera-enabled IoT gadgets via DVP interface
• Portable data loggers and SD/MMC storage applications

How to Use Ai Thinker Ai-M61-32S-Kit

To get started, connect the Ai-M61-32S-Kit to your PC via its USB 2.0 port and install the required USB driver. Use the provided sample firmware and Ai Thinker SDK to compile and flash code over the onboard interface. Leverage the module’s peripheral pins—SPI, I²C, UART, DVP—to attach sensors, displays, or cameras, then configure Wi-Fi or BLE settings through AT commands or your custom application.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

Does the Ai-M61-32S-Kit support Wi-Fi 6 features like OFDMA?

Yes, the onboard Ai-M61-32S module supports Wi-Fi 6 (802.11ax), including OFDMA for improved multi-device performance.

Can I connect a camera module directly to this kit?

Absolutely. The board provides a DVP interface and MJPEG codec support for connecting and streaming camera modules.

How is the kit powered and programmed?

The Ai-M61-32S-Kit is powered via its USB 2.0 port, which also serves as the programming and debugging interface for flashing firmware.
