The AD8232 ECG Sensor Module Kit for Arduino is a compact board designed to measure the electrical activity of the heart and output it as an analog signal. This signal can be visualized as an ECG (Electrocardiogram), which displays the heart’s rhythm and beats.
The AD8232 is a single-lead heart rate monitor that incorporates an operational amplifier to reduce noise from the ECG signal, particularly in the PR and QT intervals. It is ideal for use in ECG and other bio-potential measurement applications.
The AD8232 ECG module is capable of extracting, amplifying, and filtering small bio-potential signals, even in challenging environments, such as when the electrodes are placed far from the heart or when the user is in motion.

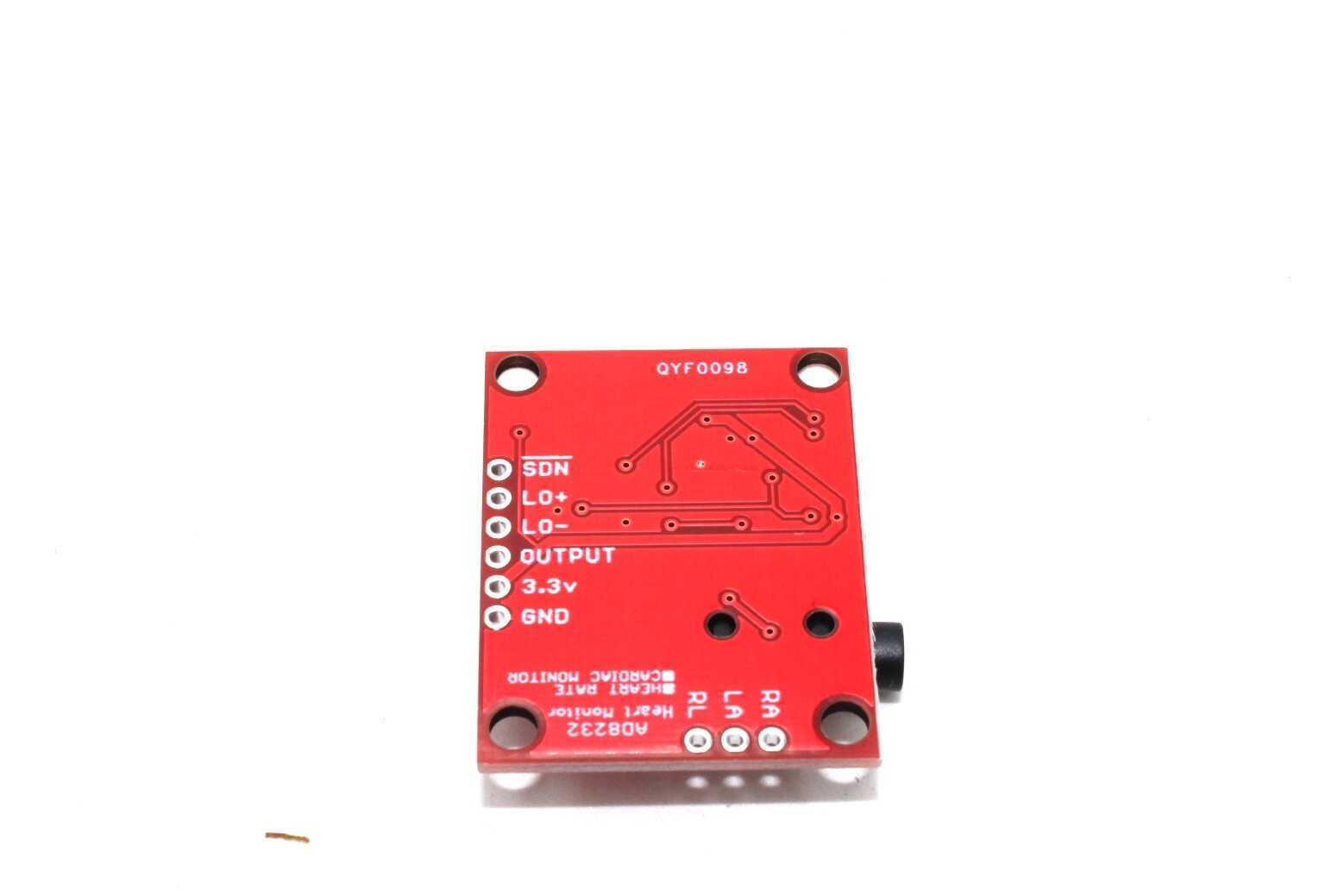

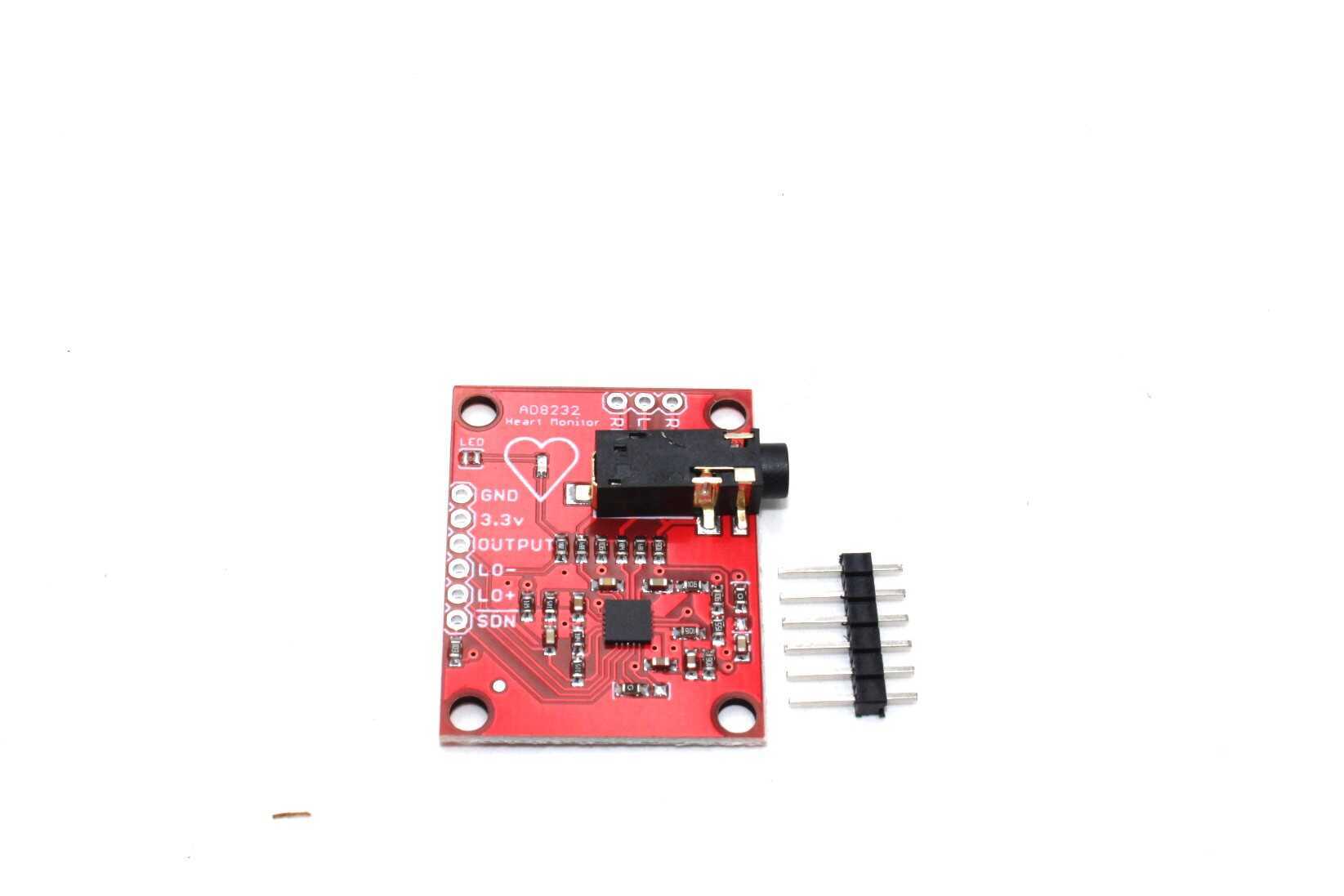

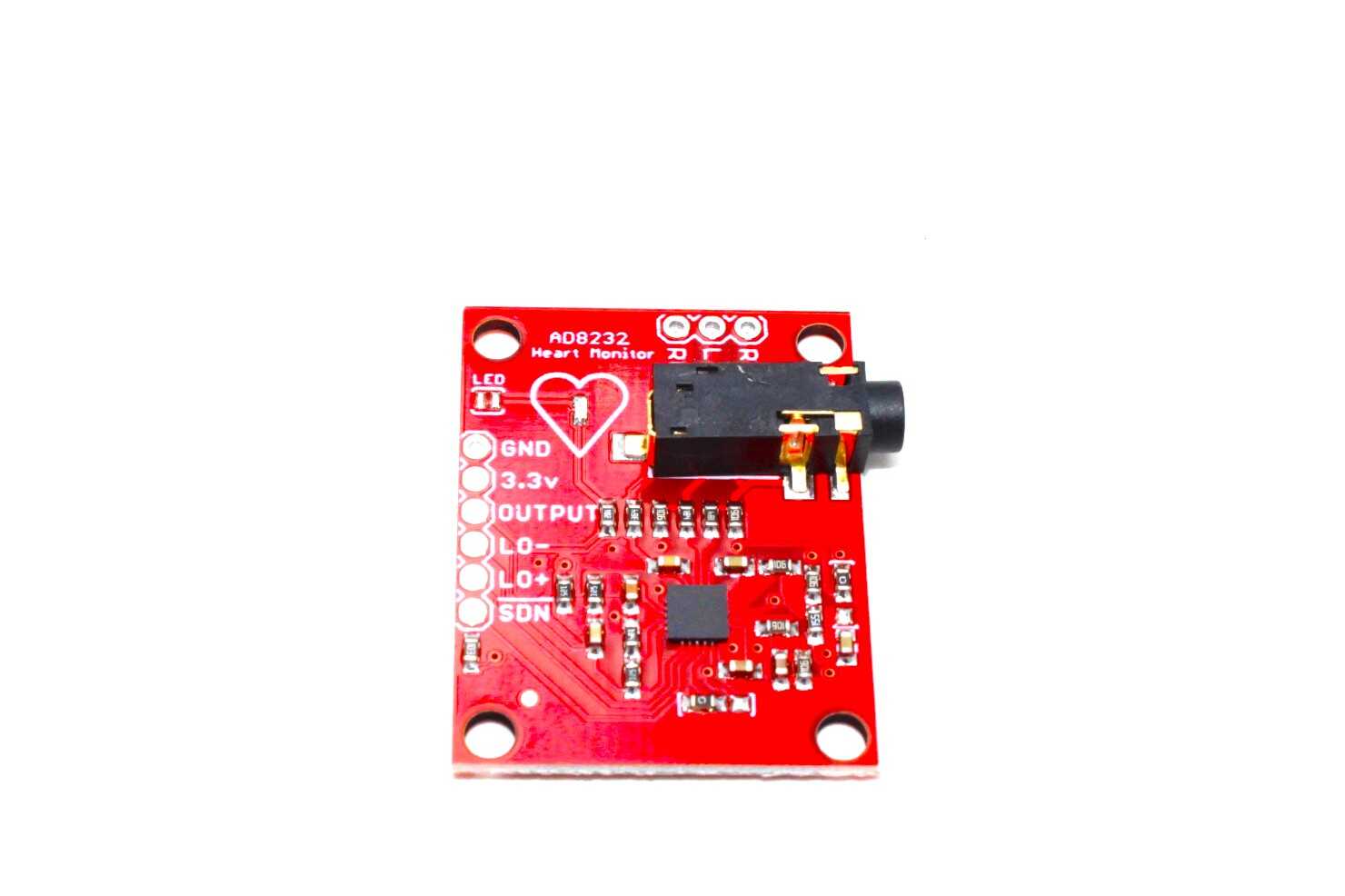

This module features nine pins that can be connected to various devices, including an Arduino or other development boards. The required pins for operation are SDN, LO+, LO-, OUTPUT, 3.3V, and GND.

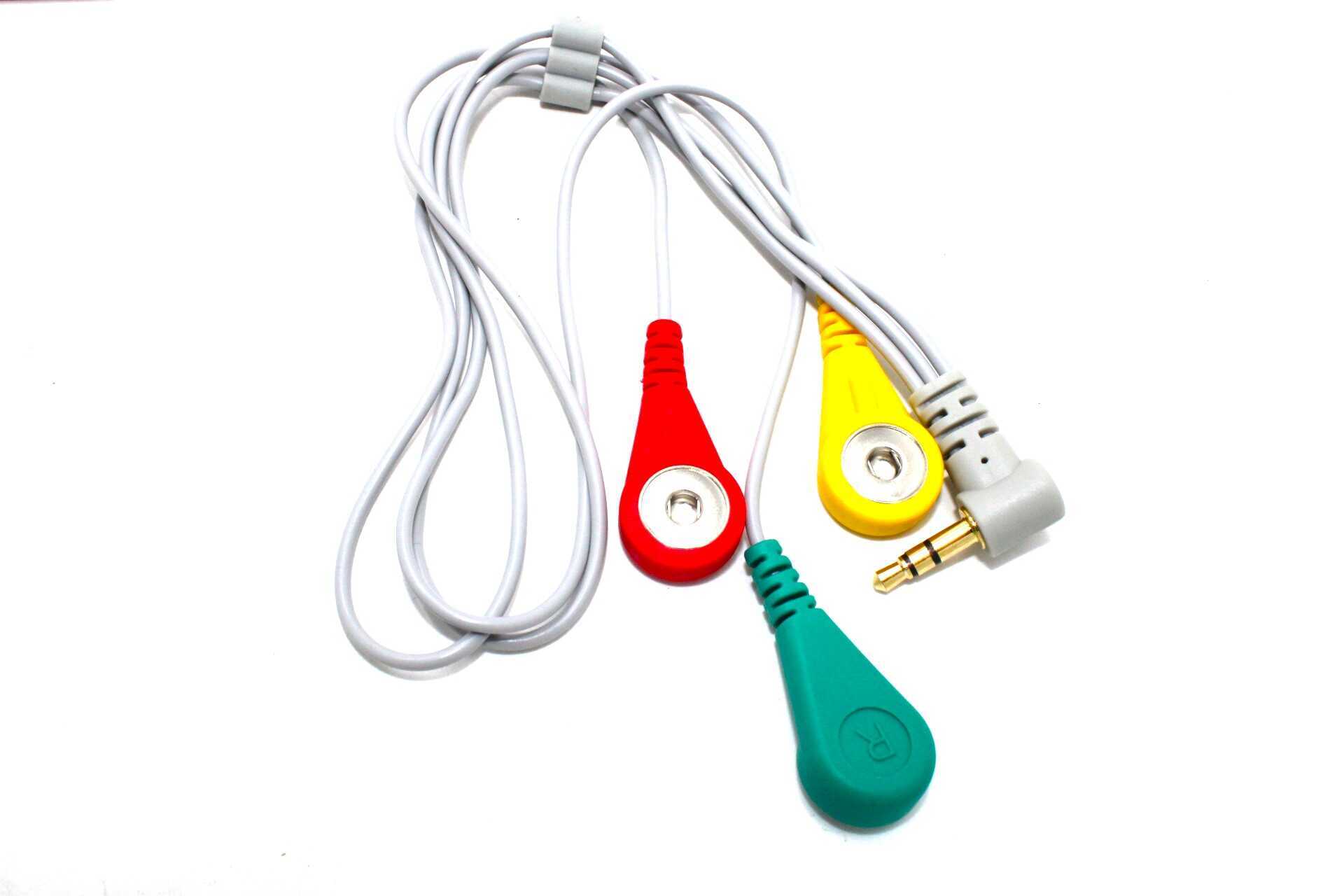

Additionally, the module has RA (Right Arm), LA (Left Arm), and RL (Right Leg) pins for attaching custom sensors, as well as an LED indicator that flashes with each heartbeat. To use the heart rate monitor, you will need biomedical sensor pads and a sensor cable, which can be found in the recommended products section.
Pin Connections :
Application
Fitness and exercise heart rate monitoring
Portable ECG
Remote health care
Gaming peripherals
Biological signal acquisition
Specification:
Operating Voltage (VDC)
3.3
Operating Temperature (°C):
-40 to 90
Length (mm):
36
Width (mm):
30
Height (mm):
18
Weight (g):
5
Cable Length (m):
1
Shipping Weight
0.01 kg
Shipping Dimensions
10 × 8 × 2 cm
Package Includes :

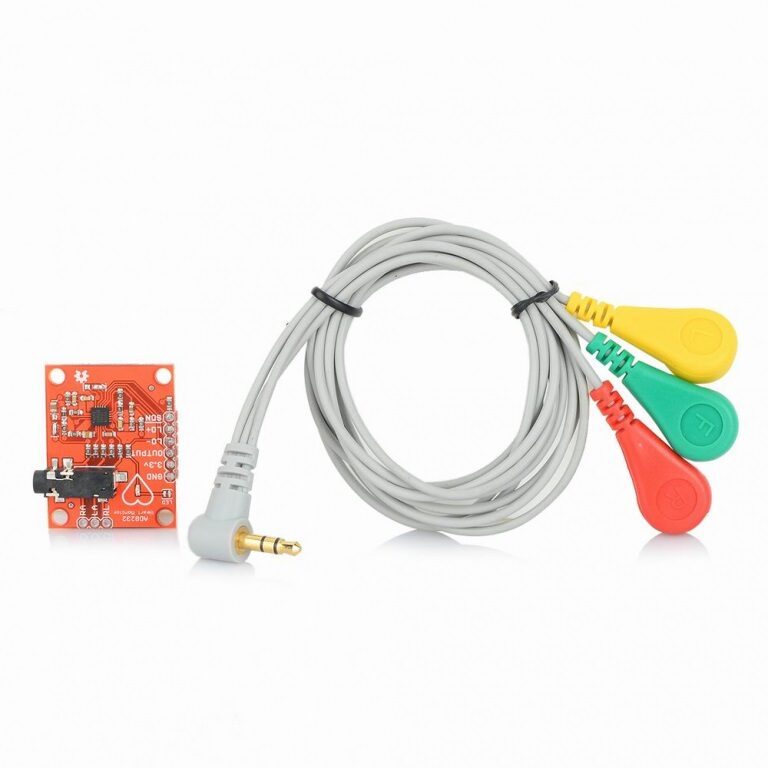

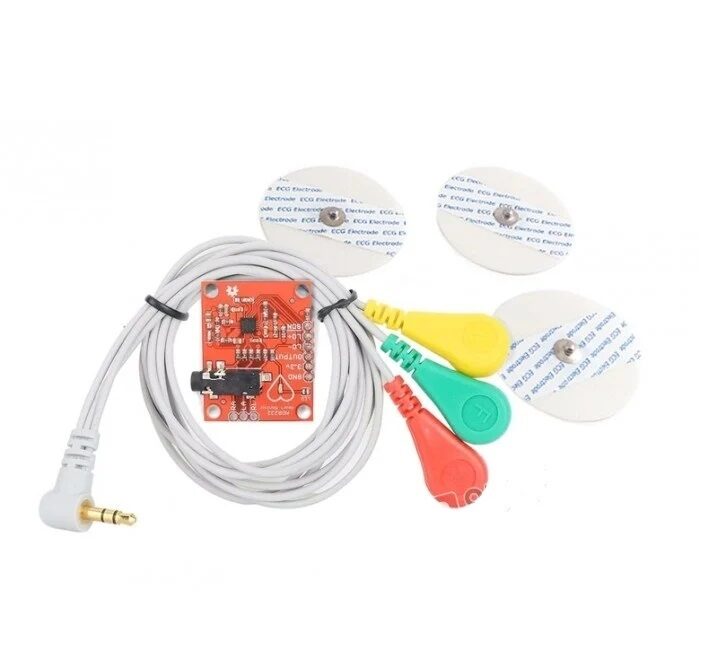

1 x Ecg module AD8232 heart ECG monitoring sensor module.
1 x Sensor cable.
3 x Electrode Pads.
The AD8232 ECG Monitor Sensor Module is a versatile biometric/ecg/emg sensor used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
Integrating into a custom electronics project
Learning and experimenting with circuits
Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
Shipping & Delivery
Free shipping on orders above ₹999 across India
Dispatched within 1-3 business days
Expected delivery: 3-7 business days depending on location
Secure packaging to ensure safe transit of electronic components
Weight
0.05 kg
Dimensions
3 × 4 × 2 cm
15 Days Warranty
Please note that this item is only covered by a standard supplier warranty against manufacturing defects for a period of 15days from the time of delivery. It is important to understand that only manufacturing defects are covered under this warranty, and any other issues will not be considered for reimbursement or replacement. We strongly advise inspecting the product upon delivery to ensure it meets your expectations. In case of any manufacturing defects, we guarantee reimbursement or replacement.
What voids warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
