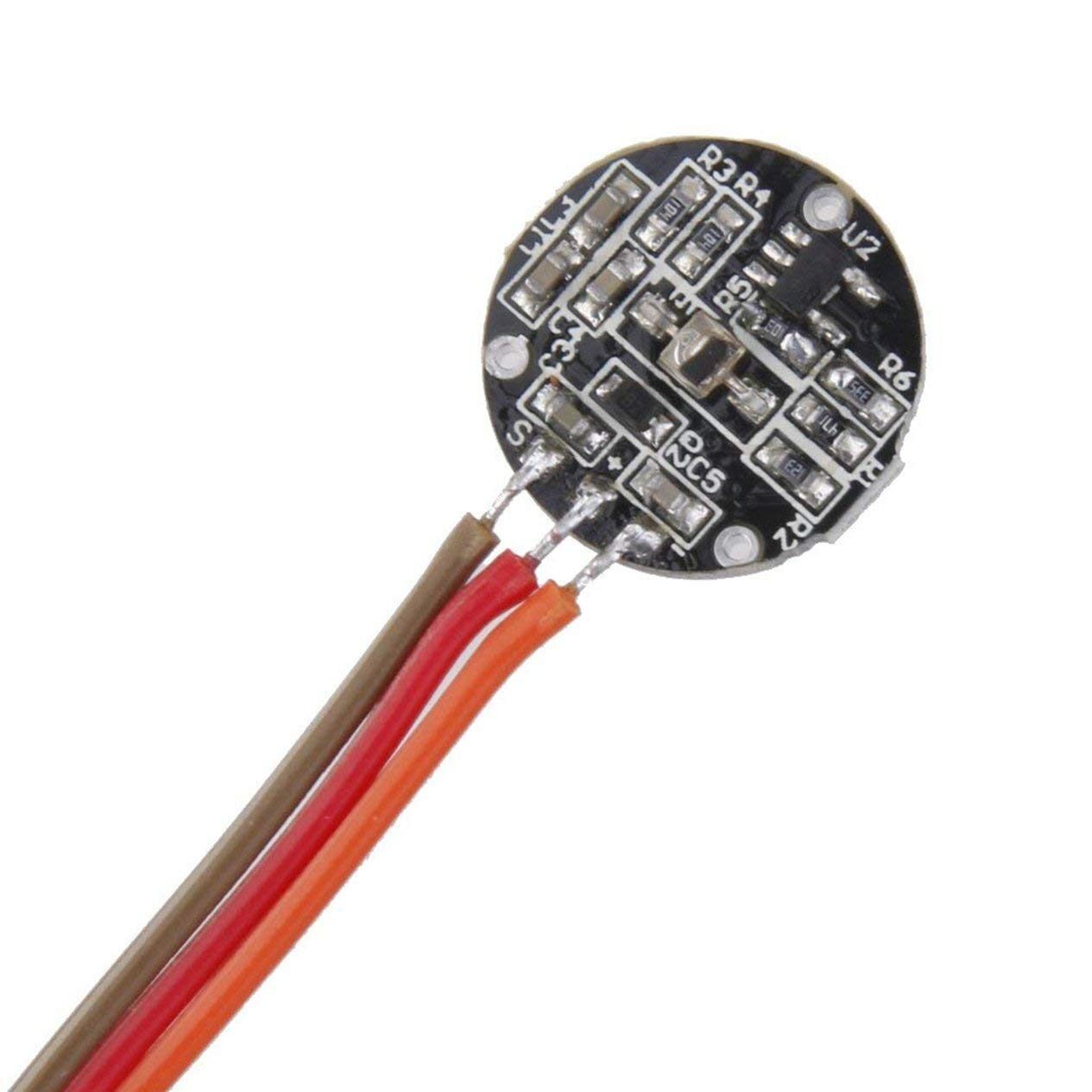

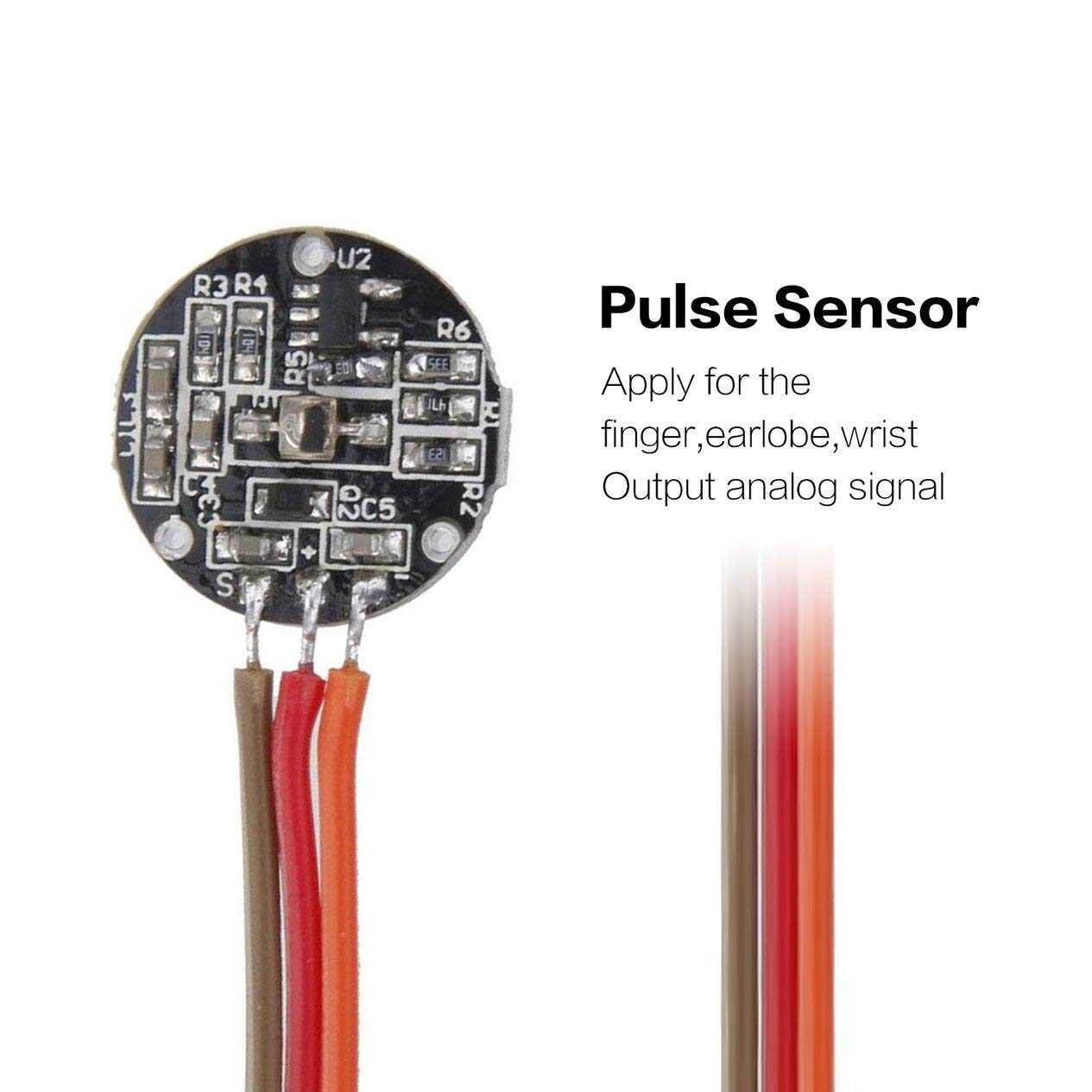

Product description:
Introducing the Heart Rate Pulse Sensor Module, a versatile tool for easily integrating heart rate data into your electronic projects. Whether you’re a student, artist, athlete, maker, or developer, this sensor provides a plug-and-play solution for obtaining real-time heart rate readings.
Designed for simplicity, the Pulse Sensor Module combines a straightforward optical sensor with advanced amplification and noise cancellation circuitry. This design ensures quick and reliable pulse readings, making it perfect for a variety of applications.
With its user-friendly design and reliable performance, the Heart Rate Pulse Sensor Module is perfect for educational projects, fitness applications, interactive art installations, and more. Unlock the potential of heart rate data in your projects with this innovative sensor module.
Pulse Sensor Arduino Hookup:
Connect the sensor’s power supply pins to the Arduino board supply pin as Red – 5V, Black – GND and Purple – A0 (analog input 0) its over. This Analog input reading can be displayed in the serial terminal of Arduino IDE or it can be drawn as the pulse by using Processing IDE.
Note: This Product comes with attached cable or with detachable cable we will ship it randomly according to the availability from supplier
Features:

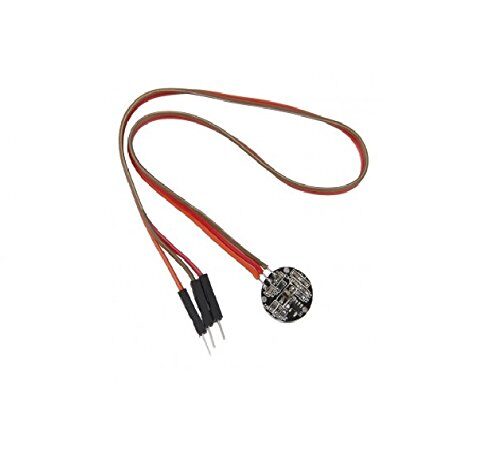

- Plug-and-Play Design: Comes with a color-coded cable featuring standard male header connectors, allowing for easy integration with Arduino or breadboard projects without the need for soldering.
- Versatile Mounting Options: The sensor features three holes around the edge, enabling convenient sewing into various materials or attaching to different surfaces.
- Visualization Software: Includes visualization software (created in Processing) for instant monitoring of sensor output and troubleshooting.
- Operating Voltage: 5V
- Operating Current: 4mA
- Components Included: Pulse Sensor Board, 24-inch Color-Coded Cable with Standard Male Headers, Ear Clip for Earlobe Heart Rate Measurement, Velcro Finger Strap, Transparent Stickers for Sensor Protection
Specifications:
| Model Type | Heart Rate Sensor |
|---|---|
| PCB Diameter (mm) | 15 |
| PCB Thickness (mm) | 1.5 |
| Operating Voltage | 5V |
| Operating Current | 4mA |
| Included Components | – Pulse Sensor Board – 24-inch Color-Coded Cable with Standard Female Headers – Ear Clip for Earlobe Heart Rate |
Note: The color of the connecting cable may vary.
Package Includes :
- 1 x Heart Beat Pulse Sensor
Useful Links:
Getting Started with Heart Beat Pulse Sensor
Flame and Fire Sensor: IR Detection for Safety Systems
Fire detection is one of the most critical safety functions in any building, factory, or automated system. Flame...
Read More →
Distance Sensor Comparison: Ultrasonic vs IR vs Laser Ranging
Distance measurement is one of the most common requirements in robotics, automation, IoT, and embedded electronics. Three fundamentally...
Read More →
Current Sensor ACS712: Power Monitoring with Arduino
The ACS712 current sensor measures both AC and DC current flowing through a wire and outputs a proportional...
Read More →Technical Specifications
| SKU | AI0050 |
|---|---|
| Weight | 0.0 kg |
| Availability | In Stock |
Applications & Use Cases
The Heart Rate Pulse Sensor Module is a versatile biometric/ecg/emg sensor used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
