This is the 250V variant of the 80-250V SSR-100AA Solid State Relay in Solid State Relays. Available at Original price was: ₹591.18.₹552.24Current price is: ₹552.24. (₹468.00 + GST) with free shipping across India.
PRODUCT DESCRIPTION

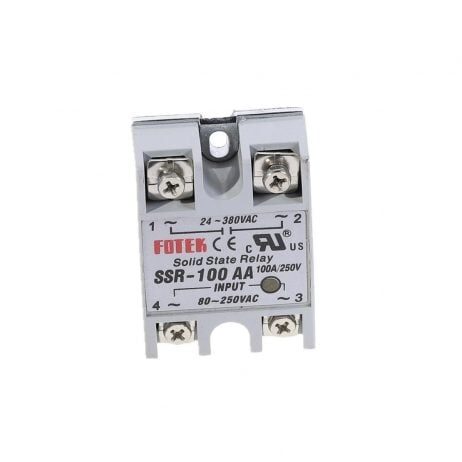

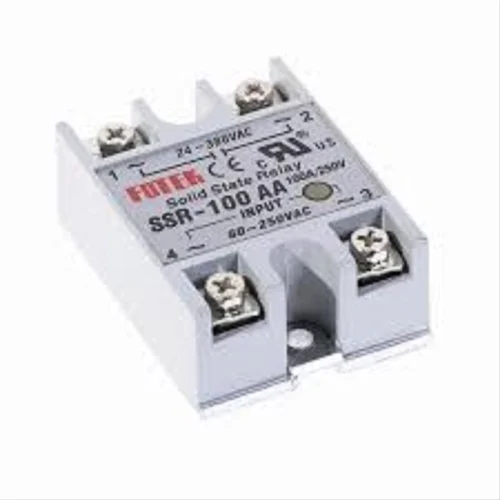

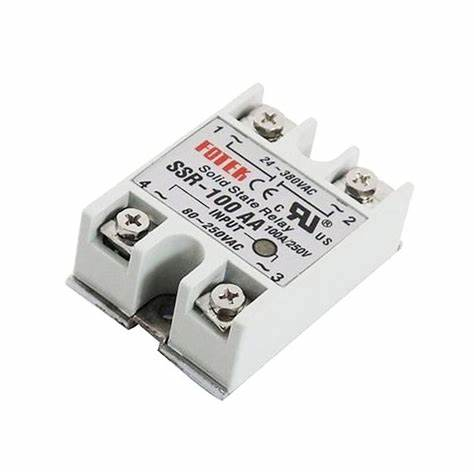

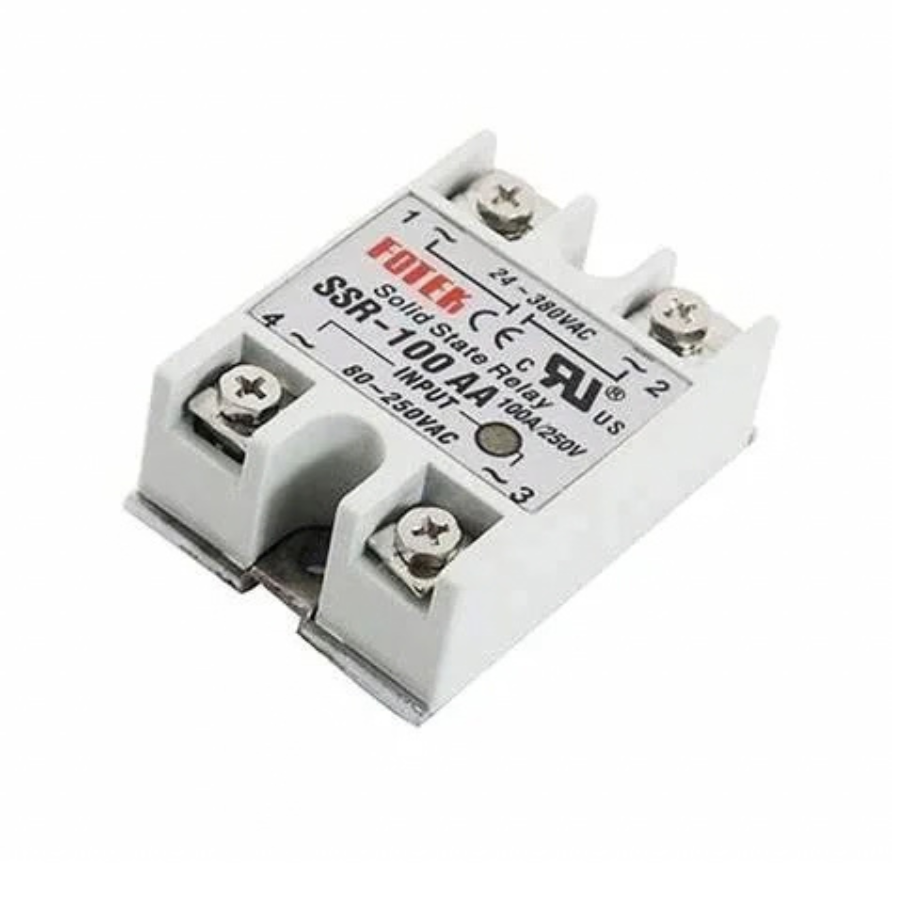

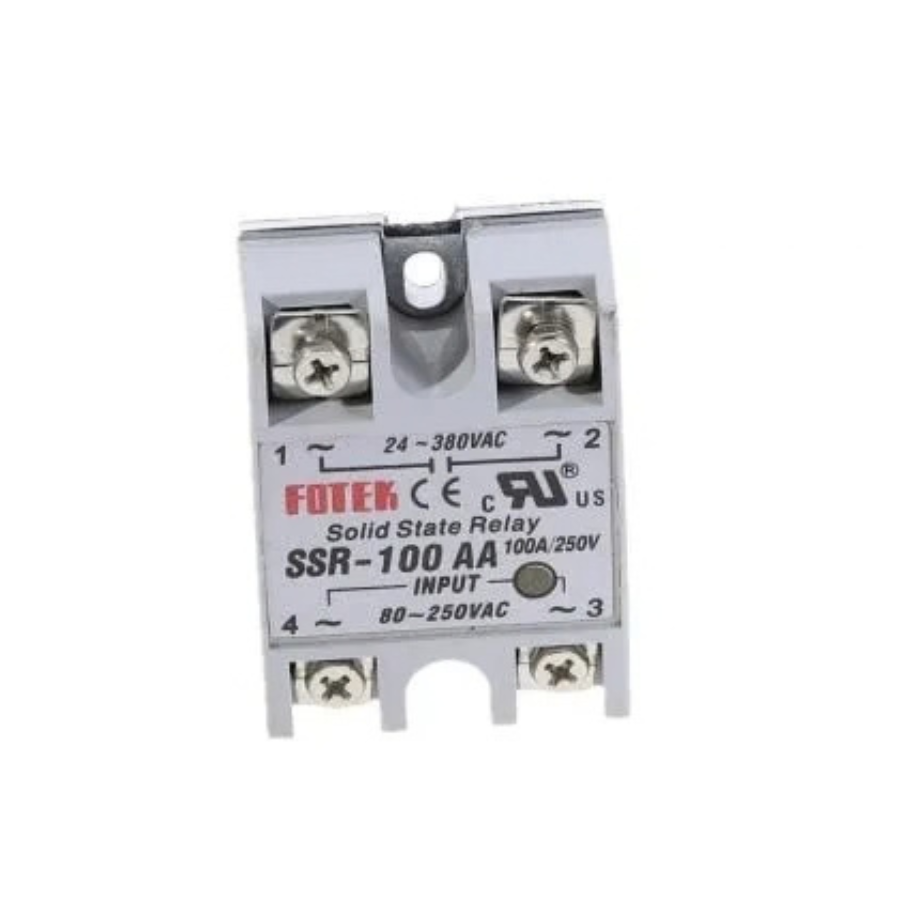

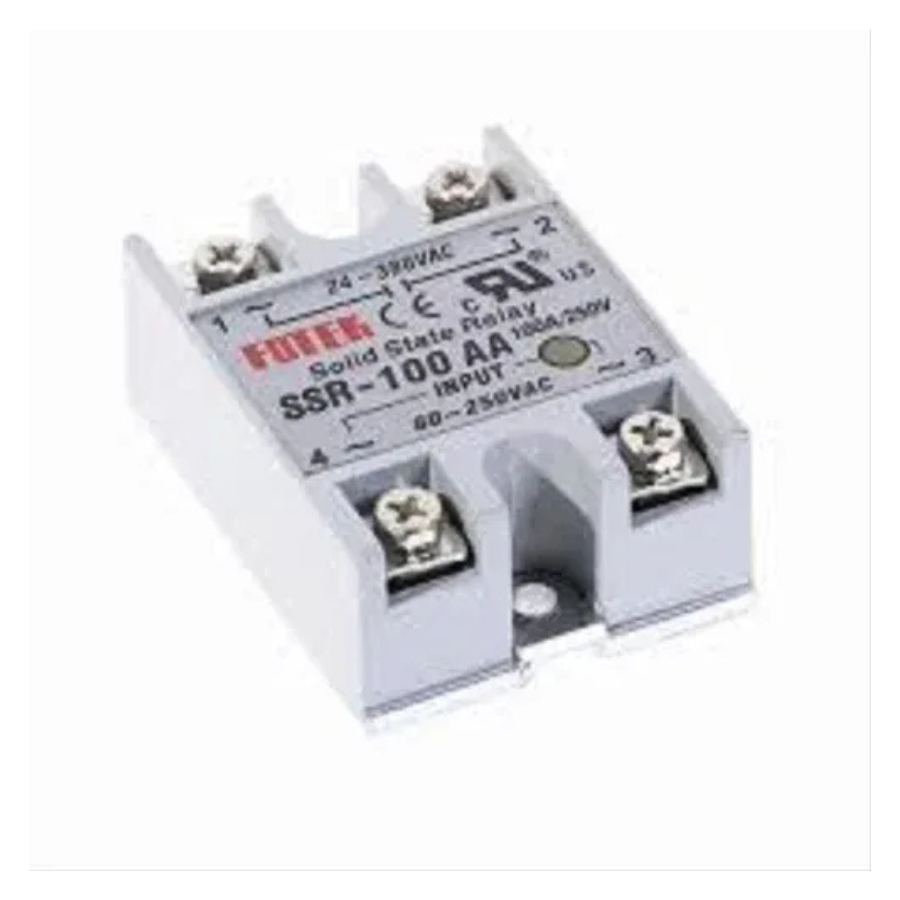

Introducing the AC To AC SSR-100AA Solid State Relay Module, a state-of-the-art electronic switch designed for efficient and reliable control of AC loads without any moving parts. Unlike traditional electromechanical relays, this solid-state relay (SSR) utilizes advanced technology to provide superior performance and longevity.
The SSR-100AA features a photo-coupled design, ensuring optimal signal isolation and control. With a low voltage signal, it energizes an LED, which in turn activates a photo-sensitive diode. This diode then triggers a back-to-back thyristor, silicon-controlled rectifier, or MOSFET transistor to seamlessly switch the load.
Capable of handling current loads of up to 100A, this SSR operates within an input voltage range of 80-250VAC. It employs a zero-cross trigger control method, enhancing efficiency and precision in load switching. Each relay module is equipped with four screw terminals, compatible with ring or fork connectors, and features a protective plastic cover for added safety.
Features:
- Long service life and high reliability ensure consistent performance over time.
- Reduced electromagnetic interference for enhanced operational stability.
- Compact size and highly reliable design offer maximum simplicity for users.
- Compatible with a wide range of applications requiring AC load switching.
Upgrade your control systems with the AC To AC SSR-100AA Solid State Relay Module, offering unparalleled reliability and efficiency for your electronic projects.
Specifications:
| Product Type | Solid State Relay |
|---|---|
| Rated Current (mA) | 100A |
| Dielectric Strength | Over 2.5kVA / 1 min |
| Input Voltage (V AC) | 80-250 |
| Switching Voltage (VAC) | 24-380@100A |
| Operating Temperature (°C): | -20 to 85 °C |
| Material: | ABS |
| Length (mm): | 45.5 |
| Width (mm): | 62.5 |
| Height (mm): | 24 |
| Weight (g): | 93 |
| Shipping Weight | 0.105 kg |
| Shipping Dimensions | 12 × 9 × 1 cm |
Package Includes:
1 x 80-250V SSR-100AA Solid State Relay
Best WiFi Smart Switches India: Sonoff vs Shelly Compared
Finding the best WiFi smart switch India has never been more competitive. Whether you're retrofitting a Mumbai apartment...
Read More →
ESP32 Bluetooth Mesh: Network of Smart Sensor Nodes
Building an ESP32 Bluetooth mesh nodes network opens up a new paradigm for sensor deployments that covers areas...
Read More →
Tasmota Firmware: Flash ESP8266 for Smart Home Control
If you want to build a powerful, cloud-free smart home system on a budget, Tasmota firmware for ESP8266...
Read More →Technical Specifications
| Model | SSR-100AA |
|---|---|
| SKU | AI3177 |
| Weight | 0.13 kg |
| Availability | In Stock |
Applications & Use Cases
The 80-250V SSR-100AA Solid State Relay is a versatile solid state relays used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
