This is the 24V variant of the 8 Channel 24V Relay Module Solid State High Level SSR DC Control 250V 2A with Resistive in Relay Modules. Available at ₹912.14 (₹773.00 + GST) with free shipping across India.

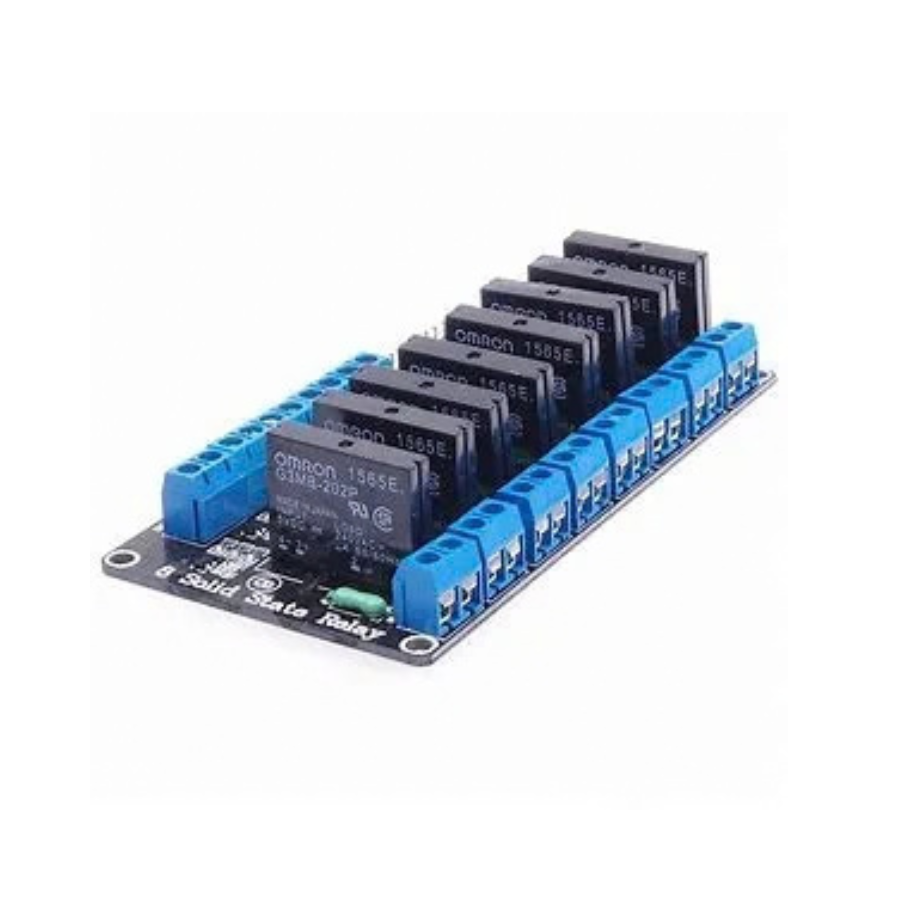

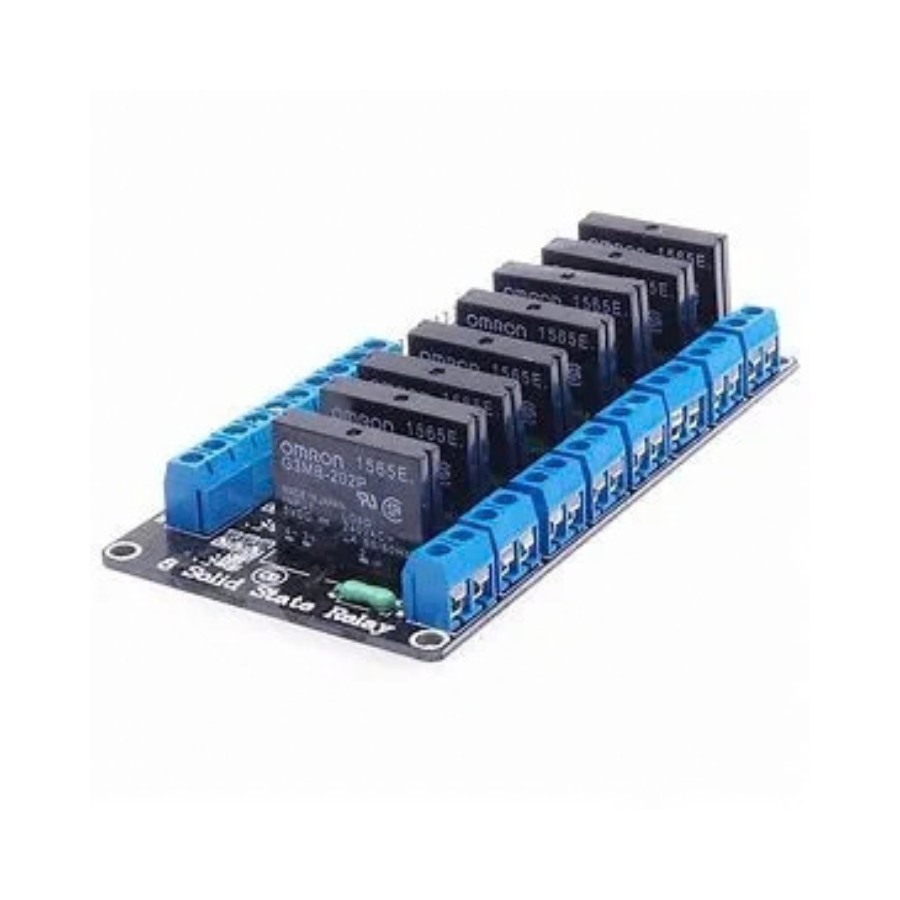

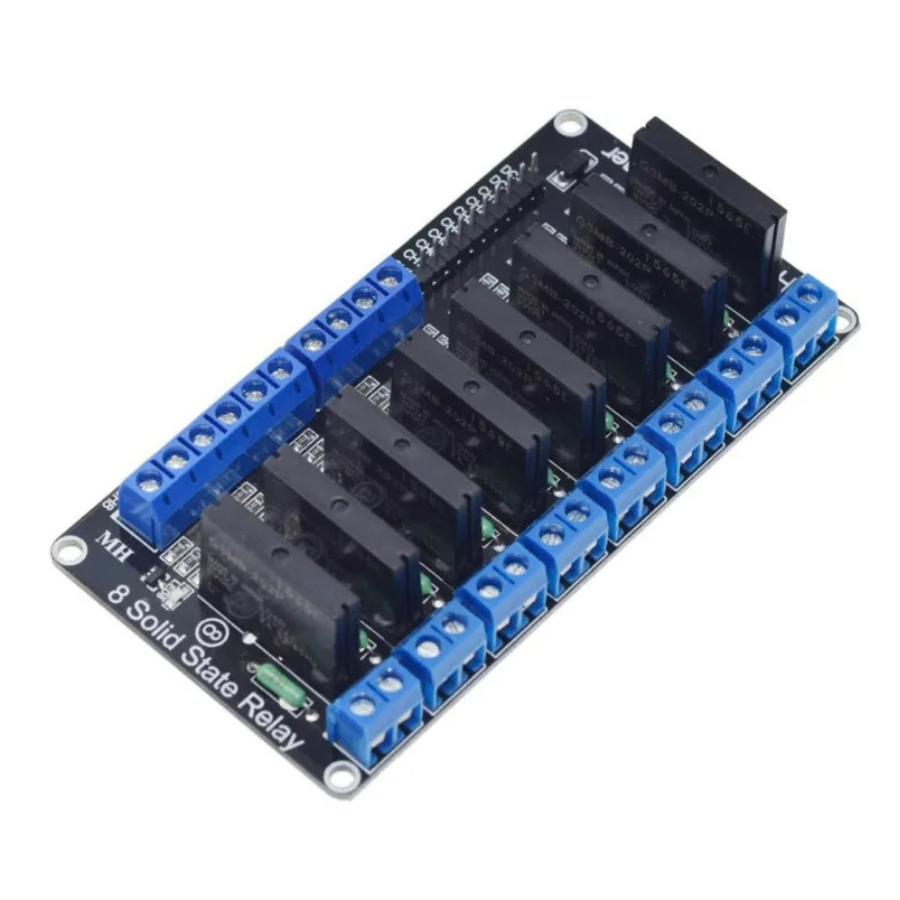

8 Channel 24V Relay Module Solid State High Level SSR DC Control 250V 2A with Resistive
Introducing the 8 Channel 24V Solid State Relay Module, a versatile solution for controlling high-voltage AC loads from higher voltage DC control circuitry. Unlike traditional mechanical relays, this module utilizes solid-state technology, offering numerous advantages such as noise-free operation and an extended lifespan.
Features:
- 8-Channel Solid State Relay Board: Control up to 8 loads independently with ease.
- 2 AMP Capacity: Each channel can handle loads of up to 2 amps at 240 VAC, providing ample power for various applications.
- Versatile Usage: Ideal for controlling lighting, holiday displays, and other appliances or equipment requiring high-current switching.
- LED Indicator: Features LED indicators for each relay, allowing for quick status monitoring.
- Easy Integration: Assembled and electrically tested for immediate use, offering convenience and reliability.
- Direct Microcontroller Control: Can be easily controlled directly by a microcontroller, simplifying integration into existing systems.
Input Parts:
- DC: Connect to VCC to supply power according to relay voltage.
- DC-: Connect to GND for ground connection.
- IN1-IN8: Individual input signals for triggering each channel relay (active at the high level).
Upgrade your control system with the 8 Channel 24V Solid State Relay Module and experience enhanced reliability, flexibility, and performance. Whether you’re managing lighting systems, holiday displays, or other appliances, this module offers seamless control and peace of mind.
Specifications:
| Part Number | G3MB-202P |
|---|---|
| Power Supply(V) | 3-24VDC/160mA |
| Switching Voltage (VAC) | 240@2A |
| Isolation | Phototriac |
| Zero Cross | Yes |
| Length (mm): | 105 |
| Width (mm): | 57 |
| Height (mm): | 24 |
| Weight (g): | 88 |
| Shipping Weight | 0.095 kg |
| Shipping Dimensions | 13 × 8 × 1 cm |
Package Includes:
1 x 8 Channel 24V Relay Module Solid State High-Level SSR DC Control 250V 2A with Resistive Fuse
ESP32 LED Strip Controller: WS2812B WLED Firmware Guide
The combination of ESP32 WLED WS2812B LED controller has become one of the most popular DIY smart lighting...
Read More →
ESP-NOW Tutorial: Wireless Communication Between ESP32 Boards
ESP-NOW is one of the most underrated features of Espressif's ESP32 and ESP8266 microcontrollers — a lightweight, connection-free...
Read More →
Modbus to MQTT Bridge: Integrate Legacy Industrial Sensors
Table of Contents Structural Health Monitoring Overview Vibration and Strain Sensors Sensor Node Design Data Collection Architecture Analysis...
Read More →Technical Specifications
| Voltage Range | 24V - 250V |
|---|---|
| Current Rating | 2A |
| Channels | 8-channel |
| SKU | AI3169 |
| Weight | 0.09 kg |
| Availability | Out of Stock |
Applications & Use Cases
The 8 Channel 24V Relay Module Solid State High Level SSR DC Control 250V 2A with Resistive is a versatile relay modules used across a wide range of applications including home automation, industrial control, IoT projects, Arduino/Raspberry Pi interfacing, and motor control.
Common use cases:
- Switching high-voltage AC appliances with a microcontroller
- Building a smart home relay board
- Automating irrigation pumps in agriculture
This product is ideal for electronics engineers, IoT developers, and automation hobbyists.
Technical Tip: Use optocoupler-isolated relay modules to protect your microcontroller. Match relay coil voltage to your MCU logic level (3.3V or 5V).
