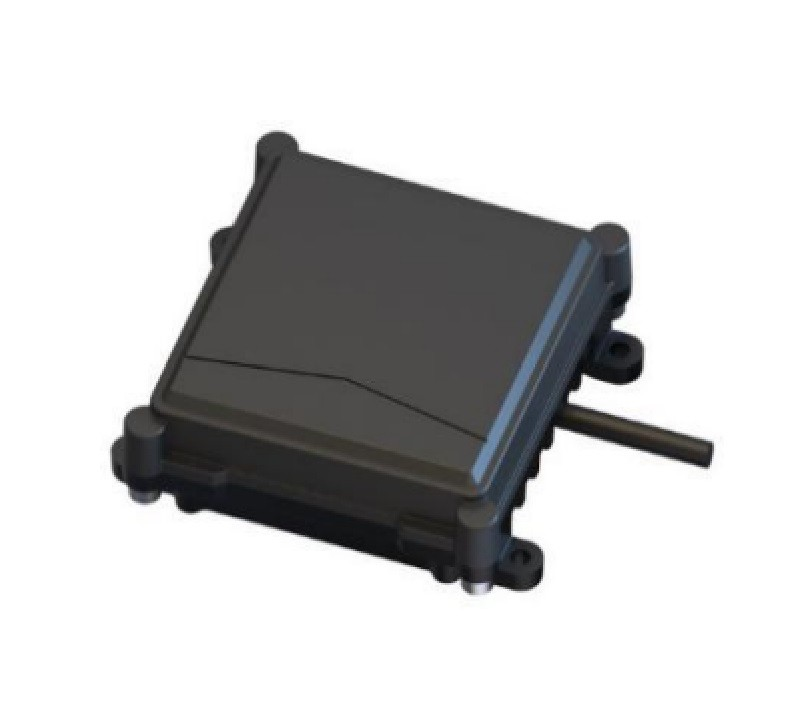

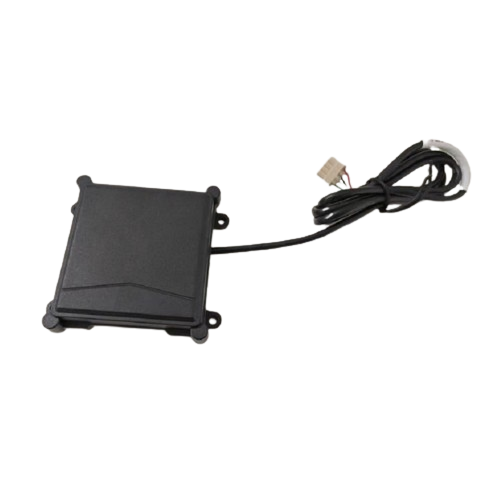

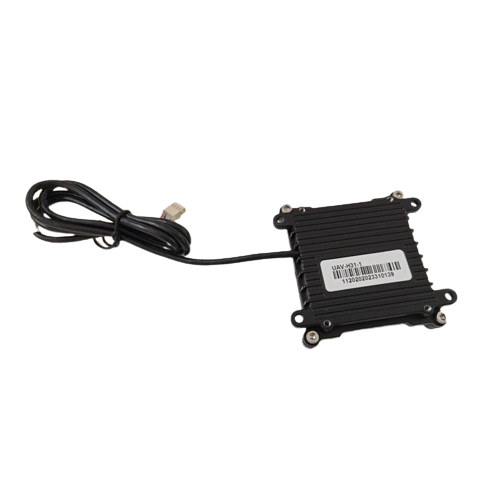

The UAV-R22-1 (UART) Obstacle Avoidance Radar is a lightweight mmWave radar sensor developed and manufactured by Microbrain Intelligent. It offers high measurement accuracy, compact size, high sensitivity, and stable performance, making it easy to integrate into various systems.
Looking for 77-81ghz? 77-81GHz Obstacle avoidance radar sensor UAV-R22-1 (UART) is available at Zbotic with fast shipping across India.
The UAV-R22-1 (UART) Obstacle Avoidance Radar is a lightweight mmWave radar sensor developed and manufactured by Microbrain Intelligent. It offers high measurement accuracy, compact size, high sensitivity, and stable performance, making it easy to integrate into various systems. Using a fan-shaped 77GHz electromagnetic wave, the radar processes the echo signals to detect obstacles ahead. It provides real-time data on the relative distance, speed, and orientation of obstacles, helping guide the radar-equipped platforms, such as drones, to avoid collisions and ensure safe operation.
Features:
2T4R MIMO array antenna design,±15°azimuth FOV,High angular resolution and angular detection accuracy；
Operating frequency is 77GHz~81GHz，sensitive to moving target, high range detection accuracy；
Effective detection distance 27m
Support UART protocol output，Default baud rate115200；
Single chip DSP+ARM dual-core architecture signal processing and control unit , radar data processing, target detection, target tracking and other algorithms are runned on the internal high-speed digital signal processor
Specification
Model Type
Avoidance Radar Sensor
Model
UAV-R22-1
Frequency(GHz)
79
Temp. Measuring Range (°C):
-40 to 85
Power Consumption (W)
3
Communication Mode
UART
Package Includes:
1 x 77-81GHz Obstacle avoidance radar sensor UAV-R22-1 (UART)
The UAV-R22-1 (UART) Obstacle Avoidance Radar is a compact 77–81 GHz mmWave sensor designed for real-time detection of obstacles using fan-shaped electromagnetic waves. Ideal for drones and unmanned platforms, it measures relative distance, speed, and orientation to help avoid collisions and ensure safe operation.
Key Features of 77-81GHz Obstacle avoidance radar sensor UAV-R22-1
2T4R MIMO array antenna design for enhanced angular resolution
±15° azimuth field of view to cover forward detection area
High measurement accuracy with stable performance over varying conditions
Lightweight and compact form factor for easy integration on UAVs
UART interface for simple serial communication and data retrieval
High sensitivity to detect small or low-reflectivity obstacles at range
Fast shipping from Zbotic across India
Applications and Use Cases
Forward collision avoidance on multi-rotor and fixed-wing drones
Anti-collision systems for autonomous ground vehicles
Robotic navigation in warehouses and industrial environments
Advanced driver-assistance system (ADAS) research and prototyping
How to Use 77-81GHz Obstacle avoidance radar sensor UAV-R22-1
Mount the UAV-R22-1 securely on your platform’s front-facing section, connect power (3.3 V/5 V) and UART TX/RX lines to your controller, then configure UART parameters via a serial terminal. Once powered, the radar continuously streams distance, speed, and angle data over UART, which you can parse in your flight or navigation software to trigger avoidance maneuvers.
Why Buy from Zbotic?
Genuine Products: All items sourced from authorized distributors
Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
Free Shipping: Free delivery on qualifying orders
COD Available: Cash on Delivery, UPI, cards, net banking
Technical Support: Expert help for setup and troubleshooting
Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What communication interface does the UAV-R22-1 use?
The UAV-R22-1 communicates via a standard UART (TTL-level) interface, allowing easy connection to microcontrollers, flight controllers, and single-board computers.
What detection capabilities does this radar offer?
Using a 77–81 GHz fan-shaped beam and 2T4R MIMO design, it provides real-time measurement of obstacle distance, relative speed, and azimuth angle within a ±15° field of view.
How do I integrate this radar with a flight controller?
After wiring power and UART lines to the flight controller’s serial port, configure the serial baud rate and data format to match the radar. Parse the incoming data stream for distance and angle values, then feed them into your collision-avoidance algorithm or autopilot software.
The 77-81GHz Obstacle avoidance radar sensor UAV-R22-1 (UART) is a versatile radar sensor used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
Integrating into a custom electronics project
Learning and experimenting with circuits
Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
Shipping & Delivery
Free shipping on orders above ₹999 across India
Dispatched within 1-3 business days
Expected delivery: 3-7 business days depending on location
Secure packaging to ensure safe transit of electronic components
Genuine Microbrain Intelligent product sourced from authorized channels
Weight
0.16 kg
Country Of Origin: China
