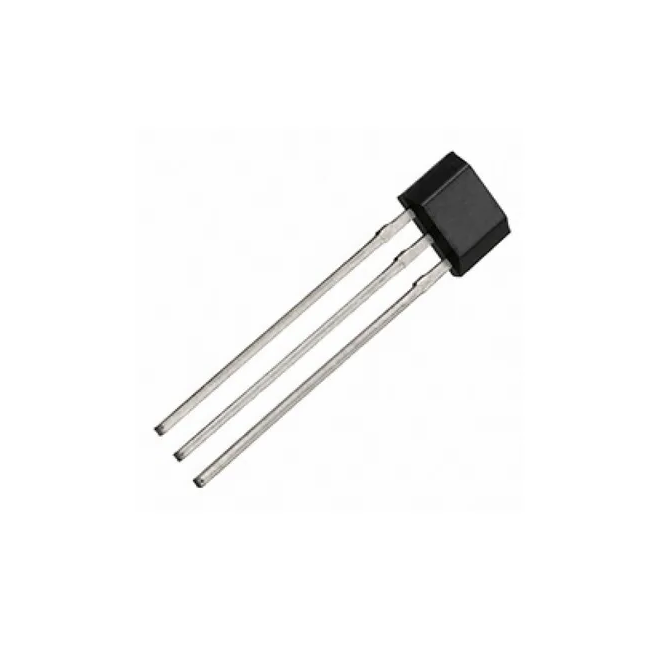

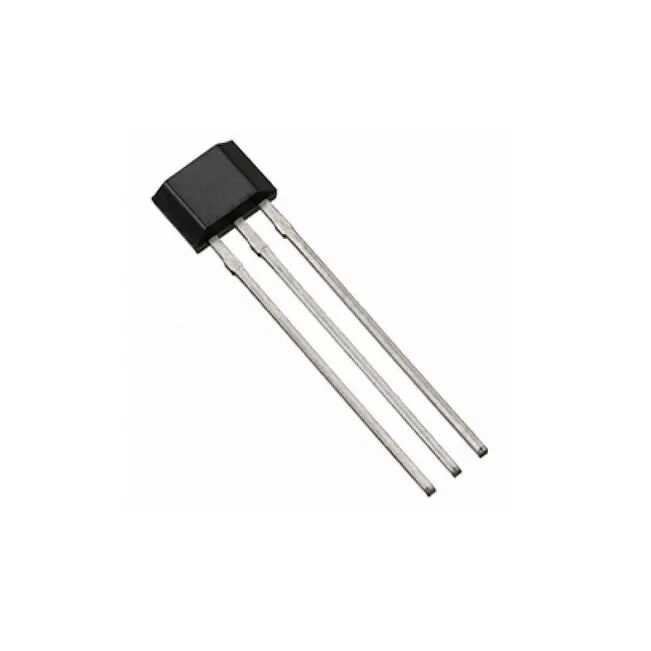

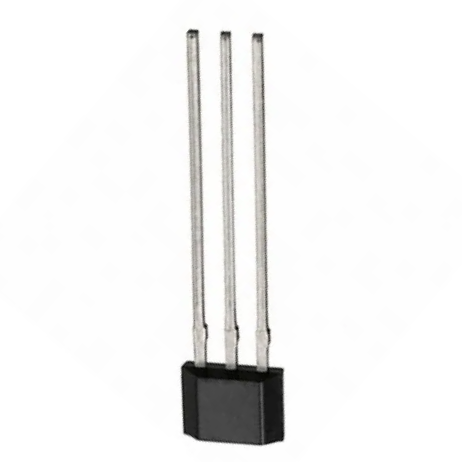

44E A1344EUA-T Hall
The A3144 Hall Effect Sensor Magnet Detector Switch for Arduino is a highly responsive sensor designed to detect the presence or absence of a magnetic field. In its default state, with no magnetic field, the sensor’s signal line remains HIGH at 3.5V. When a magnetic field is detected, the signal line quickly switches to LOW, triggering an LED to light up as a visual indication of the magnetic field’s presence.
This sensor features easy-to-use pin connections, requiring just a 5V power supply, GND for ground, and the signal pin connected to any digital input on the Arduino board. With its simple setup and reliable operation, the A3144 sensor is perfect for a wide range of Arduino projects that require magnetic field detection and response.
Specification:
| Specification | Value |
|---|---|
| Type | Linear Hall Effect Sensor |
| Model | A1344EUA-T |
| Package | TO-92U |
| Operating Voltage | 3.8V to 24V |
| Output Voltage | Vout = Vcc / 2 ± 5% |
| Output Current | 5mA maximum |
| Temperature Range | -40°C to 150°C |
| Sensitivity | 2.5mV/G |
| Quiescent Output Voltage (B = 0G) | 2.5V ± 50mV |
| Quiescent Output Voltage Change with Temperature | 0.06%/°C |
| Bandwidth | 1.3kHz typical |
| Operating Principle | Hall Effect |
| Applications | Speed detection, position detection, proximity sensing |
| Dimensions | Small and compact |
PACKAGE INCLUDES:
1 X 44E A1344EUA-T Hall
PIR Motion Sensor: How It Works + Arduino Project
A PIR sensor (Passive Infrared Sensor) is one of the most popular components in electronics for motion detection....
Read More →
Reed Switch vs Hall Effect Sensor: Magnetic Detection Compared
Table of ContentsIntroduction: Two Ways to Detect MagnetismHow Reed Switches WorkHow Hall Effect Sensors WorkKey Differences at a...
Read More →
Reed Switch Magnetic Sensor: Door Counter and Speed Meter
Table of Contents What Is a Reed Switch Magnetic Sensor? How a Reed Switch Works Types of Reed...
Read More →Technical Specifications
| Model | A1344EUA-T |
|---|---|
| SKU | AI2985 |
| Weight | 0.0013 kg |
| Availability | In Stock |
Applications & Use Cases
The 44E A1344EUA-T Hall is a versatile hall sensor used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
