The 3DR Radio Telemetry 433MHz 100mW kit is based on the 3DR Telemetry kit and is fully compatible, running the same open-source firmware. This allows Unmanned Tech to use it in their version. The kit works with Ardupilot or Pixhawk-based systems, enabling a two-way telemetry connection between your drone and ground station. It comes with full support and warranty, ensuring its functionality and reliability.
The new and improved V2 of the Unmanned Telemetry kit features interchangeable air and ground modules, each equipped with a USB connector and a DF13 connector. For connecting to Pixhawk, it’s recommended to purchase a 6-pos to 6-pos cable for better ease of use compared to the included cable.
Features :
- Very small size & Lightweight (under 4 grams without antenna)
- Transparent serial link
- MAVLink protocol framing and status reporting
- Frequency hopping spread spectrum (FHSS)
- Adaptive time division multiplexing (TDM)
- Support for LBT and AFA
- Configurable duty cycle
- Interchangeable air and ground modules
- Micro-USB port
- 6-position DF13 connector
- 100 mW maximum output power (adjustable)
- Based on HopeRF’s HM-TRP module

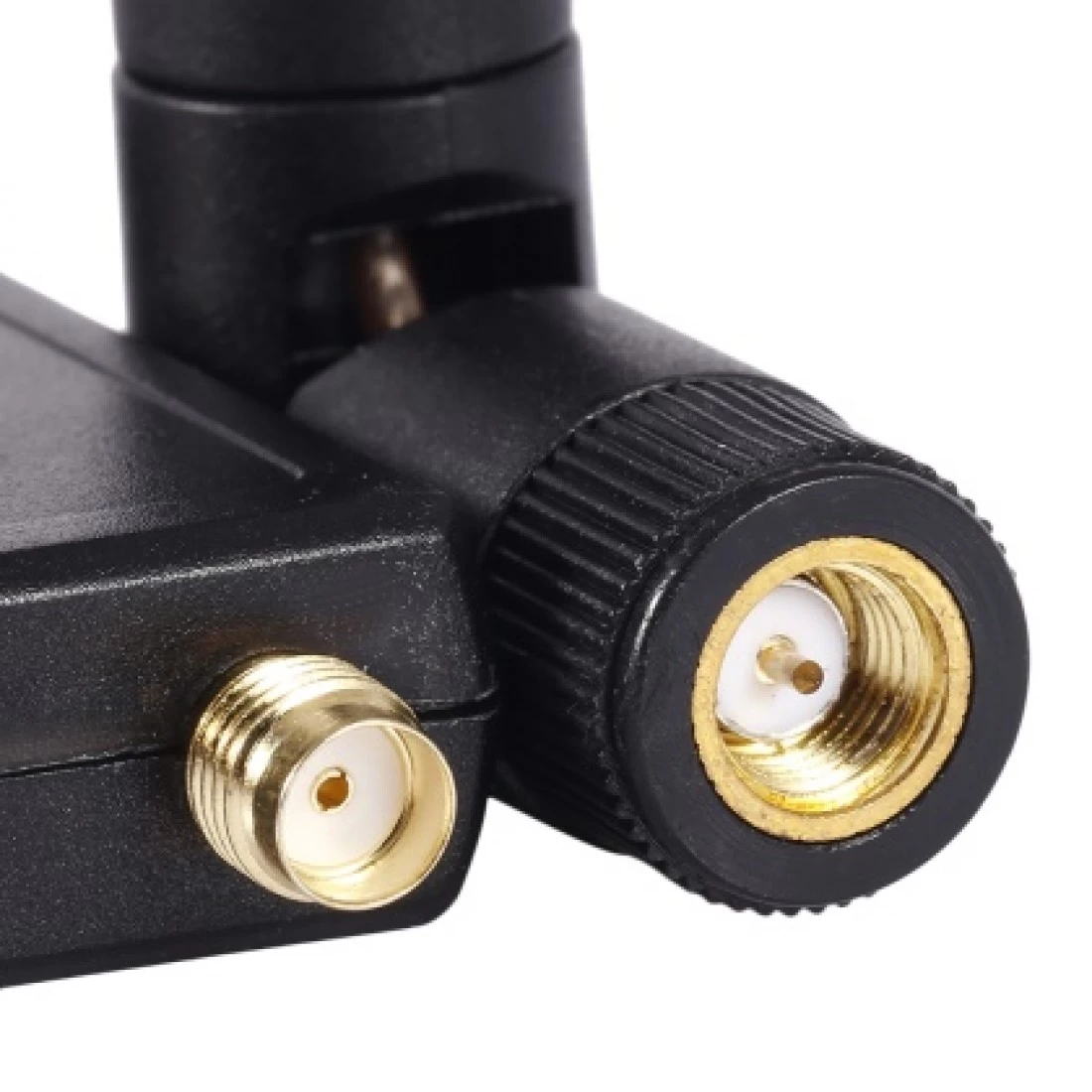

- RP-SMA connector
- 2-way full-duplex communication through adaptive TDM
- UART interface
- Transparent serial link
- MAVLink protocol framing
- Frequency Hopping Spread Spectrum (FHSS)
- Configurable duty cycle
- Error correction corrects up to 25% of bit errors
- Configurable through Mission Planner and APM Planner
- Built-in error correcting code (can correct up to 25% data bit errors)
- The demonstrated range of several kilometers with a small Omni antenna
- Can be used with a bi-directional amplifier for even more range
- AT commands for radio configuration
- RT commands for remote radio configuration
- Adaptive flow control when used with APM

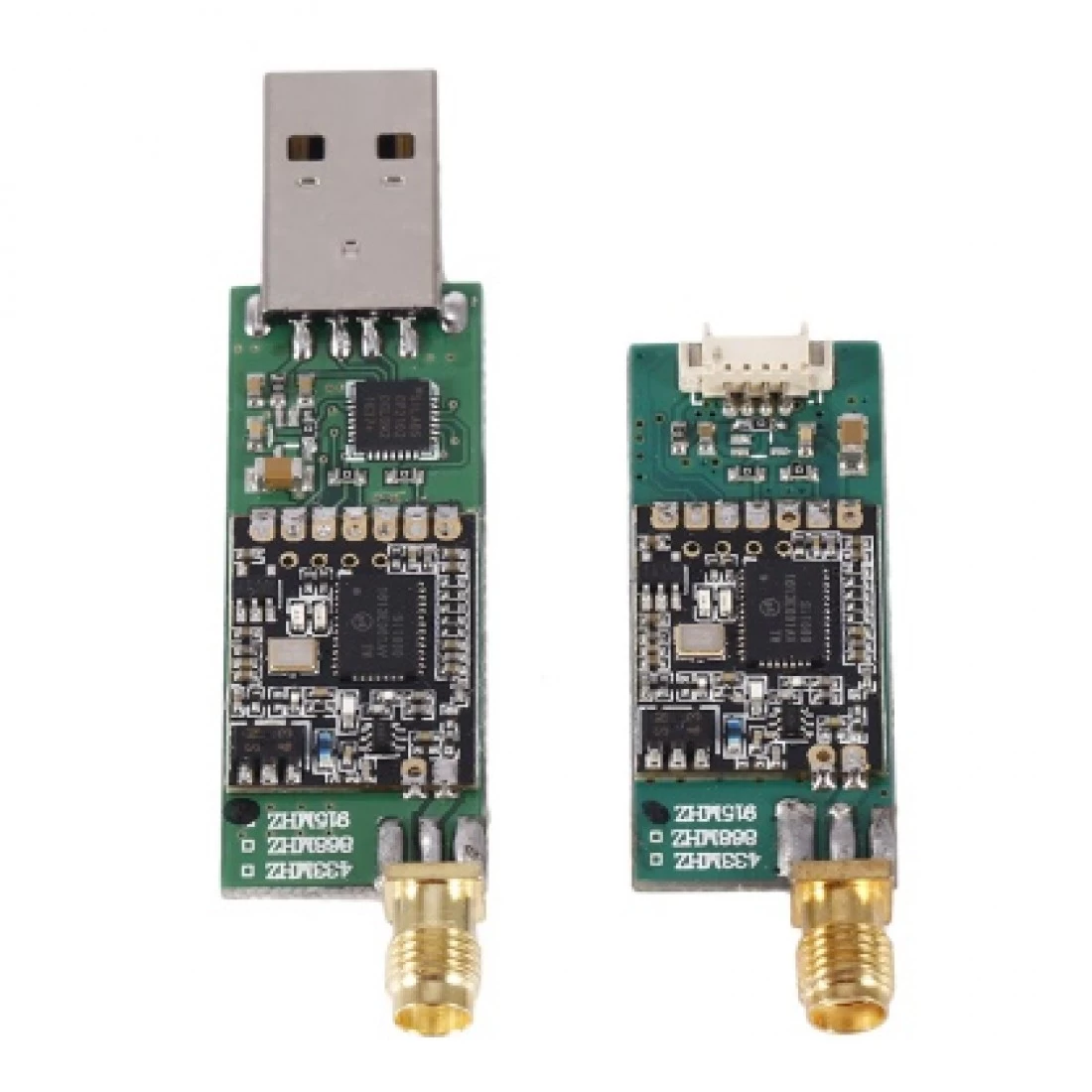

- Based on the HopeRF HM-TRP radio module, featuring a SiLabs Si1000 RF microcontroller.
Package Includes :

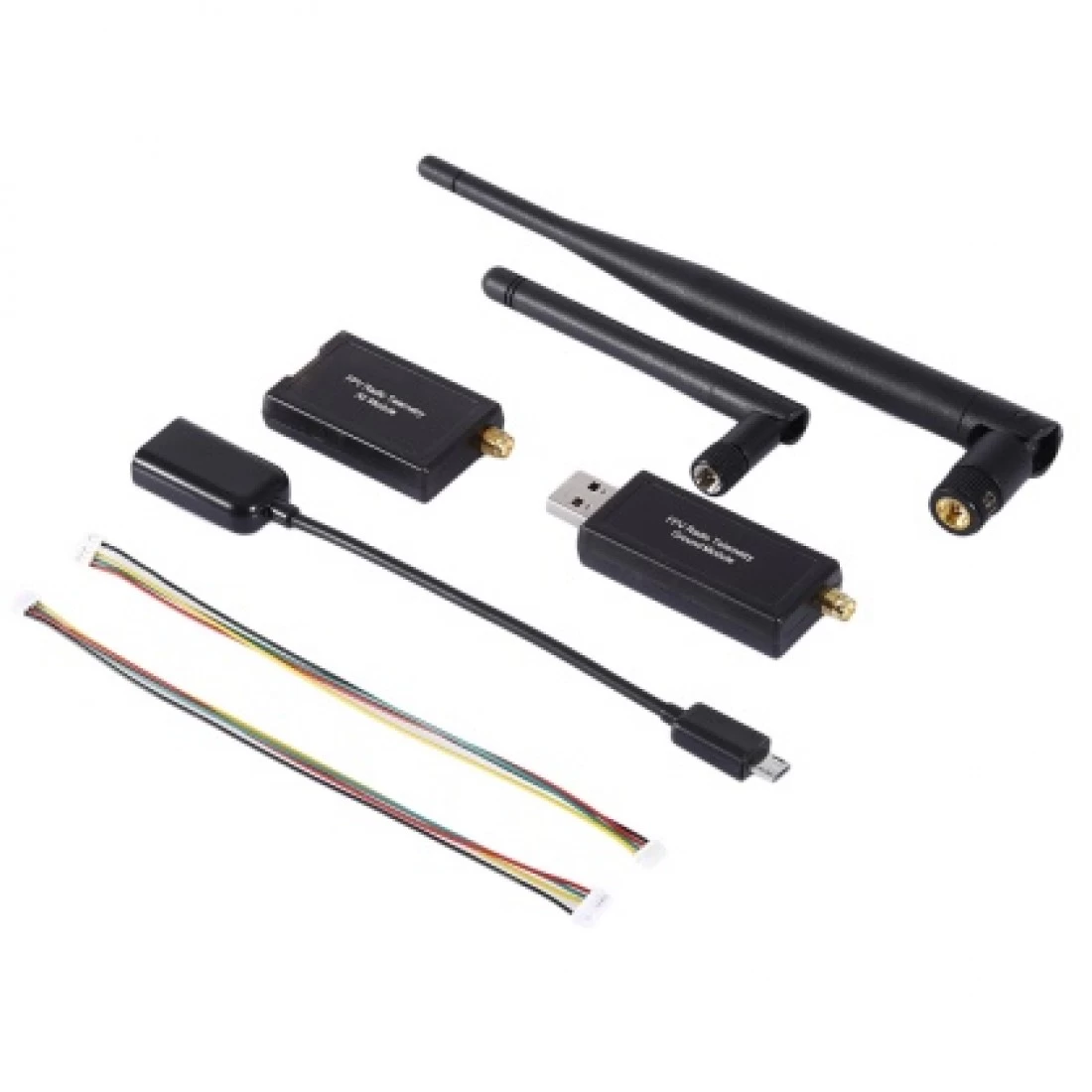

- 1 x 3DR Radio Telemetry with the case and Tx and Rx Antenna.
- 2 x cables (APM/PIX).
- 2 x 3.5dbi antennas.
433Mhz 100MW Telemetry Kit Overview
The 433Mhz 100MW Telemetry Kit V2 is a two-way radio link system designed for drone communication and data exchange between your aircraft and a ground station. It features interchangeable air and ground modules, each equipped with USB and DF13 connectors, making setup and maintenance simple and flexible.
Key Features of 433Mhz 100MW Telemetry Kit
- 433 MHz operating frequency with 100 mW transmit power for reliable mid-range communication
- Interchangeable air and ground modules—use either unit in the aircraft or at the ground station
- USB connector on each module for PC link and firmware updates
- DF13 connector on each module for direct integration with Pixhawk or other flight controllers
- Fully compatible with 3DR open-source firmware running on ArduPilot and Pixhawk-based systems
- Fast shipping across India from Zbotic.in, ensuring prompt delivery to your doorstep
Applications and Use Cases
- Live telemetry streaming of GPS position, altitude, and sensor data during test flights
- Remote control feedback for agricultural drones performing field surveys
- Search and rescue UAVs relaying critical status updates to a mobile ground station
- FPV rigs requiring a stable data link to display flight parameters on the pilot’s tablet
- Research UAV platforms exchanging commands and telemetry in outdoor test environments
How to Use 433Mhz 100MW Telemetry Kit
Begin by connecting one module to your ground station PC via its USB port and the other to the drone’s flight controller using the DF13 port. Power up both units, pair them automatically on the same frequency, and launch your ground-station software (e.g., Mission Planner). For a direct Pixhawk hookup, attach a 6-pos to 6-pos cable between the DF13 ports to streamline connections.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can I swap the air and ground modules?
Yes. The V2 kit features fully interchangeable modules, so you can swap them between your drone and ground station without configuration changes.
What cable do I need for Pixhawk integration?
While the kit includes DF13 connectors, we recommend a dedicated 6-pos to 6-pos cable for a secure, direct connection to Pixhawk flight controllers.
Which firmware does this kit use?
The kit runs the same open-source 3DR Telemetry firmware compatible with ArduPilot and Pixhawk systems. You can update and configure it via Mission Planner over the USB link.
Technical Specifications
| Frequency | 433Mhz |
|---|---|
| SKU | AI4682 |
| Weight | 0.07 kg |
| Availability | Out of Stock |
Applications & Use Cases
The 433Mhz 100MW Telemetry Kit is a versatile fpv antennas and trans-receivers used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
