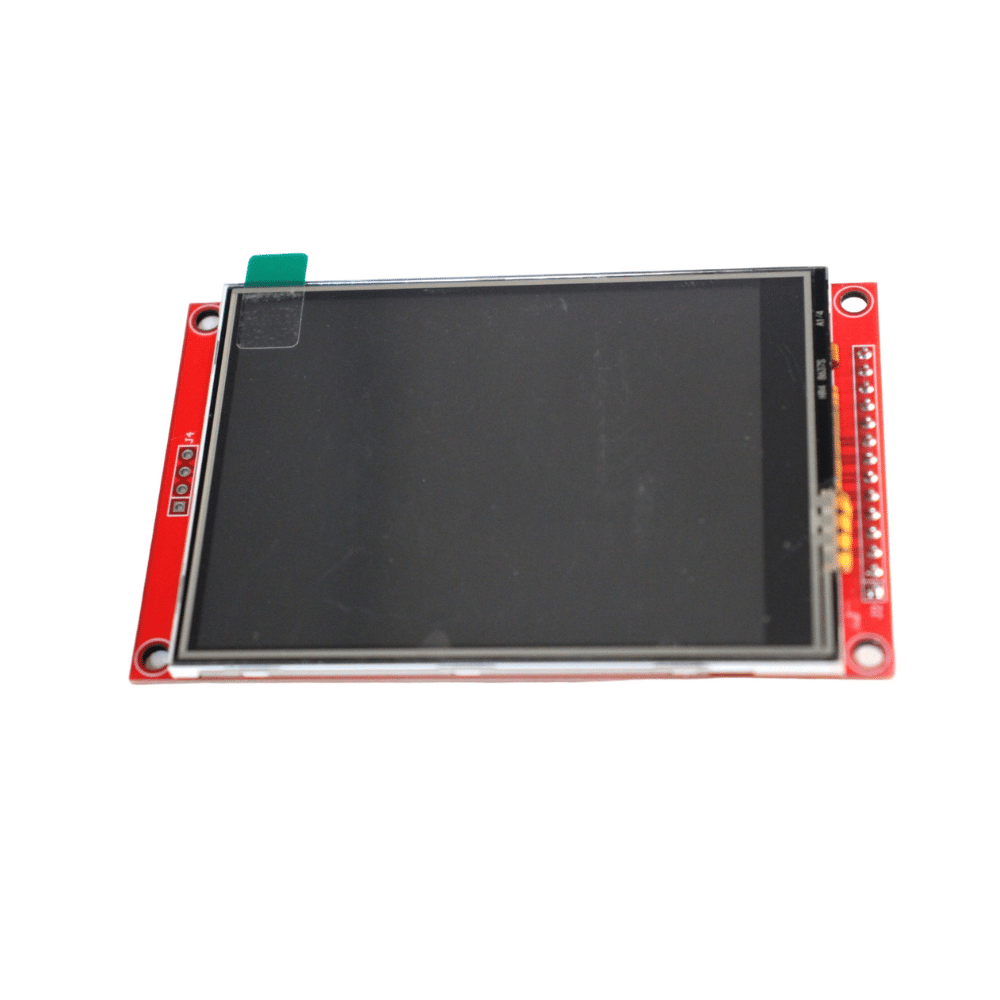

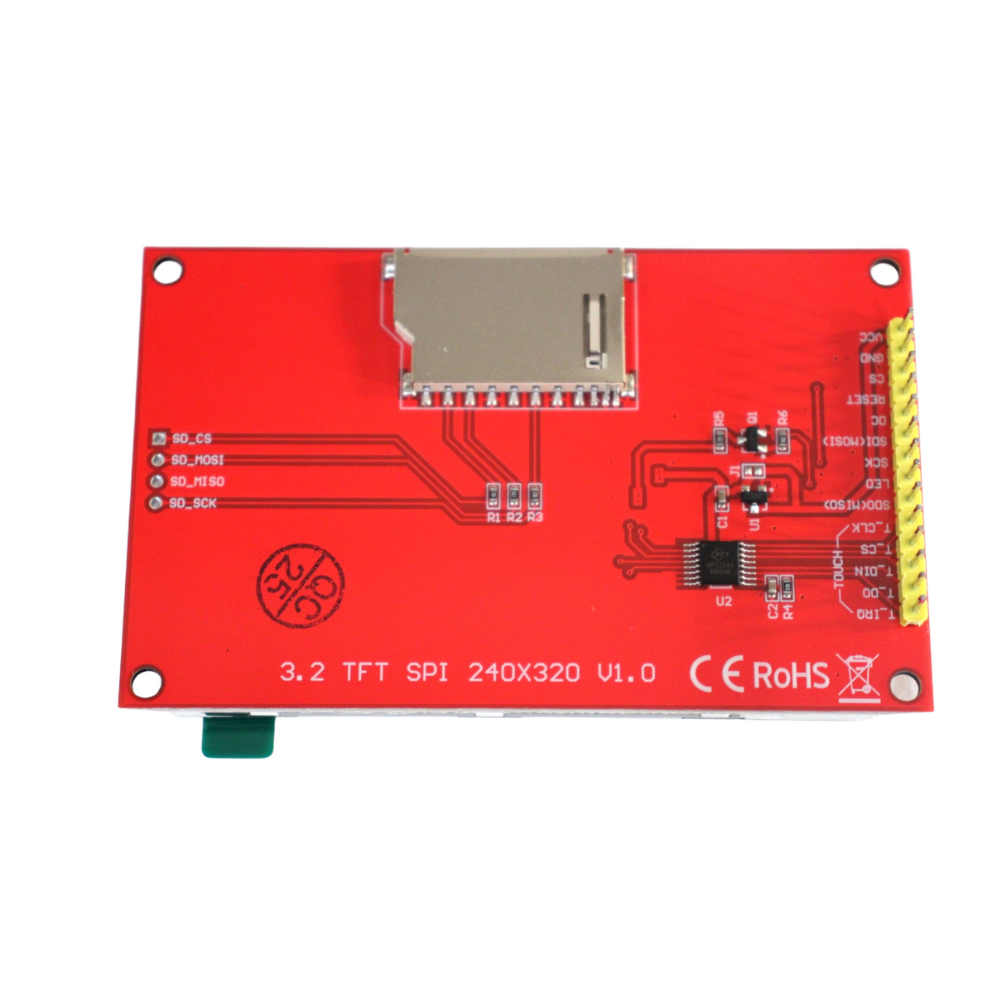

3.2 inch SPI Touch Screen Module TFT Interface 240*320 with Touch
Description:
This 3.2-inch SPI Touch Screen Module provides a compact, full-color display solution with integrated touch capability, making it suitable for many embedded and DIY electronics projects. The TFT panel supports 240×320 resolution and can display up to 65K colors (RGB565).
The module uses a 4-wire SPI interface to minimize the number of required connections, freeing up I/O pins on your controller. It typically includes built-in level shifting, so it works with both 3.3 V and 5 V logic systems.
The touch functionality (often resistive touch) is controlled via SPI as well (with separate chip select lines), allowing it to share the same SPI bus or a secondary SPI interface. The entire module is compact, making it useful in small enclosures or handheld systems.
Onboard support (firmware / libraries) is widely available for platforms like Arduino, STM32, ESP32, etc.
Features:
- 3.2″ TFT display with 240×320 pixel resolution
- Displays up to 65K colors (RGB565)
- SPI (4-wire) interface for efficient data transfer
- Onboard level shifter to work with 3.3 V and 5 V systems
- Integrated touch interface (resistive touch commonly)
- Small, lightweight design for embedded / compact applications
- Supports rotation/orientation settings in software
- Compatible with common graphics / touch libraries (e.g. Adafruit_ILI9341, TFT_eSPI, etc.)
- Good ecosystem and sample code available
Specifications:
| Parameter | Detail |
|---|---|
| Screen Size | 3.2 inches (diagonal) |
| Resolution | 240 × 320 pixels |
| Color Format | RGB565 (65,536 colors) |
| Interface | SPI (4-wire) |
| Logic Voltage | 3.3 V / 5 V compatible (with onboard level shifting) |
| Touch Type | Resistive touch panel |
| Display Driver IC | ILI9341 |
| Active Display Area | 48.6 mm × 64.8 mm |
| Module PCB Size | 55.04 mm × 89.3 mm |
| Operating Temperature | –20 °C to +60 °C |
| Storage Temperature | –30 °C to +70 °C |
| Power Consumption | Approx. 0.72 W |
| Backlight Type | White LED backlight |

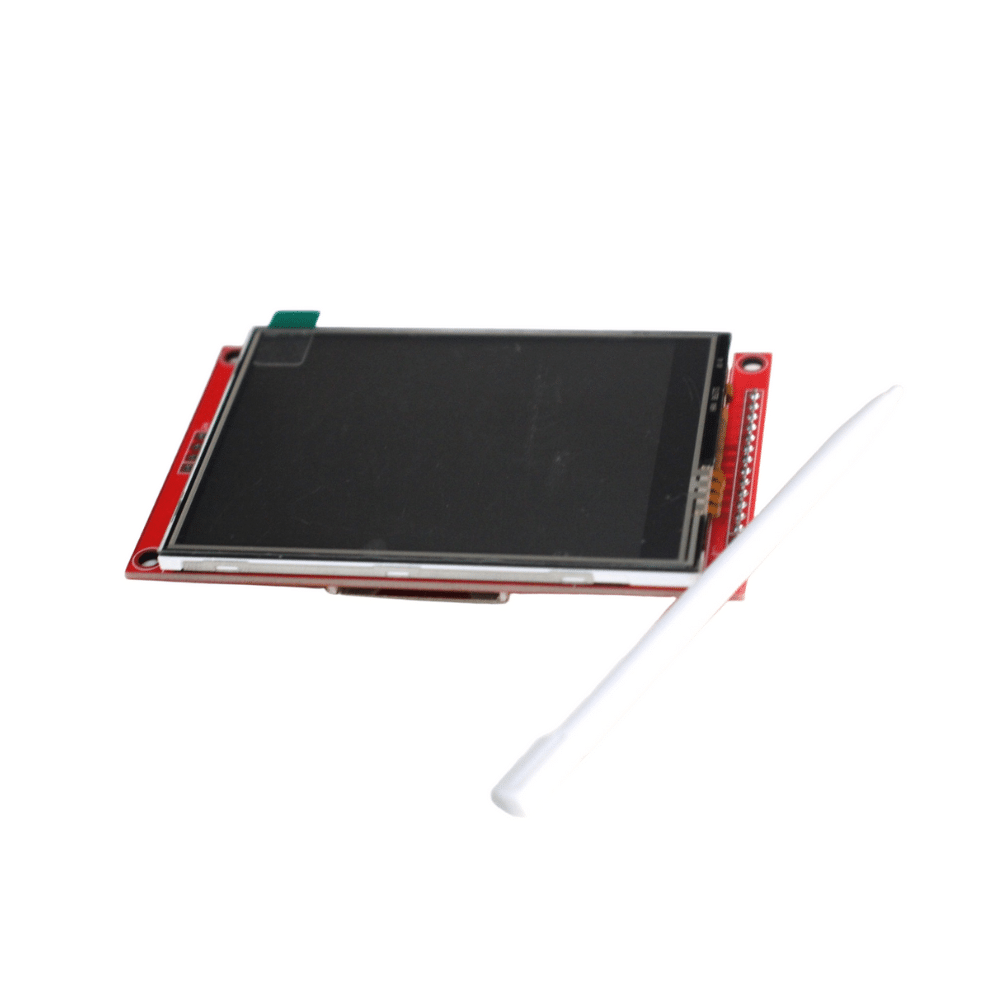

Package Includes(3.2 inch SPI Touch Screen Module TFT Interface 240*320 with Touch):
- 1 x 3.2 inch TFT LCD Screen Module
- 1 x Stylus
Arduino Tachometer: RPM Measurement with IR Sensor
Table of ContentsIntroductionComponents and Hardware SetupWiring Diagram and ConnectionsComplete Code with ExplanationCustomization and ImprovementsTroubleshooting Common IssuesAdvanced Features and...
Read More →
Arduino Boost Converter Module: Step Up Voltage for Projects
Running a project that needs higher voltage than your battery can supply? An Arduino boost converter project solves...
Read More →
Arduino RS485 Serial Communication: Long-Distance Data Transfer Tutorial
The Arduino RS485 tutorial you've been looking for: a complete guide to implementing reliable, long-distance serial communication between...
Read More →Technical Specifications
| Display Size | 3.2" |
|---|---|
| Interface / Protocol | SPI |
| SKU | AI3523 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The 3.2 inch SPI Touch Screen Module TFT Interface 240*320 with Touch is a versatile tft lcd displays used across a wide range of applications including embedded HMI interfaces, Raspberry Pi touchscreen projects, Arduino display projects, industrial control panels, and information kiosks.
Common use cases:
- Adding a touch display to a Raspberry Pi project
- Building a portable game console
- Creating a dashboard for sensor data
This product is ideal for embedded developers, IoT makers, and industrial engineers.
Technical Tip: Check interface type (SPI, I2C, HDMI, RGB) and driver IC compatibility with your development board. IPS panels offer better viewing angles than TN.
