2805 140KV Gimbal Brushless Motor
Have you been thinking about a brushless gimbal for your Multi-Rotor to feed your cinematographer, inner child? Don’t get suckered into buying a sub-par overpriced kit. Do the math and look at the value of these ready to go Quantum brushless gimbal motors.

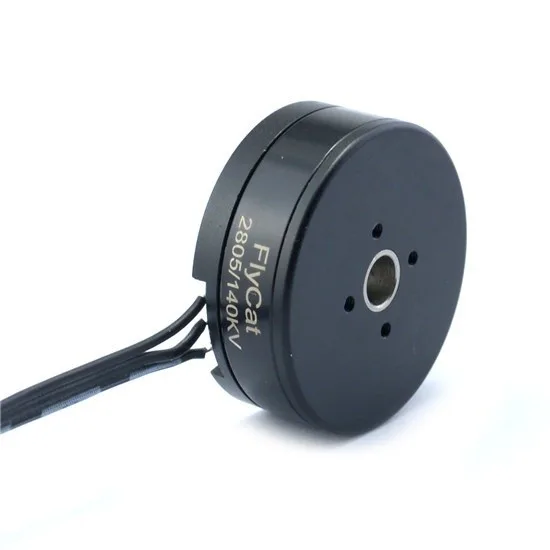

This FlyCat 2805 motor comes with flush mounting so any DIY to PRO projects are simple and straightforward. It’s a perfect match to our Brushless Gimbal Stabilization Board and IMU.
The 2805 140KV Brushless Gimbal Motor is pre-wound for optimal torque and smoothness. Available in two sizes, picked for the two most common class cameras.

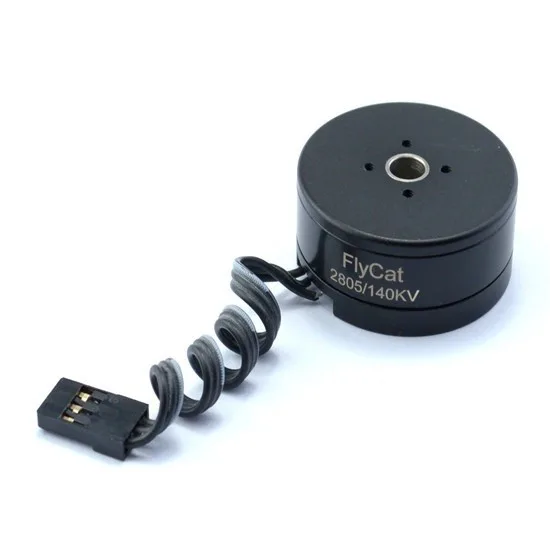

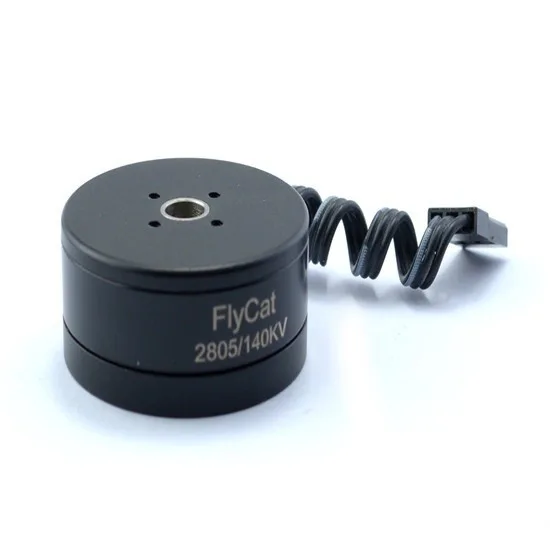

The 2805 140KV Brushless Gimbal Motor comes with a servo style connector making it easy to connect with gimbal controllers. As the gimbal motor has to survive too much drags in its operational life hence it equips flexible cable for nice and efficient balancing. In total, this wire and connector assembly is a Plug-N-Play system.
Build your gimbal right at the first time, with this high power to weight ratio Brushless 2805 140KV Gimbal Motor and take your setup to the next level with Quantum Quality.

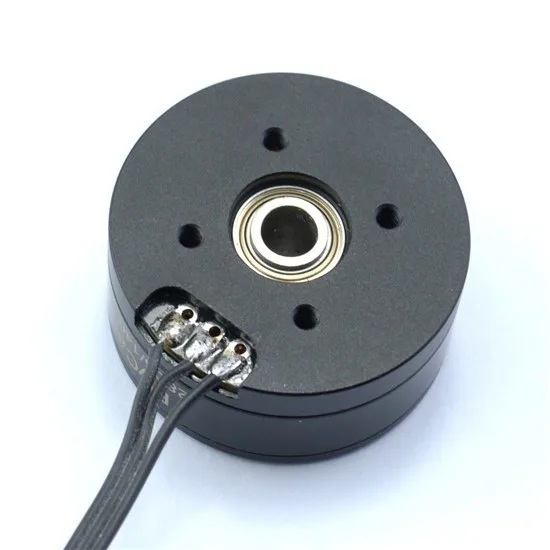

The 2805 140KV Gimbal Brushless Motor is the perfect size for a GoPro class cameras (100-300g). It has superb Fit and Finishes. It is engineered to have a lean profile for easy integration into your set-up. 2805 140KV Gimbal Brushless Motor has preloaded bearings for the slop-free precision mount.
Looking to make your video platform ultra-smooth? or Whatever your use is, if it needs to be stabilized then this 2805 140KV Gimbal Brushless Motor is up to the task.
If you want Gimbal motor with comparatively less torque and weight carrying capacity, Choose the one from below
2208 80KV Gimbal Brushless Motor
2208 80KV Gimbal Brushless Motor
specification:
| Item Type: | Brushless Gimbal Motor |
|---|---|
| Model | 2805 |
| Motor KV (RPM/V) | 140 |
| Load Capacity(gm) | 100 ~ 300 |
| Shaft Diameter (mm): | 5.4 |
| Connector Type | Servo(Futaba/JR) |
| Cable Length (cm): | 13 |
| Length (mm): | 34.5 |
| Width (mm): | 34.5 |
| Height (mm): | 14.5 |
| Weight (g): | 40 |
Package includes:
1 x 2805 140KV Gimbal Brushless Motor
2805 140KV Gimbal Brushless Motor Overview
The 2805 140KV Gimbal Brushless Motor is a precision-engineered motor designed specifically for three-axis camera stabilization on multi-rotor UAVs and handheld rigs. With its 140KV winding and plug-and-play connector, it delivers the smooth, low-speed torque needed for jitter-free cinematography.
Key Features of 2805 140KV Gimbal Brushless Motor
- 140KV Pre-wound Stator: Optimized for steady torque and ultra-smooth rotation.
- Flush Mounting Design: Simplifies installation in DIY and professional gimbal frames.
- Servo-Style Connector: Standard 3-pin plug works with most gimbal controllers right out of the box.
- Perfect Pairing: Engineered to match Zbotic’s Brushless Gimbal Stabilization Board and IMU modules.
- Minimal Cogging: Balanced rotor construction reduces vibration and keeps footage crisp.
- Fast Shipping from Zbotic: Your order ships within 24 hours for quick assembly.
Applications and Use Cases
- Standalone three-axis gimbals for aerial cinematography on quadcopters and hexacopters
- Handheld stabilizers for GoPro and action cameras
- Mirrorless camera rigs requiring precise low-speed torque
- Time-lapse and panoramic photography mounts
- Custom robotics projects with smooth pan and tilt requirements
How to Use 2805 140KV Gimbal Brushless Motor
Mount the motor via its flush holes using M3 screws onto your gimbal arm, plug the servo-style connector into your gimbal controller’s motor output, and then follow your controller’s calibration routine to set motor direction, balance the camera payload, and tune PID gains for flawless stabilization.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What payload weight can the 2805 140KV motor handle?
It’s rated for smooth stabilization of camera systems weighing between 100 g and 300 g, covering most action cameras and lightweight mirrorless setups.
Is the servo-style connector compatible with third-party controllers?
Yes, the standard 3-pin servo connector plugs into the majority of aftermarket gimbal controllers as well as Zbotic’s own Brushless Gimbal Stabilization Board and IMU.
How do I ensure vibration-free footage with this motor?
After mounting, balance your camera payload on all three axes, secure all screws firmly, then tune your gimbal controller’s PID settings to match the motor’s torque profile for minimal vibration.
