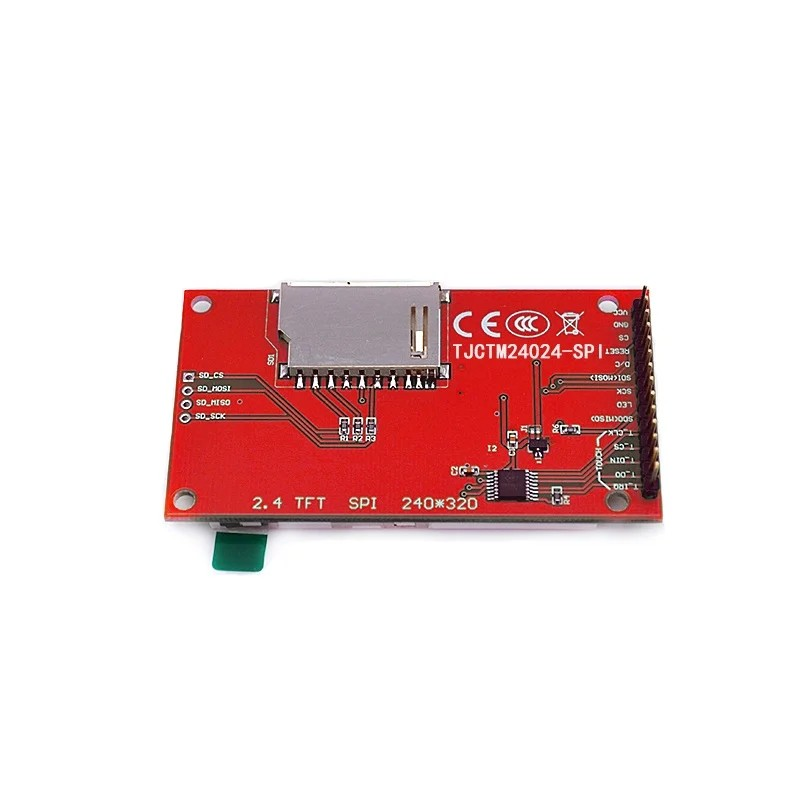

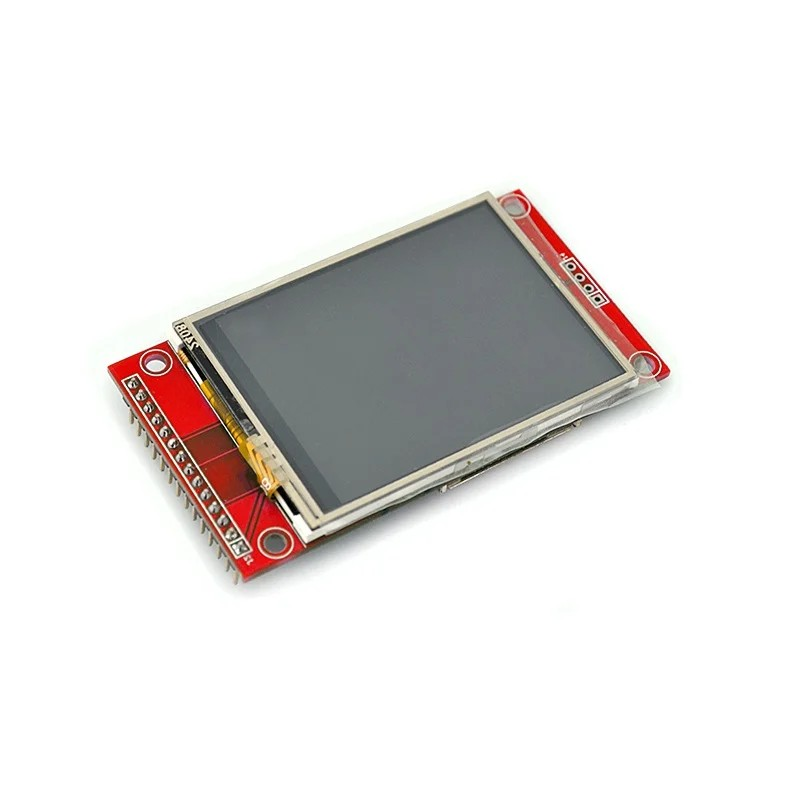

The 2.4-inch SPI Interface 240×320 Touch Screen TFT Color Display Module is a popular choice in the DIY industry. LCD displays are essential for many projects, and serial port modules are widely favored due to their minimal I/O requirements and ease of use. This 2.4-inch TFT LCD module integrates a compact design with an SPI interface, making it both efficient and simple to incorporate into various applications.
Pin Description:
- SDO: Serial clock output
- LED: 3.3V IO and Power Supply pin
- SCL: Serial clock input
- SDA / SDI: Serial data input
- DC: Data / Command selection
- RST: Reset, Low level active
- CS: Chip Selection, Low level active
- GND: Ground
- VDD33: 3.3V Power Supply pin
- UTFT Support
Features:
- It is a 2.4inch SPI TFT LCD Screen Module
- 10pins interface.
- Not just an LCD break but include SD card (2GB),
- The LCD drive ic is ILI9341.
- It’s a 240 * 320 (resolution),
- 2.4 inch TFT LCD screen.
- The LCD has a wide viewing angle, the contrast is also very suitable.
- The display interface is serial, it just needs 5 wires (CS, RS, SCL, SDA, RST) for controlling.
- SDcard use hardware SPI interface (CS / MOSI / MISO / SCK), Not solder pins.
Circuit Diagram:
Specification
| Model Type | TFT Display Module |
|---|---|
| Display Size (Inch): | 2.4 |
| Display Resolution | 240 × 320 |
| Backlight | White |
| Color Depth | 262K/65K |
Package Includes:

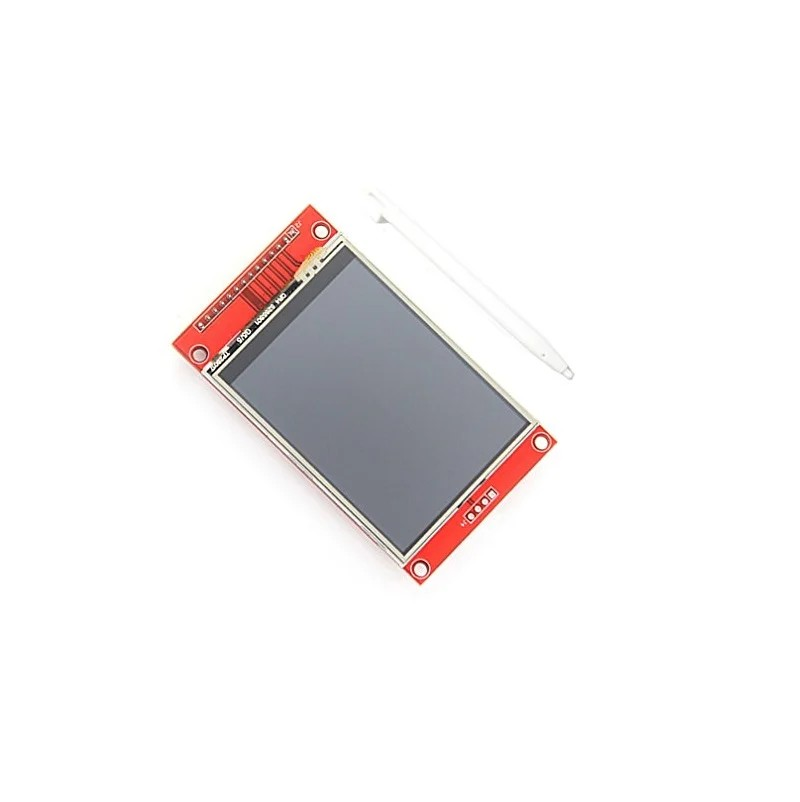

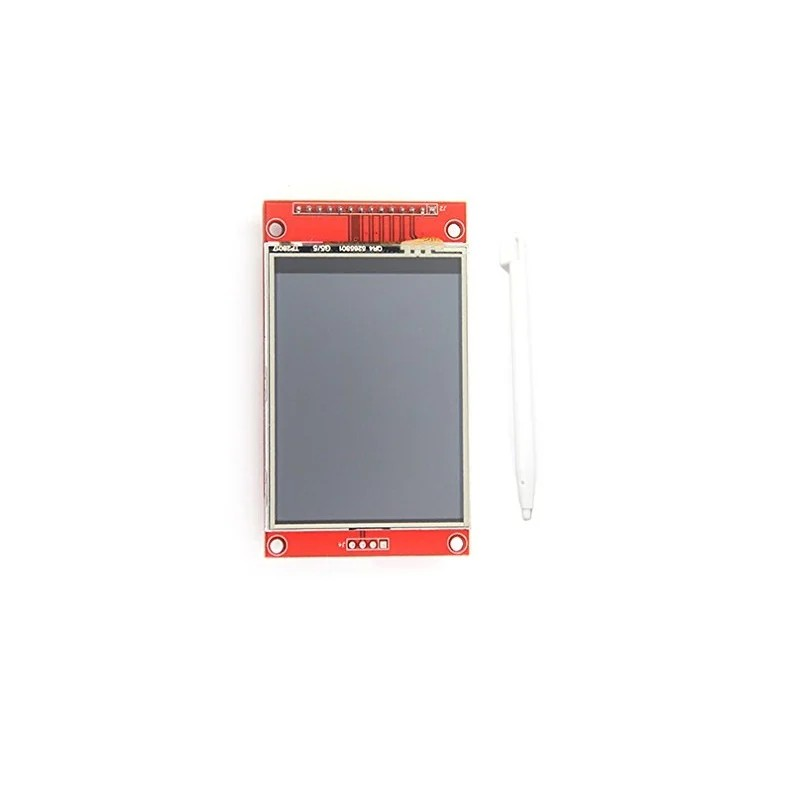

1 x 2.4-inch SPI Interface 240×320 Touch Screen TFT Display Module
1 x Stylus Pen
ESP32-CAM Security Camera: Budget Home Surveillance India
Building an ESP32-CAM security camera is one of the most cost-effective ways to set up home surveillance in...
Read More →
Arduino TFT Display: ST7789 and ILI9341 Graphics Guide
Adding a colour screen to an Arduino project used to require expensive, power-hungry modules. Today, compact Arduino TFT...
Read More →
Arduino Timer Tutorial: millis(), micros() & Hardware Timers
Timing is at the heart of almost every Arduino project. Blinking an LED, debouncing a button, reading sensors...
Read More →Technical Specifications
| Display Size | 2.4" |
|---|---|
| Interface / Protocol | SPI |
| Resolution | 240x320 |
| Package Quantity | 320 pcs |
| SKU | AI6245 |
| Weight | 0.06 kg |
| Availability | Out of Stock |
Applications & Use Cases
The 2.4 inch SPI Interface 240×320 Touch Screen TFT Colour Display Module is a versatile tft lcd displays used across a wide range of applications including embedded HMI interfaces, Raspberry Pi touchscreen projects, Arduino display projects, industrial control panels, and information kiosks.
Common use cases:
- Adding a touch display to a Raspberry Pi project
- Building a portable game console
- Creating a dashboard for sensor data
This product is ideal for embedded developers, IoT makers, and industrial engineers.
Technical Tip: Check interface type (SPI, I2C, HDMI, RGB) and driver IC compatibility with your development board. IPS panels offer better viewing angles than TN.
