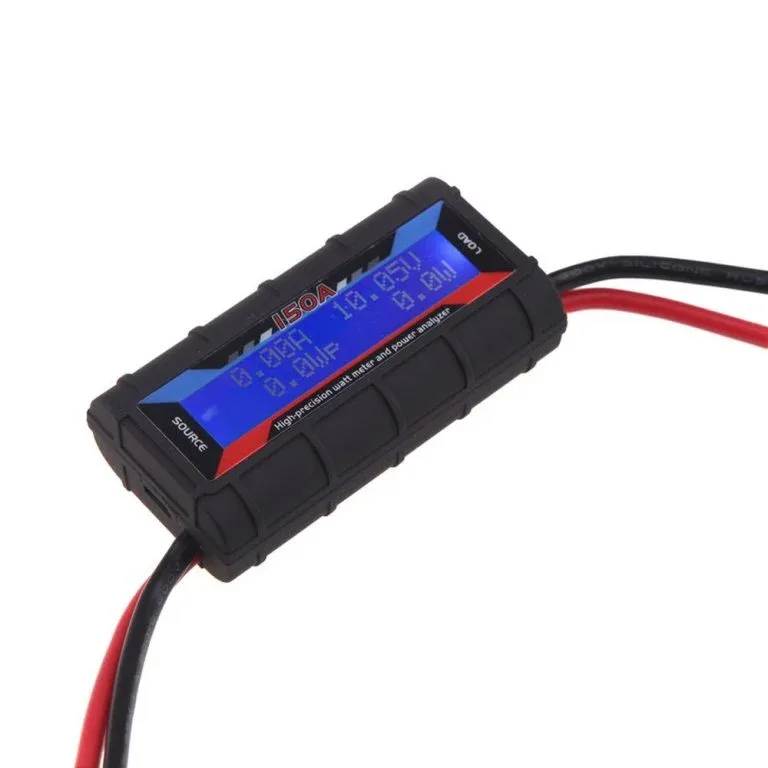

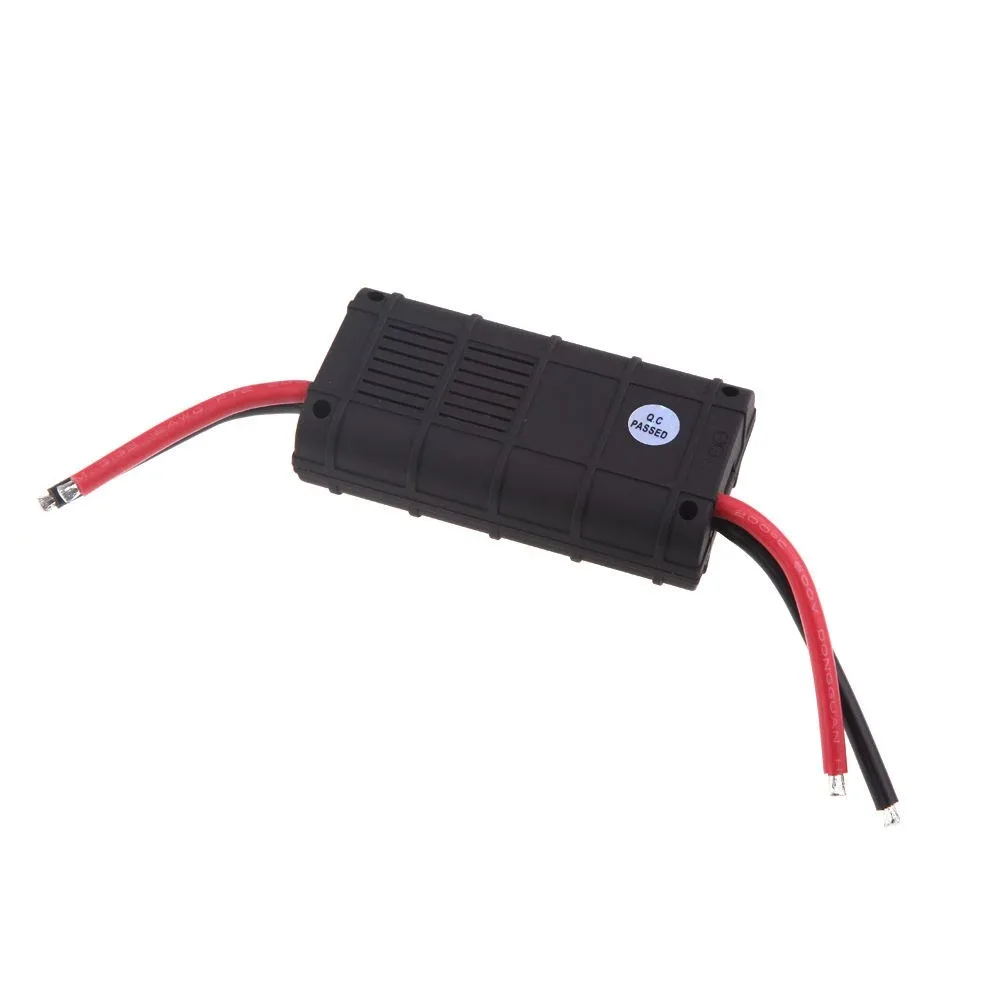

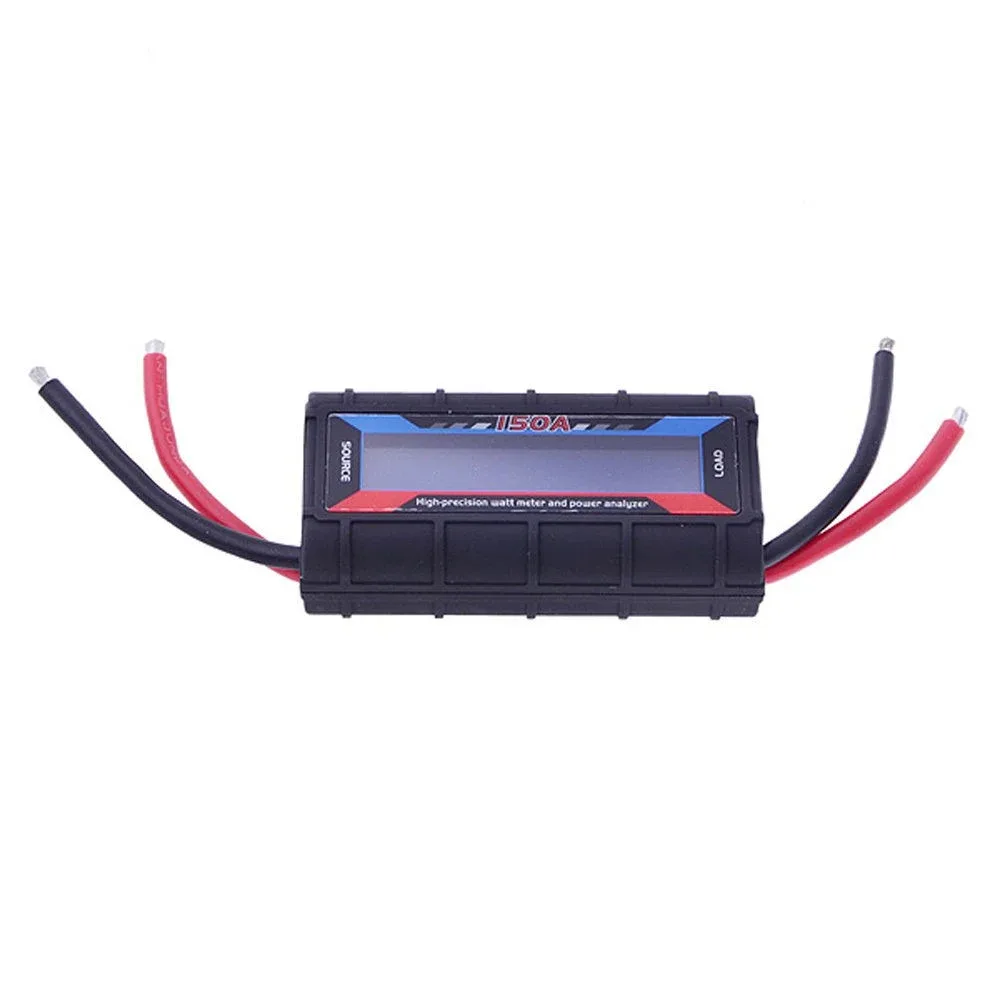

150A High Precision Watt Meter and Power Analyzer
Introducing the all-in-one meter, capable of measuring an impressive array of 8 electrical parameters! The 150A High Precision WATT Meter And Power Analyzer Module is engineered for safety in systems utilizing less than 60 V and carrying currents up to 150 A.
This versatile device serves as a crucial tool for electric power safety and performance assessment. It accurately measures Voltage (V), Current (A), Power (W), Capacity (Ah), Energy (Wh), Minimum Voltage (Vm), Peak Current (Ap), and Peak Power (Wp).
For drone builders, a wattmeter is indispensable. It provides invaluable insights into the performance of motor/ESC/battery setups and the electrical throughput/consumption of the powertrain. Armed with this data, you can optimize your prop/motor/ESC combinations for efficiency and, importantly, prevent component damage before flight. The investment in a wattmeter is justified even if it saves just one motor or ESC from damage.
With self-powering capabilities for measuring sources, the meter eliminates the need for an additional power supply. Operating within a range of 4.8-60V (expandable to 0V with optional auxiliary battery input), it offers convenience and versatility.

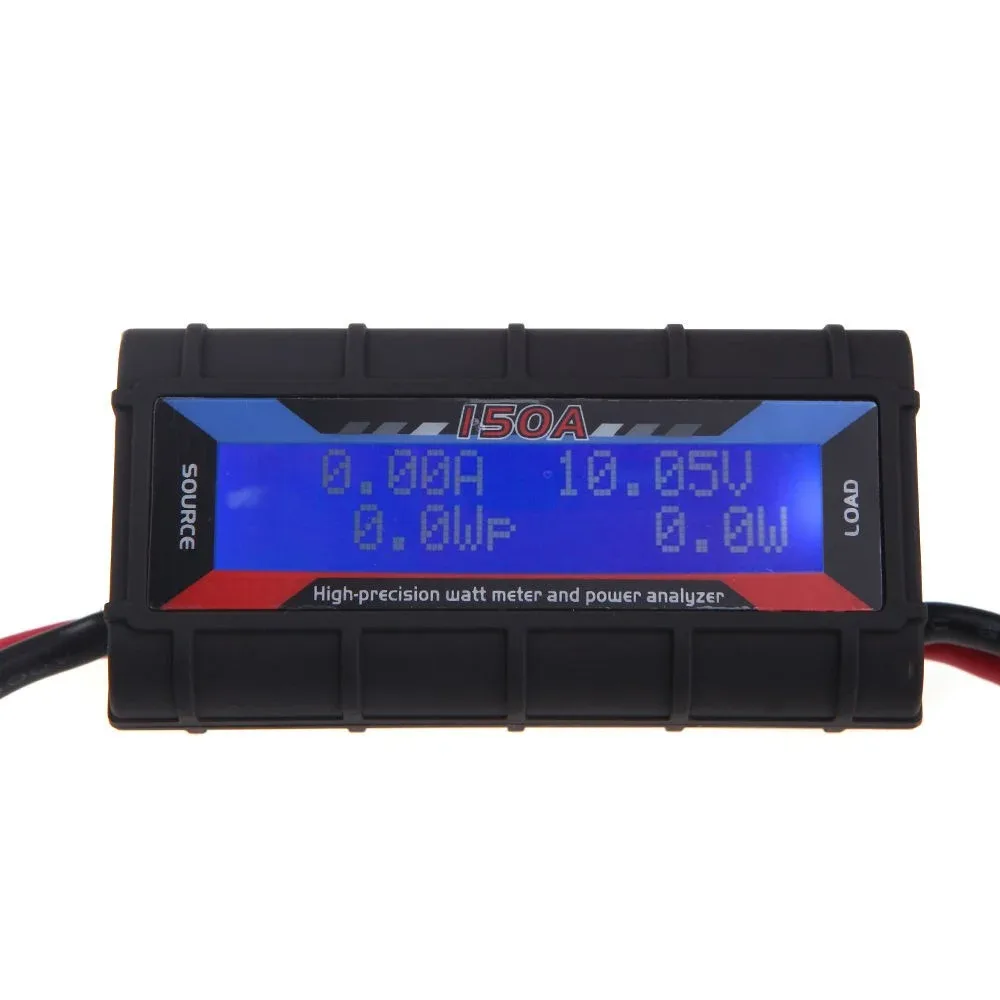

Simple to use, the meter requires no setup with its button-free design. Real-time values for Current (A), Voltage (V), and Power (W) are displayed, while Peak Amps (Ap), Peak Watts (Wp), Voltage Minimum (Vm), Amp-hours (Ah), and Watt-hours (Wh) are sequentially shown every two seconds in a continuous cycle. These data values (Ah, Wh, Ap, Vm, Wp) are reset upon power-up, ensuring clarity and ease of monitoring.
Features :
- To measure the actual values of current (A), voltage (V) and power (W).
- Ensure peak currents are within tolerance for your power system.
- Check battery health and performance.
- Evaluate R/C battery charging efficiency.
- Assist with the correct selection of propellors and test efficiencies.
- Check for wiring and connector power losses.
- To verify the operating voltage of your flight pack under load and measure the quantity of charge drawn from the flight.
Specification:
| Model | FT08 |
|---|---|
| Operating Voltage (VDC) | 4.8 ~ 60 |
| Max. Operating Current (mA) | 130 A |
| Max Operating Current (A) | 150 |
| Color: | Black |
| Material: | Rubber Paint |
| Length (mm): | 85 |
| Width (mm): | 25 |
| Height (mm): | 45 |
| Weight (g): | 80 |
Package Includes:

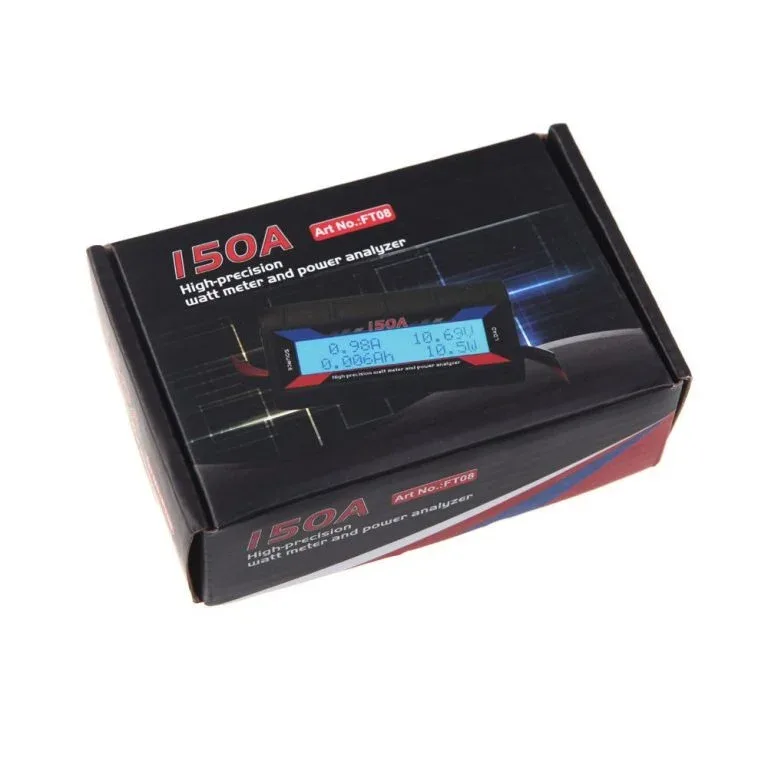

1 x 150A High Precision WATT Meter And Power Analyzer Module.
1 x User Manual.
Technical Specifications
| Current Rating | 150A |
|---|---|
| SKU | AI4562 |
| Weight | 0.12 kg |
| Availability | Out of Stock |
Applications & Use Cases
The 150A High Precision Watt Meter and Power Analyzer is a versatile digital voltage, current and frequency meter used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
