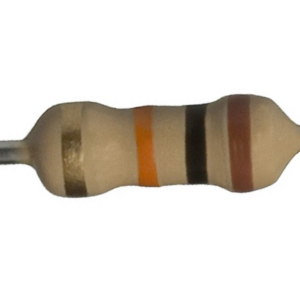

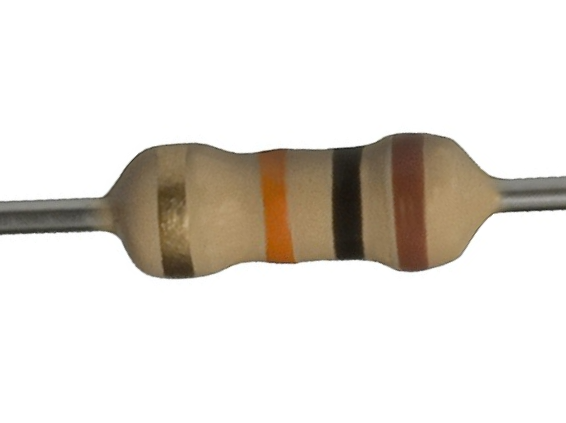

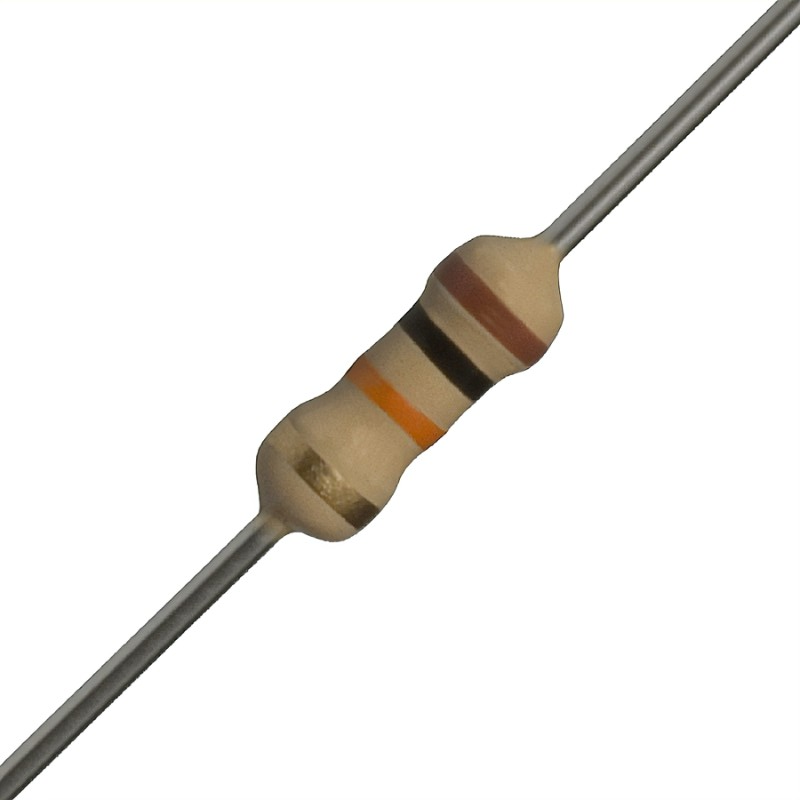

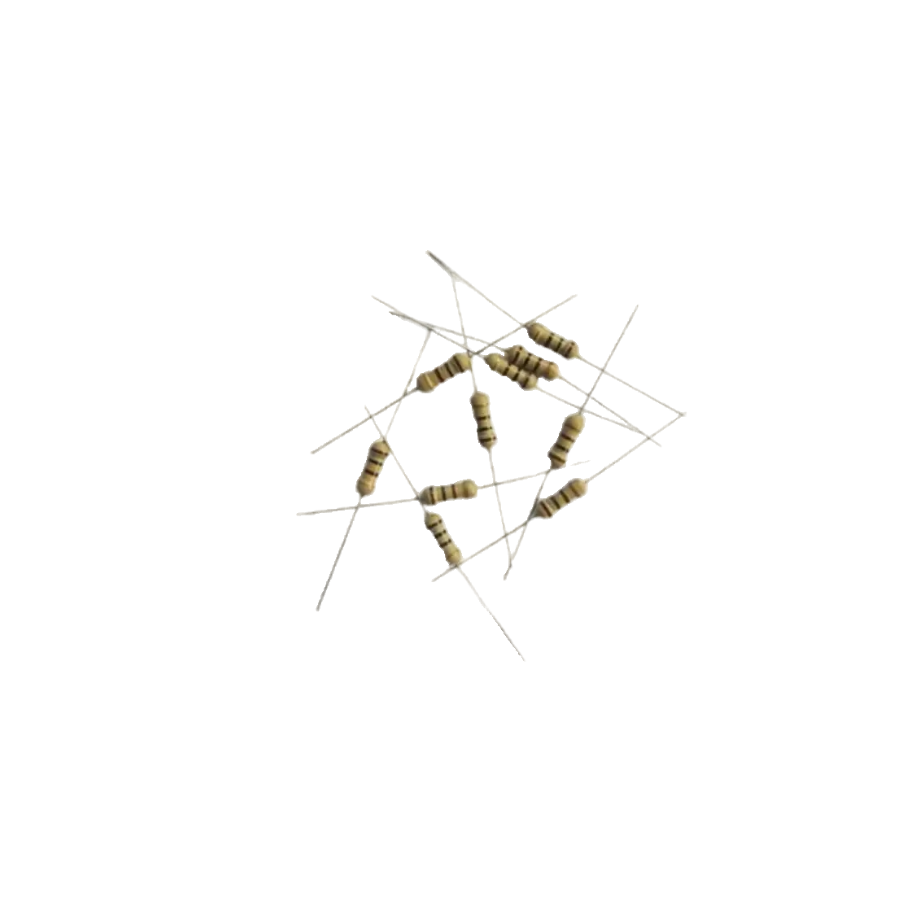

100K Ohm 1Watt Carbon Film Resistor (Pack of 100)

100K Ohm 1Watt Carbon Film Resistor

The CFR Series Carbon Film Resistors are produced by applying a uniform layer of pure carbon onto high-quality ceramic rods. A helical groove is then carved into the resistive layer, and electrolytic copper leads are welded to the endcaps. To protect against environmental factors, these resistors are coated with multiple layers of tan-colored lacquer. This construction guarantees optimal performance and durability, even in conditions where ambient temperatures exceed 70°C.

Specification:

100K Ohm 1W High Quality Carbon Film Resistor (CFR) with ±5% Tolerance

Tin Plated Copper Leads

Carbon Film Resistor

High Quality

Tolerance:  ±5%

Color Code: Brown, Black, Yellow, Golden.

Approx Max Current: 3.162mA.

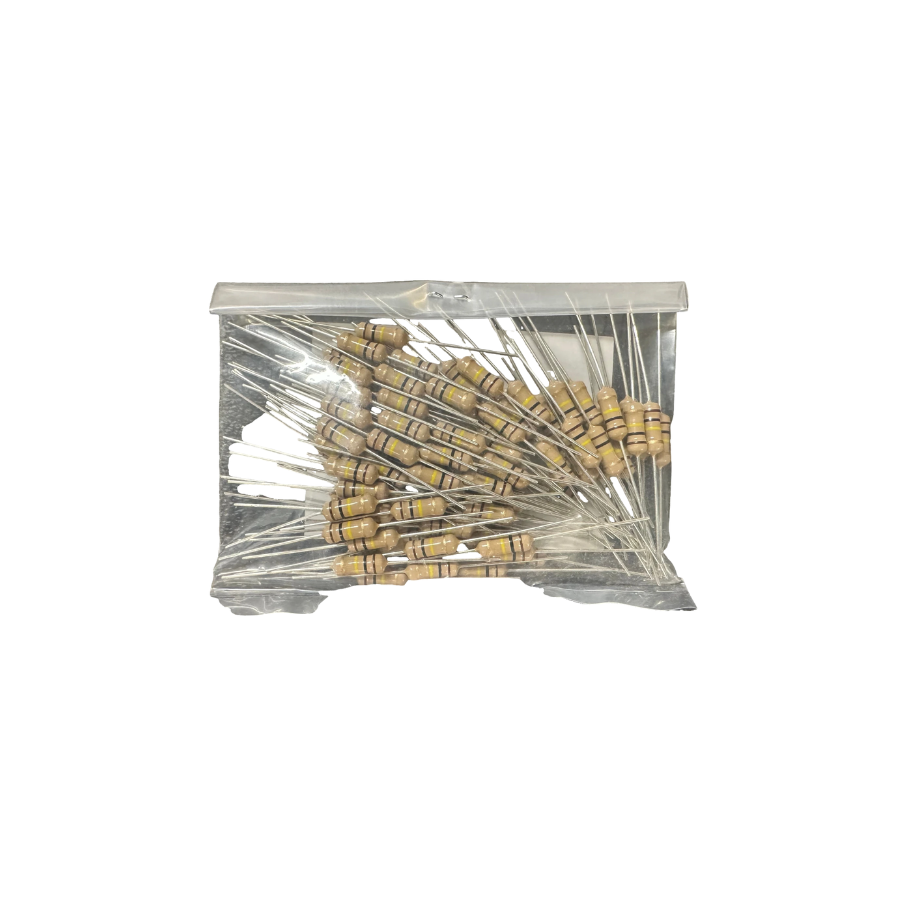

Package Includes

100 x 100K Ohm 1Watt Carbon Film Resistor

100K Ohm 1Watt Carbon Film Resistor Overview

The 100K Ohm 1Watt Carbon Film Resistor is a through-hole component engineered for reliable resistance in electronic designs. With a 1W power rating and ±5% tolerance, it’s ideal for current limiting, voltage division, and general-purpose circuit applications.

Key Features of 100K Ohm 1Watt Carbon Film Resistor

• Resistance: 100KΩ with ±5% tolerance for precise performance
• Power Rating: 1W carbon film construction for stable heat dissipation
• Durable Build: Tin-plated copper leads and multi-layer lacquer coating
• Easy Identification: Brown-Black-Yellow-Gold color code
• Pack of 100: Ideal bulk supply for prototyping and production
• Fast Shipping from Zbotic: Orders ship within 24 hours

Applications and Use Cases

• Voltage divider networks in analog signal processing
• Current limiting for LED indicators and lighting circuits
• Signal conditioning in audio amplifier designs
• Timing components in RC oscillators and filter circuits
• Reference resistors in sensor and calibration modules

How to Use 100K Ohm 1Watt Carbon Film Resistor

Position the resistor leads into your PCB or breadboard according to your schematic, ensuring enough lead length for solder joints or secure insertion. Since carbon film resistors are non-polar, orientation does not matter—just confirm the 100KΩ value by its color bands before soldering and allow adequate spacing to dissipate heat under load.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

What does the brown-black-yellow-golden color code indicate?

The first two bands (brown, black) denote “10,” the third band (yellow) adds four zeros, giving 100,000 Ω, and the gold band signifies a ±5% tolerance.

What is the maximum current this resistor can handle?

At its 1W power rating and 100KΩ resistance, the resistor’s maximum continuous current is approximately 3.162 mA; exceeding this may overheat the component.

Can I use these resistors on a breadboard for prototyping?

Yes. The tin-plated copper leads fit standard breadboard holes securely and can also be soldered directly onto PCBs for durable installations.
