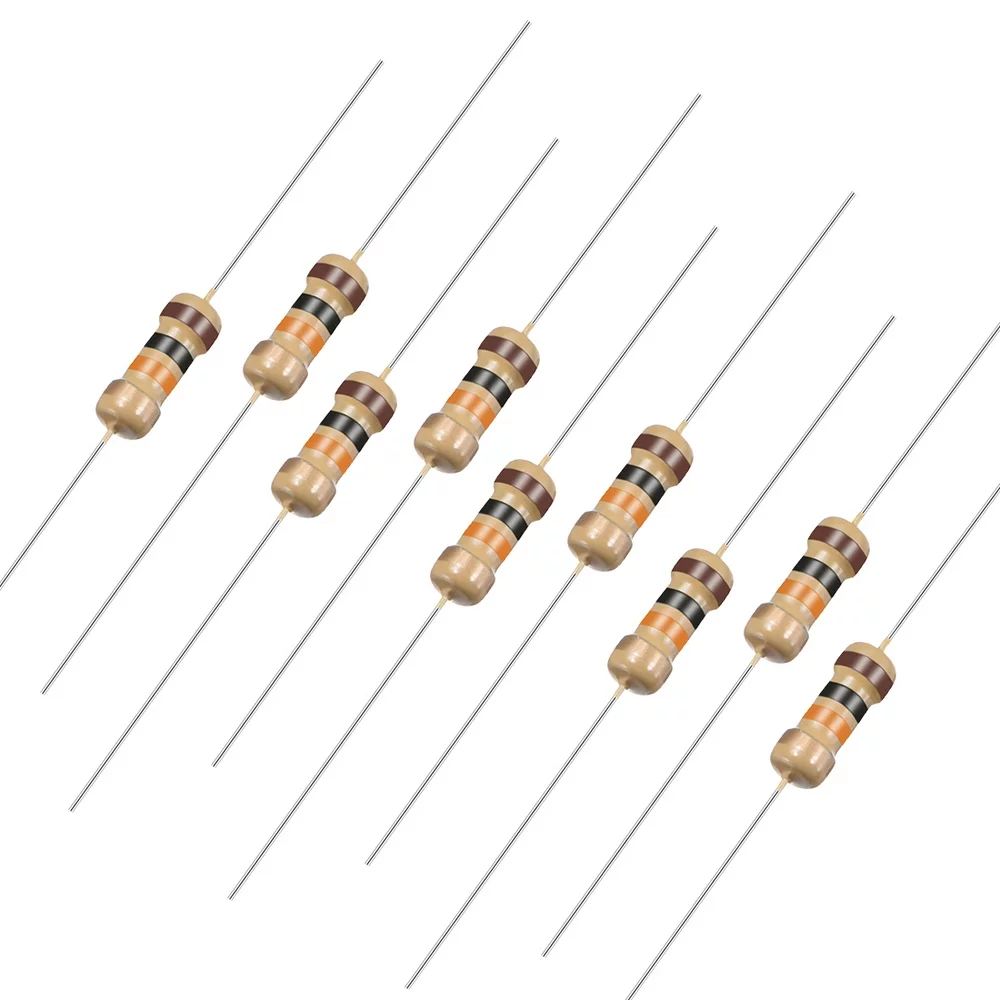

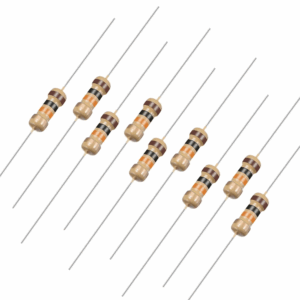

10 Ohm 0.25W Carbon Film Resistor (Pack of 50)
Description:
The CFR Series Carbon Film Resistors feature a pure carbon film coating on high-quality ceramic rods. Tinned electrolytic copper leads are welded to the end caps after a helical groove is cut into the resistive layer. These resistors are finished with a tan lacquer coating. It’s important to ensure that the ambient temperature does not exceed 70°C during operation.
Features :
Carbon Film Resistor
High Quality
Package Includes :
50 x 10 Ohm 1/4Watt Carbon Film Resistors
10 Ohm 0.25W Carbon Film Resistor Overview
The 10 Ohm 0.25W Carbon Film Resistor is a through-hole component designed to provide reliable current limiting and voltage division in low-power circuits. Supplied in a pack of 50, its carbon film on a ceramic core and tin‐plated copper leads ensure stable performance in DIY electronics, prototyping, and repair projects.
Key Features of 10 Ohm 0.25W Carbon Film Resistor
- Accurate Resistance: Precisely 10 Ω with ±5% tolerance for consistent circuit behavior.
- 0.25W Power Rating: Suitable for low-power applications such as signal conditioning and LED drivers.
- Carbon Film Construction: Pure carbon coating on a ceramic rod with a helical groove for enhanced stability.
- Tinned Copper Leads: Electrolytic copper leads plated with tin for easy soldering and corrosion resistance.
- Durable Finish: Tan lacquer coating protects against moisture and handling damage.
- Pack of 50: Bulk quantity ideal for batch production and educational kits. Fast shipping from Zbotic.
Applications and Use Cases
- Limiting current to LEDs and small signal diodes in indicator circuits.
- Forming simple voltage dividers in sensor interface modules.
- Prototyping resistor networks on breadboards and custom PCBs.
- RC timing circuits in low-frequency oscillators or filters.
- Replacement parts for hobbyist robotics and Arduino shields.
- Educational electronics kits and student lab experiments.
How to Use 10 Ohm 0.25W Carbon Film Resistor
Insert the resistor leads into the through-hole PCB pads or breadboard, trim leads to the required length, and solder using a temperature-controlled iron. Ensure the operating environment stays below 70 °C to maintain performance and avoid overheating the carbon film element.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What is the recommended maximum operating temperature?
To ensure reliability, keep the ambient temperature below 70 °C during continuous operation, as specified by the manufacturer.
Are the resistor leads pre-tinned for soldering?
Yes, each resistor comes with tin-plated electrolytic copper leads that ensure quick wetting and strong solder joints.
Can I use these resistors in precision measurement circuits?
With a tolerance of ±5%, these carbon film resistors are best suited for general-purpose applications rather than high-precision instrumentation.
Technical Specifications
| Power Rating | 0.25W |
|---|---|
| Package Quantity | 50 pcs |
| SKU | AI0206 |
| Weight | 0.000334 kg |
| Availability | Out of Stock |
Applications & Use Cases
The 10 Ohm 0.25W Carbon Film Resistor (Pack of 50) is a versatile through hole resistor used across a wide range of applications including voltage dividers, current limiting, pull-up/pull-down networks, signal conditioning, and LED current limiting.
Common use cases:
- Limiting current through an LED
- Creating a voltage divider for analog sensing
- Pull-up resistor for I2C communication lines
This product is ideal for electronics students, hobbyists, and engineers.
Technical Tip: Use Ohm's Law (V=IR) to calculate the correct resistor value. Color bands indicate resistance: use an online calculator for quick reference.
