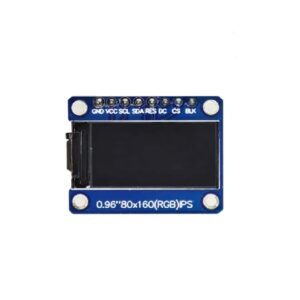

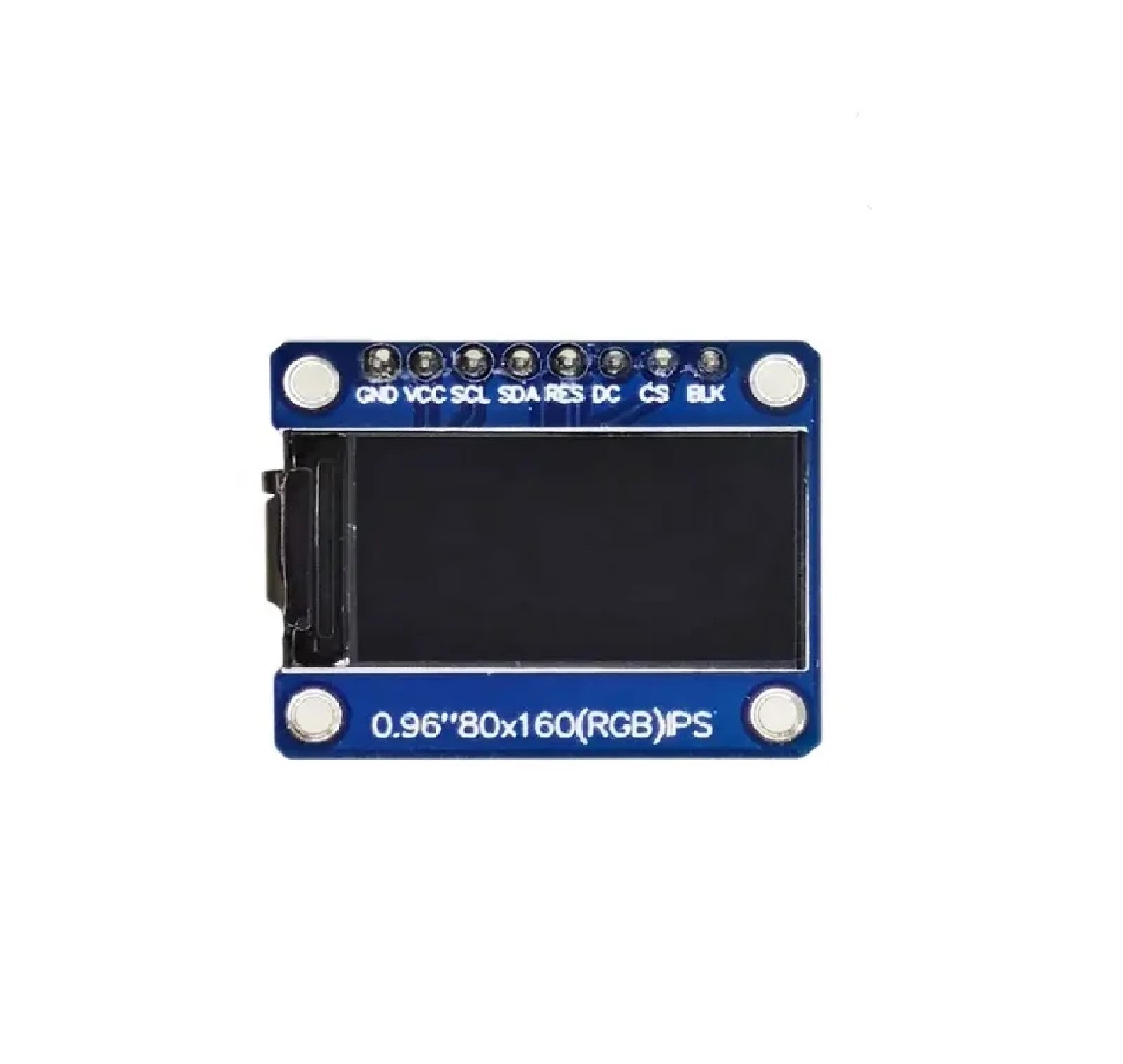

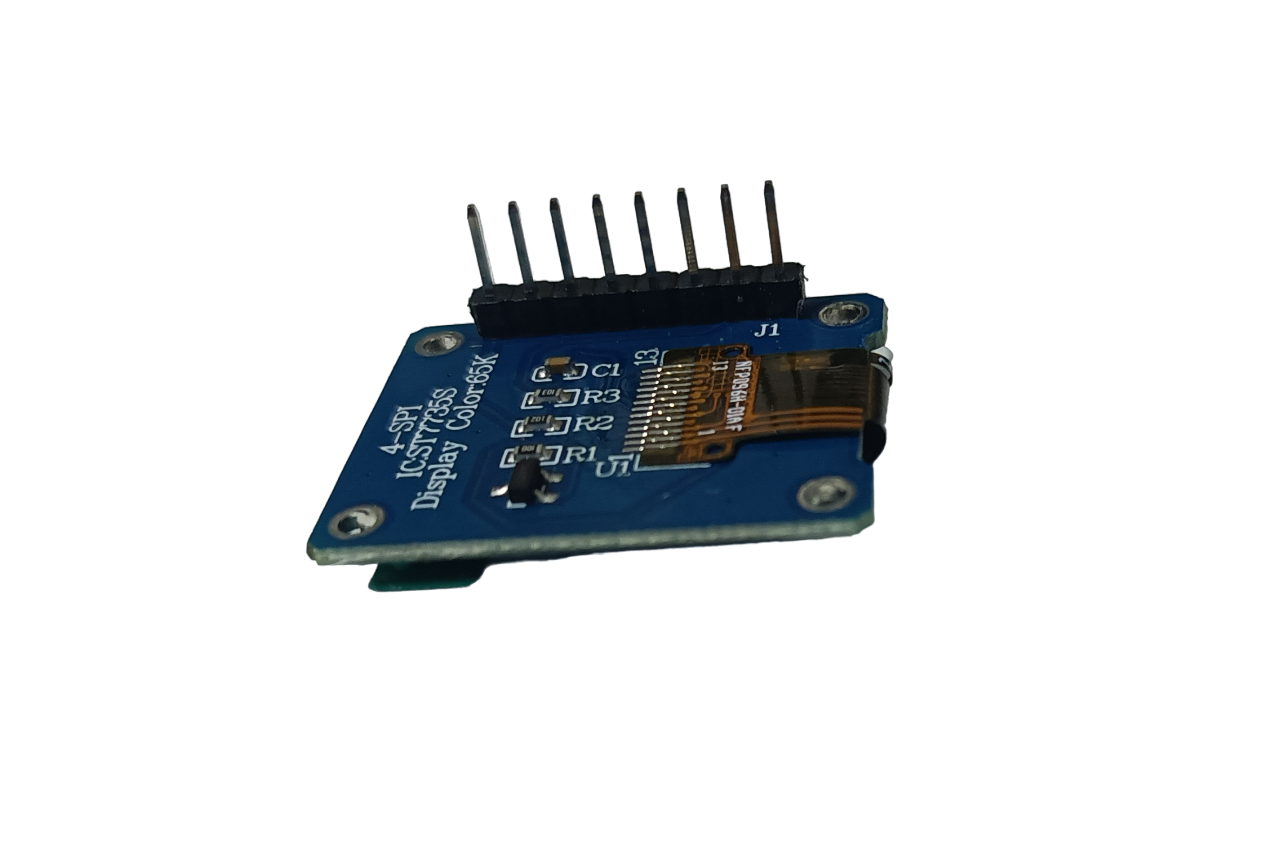

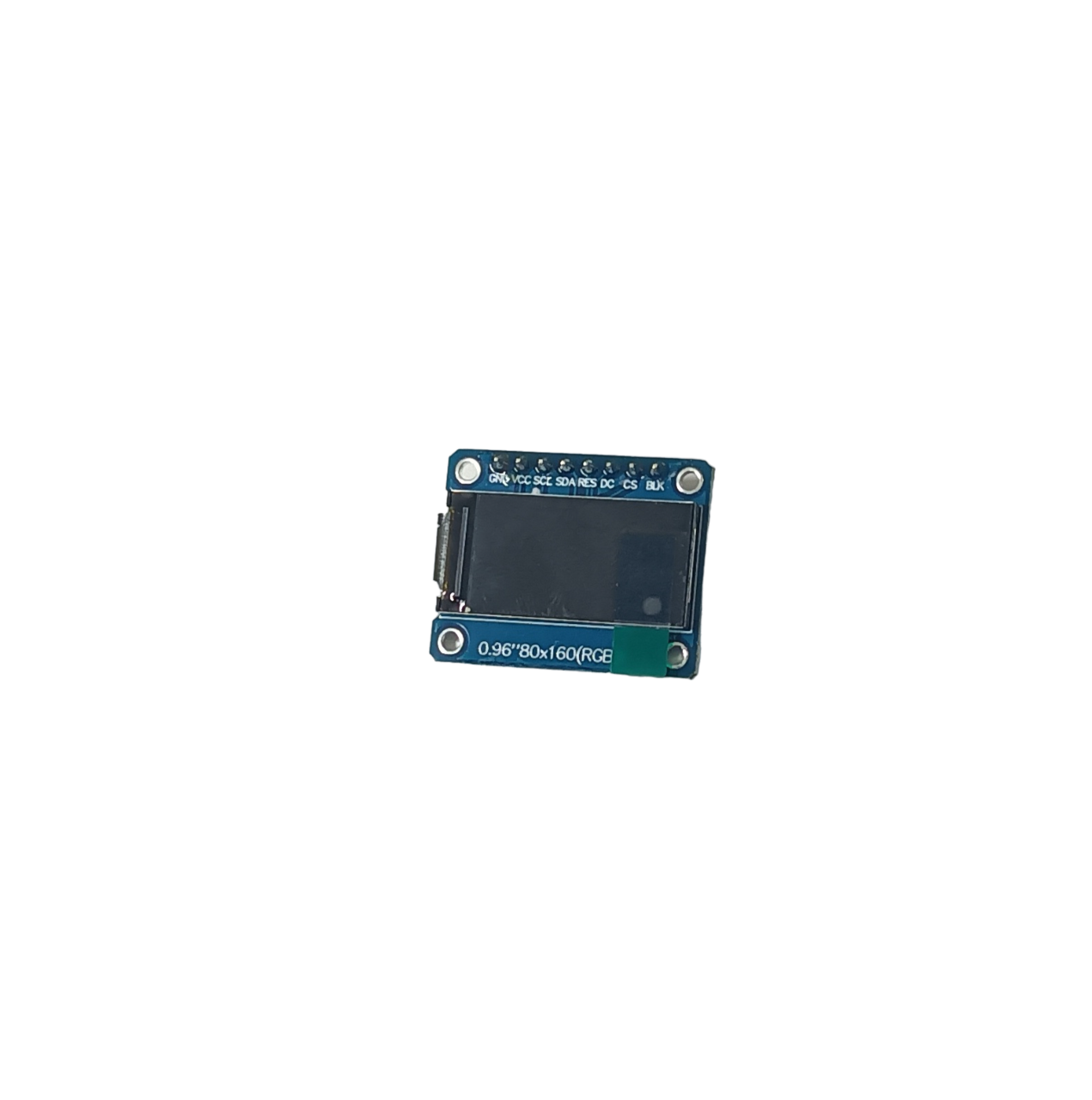

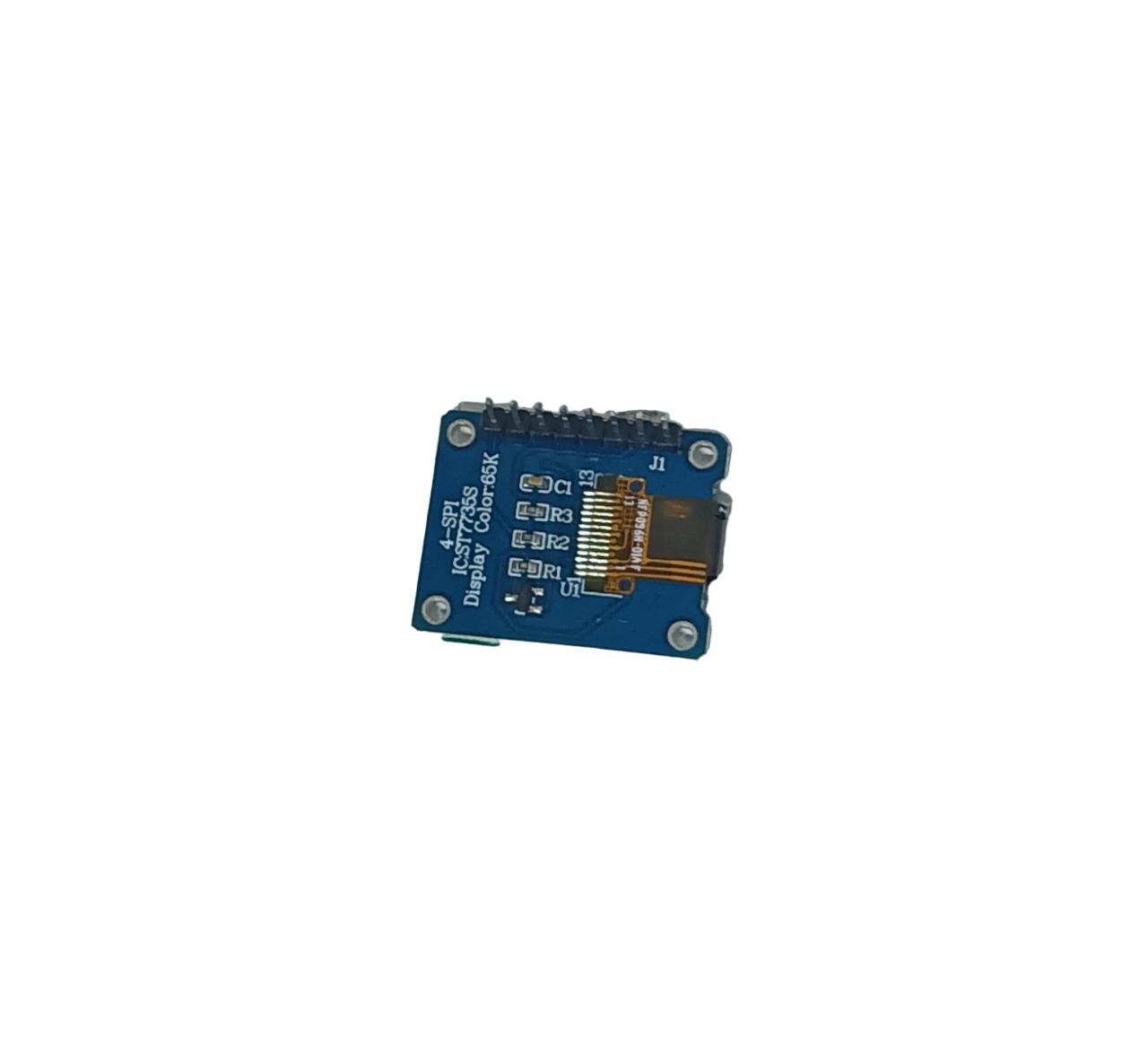

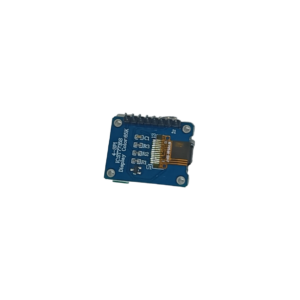

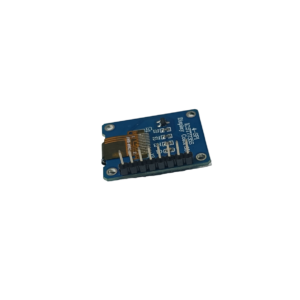

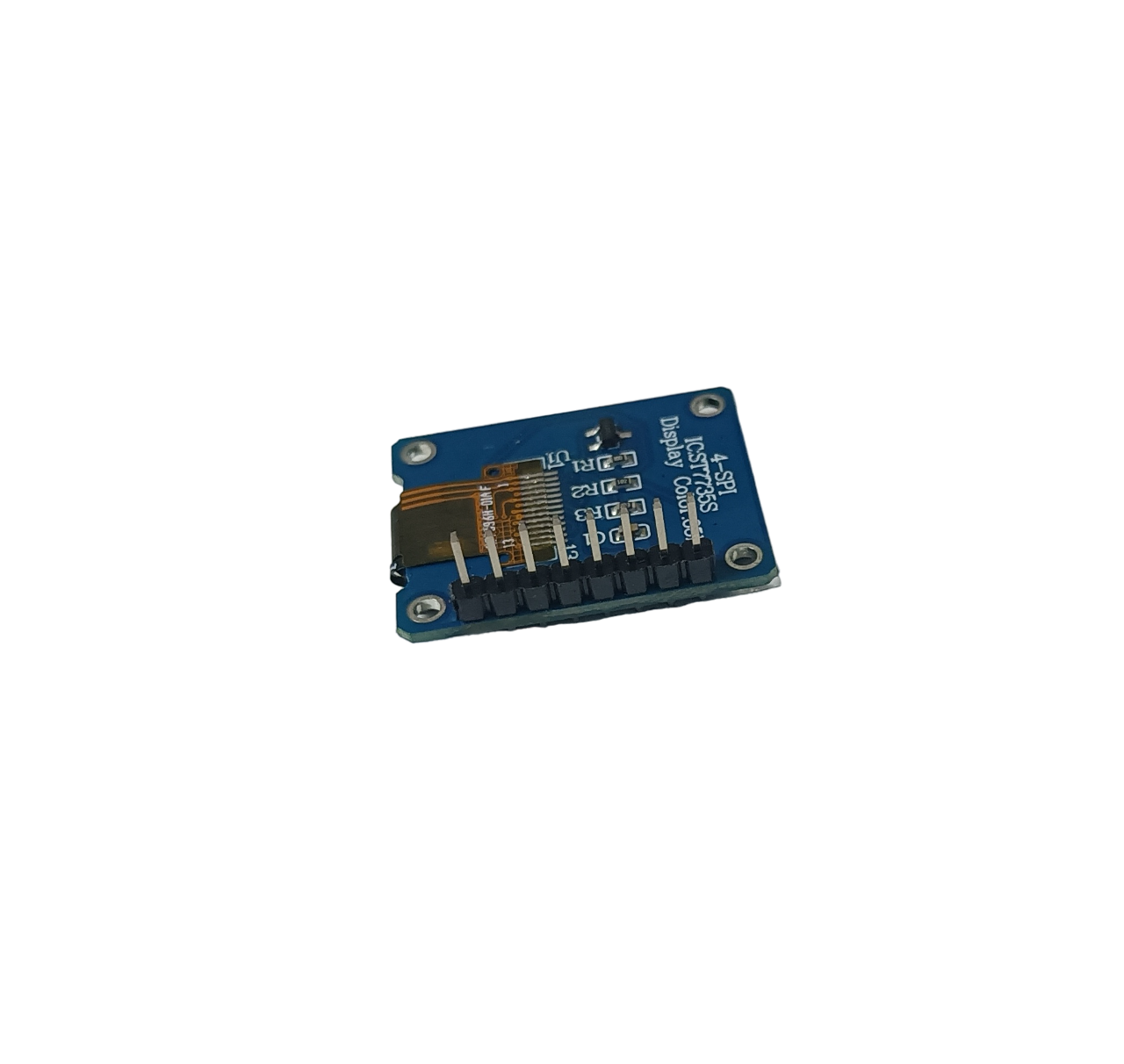

0.96 Inch 80*160 IPS TFT Module 8pin(with GND VCC) ST7735 Chip
The 0.96-inch Full-Color Non-Touch LCD Module delivers vibrant, high-resolution visuals in a compact form factor, enhancing the overall viewing experience. With its full-color display, it excels at presenting a wide range of content with vivid clarity and precision. Its intuitive design allows for easy integration into various electronic projects, making it a versatile choice for applications that require dynamic and visually engaging displays.
Features:
- 0.96-inch Full-Color Non-Touch LCD Module
- Vivid and dynamic visual display
- High-resolution for captivating viewing
- Full-color capabilities for diverse content
- Compact size suited for various projects
- User-friendly integration into electronics
- Ideal for dynamic visual representation needs.
Specification:
| Specification | Description |
|---|---|
| Screen Size | 0.96 Inch |
| Resolution | 80×160 pixels |
| Display Type | IPS TFT (In-Plane Switching Thin-Film Transistor) |
| Controller Chip | ST7735 |
| Pins | 8 pins (including GND and VCC) |
| Interface | SPI (Serial Peripheral Interface) |
| Operating Voltage | Typically powered with 3.3V |
| Driver IC | ST7735 |
| Viewing Angle | Wide viewing angle due to IPS technology |
| Color | Full-color display |
PACKAGE INCLUDES

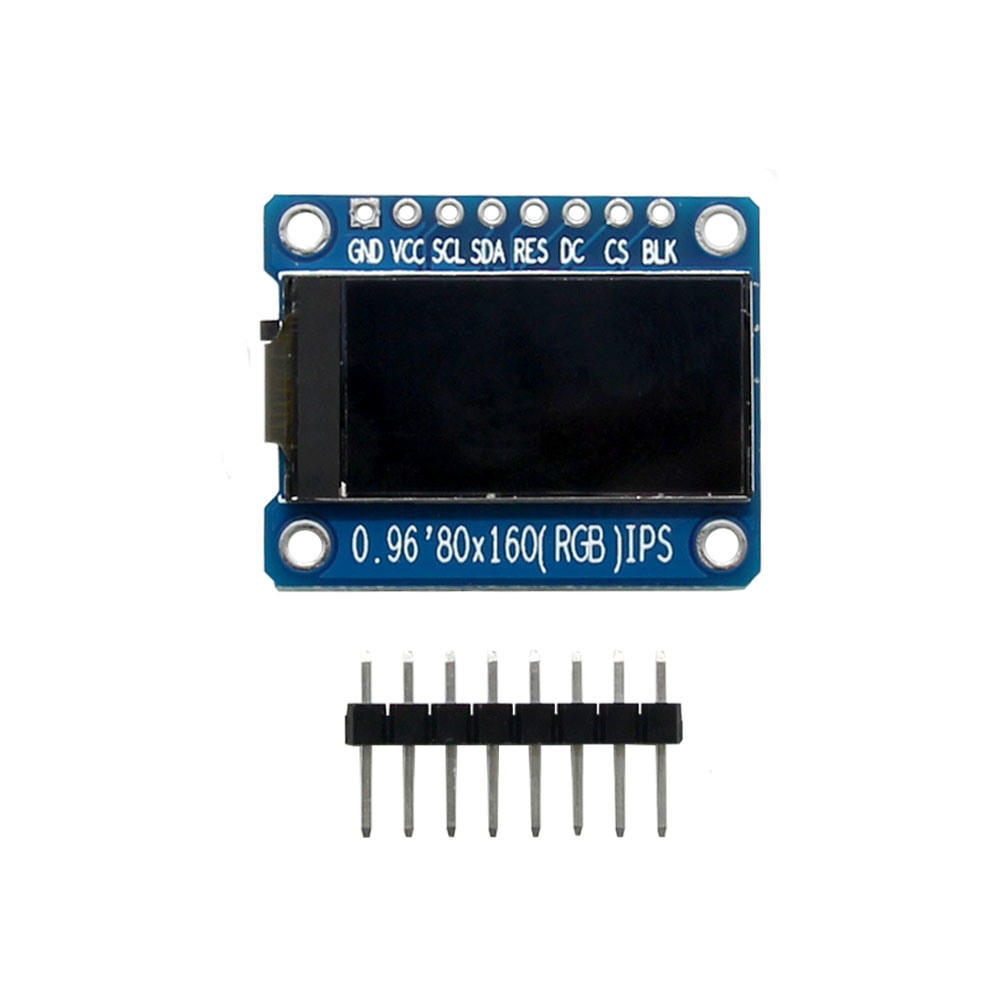

- 1 X 0.96 Inch 80*160 IPS TFT Module 8pin(with GND VCC) ST7735 Chip
Arduino Event-Driven Programming: Non-Blocking Code Patterns
If you've ever written an Arduino sketch that used delay() and found that buttons stopped responding, sensors missed...
Read More →
Arduino Automatic Plant Monitor: Sunlight, Moisture, Temperature
Table of ContentsIntroductionComponents and Hardware SetupWiring Diagram and ConnectionsComplete Code with ExplanationCustomization and ImprovementsTroubleshooting Common IssuesAdvanced Features and...
Read More →
Arduino Fast Analog Read: Increase ADC Speed 10x
By default, an Arduino Uno's analogRead() takes roughly 100–112 microseconds — that is only about 9,600 samples per...
Read More →Technical Specifications
| Display Size | 0.96" |
|---|---|
| Pin Count | 8-pin |
| SKU | AI3563 |
| Weight | 0.01 kg |
| Availability | Out of Stock |
Applications & Use Cases
The 0.96 Inch 80*160 IPS TFT Module 8pin(with GND VCC) ST7735 Chip is a versatile tft lcd displays used across a wide range of applications including embedded HMI interfaces, Raspberry Pi touchscreen projects, Arduino display projects, industrial control panels, and information kiosks.
Common use cases:
- Adding a touch display to a Raspberry Pi project
- Building a portable game console
- Creating a dashboard for sensor data
This product is ideal for embedded developers, IoT makers, and industrial engineers.
Technical Tip: Check interface type (SPI, I2C, HDMI, RGB) and driver IC compatibility with your development board. IPS panels offer better viewing angles than TN.
