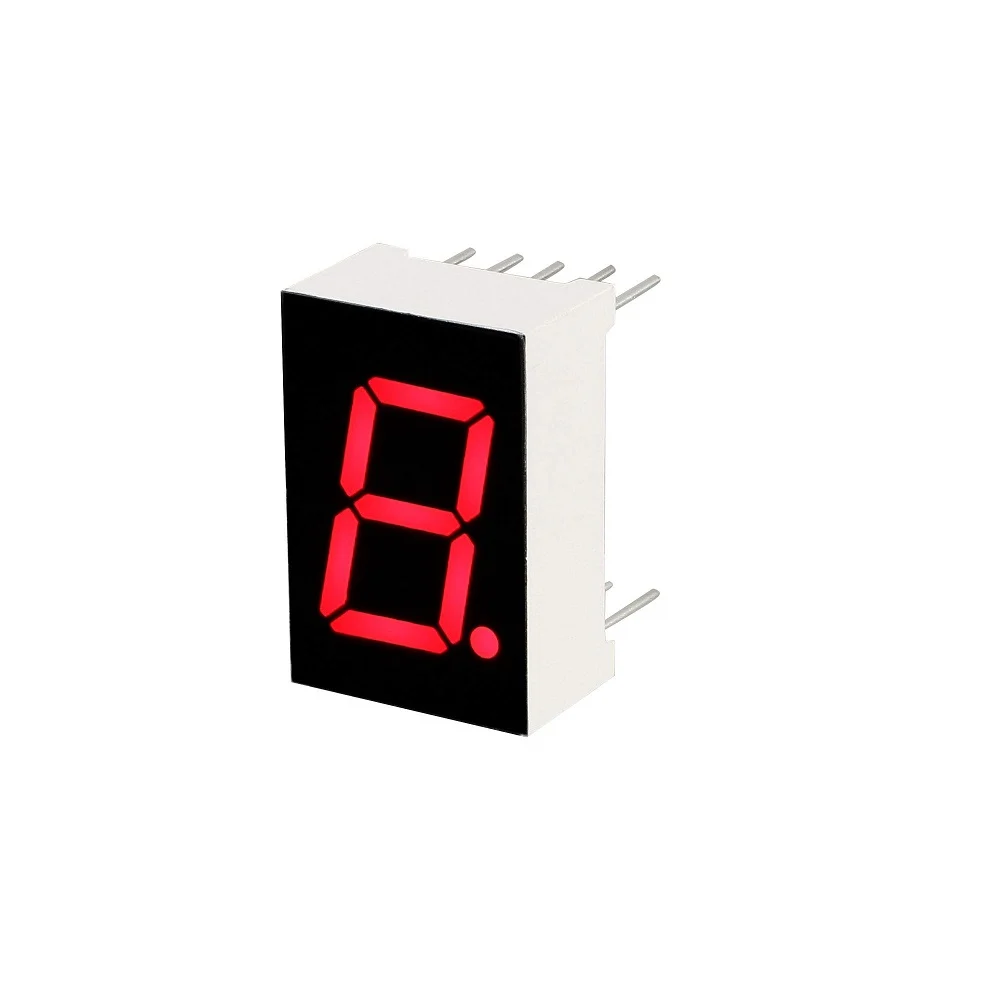

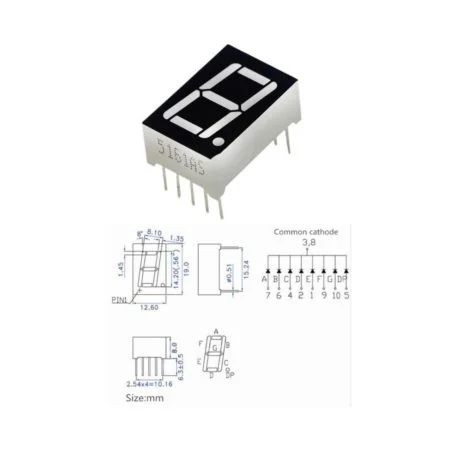

0.56 inch Red 1 Digit 7 Segment LED Display 10pin AC219 Common Anode(CA)
Description:
A seven-segment display (SSD) serves as a straightforward electronic display method for showcasing decimal numerals, offering a simpler alternative to more intricate dot matrix displays.
Consisting of seven LED lines or segments, each segment can illuminate individually or in combination to represent the numbers 0 through 9 in Arabic numerals. This display operates through a code or encoder-decoder IC, instructing the LEDs to light up in specific combinations to form the desired numbers.
Features:
- Type: Common Anode
- Color: RED
- Low Current Consumption
- High Brightness
- Easy to Use
- PCB Mounting
- Black face and white segments
- It is widely used in digital clocks, electronic meters, basic calculators, and other electronic devices that display numerical information.
Tutorial:
Package Includes:
1 x 0.56 inch Red 1 Digit 7 Segment LED Display 10pin
0.56 inch Red 1 Digit 7 Segment LED Display 10pin AC219 Overview
The 0.56 inch Red 1 Digit 7 Segment LED Display 10pin AC219 Common Anode is a single-digit numeric module featuring bright red LED segments in a compact 10-pin DIP package. Ideal for clocks, counters, panel meters and DIY electronics, it simplifies numeric readouts by lighting specific segments via a common anode wiring scheme.
Key Features of 0.56 inch Red 1 Digit 7 Segment LED Display 10pin AC219
- Common Anode Design: All segment anodes tied together for easy VCC connection
- Bright Red Segments: High-visibility LEDs ensure clear readability
- 0.56 inch Digit Height: Approximately 14.2 mm tall numerals for compact panels
- Low Current Consumption: Energy-efficient operation under typical segment currents

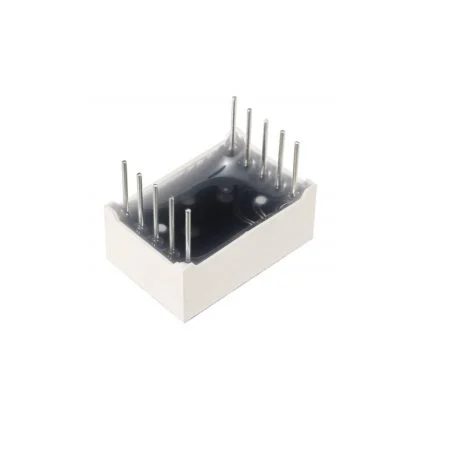

- 10-Pin DIP Package: Breadboard- and PCB-friendly form factor
- Fast Shipping: Genuine AC219 modules delivered quickly across India from Zbotic
Applications and Use Cases
- DIY digital clocks and countdown timers
- Voltage, temperature or pressure panel meters
- Frequency counters and scanning instruments
- Scoreboards and sports event displays
- Embedded systems requiring single-digit feedback
- Multiplexed multi-digit readouts with microcontrollers
How to Use 0.56 inch Red 1 Digit 7 Segment LED Display 10pin AC219
To deploy the AC219, connect both common anode pins to your +V supply (e.g. +5 V). Then attach each of the seven segment cathode pins—and the decimal point pin if used—through individual current-limiting resistors (typically 220 Ω–330 Ω) to your microcontroller or decoder outputs configured to sink current. Mount the 10-pin DIP module on a breadboard or PCB for stable operation and use a BCD-to-7-segment driver IC or direct GPIO control in your firmware.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
How do I wire the 10 pins on this common anode display?
The two common anode pins go to your +V supply (e.g. +5 V), and each of the seven segment cathode pins plus the decimal point pin connect through individual current-limiting resistors to your microcontroller or driver outputs set to sink current.
What current-limiting resistor value should I use?
For a 5 V supply and red LEDs with a forward voltage around 2 V, using 220 Ω to 330 Ω resistors per segment will yield bright, safe illumination while keeping current under 20 mA.
Can I combine multiple units for multi-digit displays?
Yes, you can place several AC219 modules on a PCB and multiplex them via your microcontroller or a decoder IC, activating each digit in rapid sequence to form multi-digit readouts.
Technical Specifications
| Display Size | 0.56" |
|---|---|
| Pin Count | 10-pin |
| Color | Red |
| SKU | AI3824 |
| Weight | 0.0 kg |
| Availability | In Stock |
Applications & Use Cases
The 0.56 inch Red 1 Digit 7 Segment LED Display 10pin AC219 Common Anode(CA) is a versatile seven segment display used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
