This is the 100V variant of the 0.28 Inch 0-100V Three Wire DC Voltmeter in Digital Voltage, Current and Frequency Meter. Available at ₹49.09 (₹41.60 + GST) with free shipping across India.

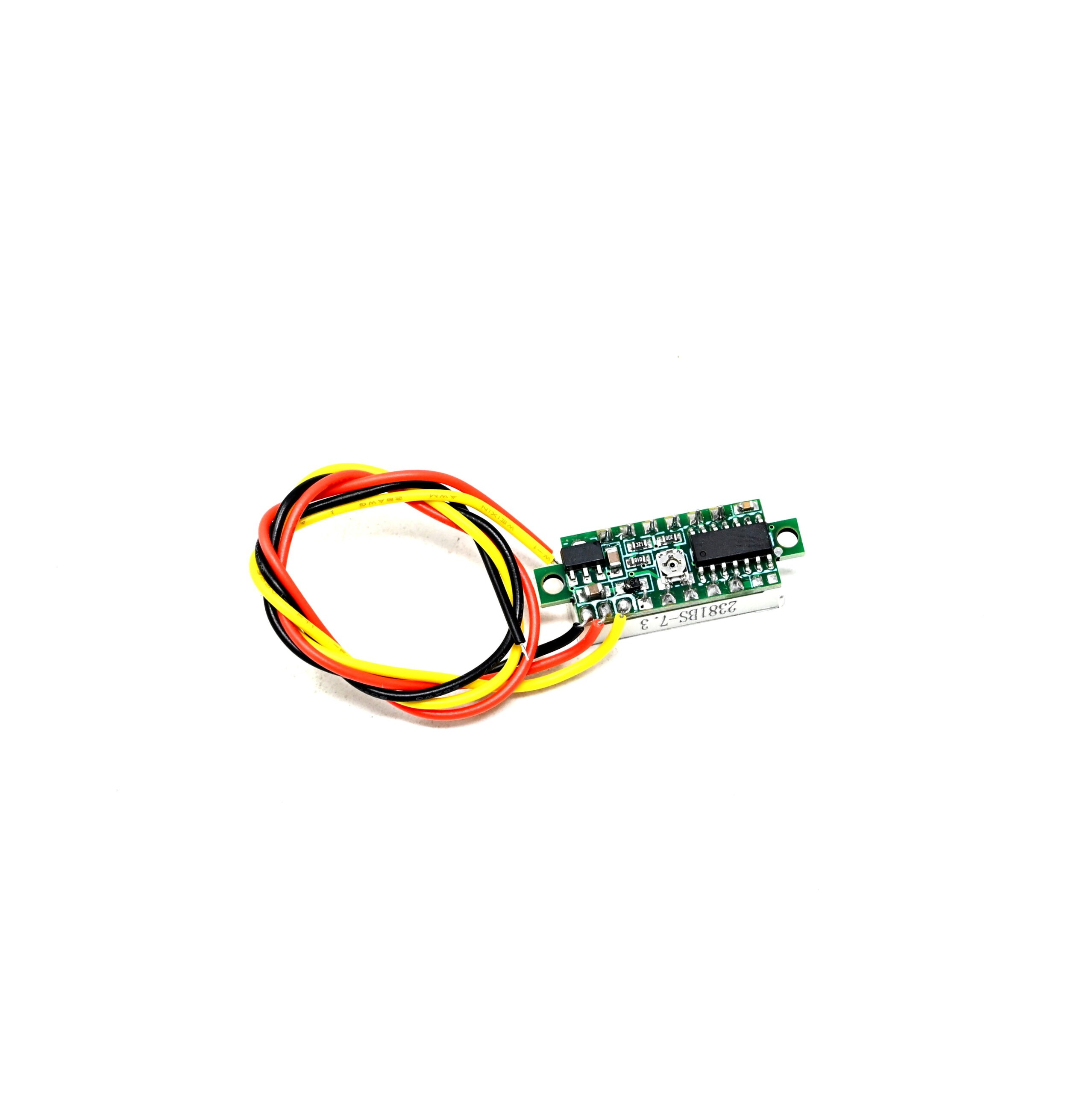

0.28 Inch 0-100V Three Wire DC Voltmeter
This compact digital voltmeter features a red LED display and is designed for measuring DC voltages from 0 to 100V. The 0.28-inch Digital Voltage Tester is easy to configure, requiring just a few minutes to connect the wires and start measuring voltage.
To use, simply connect the red wire to the positive terminal, the black wire to the negative terminal, and the yellow/white wire to the positive terminal of the source you want to measure. When measuring the voltage of another power source, ensure the negative pole is common. Don’t worry about wire misconnection—this voltmeter includes reverse polarity protection, preventing damage to the circuit.
The voltmeter requires an external power supply ranging from 0V to 100V. For enhanced accuracy, the voltmeter automatically adjusts the decimal point based on the voltage being measured. For voltages below 10V, it displays two decimal places; for voltages above 10V, it displays one decimal place.

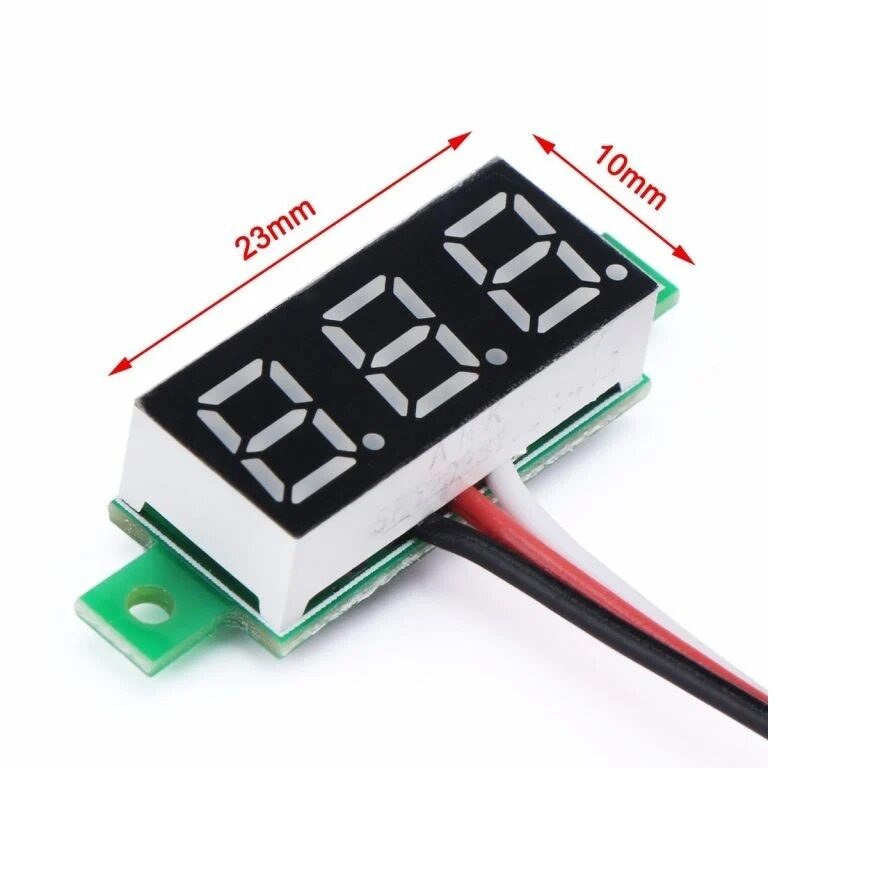

This compact voltmeter features a bright and clear LED display, capable of measuring DC voltages in the range of 0V to 100V. Its small size (just 0.28″) and lightweight design make it highly portable and easy to carry. The vivid blue LED display provides sharp, easy-to-read readings, even in low light conditions or at low operating voltages.
This voltmeter is ideal for measuring the voltage of storage batteries in motorcycles and cars, allowing you to easily monitor the battery’s health and status. It can also be used to measure other DC voltages. The voltmeter has a maximum operating voltage limit of 100V. To ensure its longevity and prevent permanent damage, be sure to provide adequate voltage margin during operation. Avoid exposing the voltmeter to electrical sparks, power supply ripple, or sudden voltage spikes that exceed its rated capacity.
Connections :
- Red Wire: Positive of the Power supply
- Black Wire: Negative of the Power supply and also used as the negative of the measurement voltage source
- Yellow/White/Blue: Positive of the measurement voltage source
Note:
- 2-power source (Red and Black) line with the highest input voltage cannot exceed 100V, otherwise, there is the risk of burnt.
- Three-line voltage range 0-100V, but also can be used as second-line use in 40V voltage to within Technical parameters
The display weight and Dimensions may have ±2% error.
Features
Very small and lightweight voltmeter module.
Very handy and easy to use.
Blue LED display.
It requires an extra power supply of 0V to 100V
Best operates in the working voltage range of 5V to 24V
100% Brand new and high quality.
No direct exposure to sunlight
| Refresh Speed (ms) | 200 (one time) |
|---|---|
| Minimum Input (V) | 3 |
| Highest Input (V) | 30 |
| Operating Temperature (°C) | -10 to 60 |
| Holes for Mounting | 3 mm |
| Height (mm): | 9 |
| Length (mm): | 13 |
| Width (mm): | 30 |
| Weight (g): | 3 |
| Cable Length (cm) | 20 |
Package Includes
1 x 0.28 Inch 0-100V Three Wire DC Voltmeter -Blue
Video
Technical Specifications
| Display Size | 0.28" |
|---|---|
| SKU | AI0349 |
| Weight | 0.01 kg |
| Availability | Out of Stock |
Applications & Use Cases
The 0.28 Inch 0-100V Three Wire DC Voltmeter is a versatile digital voltage, current and frequency meter used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
