Inverse Kinematics for Robotic Arm: Math & Arduino Code

Understanding inverse kinematics for a robotic arm with Arduino is the gateway to building truly precise robotic manipulators. Forward kinematics tells you where the end-effector ends up given servo angles — inverse kinematics (IK) does the opposite: you specify a target position in 3D space and the algorithm calculates the exact joint angles needed to reach it. This guide covers the underlying trigonometry, 2-DOF and 3-DOF analytical solutions, and complete Arduino servo code you can run today.

What Is Inverse Kinematics?

A robotic arm is a chain of rigid links connected by joints (usually rotational servos). The end-effector is the tip — a gripper, pen, or tool. Inverse kinematics answers the question: “Which servo angles do I need to put the end-effector at position (x, y, z)?”

This is fundamentally harder than forward kinematics because:

• Multiple solutions often exist (the arm can reach a point from elbow-up or elbow-down configurations).
• Some target positions lie outside the workspace — you must detect and reject these.
• Joint limits must be respected — real servos only rotate 180° or 270°.

For hobby robotic arms with 2–6 DOF, analytical (closed-form) IK using trigonometry is fast enough for Arduino’s 16 MHz AVR processor. Neural network or numerical IK is unnecessary for this scale.

Forward vs Inverse Kinematics

Forward kinematics (FK) uses given angles → compute position. For a 2-DOF planar arm with link lengths L1 and L2:

x = L1*cos(θ1) + L2*cos(θ1 + θ2)
y = L1*sin(θ1) + L2*sin(θ1 + θ2)

Inverse kinematics reverses this: given (x, y) → compute (θ1, θ2). This requires solving simultaneous transcendental equations, which is where trigonometric identities come in.

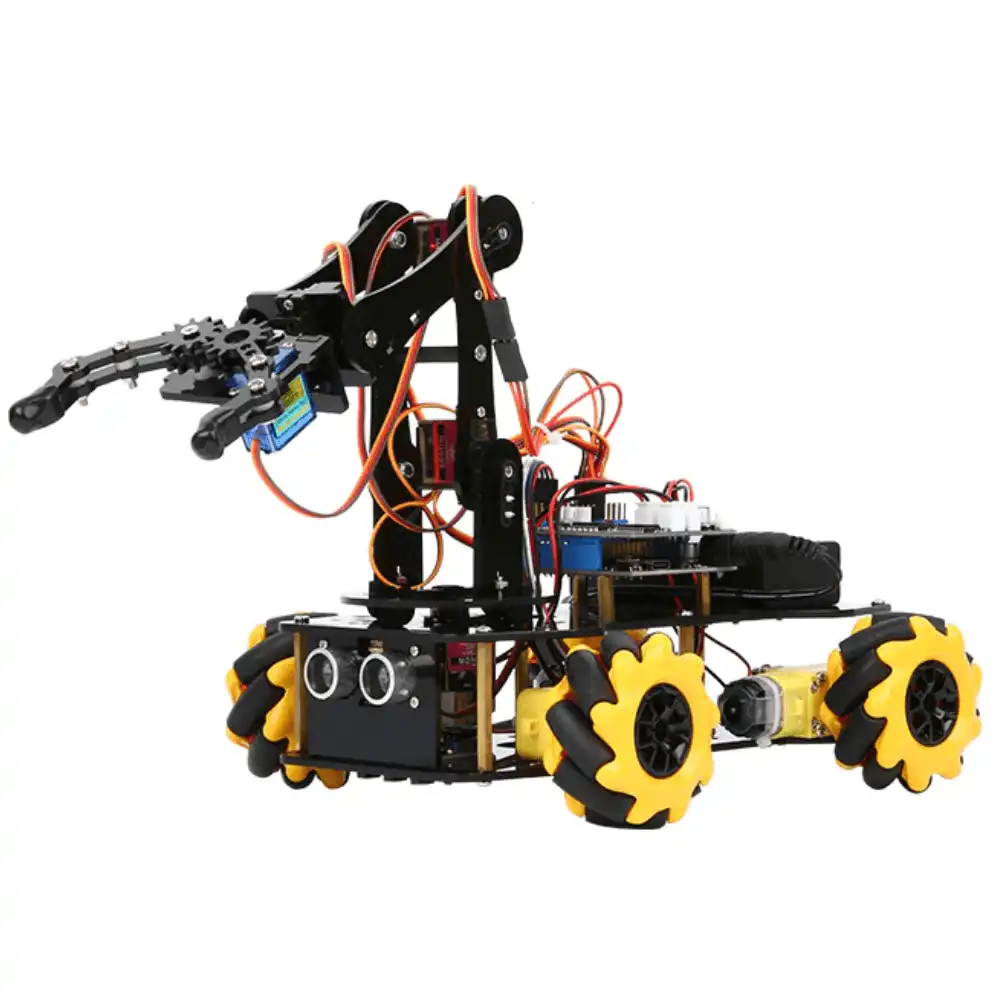

ACEBOTT ESP32 5-DOF Robot Arm Kit Expansion Pack (QD001–QD007)

A complete 5-DOF robotic arm kit with ESP32 control board, metal servo brackets, and structured cabling — ideal for implementing and testing IK algorithms.

View on Zbotic

2-DOF Planar Arm: The Math

Given target coordinates (x, y) and link lengths L1, L2:

Step 1 — compute the cosine of θ2 using the law of cosines:

cos(θ2) = (x² + y² - L1² - L2²) / (2 × L1 × L2)

If |cos(θ2)| > 1, the target is out of reach — handle this gracefully.

Step 2 — compute θ2:

θ2 = ±arccos(cos(θ2))
# + gives elbow-up, − gives elbow-down solution

Step 3 — compute θ1:

k1 = L1 + L2×cos(θ2)
k2 = L2×sin(θ2)
θ1 = atan2(y, x) − atan2(k2, k1)

Using atan2(y, x) instead of plain atan is critical — it handles all four quadrants correctly and avoids division-by-zero errors at x = 0.

Extending to 3-DOF with a Wrist

A 3-DOF arm adds a base rotation joint (θ0 around the Z-axis). This transforms the 3D problem into a 2D planar IK problem:

1. θ0 (base rotation): θ0 = atan2(y_world, x_world)
2. Projected radius in the XY plane: r = sqrt(x² + y²)
3. Now solve 2-DOF IK with coordinates (r, z_world) using the equations above.

For a 5-DOF or 6-DOF arm, you typically solve the first 3 joints with analytical IK to position the wrist centre, then solve the last 3 joints (wrist orientation) separately using Euler angles.

Arduino IK Code with Servo Control

Here is a complete Arduino sketch for a 3-DOF arm using the Servo library:

#include <Servo.h>
#include <math.h>

Servo base, shoulder, elbow;

const float L1 = 120.0; // upper arm length mm
const float L2 = 100.0; // forearm length mm

void setup() {
  Serial.begin(9600);
  base.attach(9);
  shoulder.attach(10);
  elbow.attach(11);
}

bool inverseKinematics(float x, float y, float z,
                       float &a0, float &a1, float &a2) {
  // Base angle
  a0 = degrees(atan2(y, x));

  // Project to 2D
  float r = sqrt(x*x + y*y);

  // 2-DOF IK in (r, z) plane
  float c2 = (r*r + z*z - L1*L1 - L2*L2) / (2*L1*L2);
  if (abs(c2) > 1.0) return false; // unreachable

  float s2 = sqrt(1.0 - c2*c2); // elbow-up
  a2 = degrees(atan2(s2, c2));   // elbow angle

  float k1 = L1 + L2*c2;
  float k2 = L2*s2;
  a1 = degrees(atan2(z, r) - atan2(k2, k1)); // shoulder angle

  // Clamp to servo physical limits
  a0 = constrain(a0, 0, 180);
  a1 = constrain(a1, 0, 180);
  a2 = constrain(a2, 0, 180);
  return true;
}

void moveTo(float x, float y, float z) {
  float a0, a1, a2;
  if (inverseKinematics(x, y, z, a0, a1, a2)) {
    base.write((int)a0);
    shoulder.write((int)a1);
    elbow.write((int)a2);
    Serial.print("Moved: ");
    Serial.print(a0); Serial.print(" ");
    Serial.print(a1); Serial.print(" ");
    Serial.println(a2);
  } else {
    Serial.println("Target out of reach!");
  }
}

void loop() {
  // Demo: trace a square
  moveTo(100, 0, 80);  delay(1000);
  moveTo(100, 50, 80); delay(1000);
  moveTo(80,  50, 50); delay(1000);
  moveTo(80,  0, 50);  delay(1000);
}

ACEBOTT ESP32 Programmable Robot Arm Kit for Beginners – QD022

A beginner-friendly ESP32 robot arm kit with guided coding exercises. Perfect for students learning IK concepts with real hardware and pre-built structural parts.

View on Zbotic

Hardware Setup: Arm Kit & Servos

For a hobby 3-DOF arm, you will need:

• 3× SG90 or MG90S servos — SG90 for light loads (pen plotting), MG90S metal gear for heavier grippers
• Servo brackets / horns — aluminium U-brackets give much better rigidity than 3D-printed parts
• Arduino Uno or Nano — sufficient for 3-DOF; use Arduino Mega for 6-DOF (more PWM pins)
• External 5V/3A power supply — never power multiple servos from the Arduino 5V pin
• Acrylic or aluminium arm base

For servo power, use a dedicated 5V buck converter or a 4× AA battery pack. Three SG90 servos can draw 1.5A stall current combined — far beyond the Arduino’s onboard regulator.

DIY Acrylic Robot Manipulator Mechanical Arm Kit

Laser-cut acrylic arm structure with all mounting hardware included. Bring your own servos and Arduino to build a full 4-DOF manipulator for IK experiments.

View on Zbotic

Workspace Limits & Singularities

The workspace of a 2-DOF planar arm is an annulus (ring) with:

• Maximum reach: L1 + L2 (fully extended)
• Minimum reach: |L1 − L2| (fully folded)

A singularity occurs when the arm is fully stretched or completely folded — at these configurations the Jacobian (rate of change of position w.r.t. angles) becomes degenerate and small target movements require infinite joint velocity. Always add a guard in your code:

float dist = sqrt(x*x + y*y + z*z);
if (dist > L1 + L2 - 5.0 || dist < abs(L1 - L2) + 5.0) {
  Serial.println("Near singularity — aborting");
  return false;
}

The 5 mm buffer prevents near-singular behaviour that causes servo jitter and mechanical stress.
