This is the 54mm variant of the XH2.54mm 6P Bend Pin Header Connector – (Pack of 5) in Battery Connector. Available at ₹5.55 (₹4.70 + GST) with free shipping across India.
PRODUCT DESCRIPTION

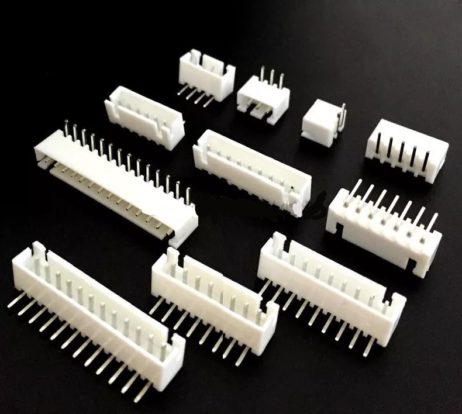

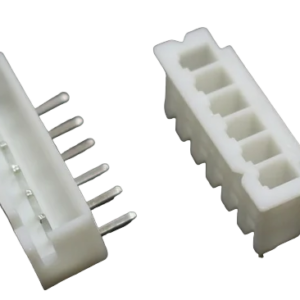

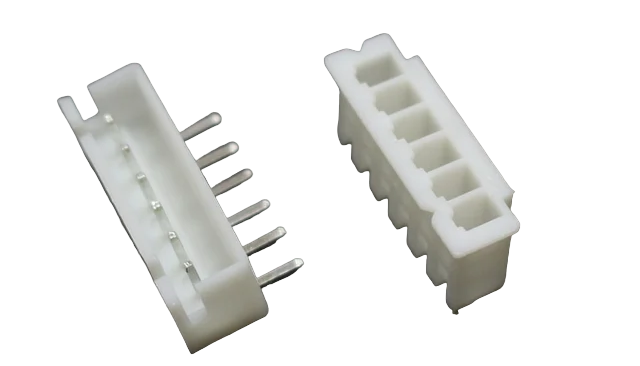

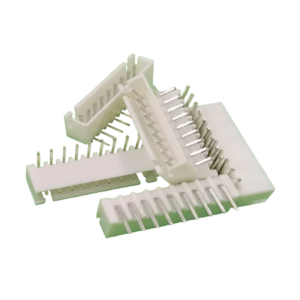

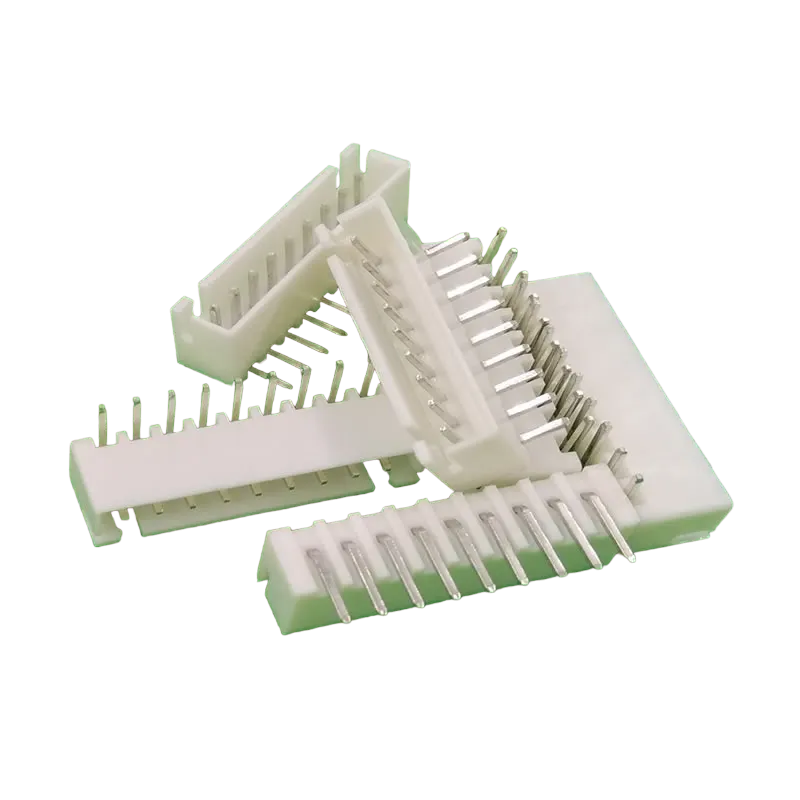

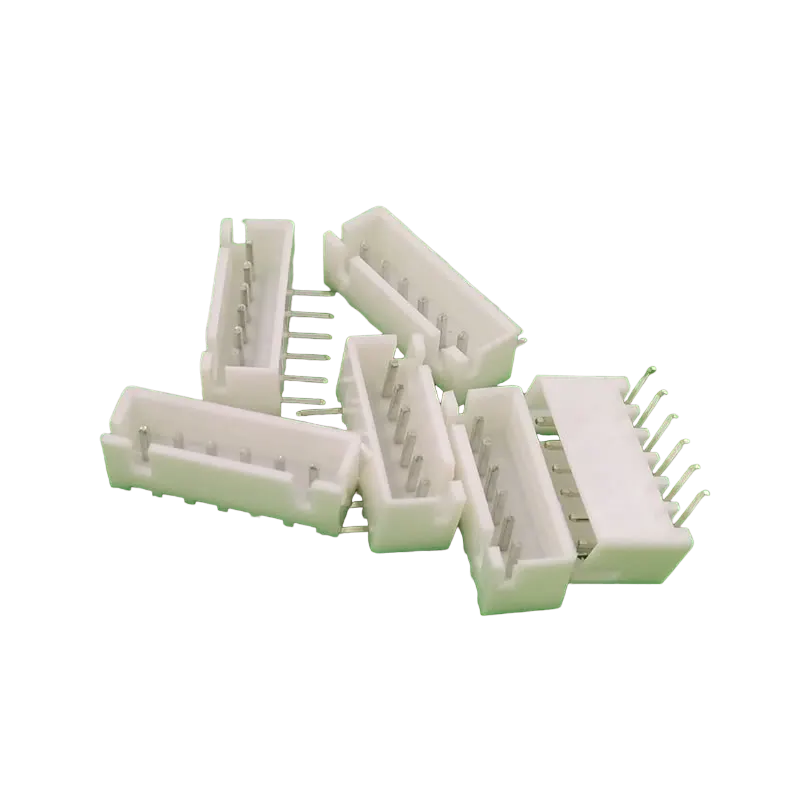

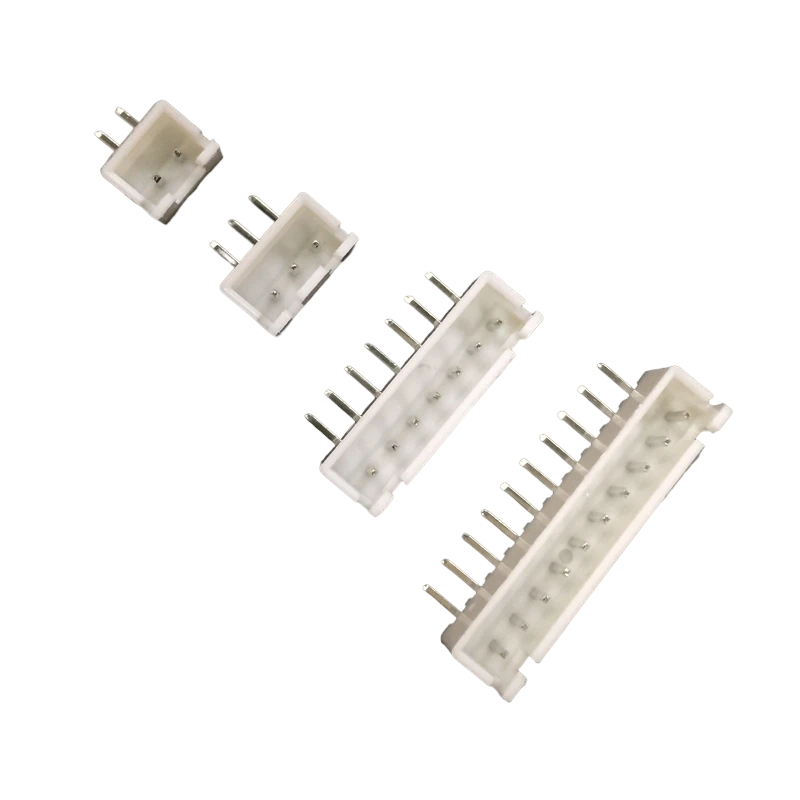

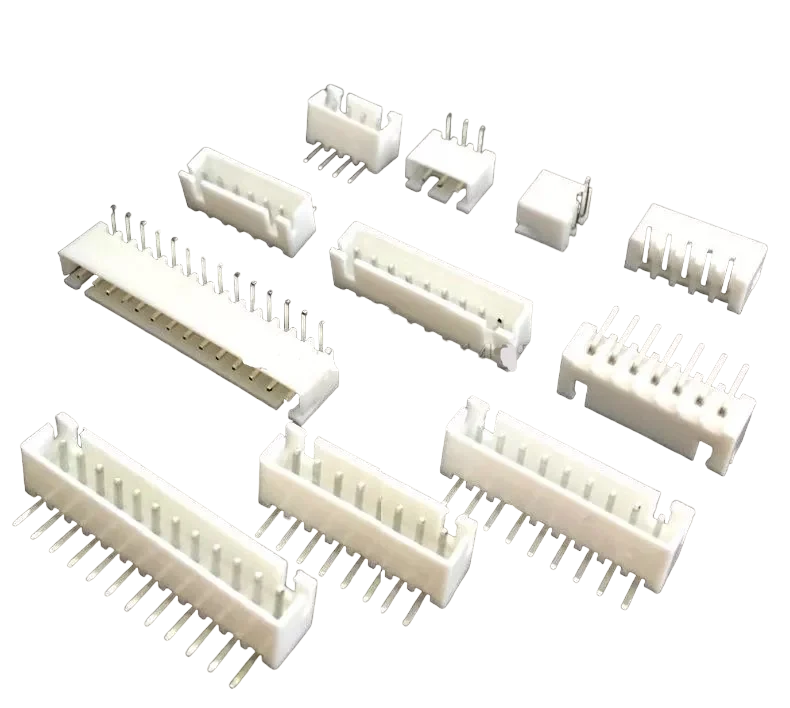

This is a 6 Pin JST XH 2.54mm Pin Header Connector.
Applications:
- AC power supply to PCs and lab equipment.
- Used in all types of RCs( cars, boats, planes).
- Also used in CCTV connections, pick-ups, etc.
Features:
- Use of electrical fire retardant material.
- Solid and durable.
- Safe and easy to install.
- RoHS compliant.
Specification:
| Model | XH2.54mm 6P |
|---|---|
| Product Type | Bend Pin Header Connector |
| Gender | Male |
| Operating Voltage(V) | 250V |
| Operating Current (A) | 3A |
| No. of Contact Points | 2 |
| Connector Type | JST XH |
| Contact Material | Phosphor Bronze |
| Contact Plating | Nickel |
| Operating Temperature Range (°C): | -25 to 85 (°C) |
| Dimensional Accuracy (mm) | 27.5 x 8 x 9 |
| Shipping Weight | 0.005 kg |
| Shipping Dimensions | 10 × 7 × 2 cm |
Package Includes:
1 x 6 Pin JST XH 2.54mm Pitch Header Connector– 5Pcs.
LDO Regulator Heat: Calculating Power Dissipation Loss
LDO Regulator Heat: Calculating Power Dissipation Loss If you have ever touched an LDO regulator in your circuit...
Read More →
Power Path Controller: Charge and Use Battery Simultaneously
A power path controller allows your device to simultaneously charge a battery and power the system from an...
Read More →
3.3V Power Supply: LDO and Buck Options for ESP32
Table of ContentsWhy 3.3V Matters AMS1117-3.3 LDO Regulator Buck Converter for 3.3V Voltage Level Shifting Noise Considerations for...
Read More →Technical Specifications
| Model | XH2 |
|---|---|
| Size | 54mm |
| Package Quantity | 5 pcs |
| SKU | AI3085 |
| Weight | 0.012675 kg |
| Availability | In Stock |
Applications & Use Cases
The XH2.54mm 6P Bend Pin Header Connector – (Pack of 5) is a versatile battery connector used across a wide range of applications including drone battery connections, RC vehicle wiring, power distribution boards, battery pack assembly, and DIY power cables.
Common use cases:
- Replacing worn connectors on a LiPo battery
- Building custom battery harnesses
- Soldering connectors for a new drone build
This product is ideal for drone builders, RC hobbyists, and electronics technicians.
Technical Tip: XT60 handles up to 60A continuous; XT30 up to 30A. Always solder male connectors to the battery side and female to the ESC/charger side.
