Product Description
Enjoy your own music system with a stereo output of 100 watts. This product is a digital audio amplifier board that is easy to install and use, and has excellent quality and performance. It uses the latest and original TPA3116D2 core technology for high-efficiency class D audio power amplification, and the BTL bridge circuit is more efficient than before.
This product has a dual power supply transformer that can work with a dynamic power supply range from 12V to 24V, with low quiescent current. It also has perfect protection functions, such as overvoltage protection and output current limit.
Note: This Product is available in two different variants (Name: XH-M542 and HW 576 and On-Board IC Package i.e. 32pin or 16pin ) but with the same working, we will ship it randomly.
Features:
- Strong TPA3116D2 chip is a digital power amplifier chip, with low idle loss characteristics, makes it work well and quickly.
- Onboard, front-facing IC to improve the input sensitivity, high-definition sound quality.
- It can be used for car vehicle computer speaker, family audio and video, and empty square.
- This product has the characteristics of loud sound, the capacitance is large, , excellent sound quality.

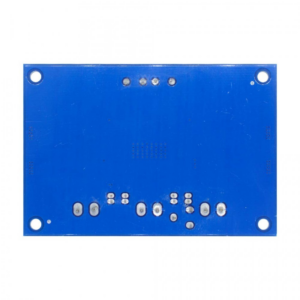

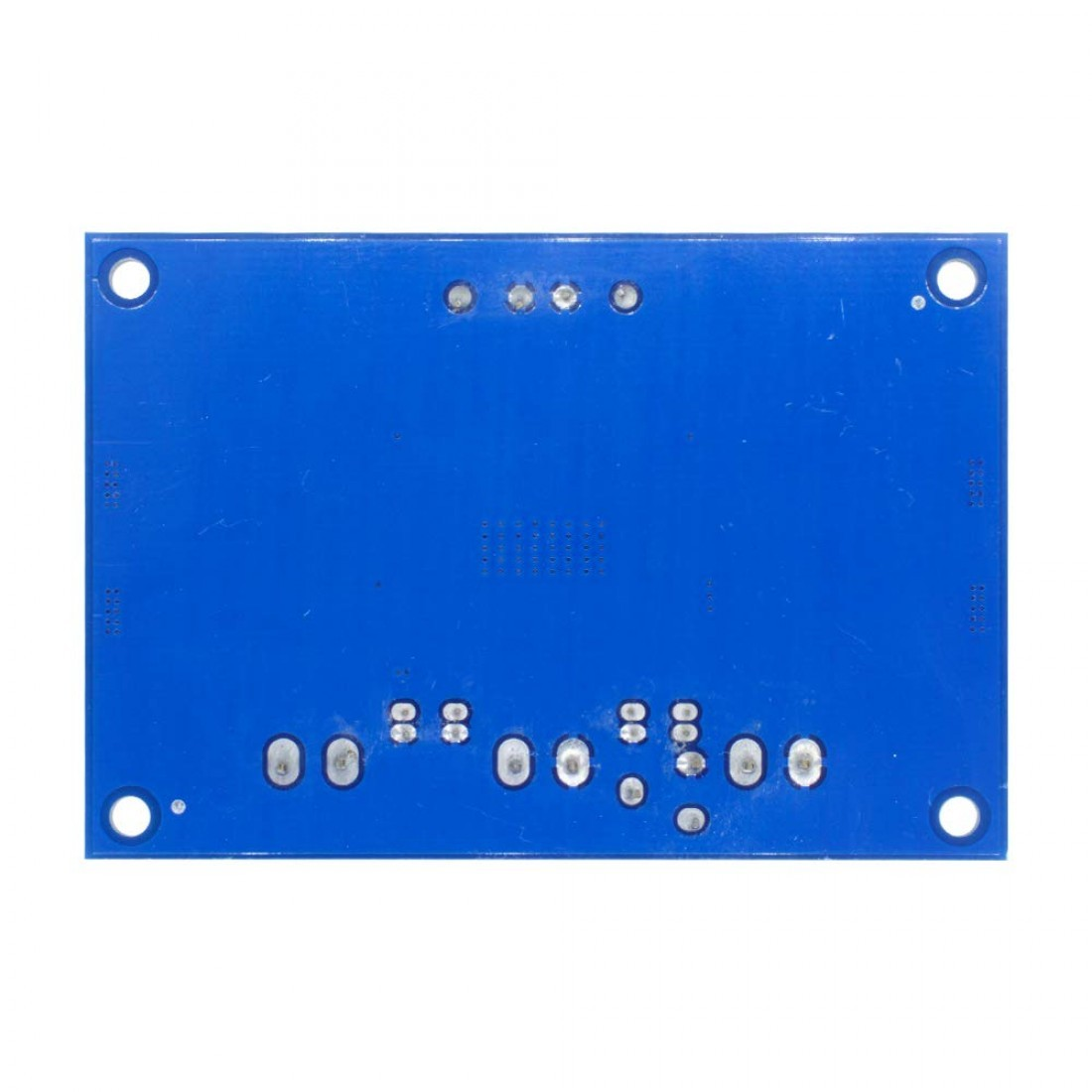

- There is no solder joint on the back of the circuit board, the chip capacitors and the solder board together, so there is no possibility of short circuit.
Specification:
| Width (mm) | 54 |
|---|---|
| Height (mm) | 16 |
| Weight (g): | 55 |
| Shipping Weight | 0.059 kg |
| Shipping Dimensions | 7 × 5 × 2 cm |
Package Includes:

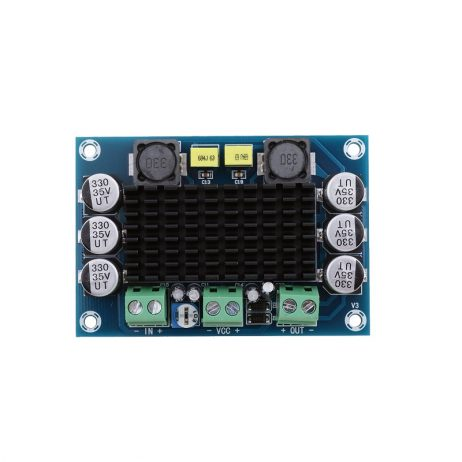

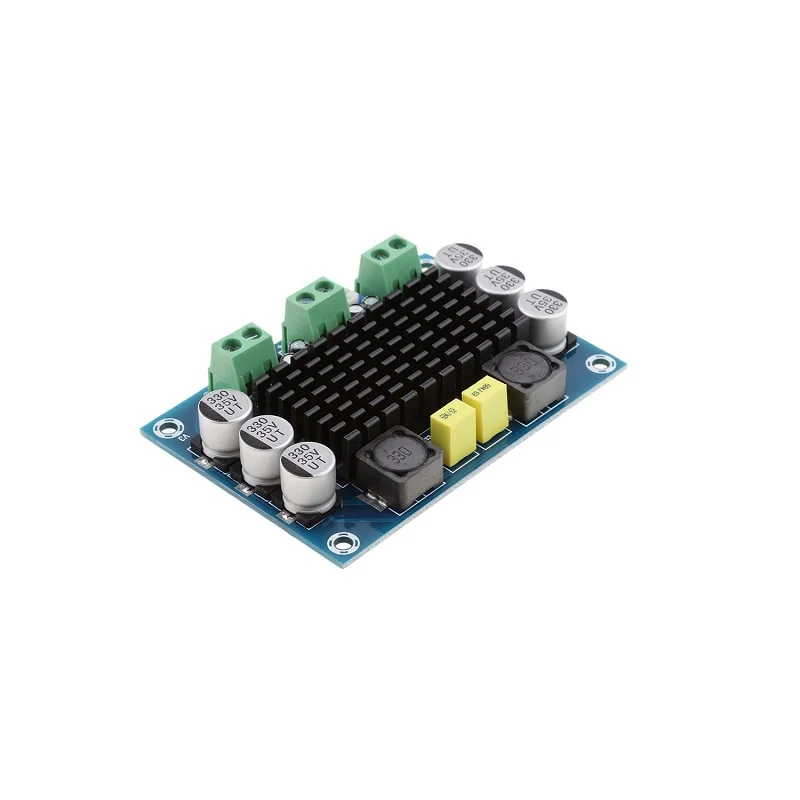

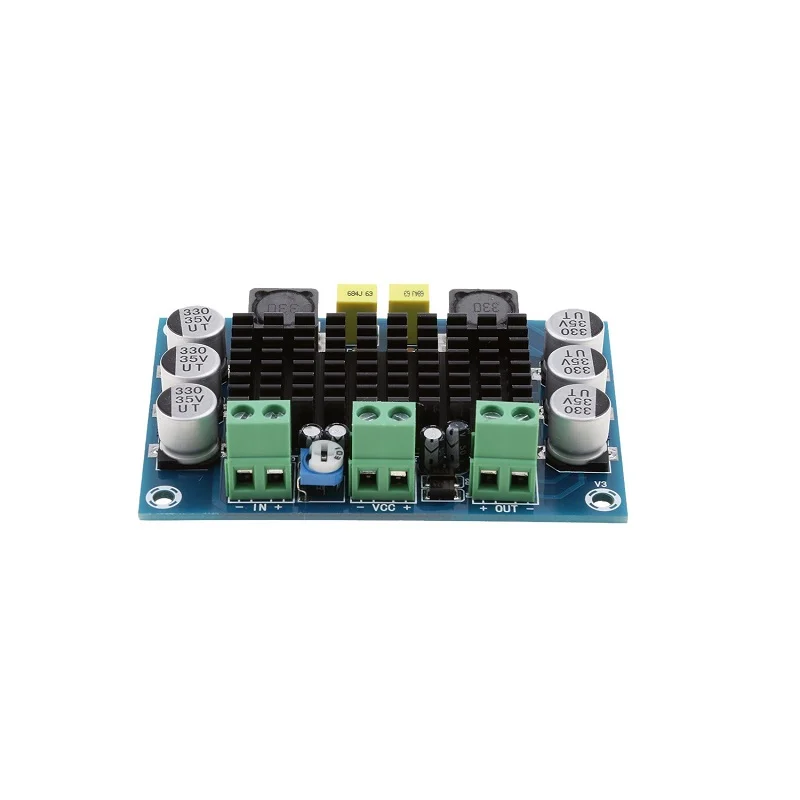

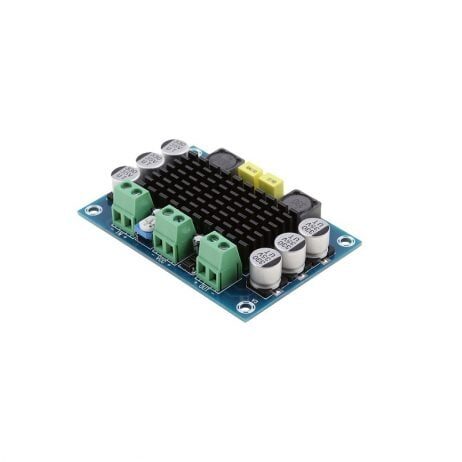

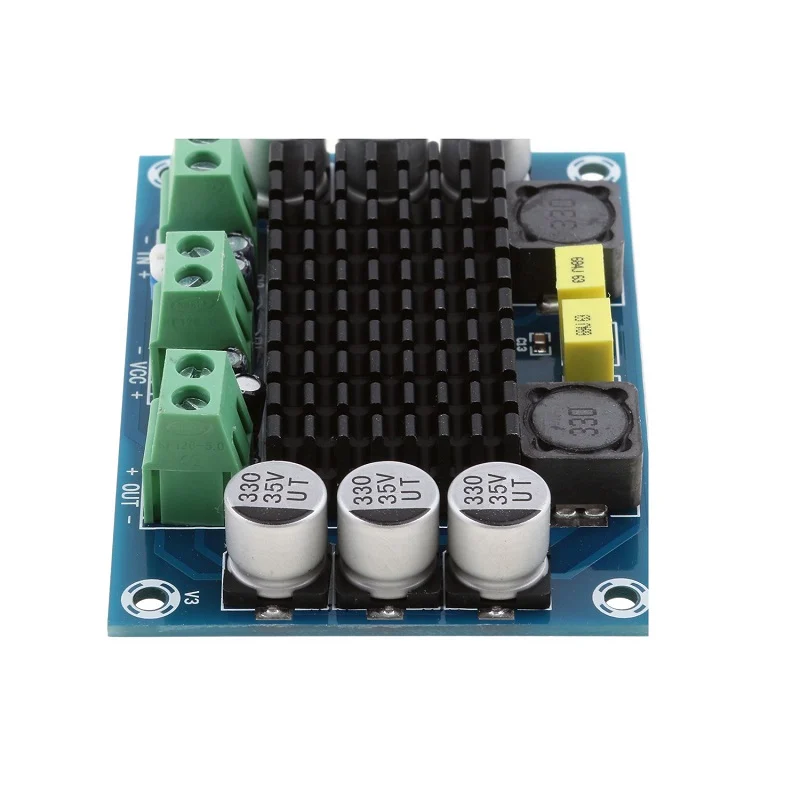

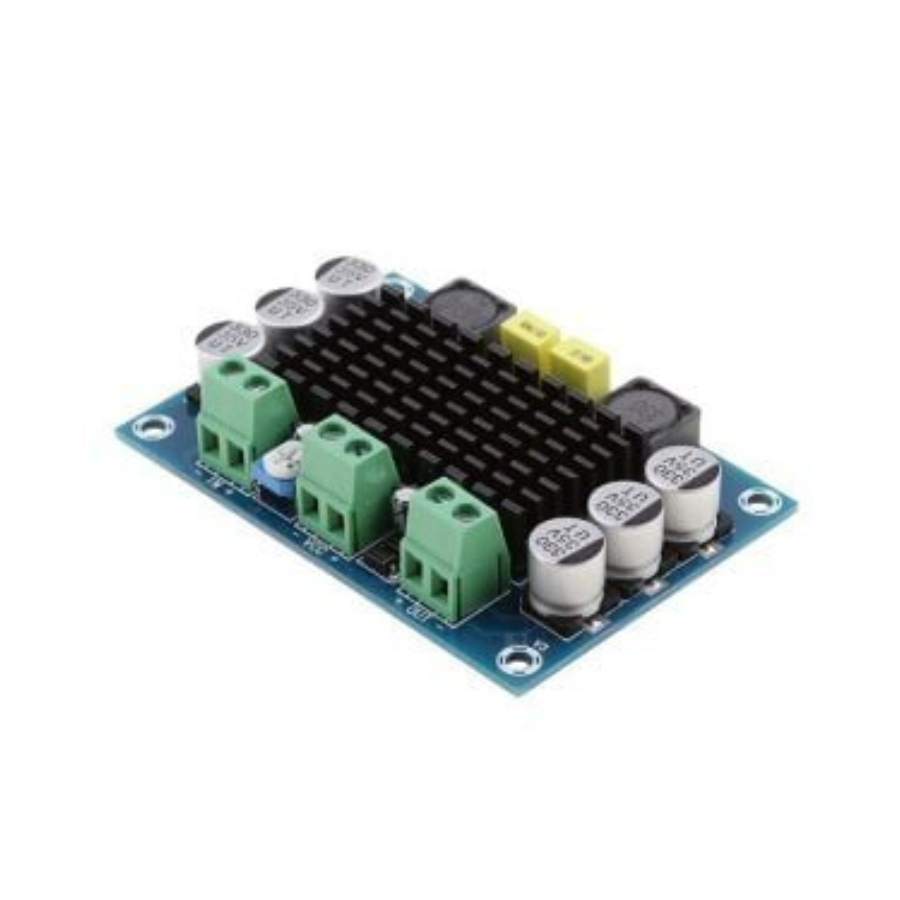

1 x XH-M542 Single Channel High Power Digital Audio Power Amplifier Board TPA3116D2
Technical Specifications
| Model | XH-M542 |
|---|---|
| SKU | AI2778 |
| Weight | 0.050001 kg |
| Availability | Out of Stock |
Applications & Use Cases
The XH-M542 Single Channel High Power Digital Audio Power Amplifier Board TPA3116D2 is a versatile audio amplifier module used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
