Description:

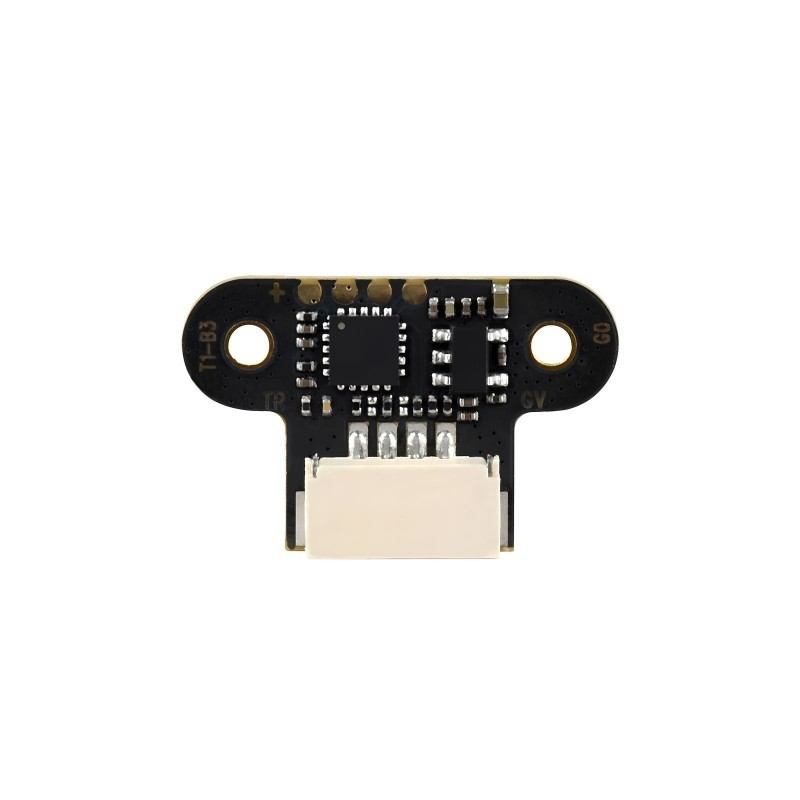

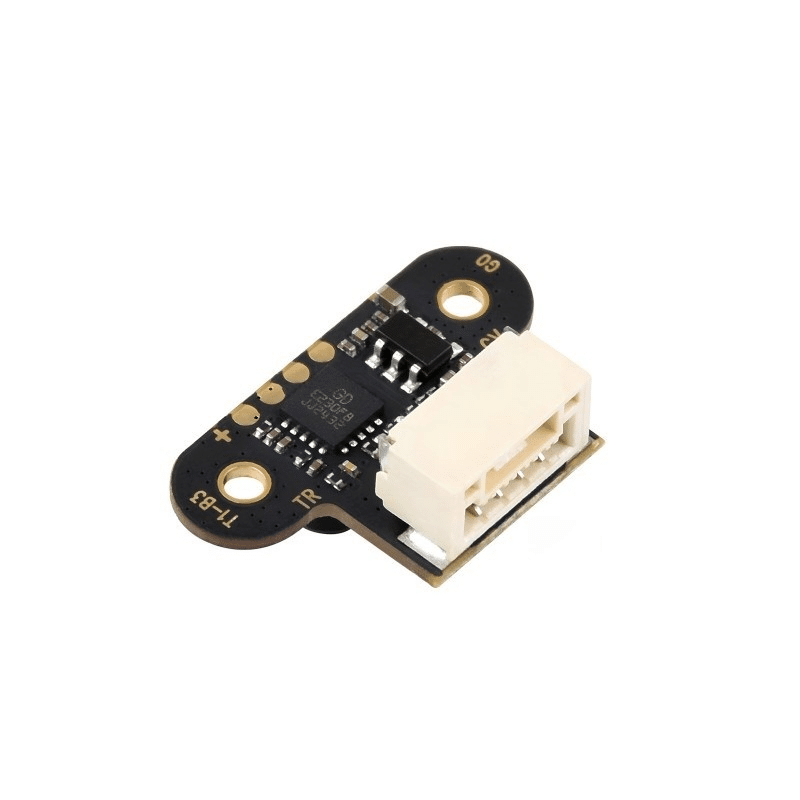

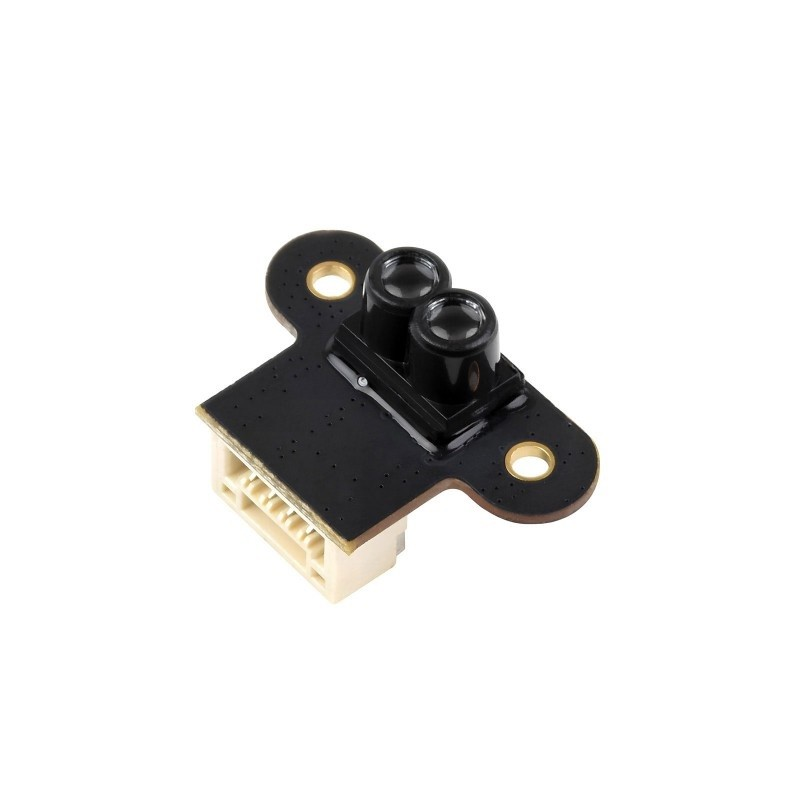

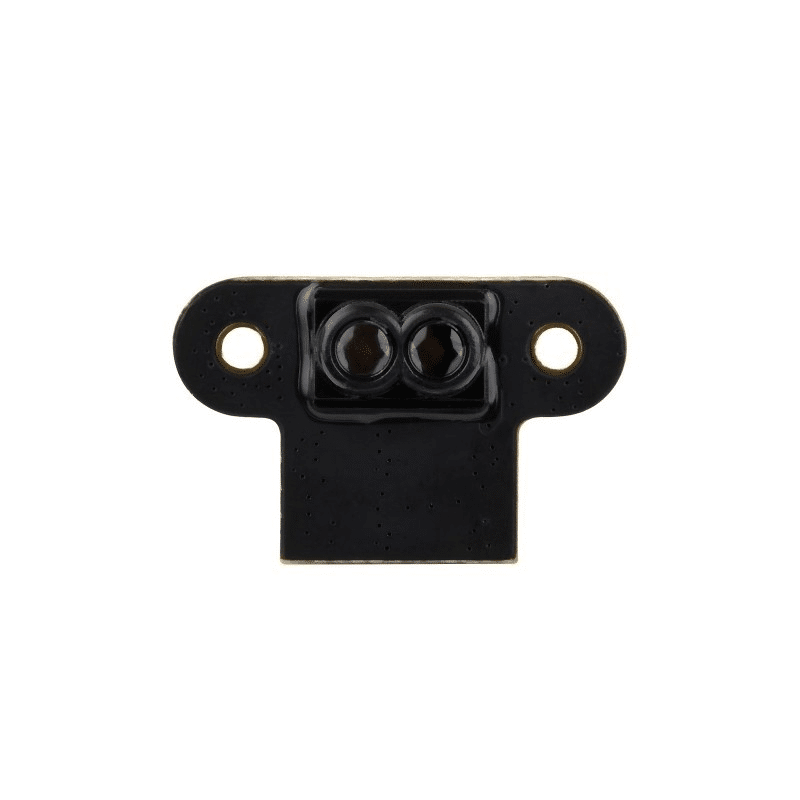

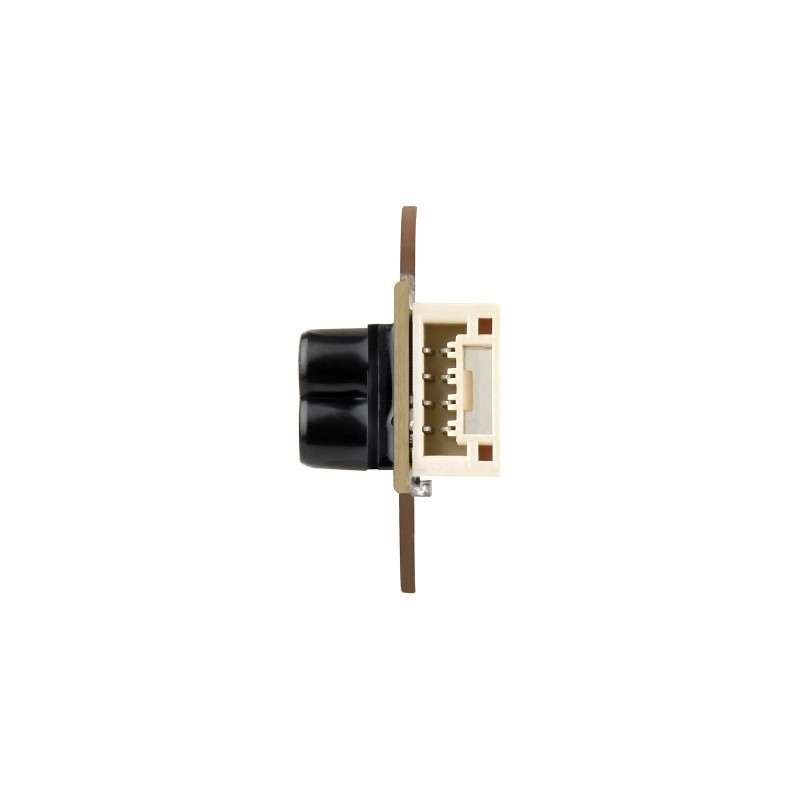

Waveshare TOF (time of flight) Mini Laser Range Sensor is a TOF-based (time of flight) mini laser ranging sensor with embedded MCU and ranging algorithm, which the measuring range is up to 7.8m and the accuracy is up to ±4cm. It supports UART or I2C communication bus, features longer measuring distance and higher light interference tolerance capability due to its ultra narrow FOV, suitable for either indoor or outdoor condition. And its ambient light tolerance is up to 100K LUX.
Waveshare TOF (time of flight) Mini Laser Range Sensor sensor can be widely used in applications like common distance measuring, robot obstacle avoidance / route planning, as well as drone altitude setting / ceiling detection, and more.
Features:
-
TOF-based Mini Laser Sensor: Utilizes time of flight technology for accurate distance measurement.
-
Measuring Range: Up to 7.8m with high precision.
-
Accuracy: ±4cm for reliable results.
-
Communication Support: Compatible with UART and I2C for flexible integration.
-
Narrow FOV: Enhanced distance measurement and high light interference tolerance.
-
Ambient Light Tolerance: Up to 100K LUX, suitable for various environments.
-
Wide Application: Ideal for distance measuring, robot obstacle avoidance, route planning, drone altitude setting, and ceiling detection.
Specification:
Item Type: Laser Range Sensor Distance Measuring Range(M): 0.02m ~ 7.8m Wavelength (nm) 940nm Field of View (FOV): 2° ~ 3° Accuracy: 0.02m ~ 7.8m±4cm UART Baud Rate 4.8Kbps ~ 3000Kbps (921.6Kbps by default) Power Supply 4.3 ~ 5.2V Power Consumption 100mW (UART active output, 5.0V power supply, 20mA current) Operating Temperature (°C): -10°c ~ 60°c Length (mm): 18.8 Width (mm): 12 Height (mm): 10.3
Package Includes:
-
1 x TOF Laser Range Sensor Mini
-
1 x GH1.25 4PIN wire
-
1 x GH1.25 4PIN squid wire
-
Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Interface / Protocol | I2C, UART |
| SKU | AI7657 |
| Weight | 0.02 kg |
| Availability | Out of Stock |
