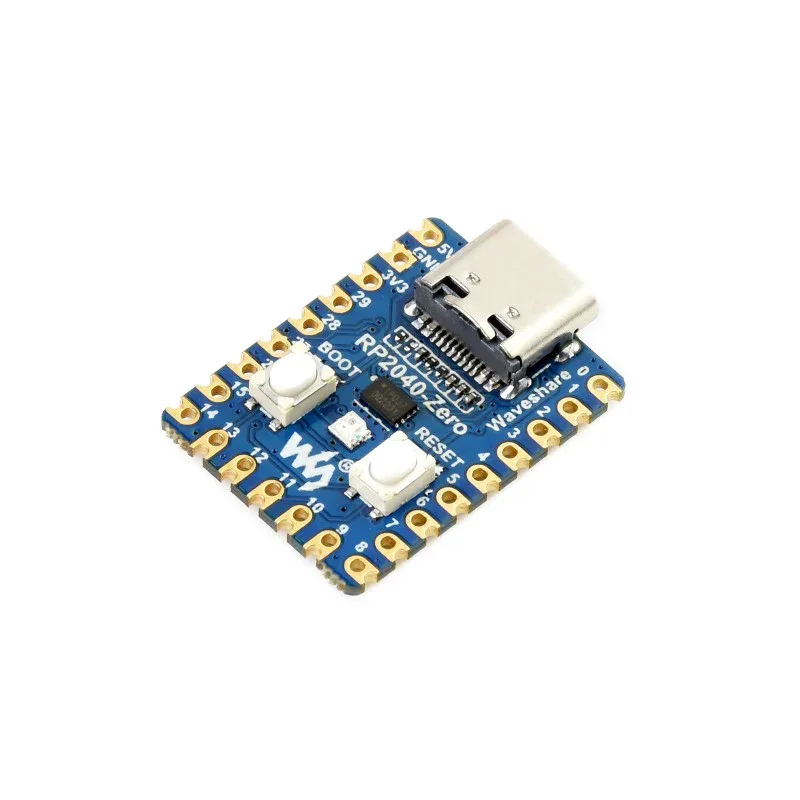

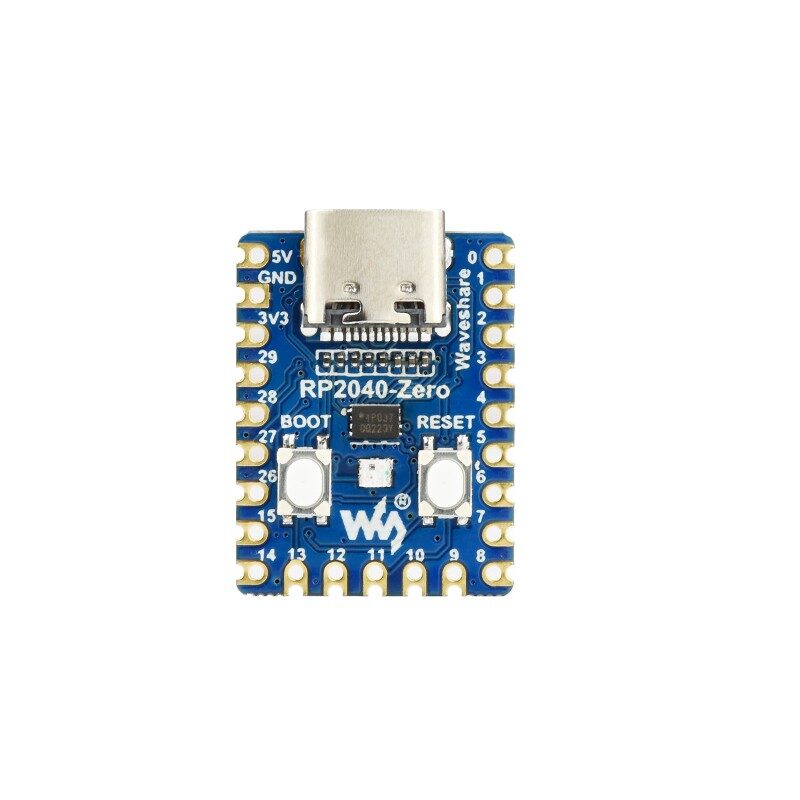

RP2040-Zero, A Low-Cost, High-Performance Pico-Like MCU Board Based On Raspberry Pi Microcontroller RP2040
What’s On Board:
- USB Type-C connector
- W25Q16JVUXIQ: 2MB NOR-Flash
- BOOT button: press it when resetting to enter download mode
- RESET button
- WS2812: cool RGB LED
- ME621: low dropout LDO, max current 800MA
- RP2040: dual-core processor, up to 133MHz operating frequency
- RP2040 pins: 10x solder points, 9 of which are for GPIO
Features:
- RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
- Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
- USB-C connector, keeps it up to date, easier to use
- The castellated module allows soldering directly to carrier boards
- USB 1.1 with device and host support
- Low-power sleep and dormant modes
- Drag-and-drop programming using mass storage over USB
- 29 × multi-function GPIO pins (20× via edge pinout, others via solder points)
- 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
- Accurate clock and timer on-chip
- Temperature sensor
- Accelerated floating-point libraries on-chip
- 8 × Programmable I/O (PIO) state machines for custom peripheral support
Package Includes:
1 x Waveshare RP2040-Zero Without Header
