This is the 69inch variant of the Waveshare 1.69inch Round LCD Display Module with Touch panel, Micro LCD Display, 240×280 Resolution, IPS, SPI And I2C Communication, 262K Display Color in TFT LCD Displays. Available at ₹1,462.02 (₹1,239.00 + GST) with free shipping across India.

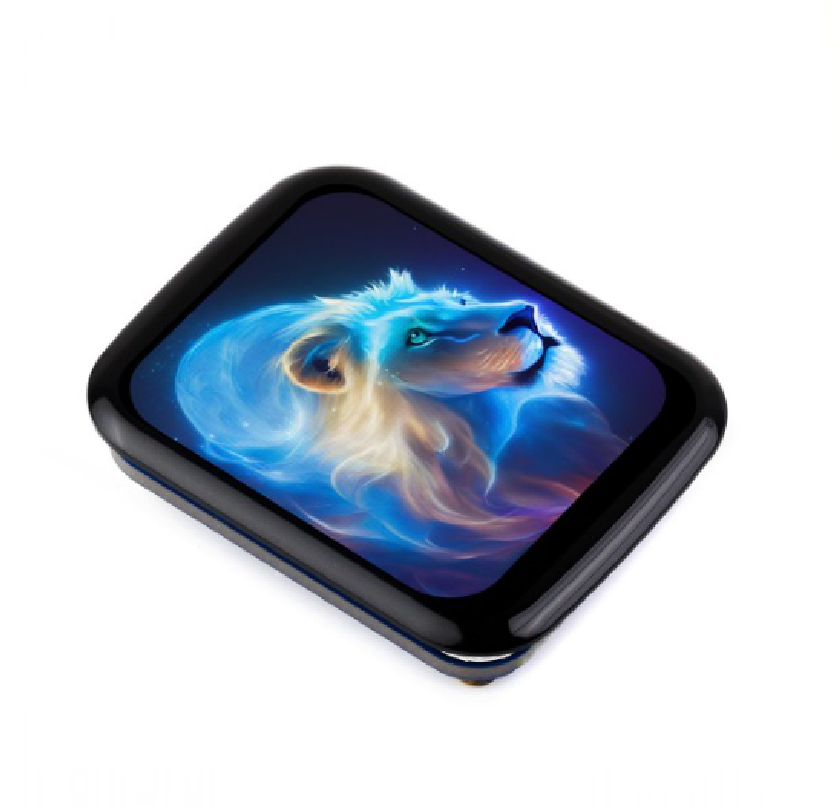

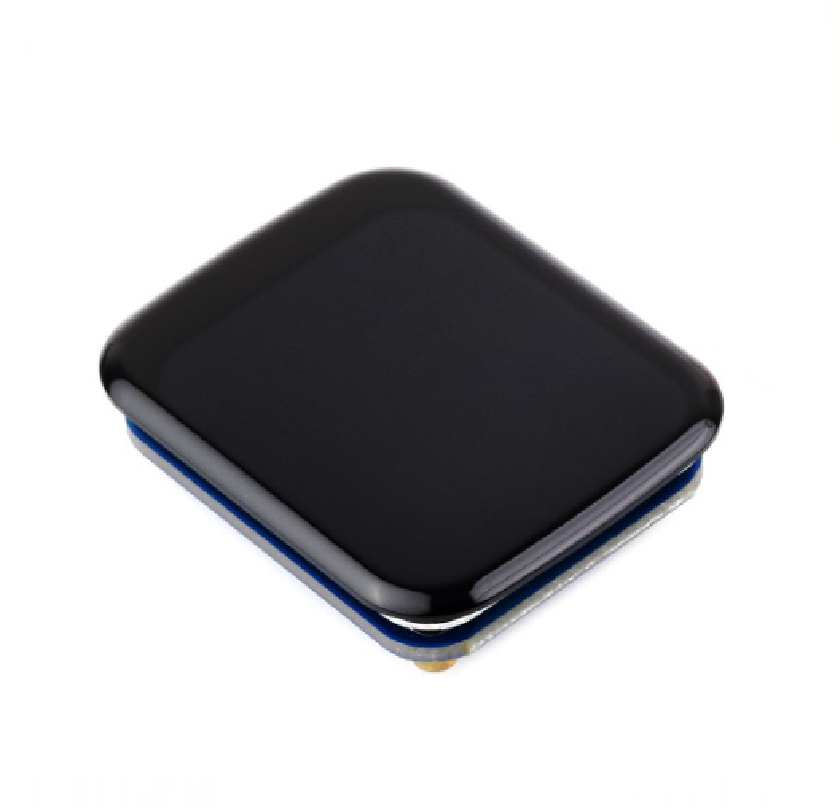

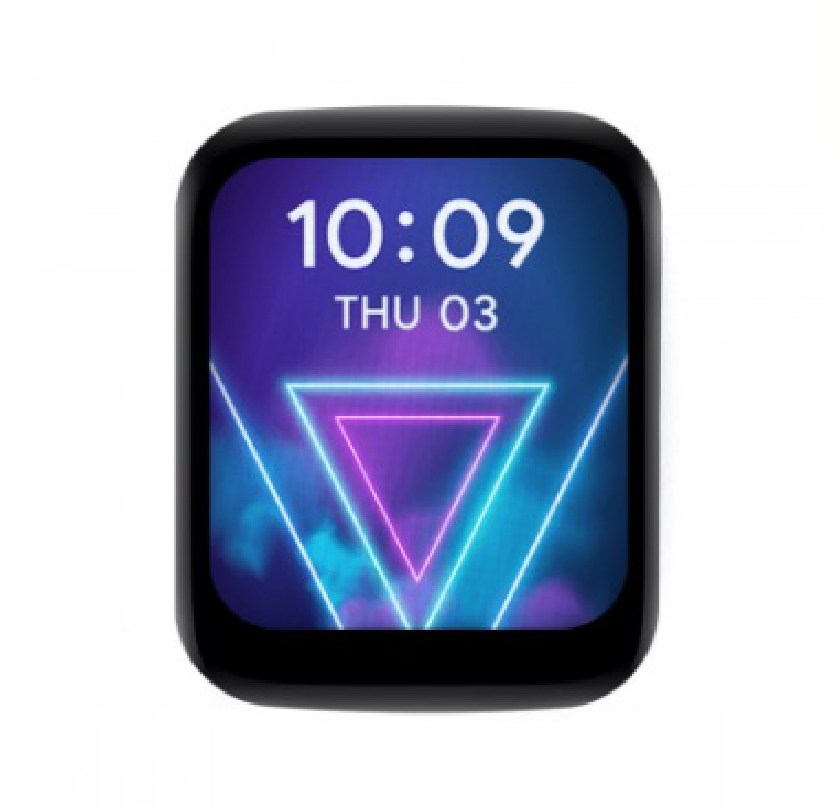

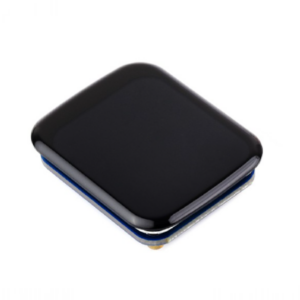

The 1.69-inch Round LCD Display Module with Touch Panel, a compact and versatile display solution designed to meet the demands of various applications. With its round form factor and integrated touch functionality, this display module offers a unique and intuitive user interface experience.
Features:
- 240×280 resolution, 262K colors, clear and colorful displaying effect
- High touch screen transmittance, fast response and long lifetime

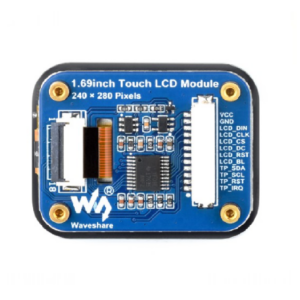

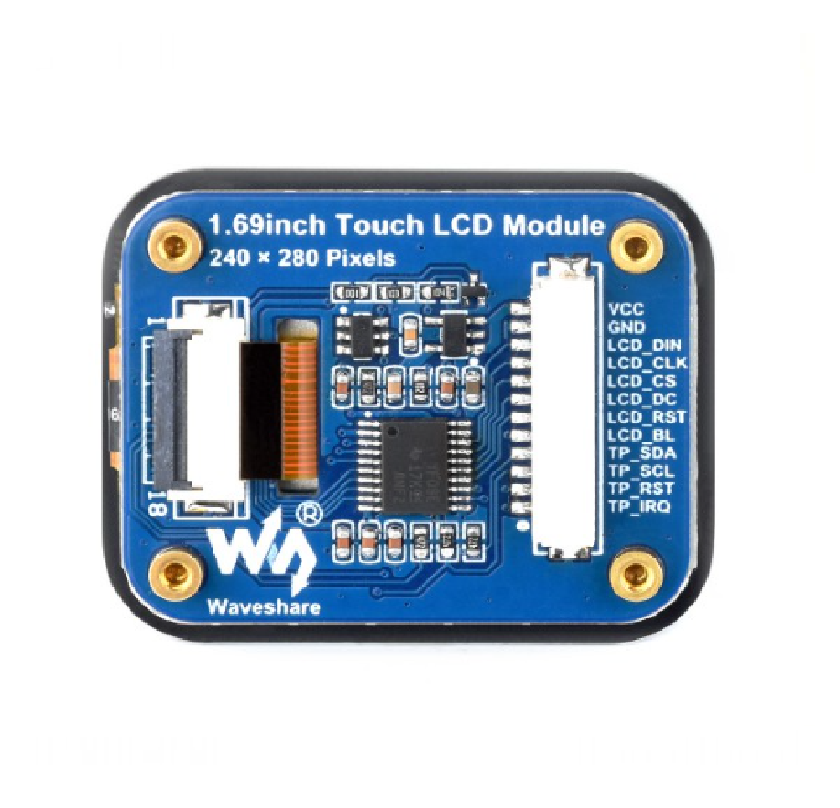

- Embedded ST7789V2 driver chip and CST816T capacitive touch control chip, using SPI and I2C communication respectively, minimizes required IO pins, supports controller boards like Raspberry Pi / ESP32S3 / Raspberry Pi Pico / Arduino / STM32
- Comes with online development resources and manual (examples for Raspberry Pi / ESP32S3 / Raspberry Pi Pico / Arduino / STM32)
Specifications:
- Product: 1.69inch Round LCD Display Module
- Operating Voltage: 3.3V / 5V
- Display Driver: ST7789V2
- Display Interface: 4-wire SPI
- Display panel: IPS
- Resolution: 240 × 280 pixels
- Touch driver: CST816T
- Touch Interface: I2C
- Touch type: Capacitive
- Pixel size: 0.11655 × 0.11655mm
- Module size: 33.13 × 41.13mm
Specification:
| Model Type: | LCD Display Module |
|---|---|
| Display Size (Inch): | 1.69 |
| Operating Voltage | 3.3V / 5V |
| Display Driver | ST7789V2 |
| Display Interfaces | 4-wire SPI |
| Display Panel | IPS |
Package Includes:
1 x 1.69inch Touch LCD Module
1 x GH1.25 12Pin cable
ESP8266 WiFi Module Interfacing with Arduino UNO
Introduction ESP8266 wifi module is low cost standalone wireless transceiver that can be used for end-point IoT developments....
Read More →
Arduino Oscilloscope: Turn Your Board into a Signal Analyzer
An Arduino oscilloscope DIY project is one of the most educational builds you can undertake as an electronics...
Read More →
Arduino Servo Motor Control: SG90 vs MG996R Complete Guide
If you are building a robotic arm, a pan-tilt camera mount, or a remote-controlled vehicle, understanding how to...
Read More →Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Display Size | 1.69" |
| Interface / Protocol | I2C, SPI |
| SKU | AI6675 |
| Weight | 0.03 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Waveshare 1.69inch Round LCD Display Module with Touch panel, Micro LCD Display, 240×280 Resolution, IPS, SPI And I2C Communication, 262K Display Color is a versatile tft lcd displays used across a wide range of applications including embedded HMI interfaces, Raspberry Pi touchscreen projects, Arduino display projects, industrial control panels, and information kiosks.
Common use cases:
- Adding a touch display to a Raspberry Pi project
- Building a portable game console
- Creating a dashboard for sensor data
This product is ideal for embedded developers, IoT makers, and industrial engineers.
Technical Tip: Check interface type (SPI, I2C, HDMI, RGB) and driver IC compatibility with your development board. IPS panels offer better viewing angles than TN.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
- Genuine WAVESHARE product sourced from authorized channels
