This is the 5inch variant of the Waveshare 3.5inch Capacitive Touch Display Module, 320×480 Resolution, Embedded with ST7796S Display Driver and FT6336U Capacitive Touch Controller, IPS Display in TFT LCD Displays. Available at ₹1,954.08 (₹1,656.00 + GST) with free shipping across India.

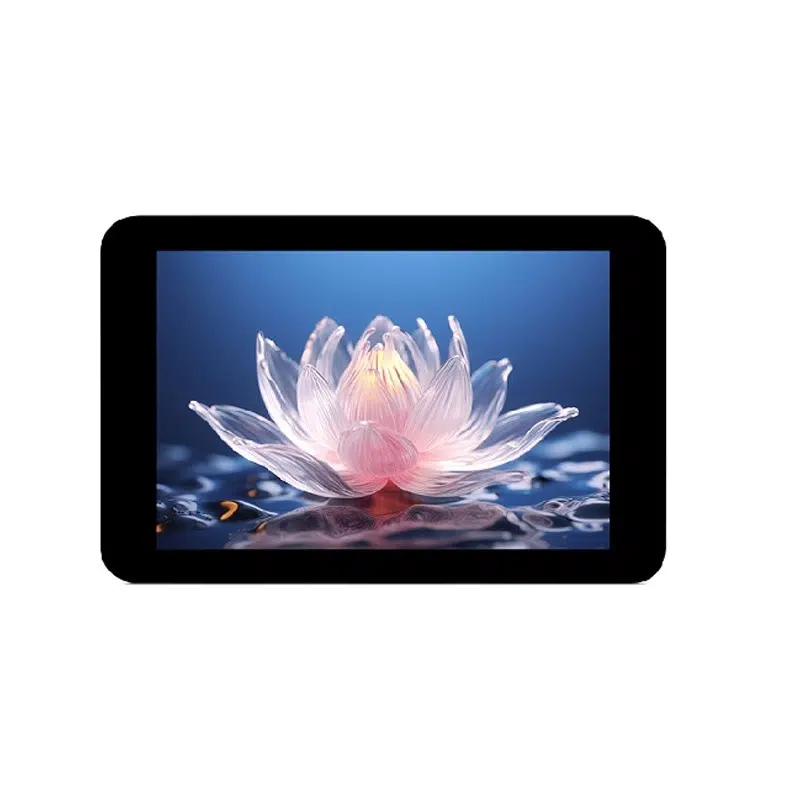

3.5inch Capacitive Touch Display Module, 320×480 resolution, embedded with the ST7796S display driver and FT6336U capacitive touch controller, featuring an IPS display.
Features:
- 320×480 resolution, 262K colors: offering a clear and colorful displaying effect
- High touch screen transmittance, fast response, and long lifetime
- Embedded with ST7796S driver chip and FT6336U capacitive touch control chip: using SPI and I2C communication respectively, minimizing required IO pins

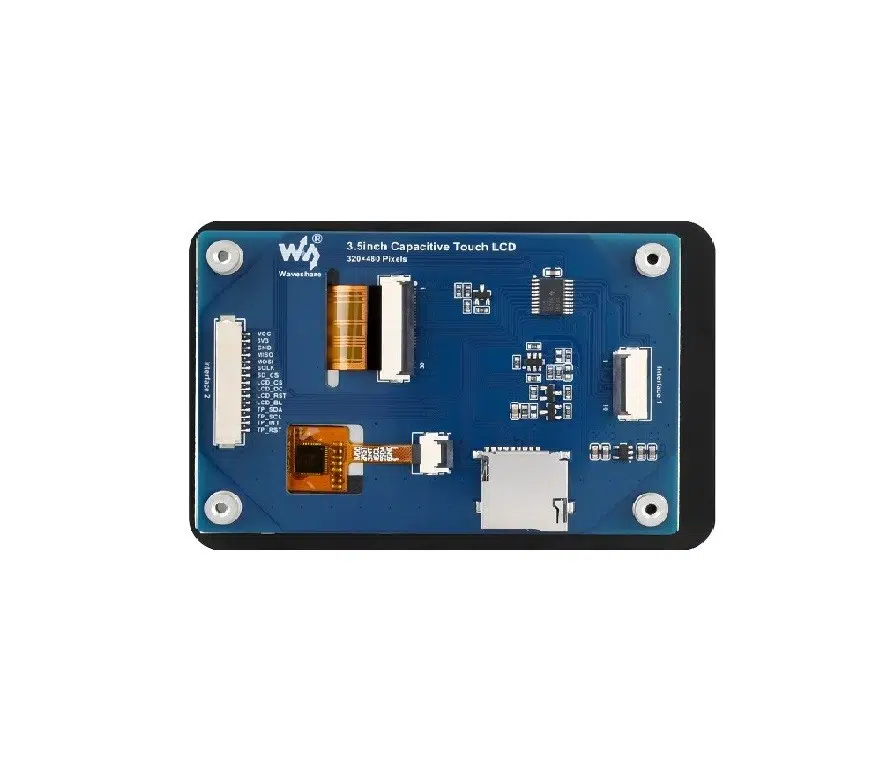

- Onboard TF card slot: for storing more pictures, videos, music, etc.
- Adapting 15PIN connector and 18PIN FPC slot: for connecting the LCD module to the host board
- Onboard voltage translator: compatible with 3.3V / 5V operating voltage
- Comes with online development resources and manual: examples for Raspberry Pi / ESP32 / Raspberry Pi Pico / Arduino
Specifications:
| Item Type | Capacitive Touch Display Module |
|---|---|
| Operating Voltage (V) | 3.3V / 5V |
| Resolution | 320 × 480 pixels |
| Display Driver | ST7796S |
| Display Interfaces | 4-wire SPI |
| Display Panel | IPS |
Package Includes:
- 1 × Waveshare 3.5inch Capacitive Touch Display Module
Arduino Smart Dustbin: Ultrasonic Sensor Auto-Open Lid
Table of ContentsIntroductionComponents and Hardware SetupWiring Diagram and ConnectionsComplete Code with ExplanationCustomization and ImprovementsTroubleshooting Common IssuesAdvanced Features and...
Read More →
Troubleshooting Arduino Upload Errors: avrdude and Port Fixes
If you have ever stared at a screen full of red error text after clicking Upload in the...
Read More →
Joystick Module PS2: Arduino Robot and Game Controller
The PS2 joystick module is one of the most satisfying components to add to any Arduino project. That...
Read More →Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Model | ST7796S |
| Display Size | 3.5" |
| SKU | AI7538 |
| Weight | 0.12 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Waveshare 3.5inch Capacitive Touch Display Module, 320×480 Resolution, Embedded with ST7796S Display Driver and FT6336U Capacitive Touch Controller, IPS Display is a versatile tft lcd displays used across a wide range of applications including embedded HMI interfaces, Raspberry Pi touchscreen projects, Arduino display projects, industrial control panels, and information kiosks.
Common use cases:
- Adding a touch display to a Raspberry Pi project
- Building a portable game console
- Creating a dashboard for sensor data
This product is ideal for embedded developers, IoT makers, and industrial engineers.
Technical Tip: Check interface type (SPI, I2C, HDMI, RGB) and driver IC compatibility with your development board. IPS panels offer better viewing angles than TN.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
- Genuine WAVESHARE product sourced from authorized channels
