This is the 13inch variant of the Waveshare 2.13inch E-Ink Paper display HAT for Raspberry Pi, Three-Color in e-Ink Paper Display. Available at ₹1,286.20 (₹1,090.00 + GST) with free shipping across India.
Product Description

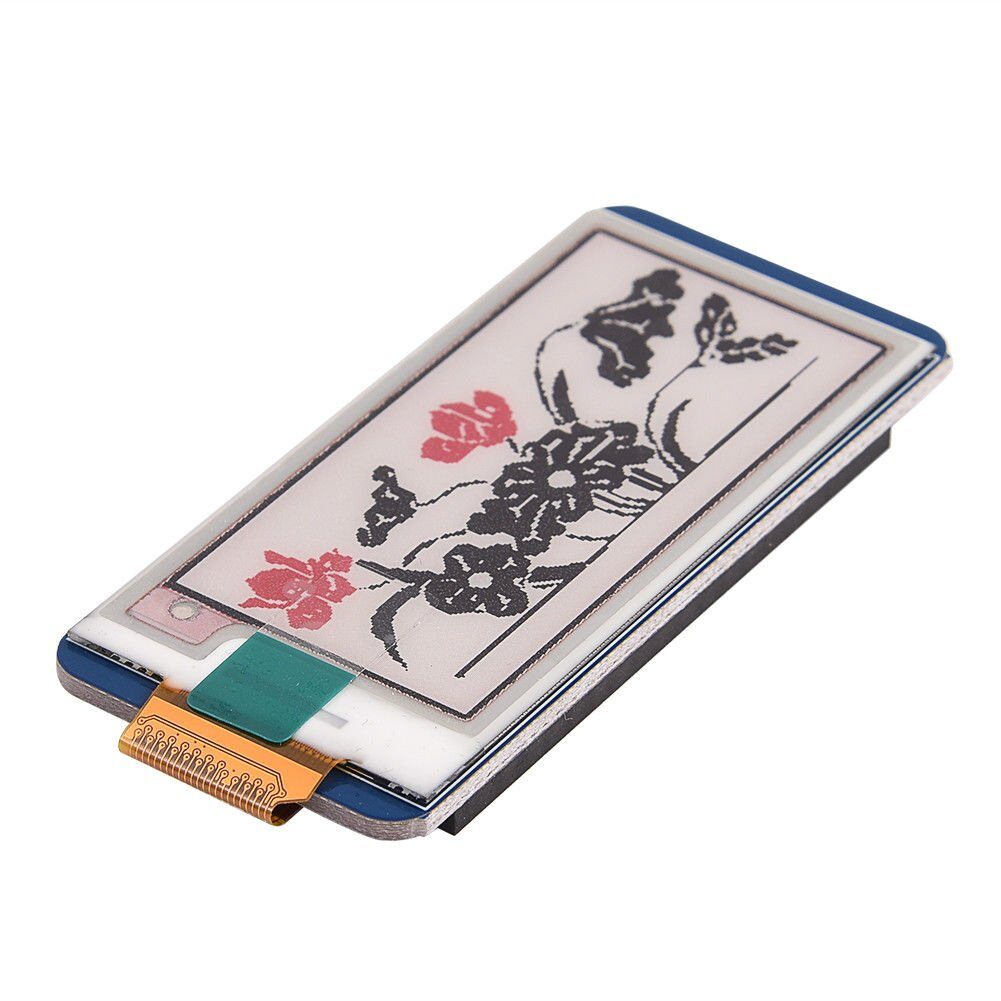

This is an E-Ink display HAT for Raspberry Pi, 2.13inch, 212×104 resolution, with an embedded controller, communicating via SPI interface, supports the red, black, and white three-colour display.
There is no backlight so it can keep displaying last content for a long time even when the power is down. As these displays have no backlight panels and it doesn’t need a continuous power supply to display the (static data with periodic intervals) data on the screen, it has a great advantage of ultra-low power consumption. Also, it has a wide viewing angle, great viewing effect under sunlight, Basically power to the display is only required for refreshing. For connecting with controller boards like Raspberry Pi/Arduino/Nucleo, etc.. SPI interface can be used.
Features:
- No backlight keeps displaying last content for a long time even when power is down
- Ultra low power consumption, basically power is only required for refreshing

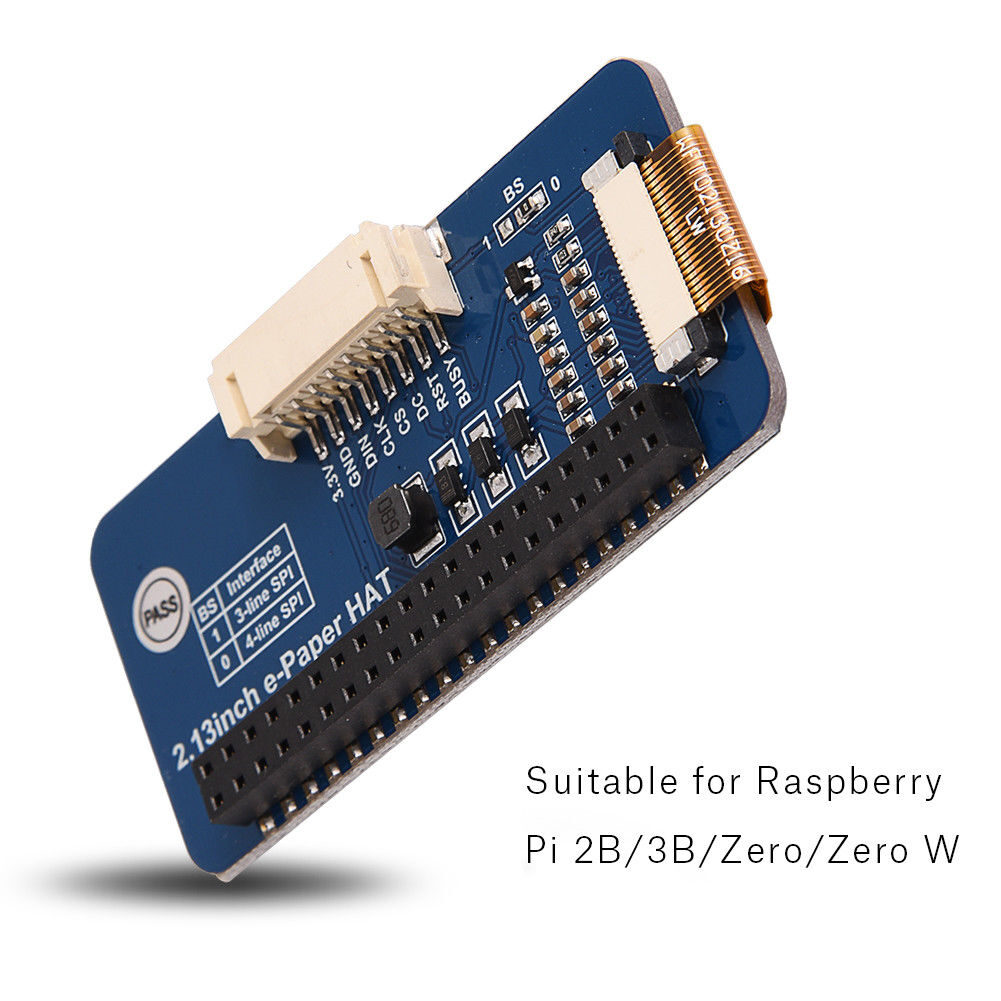

- Compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B
- Preserved solder pads for SPI interface, for connecting with other controller boards like Arduino/Nucleo, etc.
- Onboard voltage translator, compatible with 3.3V/5V MCUs
- Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

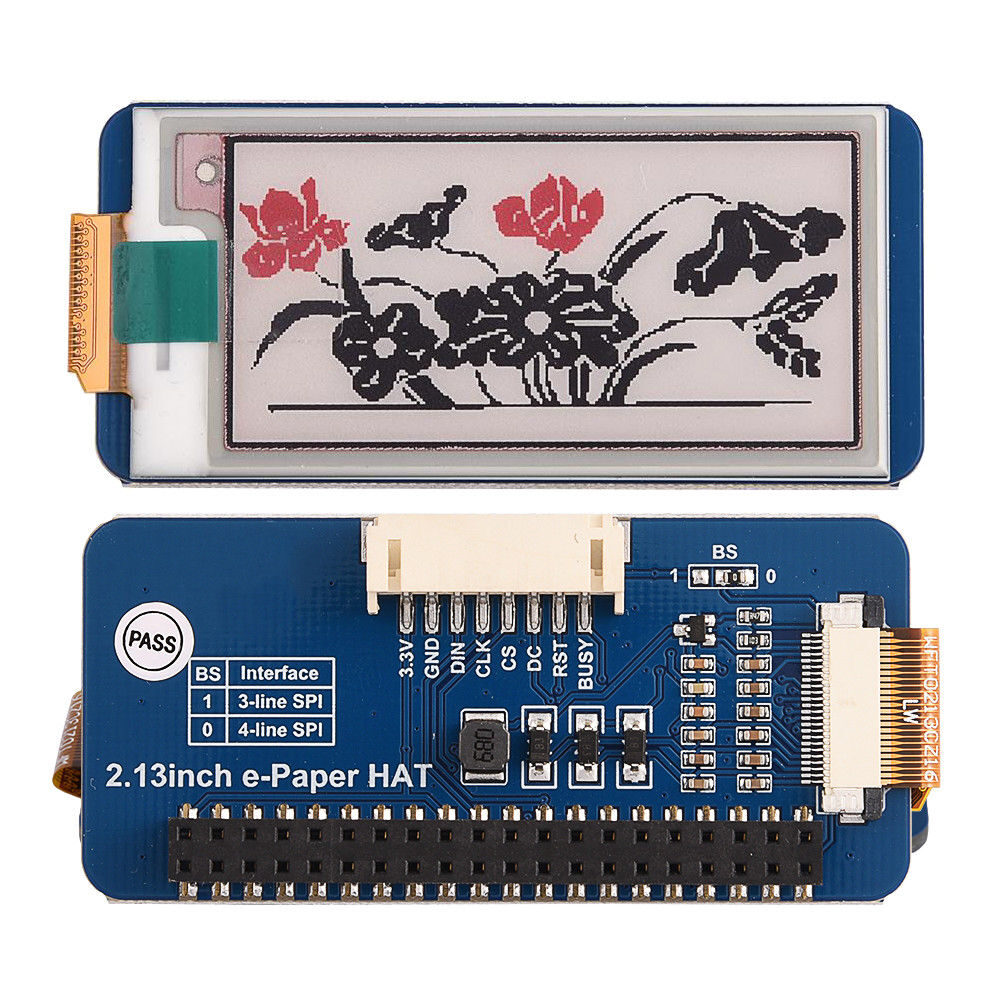

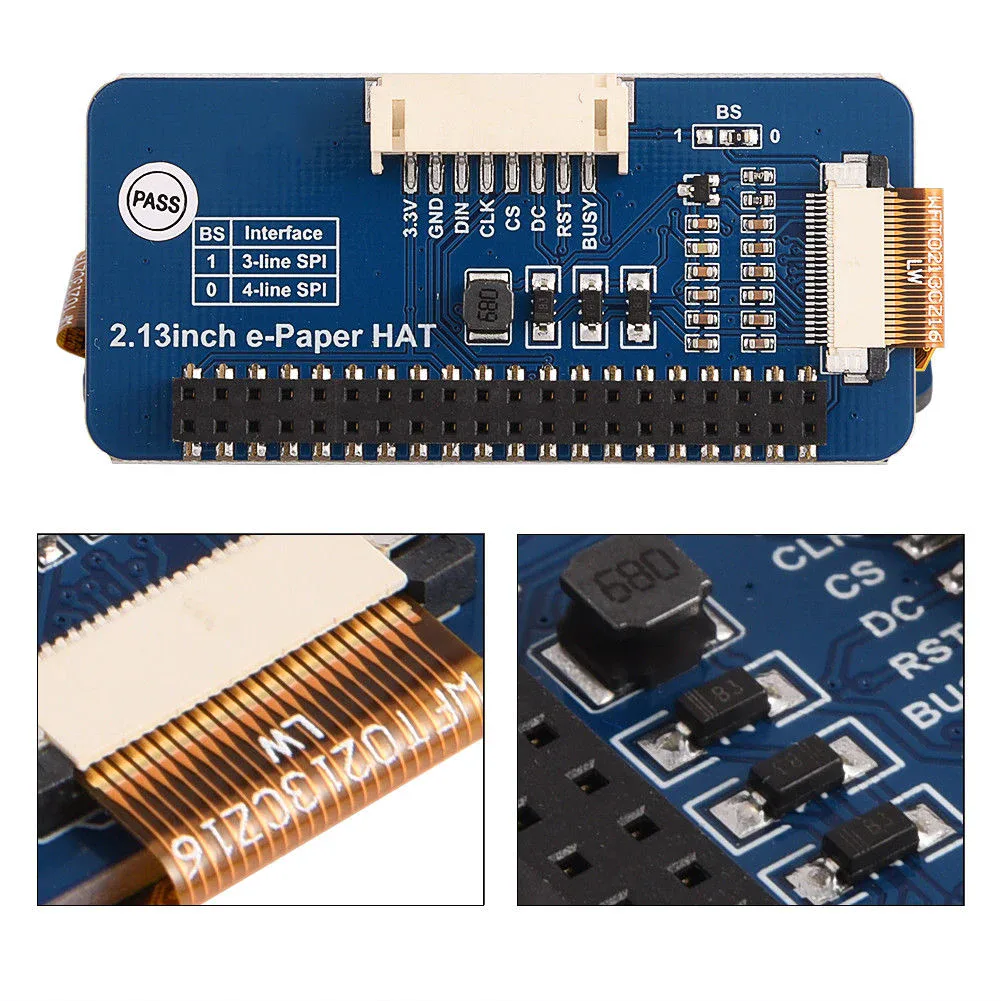

Interface:
| SYMBOL | DESCRIPTION |
|---|---|
| VCC | 3.3V/5V |
| GND | Ground |
| DIN | SPI MOSI pin |
| CLK | SPI SCK pin |
| CS | SPI chip selection, low active |
| DC | Data/Command selection (high for data, low for command) |
| RST | External reset, low active |
| BUSY | Busy status output, high active |
Useful Links:
Wiki : www.waveshare.com/wiki/2.13inch_e-Paper_HAT_(B)

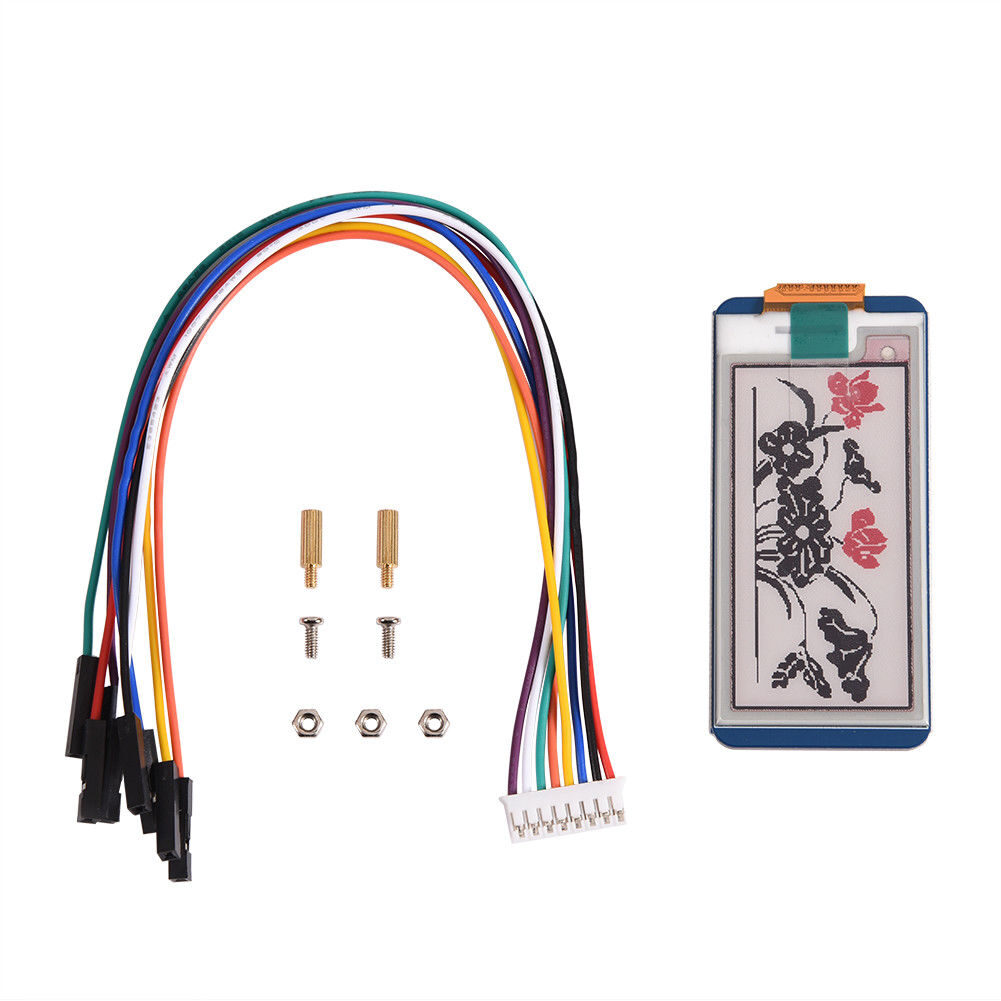

Package Includes:
1 x Waveshare 2.13inch E-Ink Paper display HAT for Raspberry Pi, Three-Color

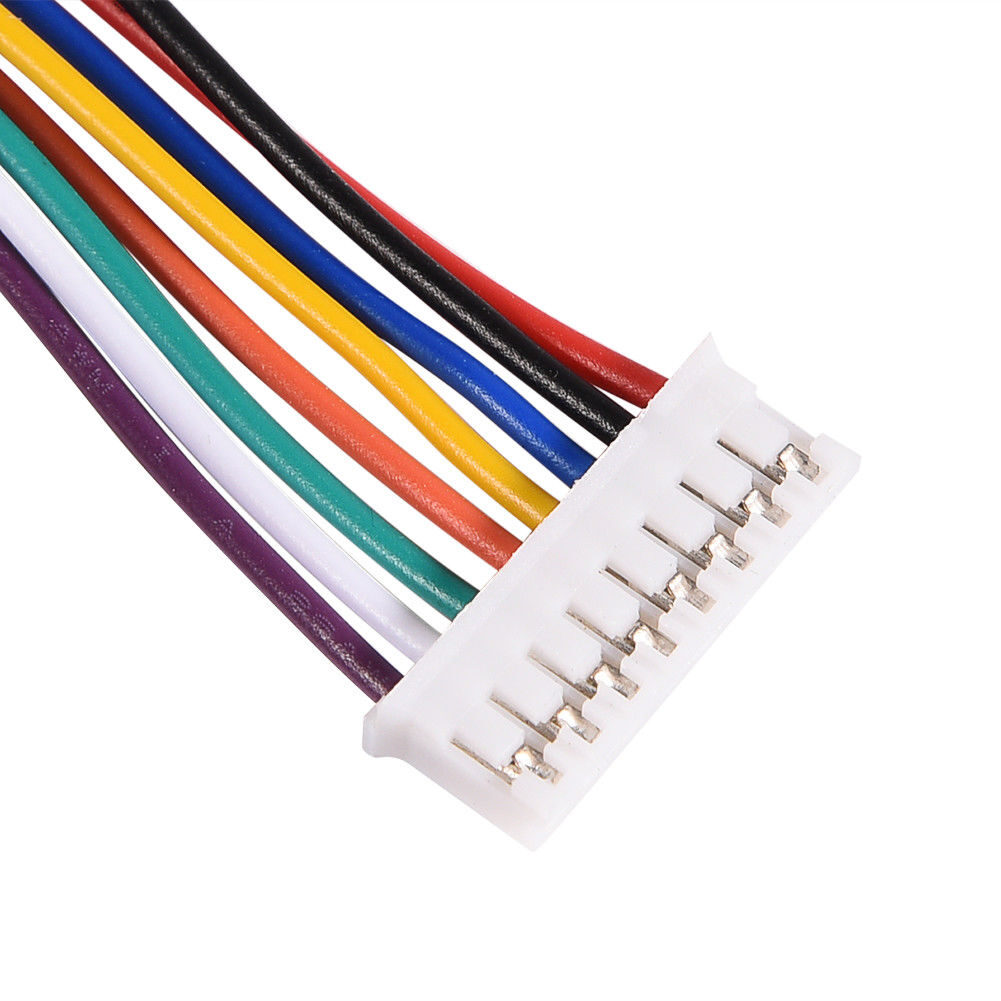

1 x Interfacing Cable
1 x Nut-Bolt and Spacer set
Note: No Raspberry Pi is included in Package

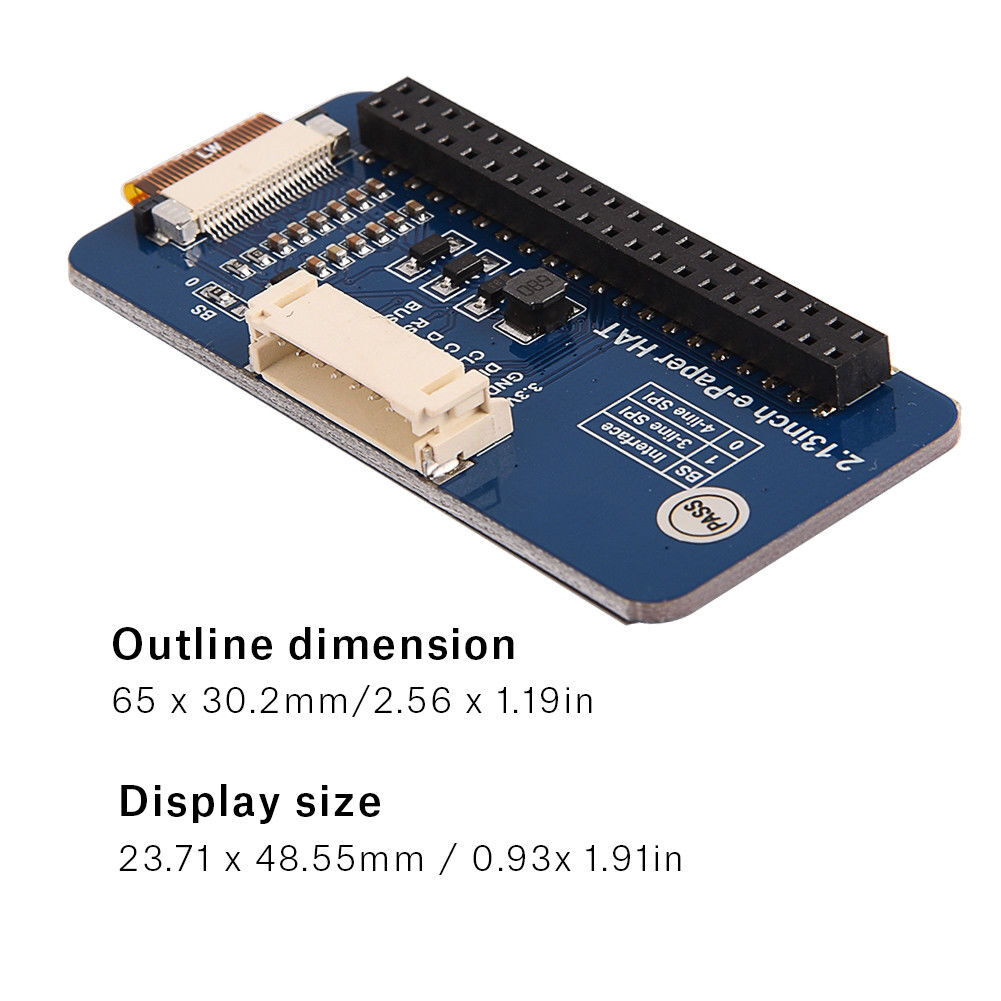

Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Display Size | 2.13" |
| SKU | AI1491 |
| Weight | 0.03 kg |
| Availability | In Stock |
Applications & Use Cases
The Waveshare 2.13inch E-Ink Paper display HAT for Raspberry Pi, Three-Color is a versatile e-ink paper display used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
