This is the 5inch variant of the Waveshare 1.5inch LCD Display Module, IPS Panel, Rounded Corners, 240×280 Resolution, SPI Interface, 262K colors in TFT LCD Displays. Available at ₹1,379.87 (₹1,169.38 + GST) with free shipping across India.

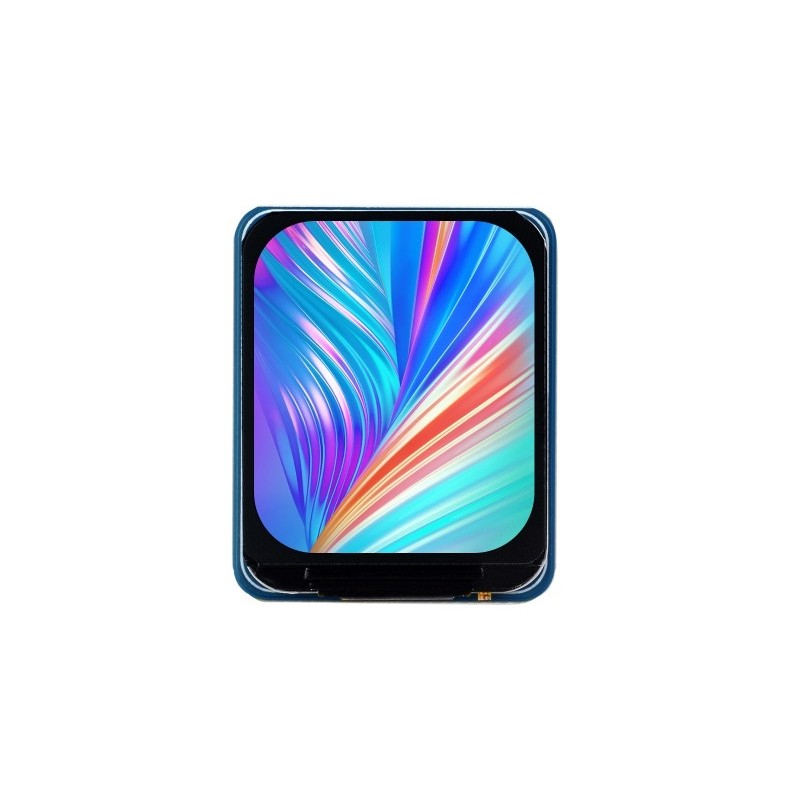

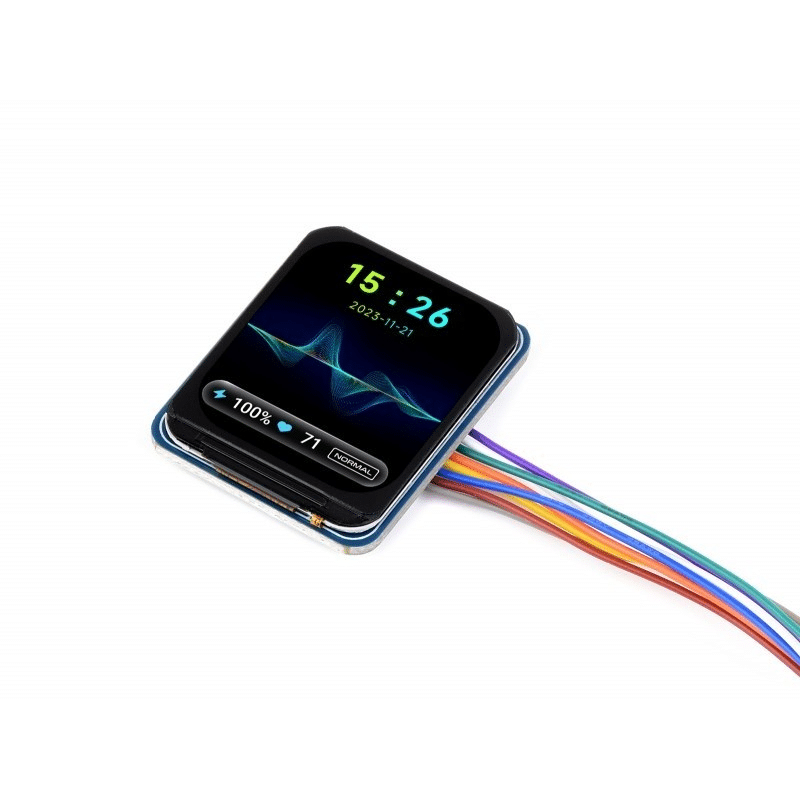

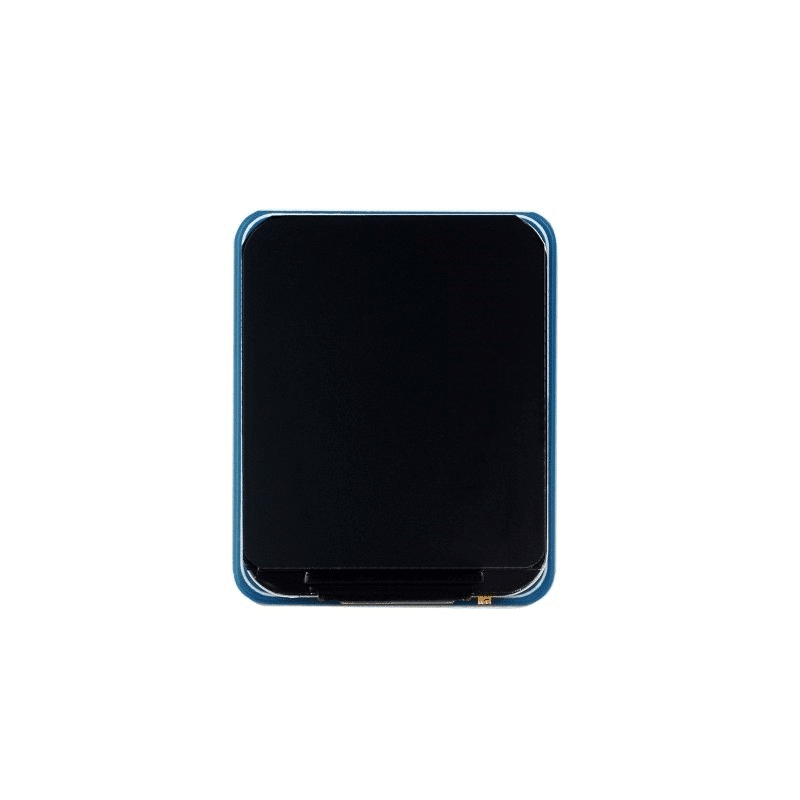

Introducing the Waveshare 1.5-inch LCD Display Module, featuring an IPS panel with rounded corners for a sleek look. With a resolution of 240×280 pixels and SPI interface, it delivers sharp visuals and efficient data transfer. The display supports an extensive palette of 262K colors, providing vibrant and detailed images. Ideal for projects where a compact and high-quality display is essential, this module offers versatility and visual appeal.
Features:
- 240×280 resolution, 262K RGB colors, clear and colorful displaying effect
- SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32/ESP32/RP2040/Jetson series
- Comes with development resources (examples for Raspberry Pi/Arduino/STM32/ESP32/RP2040/Jetson series)
Specifications:

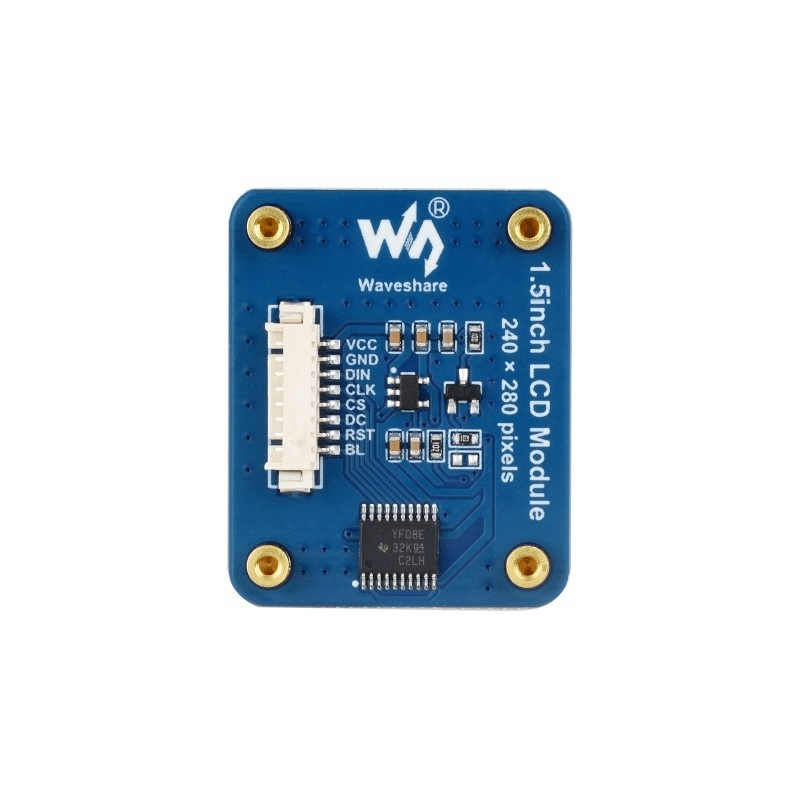

| Model | LCD Display Module |
|---|---|
| Display Size (Inch) | 1.5 |
| Display Resolution | 240 × 280 |
| Model Name | Waveshare 1.5inch LCD Display Module, IPS Panel, Rounded Corners, 240×280 Resolution, SPI Interface, 262K colors |
| Operating Voltage (V) | 3.3/5 |
| Communication Mode | 4-wire SPI |
| Display Panel | IPS |
| Driver IC | NV3030B |
| Display Dimension | 24.77×28.90 |
Package Includes:
- 1x 1.5inch LCD Module x1
- 1x GH1.25 8PIN cable x1
Self-balancing robot with MPU6050 accelerometer from Arduino
We will use Arduino to build a self-balancing robot for this robotics project. We can learn how to...
Read More →
Arduino Voltage Divider: Measure Higher Voltages Safely
Table of ContentsIntroductionComponents and Hardware SetupWiring Diagram and ConnectionsComplete Code with ExplanationCustomization and ImprovementsTroubleshooting Common IssuesAdvanced Features and...
Read More →
Arduino Wire Library Deep Dive: I2C Without Limits
The Arduino Wire library I2C protocol is one of the most powerful communication tools available to makers and...
Read More →Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Display Size | 1.5" |
| Interface / Protocol | SPI |
| Resolution | 240x280 |
| Package Quantity | 280 pcs |
| SKU | AI7561 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Waveshare 1.5inch LCD Display Module, IPS Panel, Rounded Corners, 240×280 Resolution, SPI Interface, 262K colors is a versatile tft lcd displays used across a wide range of applications including embedded HMI interfaces, Raspberry Pi touchscreen projects, Arduino display projects, industrial control panels, and information kiosks.
Common use cases:
- Adding a touch display to a Raspberry Pi project
- Building a portable game console
- Creating a dashboard for sensor data
This product is ideal for embedded developers, IoT makers, and industrial engineers.
Technical Tip: Check interface type (SPI, I2C, HDMI, RGB) and driver IC compatibility with your development board. IPS panels offer better viewing angles than TN.
