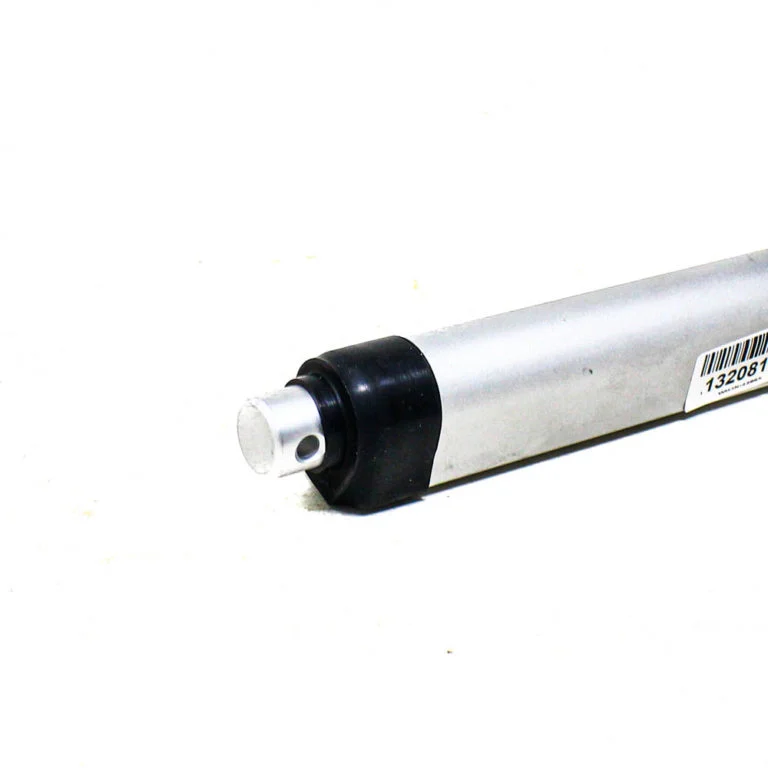

This is the 12V variant of the Waterproof Stroke Length DC12V 100MM 12MM/S 700N Putter Electric Linear Actuator in Linear Actuators. Available at ₹4,539.46 (₹3,847.00 + GST) with free shipping across India.
The IP Code is an international standard that rates the waterproofness of linear actuators. The rating indicates how well a linear actuator can prevent dust and water from entering and how well it can operate under water.
This Miniature Linear Actuator Stroke Length 100mm, 12mm/S, 700N, 12V is an electric device that converts the rotational motion of a motor into the back-and-forth movement of a rod. It is suitable for various applications in industrial, agricultural, construction, cleaning, marine, and cargo sectors. It can be used as a mechanism to implement remote, centralized, or automatic control in simple or complex processes. The electric device consists of a drive motor, a reduction gear, a screw, a nut, a guide sleeve, a rod, a sliding seat, a shell, and a micro-motion control switch.
The device has reliable performance, sensitive action, and stable operation. It can adapt to different environments. It is made of high-quality metal material and has a high-performance motor with a built-in stroke switch. It can achieve a maximum push/pull force of 1100N and a no-load stroke speed of 12mm/s. It is widely used in automotive, medical, and engineering industries as well as agricultural machinery.
Applications:
- Agricultural machinery
- Industrial electric lifting system
Note: The actual product may vary from show in image
Features:
- Aluminum frame and extension tube
- Compact Design
- Built-in Limit Switch
- Low Noise
- Moisture-proof Surface
- Long life: The drive motor adopts a new carbon brush structure, with a service life of more than 50000 times.
- Permanent magnet DC motor drive
Package Includes:
1 x Electric Linear Actuator
Technical Specifications
| Model | DC12V |
|---|---|
| Operating Voltage | 12V |
| Size | 100mm |
| SKU | AI2657 |
| Weight | 1.03 kg |
| Availability | In Stock |
Applications & Use Cases
The Waterproof Stroke Length DC12V 100MM 12MM/S 700N Putter Electric Linear Actuator is a versatile linear actuators used across a wide range of applications including automated doors, adjustable furniture, solar tracker systems, robotics, and agricultural equipment.
Common use cases:
- Building a solar panel tilt mechanism
- Motorizing a standing desk
- Creating a linear motion system for robotics
This product is ideal for automation engineers and DIY furniture builders.
Technical Tip: Check stroke length, force rating, and speed. Larger stroke = longer actuator body. Use limit switches for end-stop protection.
