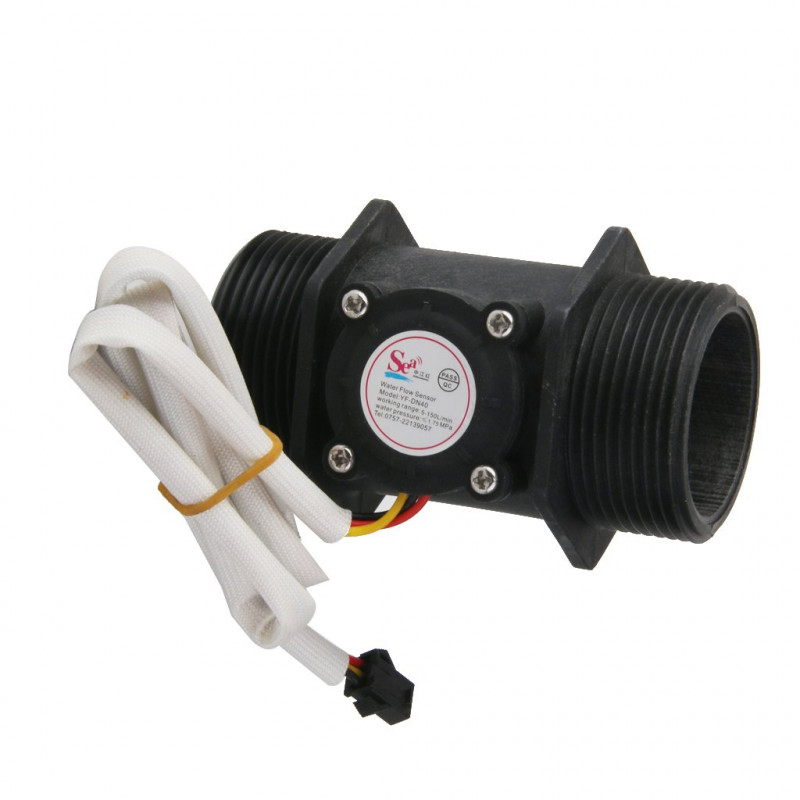

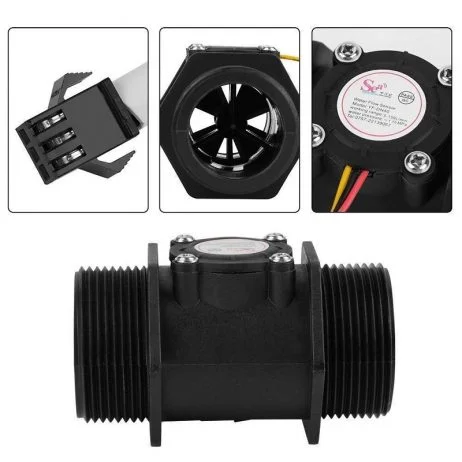

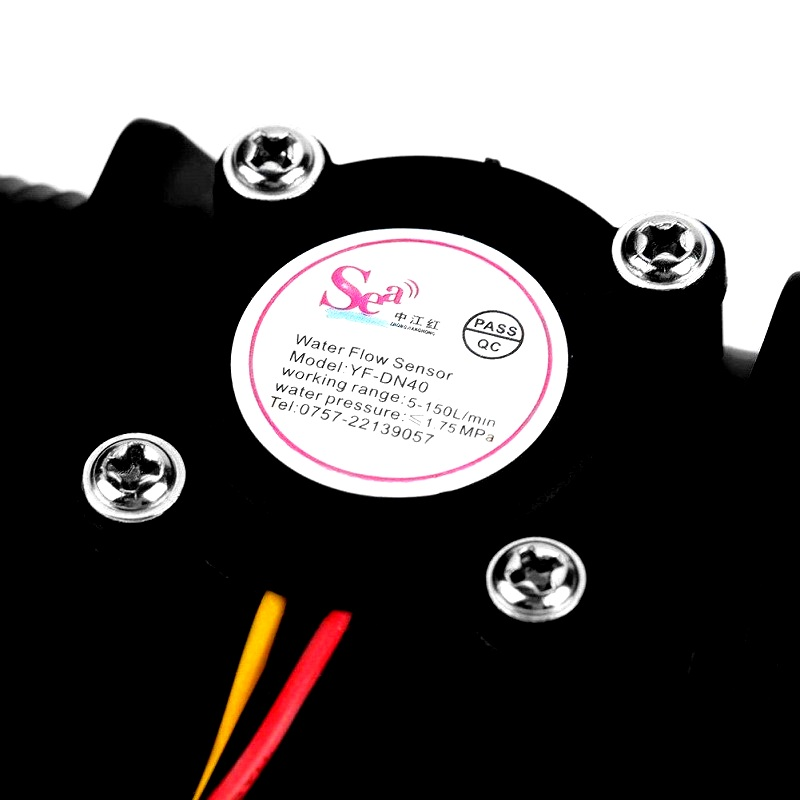

Water Flow Sensor (Sea) YF-DN40 Flowmeter G11/2 5-150L/min 5-24V
The YF-DN40 1.5-inch water flow sensor is built for industrial use, featuring a durable plastic body, a water rotor, and a hall-effect sensor. As water flows through the rotor, the flow rate alters the rotor’s speed, generating pulse signals that are detected by the hall-effect sensor. The output of the sensor is directly proportional to the flow rate, with a higher number of pulses corresponding to increased water flow.
Dn40 Sensor – Features:
- Accuracy: ±2% inline for flow rates ranging from 1 to 120L/min.
- Flow Pulse Characteristics: F = (0.45 * Q), where Q represents the flow rate in L/min.
- Temperature Performance:
- Low-Temperature Test: Accuracy within ±5% after 72h at -20°C followed by 1h at room temperature.
- High-Temperature Test: Accuracy within ±5% after 72h at 85°C followed by 1h at room temperature.
- Flow Rate: 5~150L/min
- Connection: G11/2 (1.5-inch) DN40
- Material: Plastic Hall Turbine
- Power Supply: 5-24V
- Switch Valve Control: Enables control over liquid flow through the sensor.
This water flow sensor provides reliable and accurate measurement of flow rates in industrial settings, ensuring precise monitoring and control over liquid flows. With its robust construction and versatile features, it’s suitable for various applications requiring flow measurement and control.
Specification:
| Model | YF-DN40 |
|---|---|
| Material | Plastic |
| Hydrostatic pressure | ≤ 1.75MPa |
| Operating voltage range | 5 ~ 24V |
| Insulation resistance | > 100M |
| Cable Length | 50 cm |
| Color | Black |

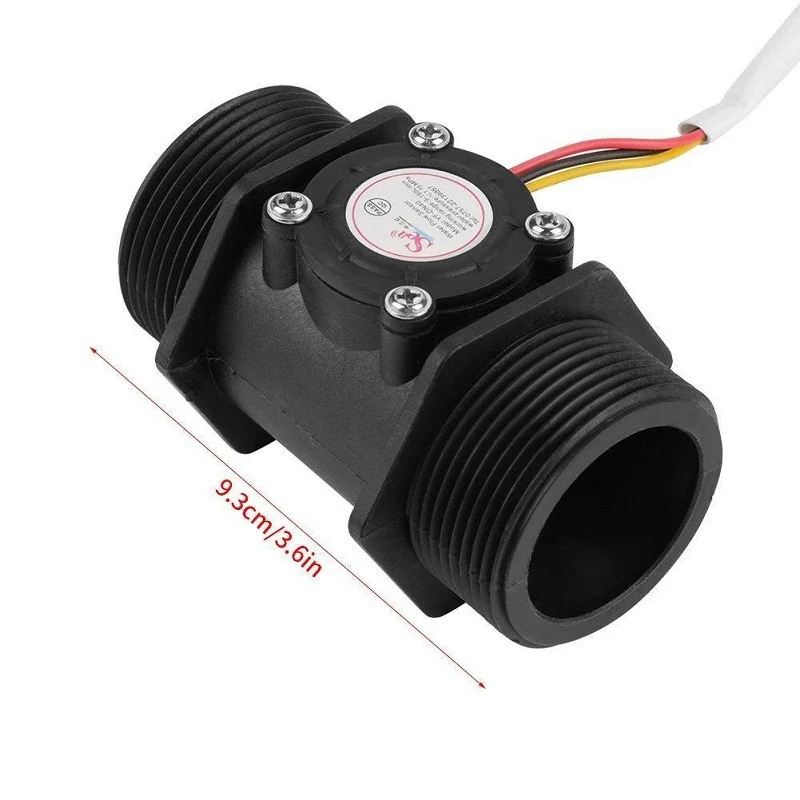

| Length (mm) | 90 |
| Width (mm) | 47 |
| Height (mm) | 55 |
| Weight (gm) | 150 |
| Shipping Weight | 0.15 kg |
| Shipping Dimensions | 15 × 12 × 1 cm |
Package Includes:
1 x Water Flow Sensor (Sea) YF-DN40 Flowmeter G11/2 5-150L/min 5-24V
Datasheet:
Water Flow Sensor (Sea) YF-DN40 Flowmeter G11/2 5-150L/min Overview
The Water Flow Sensor (Sea) YF-DN40 is an inline DN40 (1.5-inch) flowmeter designed for industrial water flow monitoring. It uses a hall-effect rotor to generate pulse signals proportional to flow rate, enabling precise measurement and control in pipeline systems.
Key Features of Water Flow Sensor (Sea) YF-DN40 Flowmeter G11/2 5-150L/min
- Inline flowmeter covering 5–150 L/min range with high precision
- Measurement accuracy of ±2% within typical operating flow
- Robust plastic housing with integrated hall-effect sensing rotor
- Standard G1½″ (DN40) threaded connections for 1.5″ pipelines
- Digital pulse output directly proportional to water flow
- Genuine Sea YF-DN40 sensor, fast shipping from Zbotic across India
Applications and Use Cases
- Monitoring water consumption in industrial pipelines
- Flow control for agricultural irrigation systems
- Integration with HVAC chillers and cooling loops
- Pump performance diagnostics in water treatment plants
- Flow feedback for process automation on PLCs and microcontrollers
How to Use Water Flow Sensor (Sea) YF-DN40 Flowmeter G11/2 5-150L/min
Install the YF-DN40 inline between G1½″ pipe fittings, observing the flow-direction arrow. Connect the power leads to a compatible DC supply and route the pulse output lead into your microcontroller or PLC digital input. In your software, count pulses and apply the sensor’s calibration ratio to calculate flow rate in real time.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What output signal does the YF-DN40 provide?
It delivers a digital pulse train whose frequency varies in direct proportion to water flow, using the F(Hz)=0.45×Q(L/min) calibration.
What pipe size does this sensor support?
The YF-DN40 features G1½″ (DN40) female threaded inlet and outlet, compatible with standard 1.5-inch piping.
How do I read flow data on a microcontroller?
Connect the sensor’s power leads to a DC supply, route the pulse lead to a digital input, then count pulses over time and apply the sensor’s pulse-to-flow ratio in your code to compute real-time flow rate.
