This is the 30V variant of the Wanptek WPS305H 30V/5A Variable Adjustable Switching Power Source DC Power Supply in Wanptek Adjustable Power Supply. Available at ₹6,908.90 (₹5,855.00 + GST) with free shipping across India.
🧾Product description:
This is Wanptek WPS305H 30V/5A Variable Adjustable Switching Power Source DC Power Supply. The power supply has a large digital display, which can directly read the voltage. It’s simple in assembly and disassembly, easy to carry, with a storage bag for compact storage.
Wanptek WPS305H 30V/5A Variable Adjustable Switching Power Source DC Power Supply compact in size, light weight and high power density system capable of long usage with connected loads. It is very much suitable for Commercial, Education and other professional usages like Maintenance of Cell phones, Computers, Electrical Appliance, Production line testing Laboratory, Scientific Research, Teaching, Factory Maintenance and host of other usages.

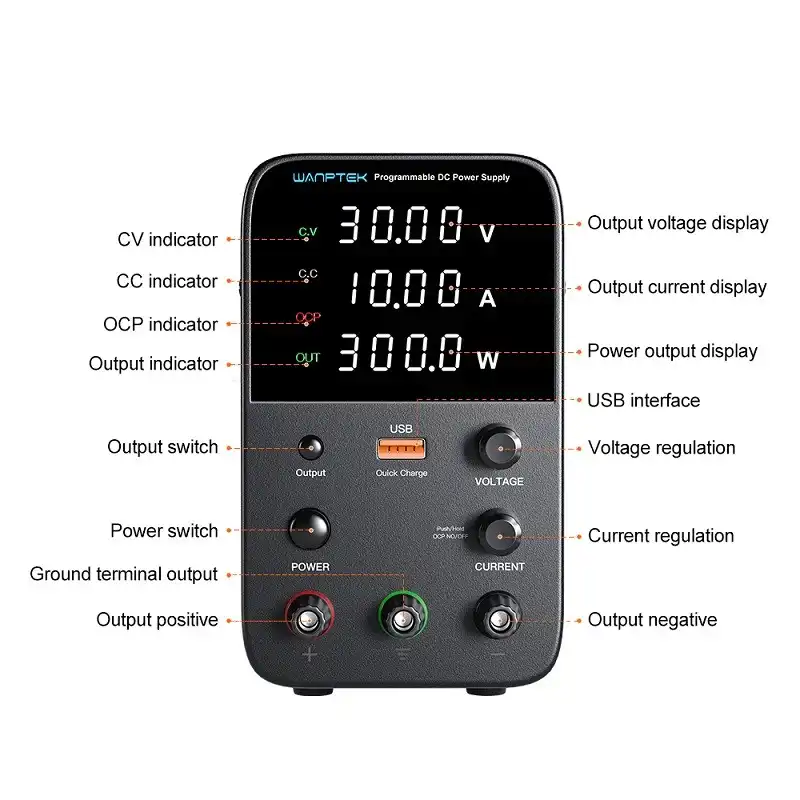

Program-Controlled encoder adjusts voltage and current with high precision & stability. The system is having three groups of four-digit digital display window for Voltage, Current & Power. It meets output display resolution for Voltage 0.01V and Current 0.001A. For operational safety and convenience an independent output button is provided in the system. Short press the output button will enable/disable the output. Long press the output button for 5 seconds enters system parameter settings. With a press of encoder knob each digits in the voltage and current window can be adjusted.

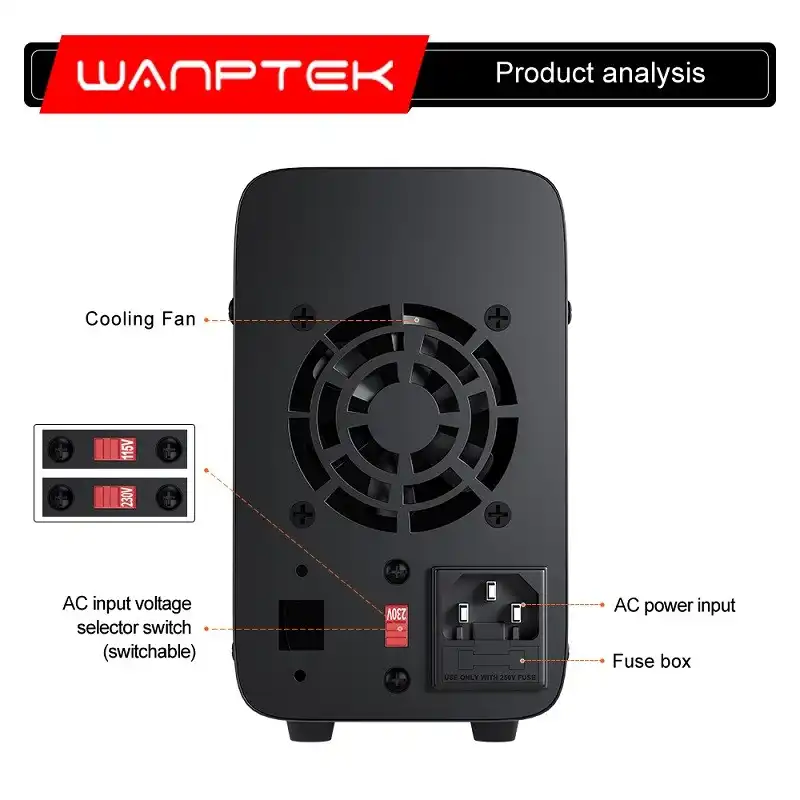

Wanptek WPS305H 30V/5A Variable Adjustable Switching Power Source DC Power Supply has an Independent USB fast charging interface with output power of up to 18W automatically adjusts output voltage & current according to the fast-charging protocols and also it supports a variety of other charging protocols. Temperature controlled cooling fan in the system with low noise & long-life, high-quality board is designed with OCP, OVP and over temperature protection.
Note: Voltage, ampere and watt values shown in product image are for illustrative purpose only. Please see the specifications of the product before buying. There are white and black color variants of this product which will be shipped randomly.
🌟Features:
- Output voltage: 0-nominal voltage continuously adjustable
- Output current: 0-nominal value current continuously adjustable
- Smart fan

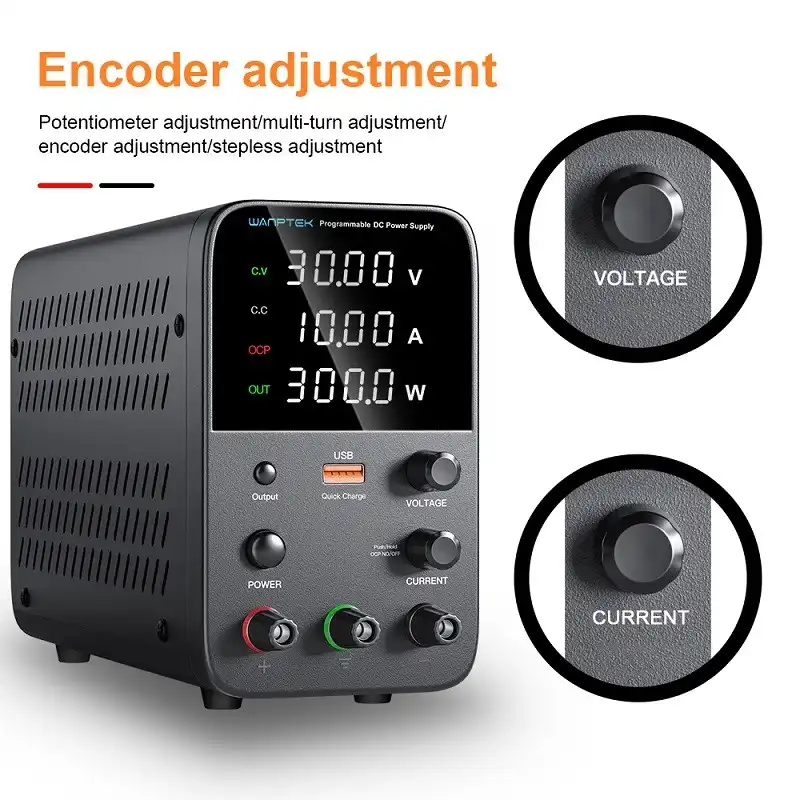

- Encoder adjustment
- Full load operation
- Low ripple & Low noise
📐Specification:
| Model No. | WPS305H |
|---|---|
| Output Voltage (V) | 30 |
| Output Current (A) | 5 |
| Output Power (W) | 150 |
| Input Voltage | AC 230V/115V ±10%; 50Hz/60Hz |
| Operating Temperature (°C) | 0°C ~ 40°C; RH < 80% |
| Storage Temperature (°C) | -10°C ~ 70°C; RH < 70% |
| Additional Specs. | USB quick charge, output on/off, USB PC communication (optional). Protection: overvoltage, overcurrent, overtemperature, short circuit alarm with auto output stop. |
| Resolution | Voltage: 0.01V, Current: 0.001A |
| Display | 0.4” white light four-digit tube display (3 groups) Display Accuracy: 0.5% ± 5 digits |
📦Package Includes:
- 1 x Wanptek WPS305H 30V/5A Variable Adjustable Switching Power Source DC Power Supply
📄Attachment:
User Manual
( ⮝ click to download )
Technical Specifications
| Brand | WANPTEK |
|---|---|
| Model | WPS305H |
| Operating Voltage | 30V |
| Current Rating | 5A |
| Interface / Protocol | BLE |
| SKU | AI6935 |
| Weight | 2.17 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Wanptek WPS305H 30V/5A Variable Adjustable Switching Power Source DC Power Supply is a versatile wanptek adjustable power supply used across a wide range of applications including electronics workbench, LED lighting, industrial equipment, embedded system power, and CCTV installations.
Common use cases:
- Powering a development board or test setup
- Driving LED strip installations
- Providing regulated DC power to equipment
This product is ideal for electronics labs, makers, and system integrators.
Technical Tip: Ensure output voltage and current match your load requirements. Switching power supplies are more efficient but may introduce noise; consider linear for sensitive analog circuits.
