This is the 30V variant of the Wanptek KPS3030D 30V/30A Low Ripple High Power DC Adjustable Regulated Variable Switching Power Supply in Wanptek Adjustable Power Supply. Available at ₹17,749.56 (₹15,042.00 + GST) with free shipping across India.
Looking for Kps3030d Power Supply? Wanptek KPS3030D 30V/30A Low Ripple High Power DC Adjustable Regulated Variable Switching Power Supply is available at Zbotic with fast shipping across India.
Kps3030d Power Supply – 🧾Product description:

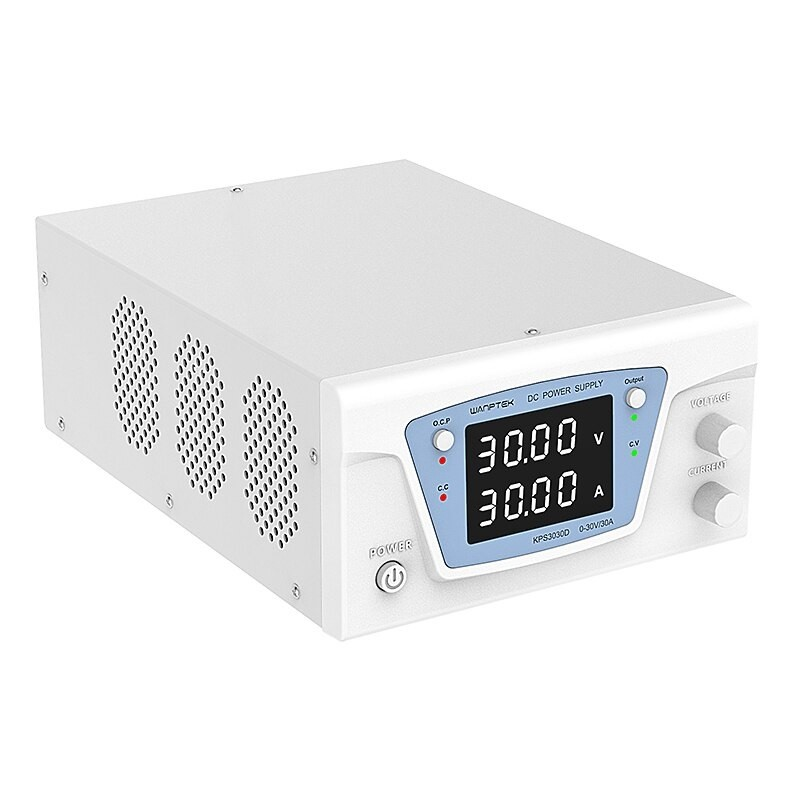

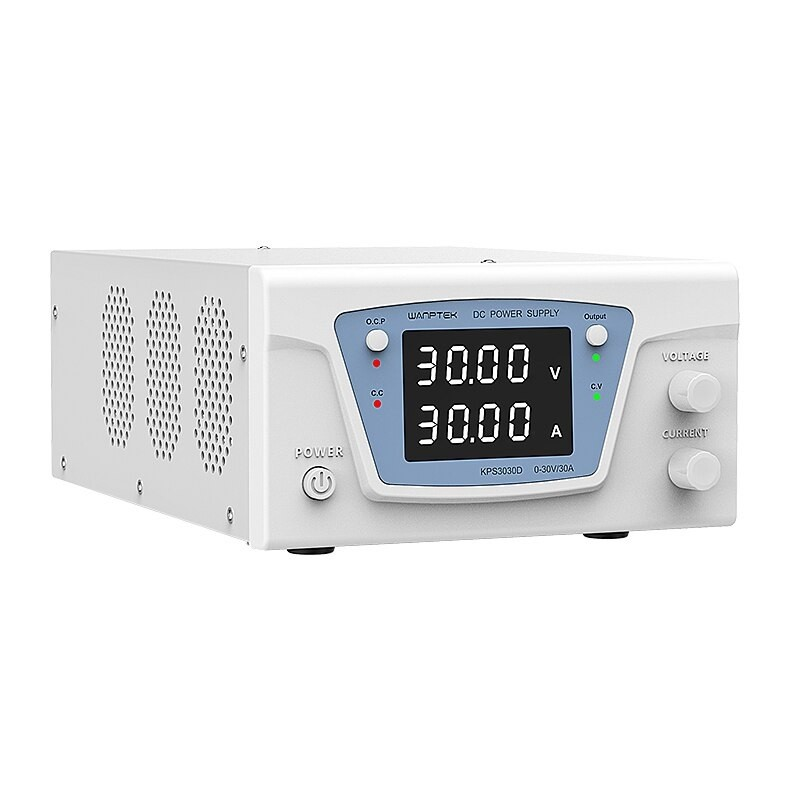

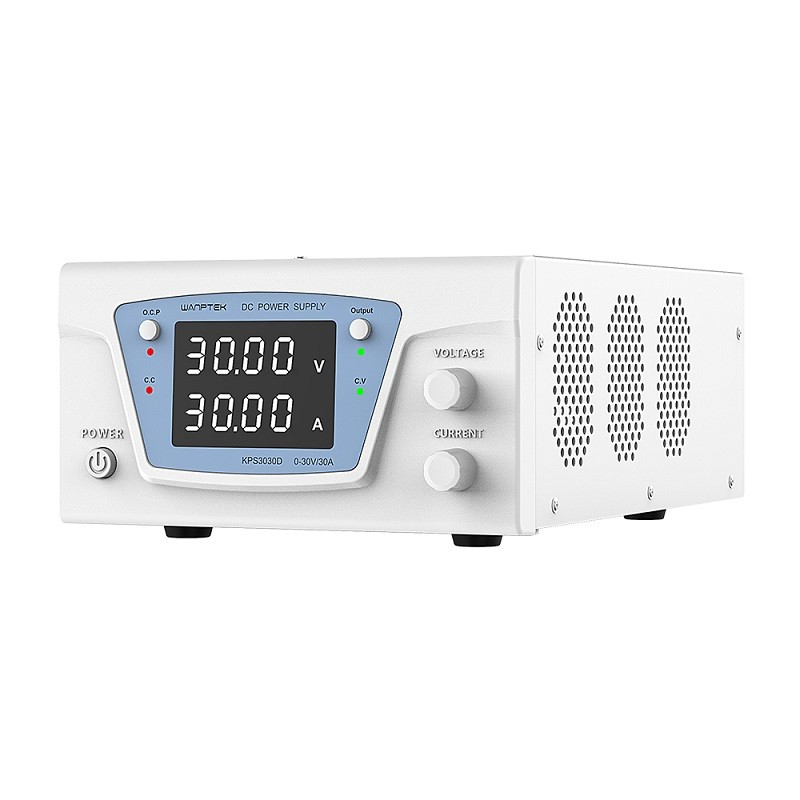

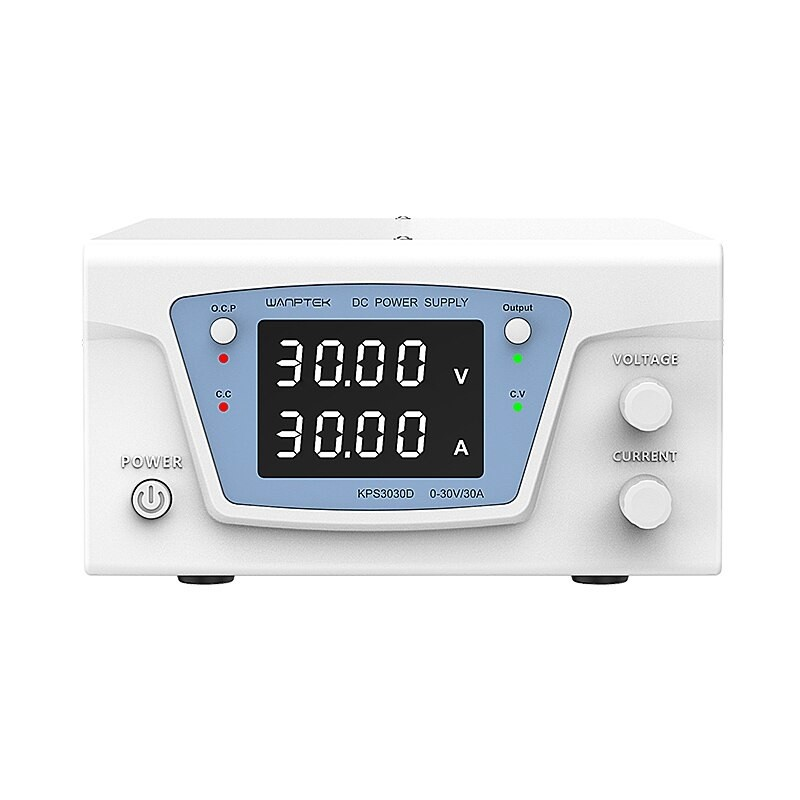

This is Wanptek KPS3030D 30V/30A Low Ripple High Power DC Adjustable Regulated Variable Switching Power Supply. The power supply has a large digital display, which can directly read the voltage. It’s simple in assembly and disassembly, easy to carry, with a storage bag for compact storage.
Wanptek KPS3030D 30V/30A Low Ripple High Power DC Adjustable Regulated Variable Switching Power Supply, KPS series high-power DC power supply is a high-performance switching DC developed specifically for industrial applications. The KPS series power supply has a temperature control circuit, and the intelligent fan has excellent heat dissipation effect and low noise.
🧩Applications:
- Production line testing
- Electrical maintenance and repair
- Life product aging test
- Battery charging
- Laboratory, scientific research and teaching
- Any other occasion where a DC stabilized power supply is required
🌟Features:
- Have complete operating protection function
- Highly efficient, low ripple, small volume, light weight
- Double display voltage, current, and high precision
- Voltage stabilization, current limiting, simple operation
- Dual voltage input and convenient choice
- Temperature control fan heat dissipation, low noise
- Double potentiometer more precise adjustment
Note: Accuracy is measured at the load terminal voltage detection state, at normal temperature. In case of degree error and component aging, there may be a deviation between the actual value and the rated value. Please choose the right input voltage on the back of DC power supply, any incorrect input voltage may damage the machine.
📐Specification:
| Model No. | KPS3030D |
|---|---|
| Output Voltage (V) | 30 |
| Output Current (A) | 30 |
| Output Power (W) | 900 |
| Input Voltage | AC 220V±10%, 50Hz |
| Resolution | Voltage: 0.1V, Current: 0.1A |
| Additional Specs. | Load CV≤0.5%+30mV, Power CV≤0.3%+10mV, Voltage display precision: ±1%+1 digit |
| Ripple and Noise | Vp-p≤0.5%+10mV |
| Display Precision | Voltage: ±1%+1 digit, Current: ±1%+1 digit |
| Operating Temperature (°C) | -10~45°C, Rh<90% |
📦Package Includes:
- 1 x Wanptek KPS3030D 30V/30A Low Ripple High Power DC Adjustable Regulated Variable Switching Power Supply
- 1 x Power cord
- 1 x Instruction book
- 1 x Warranty card certification
Wanptek KPS3030D 30V/30A Low Ripple High Power DC Overview
The Wanptek KPS3030D is a switching DC power supply providing adjustable output from 0–30V and 0–30A with exceptionally low ripple. Designed for industrial and lab environments, it delivers precise voltage regulation and reliable current limiting for electronics testing, R&D, and maintenance.
Key Features of Wanptek KPS3030D 30V/30A Low Ripple High Power DC
- Adjustable output range: 0–30V voltage and 0–30A current
- High stability: voltage variation ≤0.3%+10mV, load regulation ≤0.5%+30mV
- Low ripple noise: ≤0.5%+10mV (RMS) for sensitive electronics
- Dual large digital display for real-time voltage and current readings
- Compact, lightweight design with a storage bag for easy transport
- Built-in voltage stabilization and adjustable current limiting
- Genuine Wanptek unit with fast shipping from Zbotic
Applications and Use Cases
- Powering and testing printed circuit boards in R&D labs
- Battery charging, capacity measurement, and lifecycle testing
- Controlled-load testing of DC motors and actuators
- Evaluating LED lighting modules and driver circuits
- Diagnostics of automotive electronics and control units
- Educational workshops and electronics training benches
How to Use Wanptek KPS3030D 30V/30A Low Ripple High Power DC
Connect the unit to AC mains (220V±10% 50Hz), switch on the power supply, then use the front-panel knobs or digital controls to set the desired voltage and current limit. Attach your load to the output terminals, monitor the dual display for real-time readings, adjust as needed, and power down when testing is complete.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
How do I adjust the voltage and current limits?
Use the front-panel knobs or digital controls to set the desired voltage. Turn the current adjustment knob while watching the display to set the maximum current; the supply enters constant-current mode if the load draws more than the set limit.
What protection features are built into the KPS3030D?
The KPS3030D includes over-voltage protection (OVP), adjustable current limiting and thermal shutdown. It automatically cuts off output if limits are exceeded or internal temperature rises beyond safe levels.
Can this power supply run continuously at 30A?
Yes. The KPS3030D supports continuous 30A output with proper ventilation. Ensure the built-in cooling fan is unobstructed and ambient temperature remains within the operating range for reliable long-term operation.
Technical Specifications
| Brand | WANPTEK |
|---|---|
| Model | KPS3030D |
| Operating Voltage | 30V |
| Current Rating | 30A |
| Interface / Protocol | BLE |
| SKU | AI6941 |
| Weight | 5.2 kg |
| Availability | In Stock |
Applications & Use Cases
The Wanptek KPS3030D 30V/30A Low Ripple High Power DC Adjustable Regulated Variable Switching Power Supply is a versatile wanptek adjustable power supply used across a wide range of applications including electronics workbench, LED lighting, industrial equipment, embedded system power, and CCTV installations.
Common use cases:
- Powering a development board or test setup
- Driving LED strip installations
- Providing regulated DC power to equipment
This product is ideal for electronics labs, makers, and system integrators.
Technical Tip: Ensure output voltage and current match your load requirements. Switching power supplies are more efficient but may introduce noise; consider linear for sensitive analog circuits.
