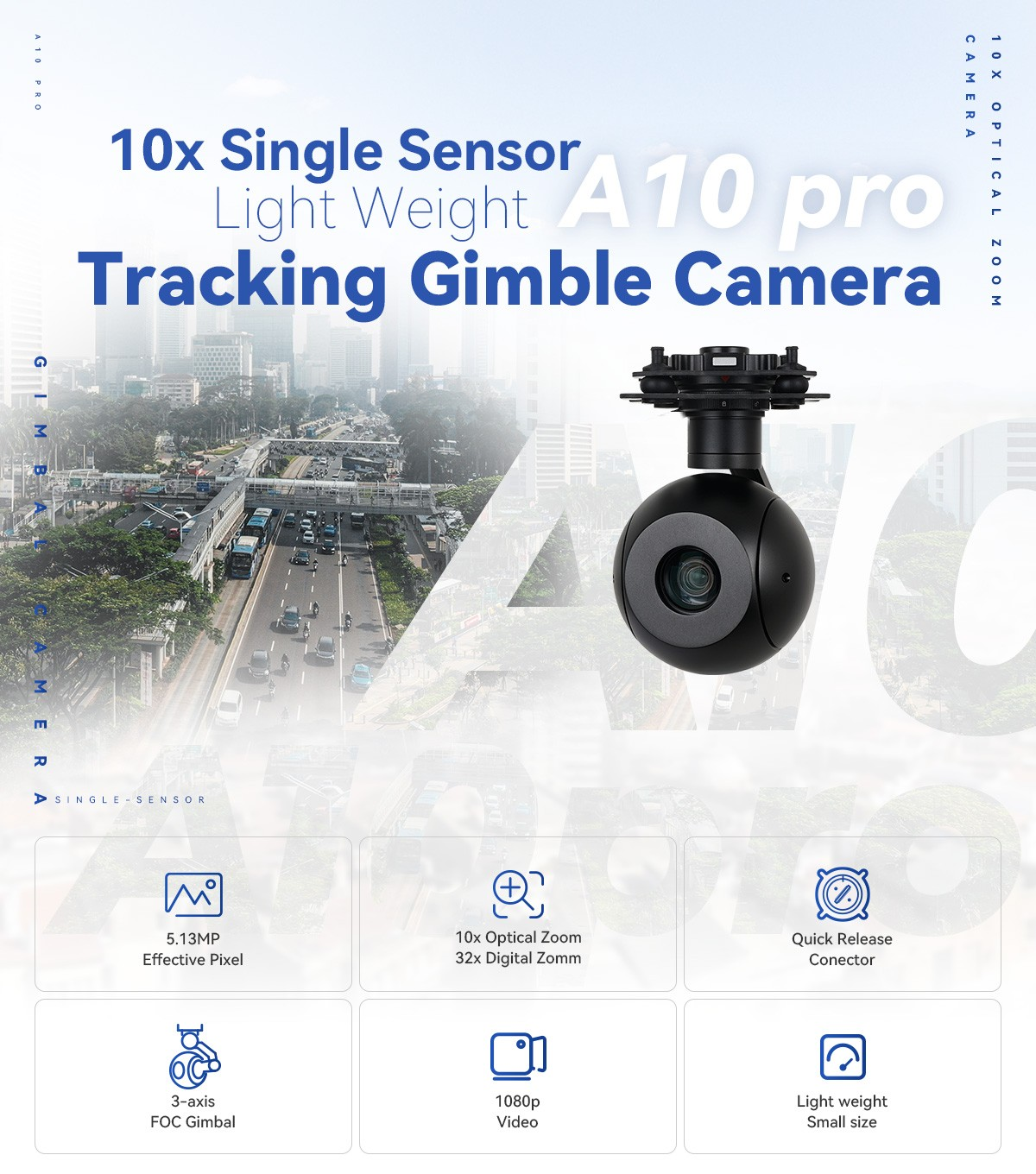

VIEWPRO A10 pro 10x Single Sensor Light Weight AI Tracking Camera
A10 Sensor – Description:

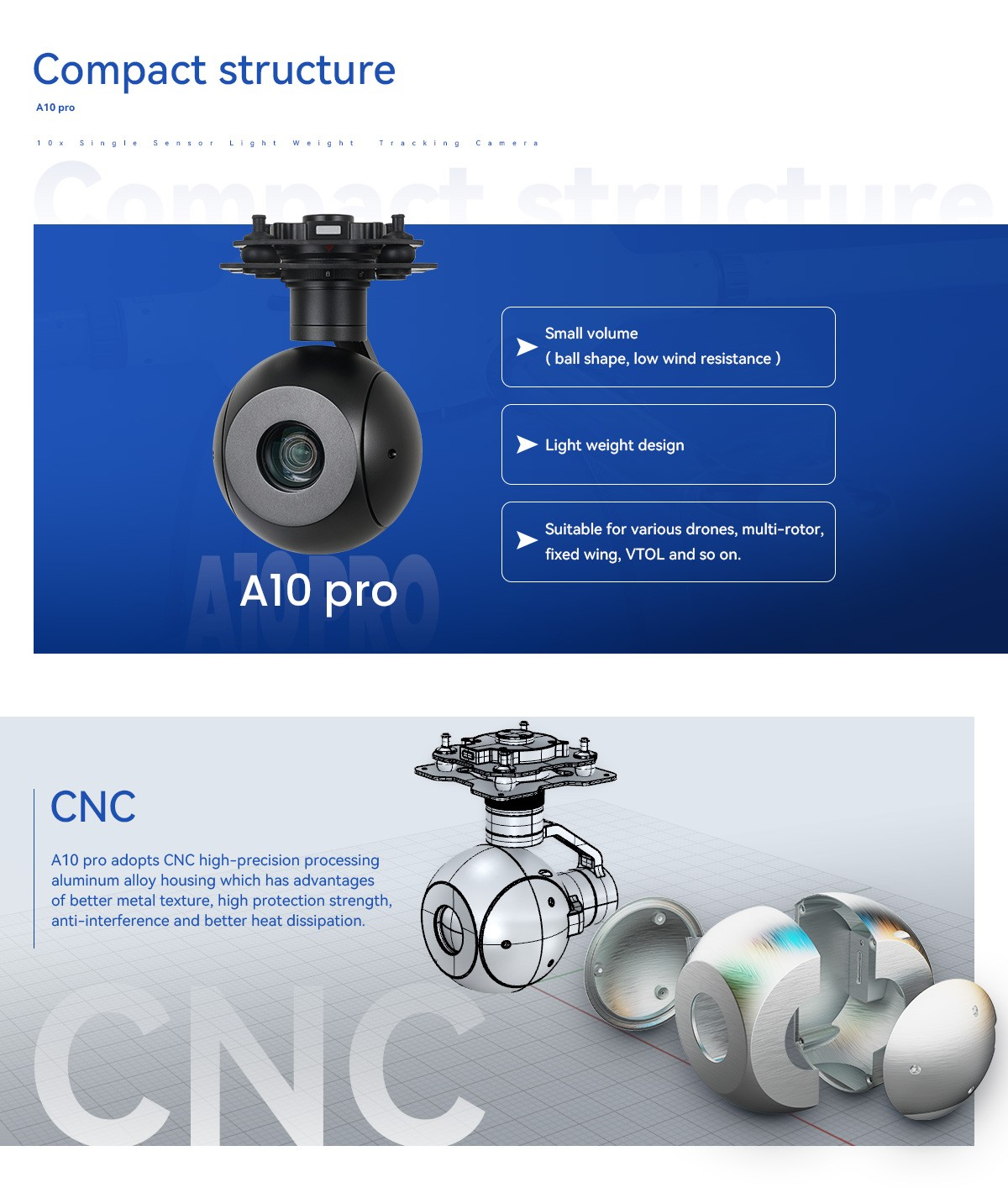

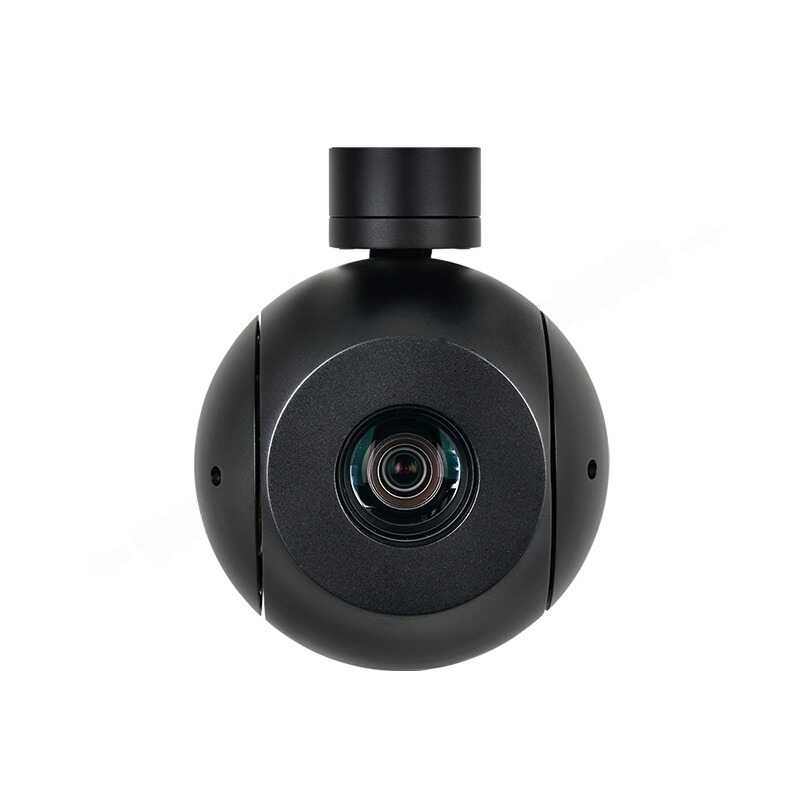

VIEWPRO A10 pro 10x Single Sensor Light Weight AI Tracking Camera is a Single-sensor gimbal camera featuring lightweight design, small volume and compact structure, which integrates a 10x optical zoom camera and tracking function. It’s with 3-axis high-precision aluminum alloy gimbal which has advantages of anti-interference and better heat dissipation. It is integrated with AI object identification and tracking module, which can realize car and human autonomous recognition and automatic tracking. It widely used in UAV industries of inspection, surveillance, search and rescue and other industrial applications.
Specifications:
| Hardware Parameter | |
| Working voltage | 16V |
| Input voltage | 4S ~ 6S |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 520~1300mA @ 16V |
| Working environment temp. | -20℃ ~ +60℃ |
| Output | micro HDMI(1080P 30fps/60fps) / IP (RTSP/UDP 720p/1080p 30fps) |
| Local-storage | SD card (Up to 128G,class 10, FAT32 or ex FAT format) |
| Photo storage format | JPG(1920*1080) |
| Video storage format | MP4 (1080P 30fps) |

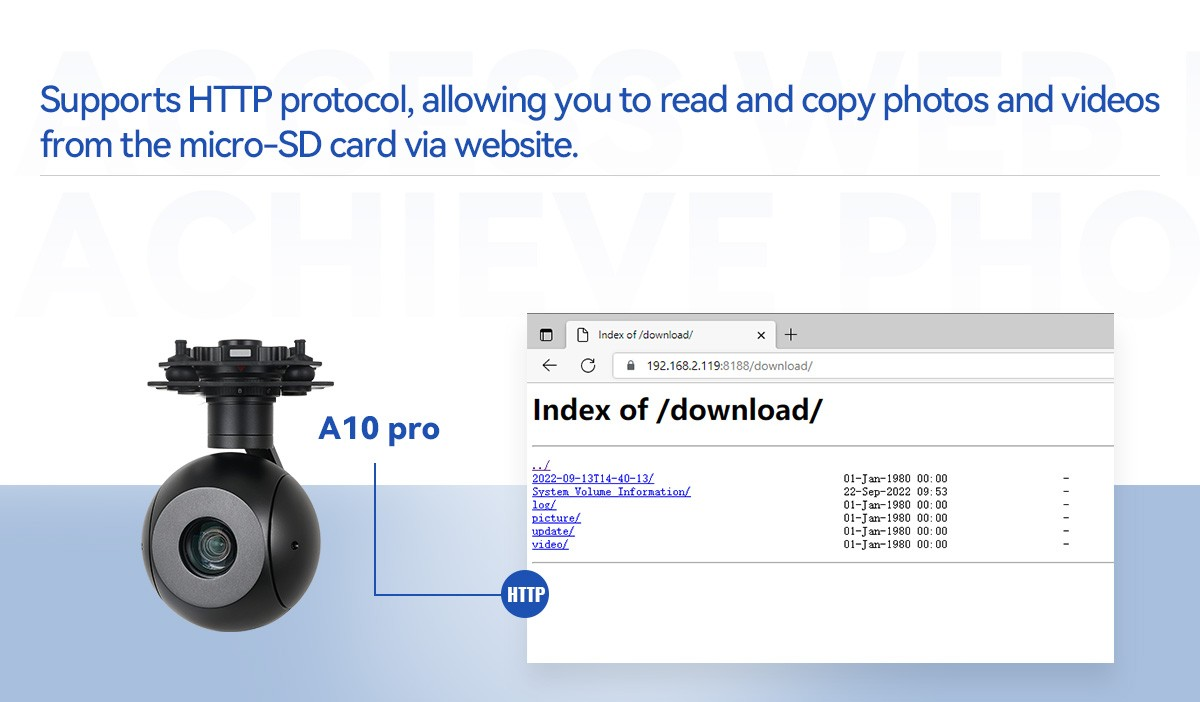

| Card reading online | HTTP read pictures |
| Geotagging | Support, display time and GPS coordinate in picture exif |

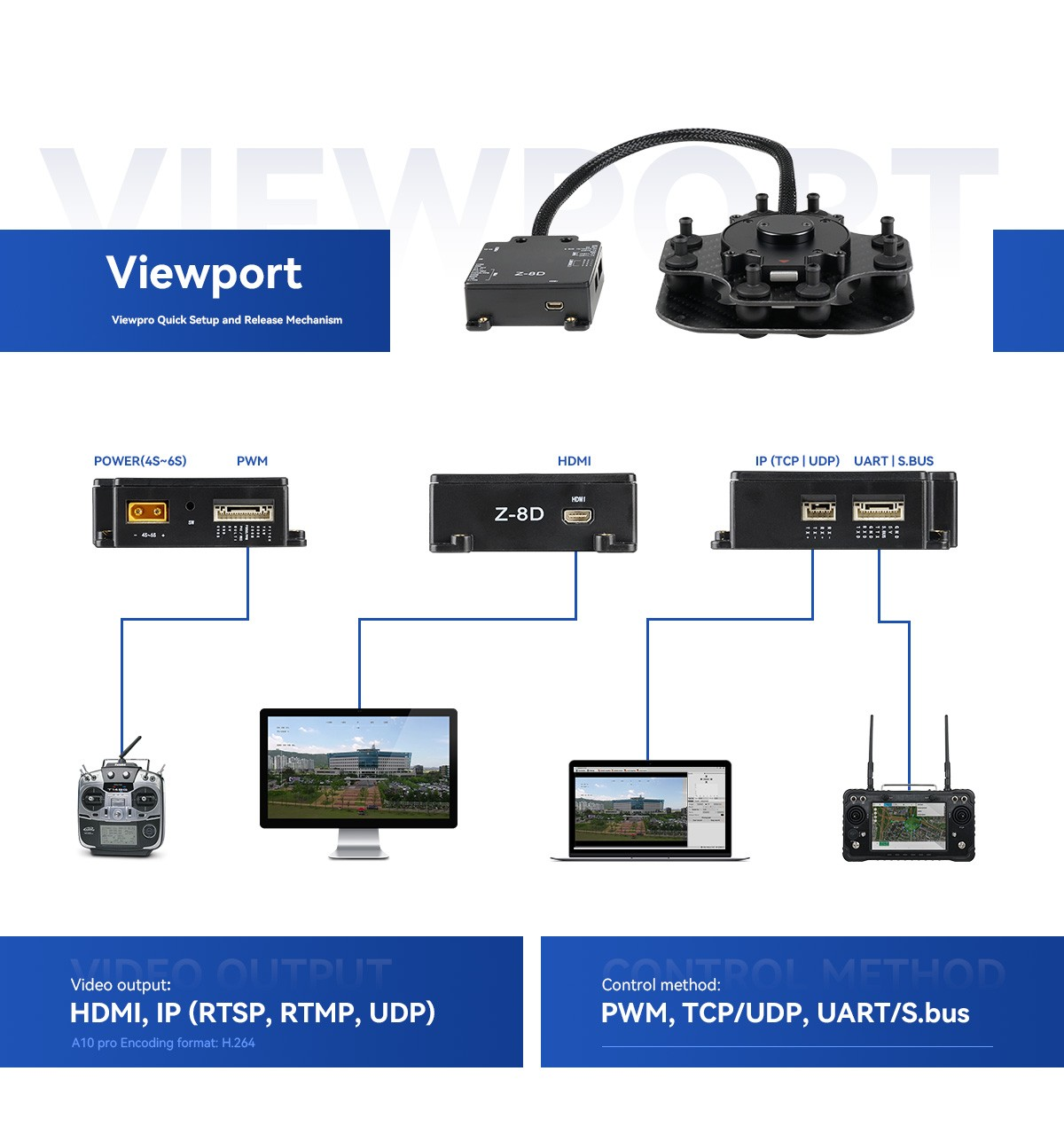

| Control method | PWM / TTL / S.BUS/ TCP(IP output version)/UDP(IP output version) |
| Gimbal Spec | |

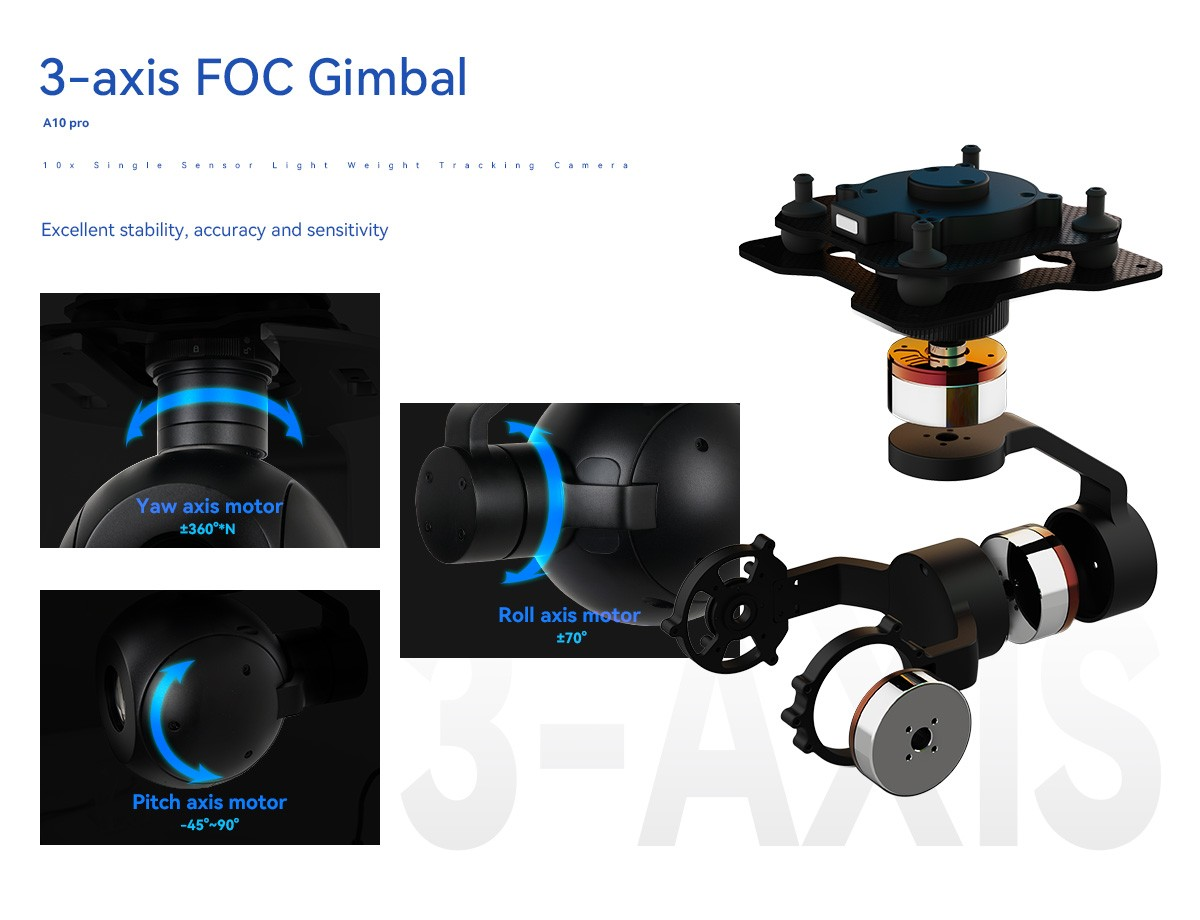

| Angle scope of structure design | Pitch/Tilt: ±120°, Roll: ±70°, Yaw/Pan: ±300° / ±360°*N (IP output version) |
| Angle scope of software design | Pitch/Tilt: -45°～115°, Yaw/Pan: ±290° / ±360°*N (IP output version) |
| Vibration angle | Pitch/Roll/Yaw: ±0.02° |
| One-key to center | √ |
| Camera Spec | |
| Imager Sensor | 1/2.8″ SONY CMOS Sensor |
| Total pixel | 5.13MP |
| Picture quality | Full HD 1080 (1920*1080) |
| Optical zoom | 10x, f = 4.7mm ~ 47mm, F1.7~F3.1 |
| Digital zoom | 32x |
| Angle of View (H) | 69.9°(Wide end) ~ 8.7° (Tele end) |
| Min target distance | 0.1 / 1.5 / 3.0 / 5.0 / 10.0 m |
| Min illumination | Color(1/30s, 72.0dB): 0.02 lux , BW(1/30s, 72.0dB): 0.005lux Color DSS(1/1s, 72.0dB): 0.002 lux , BW DSS(1/1s, 72.0dB): 0.0005 lux |
| Shutter speed | 1/1sec ~ 1/100,000 sec |
| White balance | Auto / One Push / Manual / Indoor / Outdoor |
| Focus | Auto / One Push / Manual |
| Iris | 0 ~ 20 steps |
| Exposure | Auto / Manual / Priority Mode (Shutter priority & aperture priority) |
| Sync system | Progressive Scan |
| Sync. System Internal | Internal |
| Backlight compensation | Yes |
| Auto ICR | Yes |
| Image stabilization | Yes |
| Defog | Yes |
| EO Camera Object Tracking | |
| Update rate of deviation pixel | 30Hz |
| Output delay of deviation pixel | <30ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 16*16 pixel |
| Maximum object size | 256*256 pixel |
| Tracking speed | ±48 pixel/frame |
| Object memory time | 100 frames |
| EO Camera AI Performance | |
| Targets type | Car and human |
| Simultaneous detection quantity | ≥ 10 targets |
| Min contrast ratio | 5% |
| Min target size | 5×5 pixel |
| Car detection rate | ≥85% |
| False alarm rate | ≤10% |
VIEWPRO A10 pro 10x Single Sensor Light Weight AI Tracking Overview
The VIEWPRO A10 pro 10x Single Sensor Light Weight AI Tracking Camera is a compact, UAV-ready gimbal camera combining a 10× optical zoom lens with onboard AI for autonomous human and vehicle detection. Housed in a small, lightweight aluminum alloy 3-axis gimbal, it delivers stable 1080p video via micro-HDMI or IP streaming (RTSP/UDP) and supports local recording to SD cards.
Key Features of VIEWPRO A10 pro 10x Single Sensor Light Weight AI Tracking
- 10× optical zoom lens for detailed long-range inspection
- Built-in AI module for real-time human and vehicle recognition and tracking
- Precision 3-axis aluminum alloy gimbal offering anti-interference stability and efficient heat dissipation
- Video output over micro-HDMI at 1080p 30/60 fps and IP streaming (RTSP/UDP)
- Supports local recording to SD cards for onboard storage
- Lightweight and compact design ideal for UAV integration
- Fast shipping from Zbotic across India
Applications and Use Cases
- Infrastructure inspection on bridges, towers and power lines
- Traffic monitoring and accident scene analysis
- Search and rescue missions in challenging environments
- Security surveillance for perimeters and critical facilities
- Wildlife monitoring and anti-poaching patrols
- Industrial site inspection in oil, gas and mining sectors
How to Use VIEWPRO A10 pro 10x Single Sensor Light Weight AI Tracking

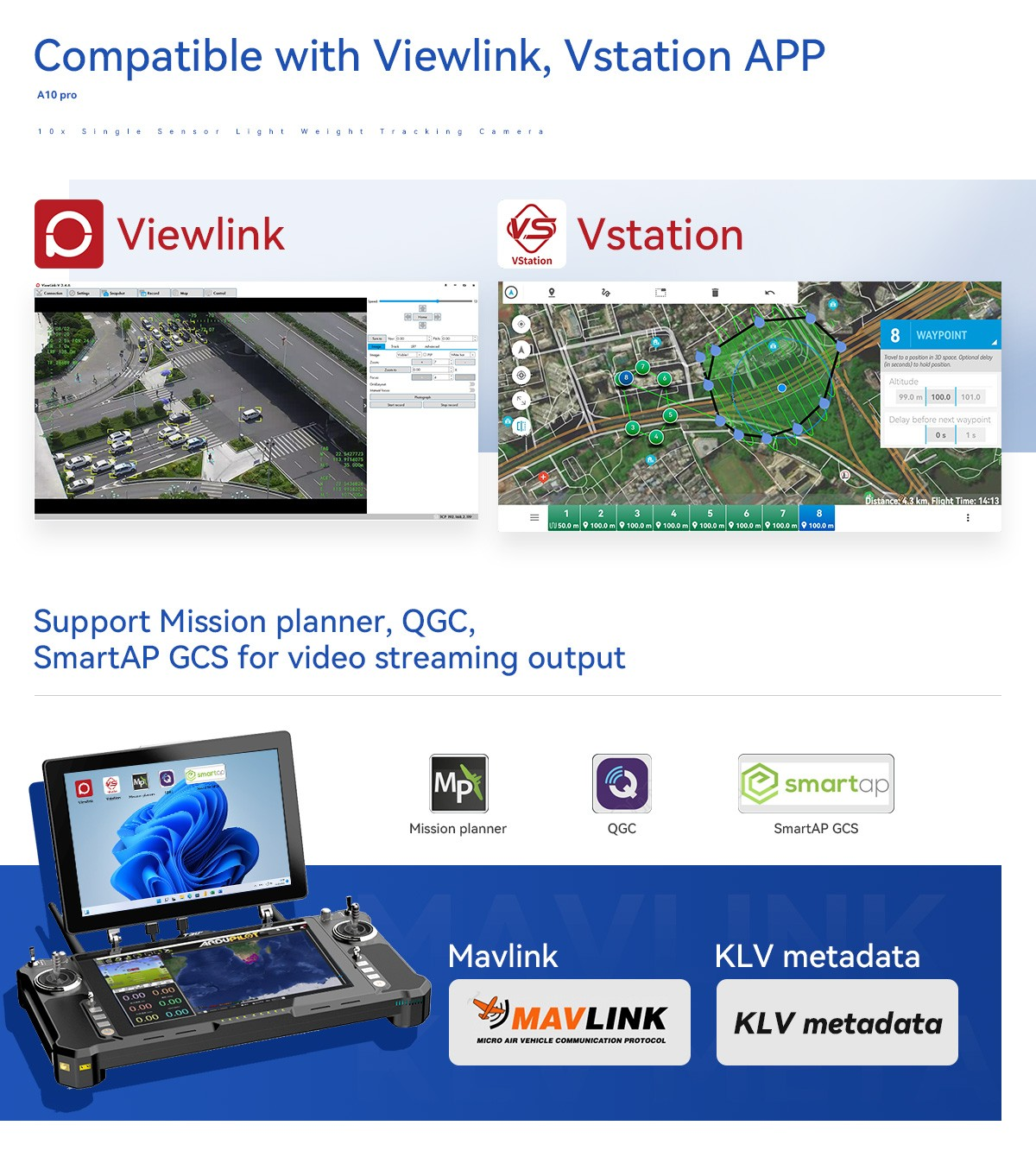

Mount the A10 pro onto a compatible UAV or stabilized platform, insert a formatted SD card, and power the unit via the onboard connector. Use the micro-HDMI port to access the on-screen menu for enabling AI tracking or configure RTSP/UDP settings through your ground-station software. After object detection is engaged, the camera will autonomously follow the selected human or vehicle target.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What is the maximum zoom capability of the A10 pro camera?
The VIEWPRO A10 pro features a true 10× optical zoom lens, allowing close-up imaging of distant subjects without quality loss.
Which video outputs does the A10 pro support?
You can stream live video via micro-HDMI at 1080p 30/60 fps or over the network using RTSP/UDP protocols for integration with IP-based ground stations.
How does the AI tracking function work?
The integrated AI module analyzes the live feed for human and vehicle shapes; once detection is enabled in the on-screen menu, the gimbal automatically follows the selected target across all three axes.
Datasheet:
Package Includes:
- 1 x Gimbal camera device
- 1 x Screw set
- 1 x USB to TTL cable
- 1 x High quality box with foam cushion
