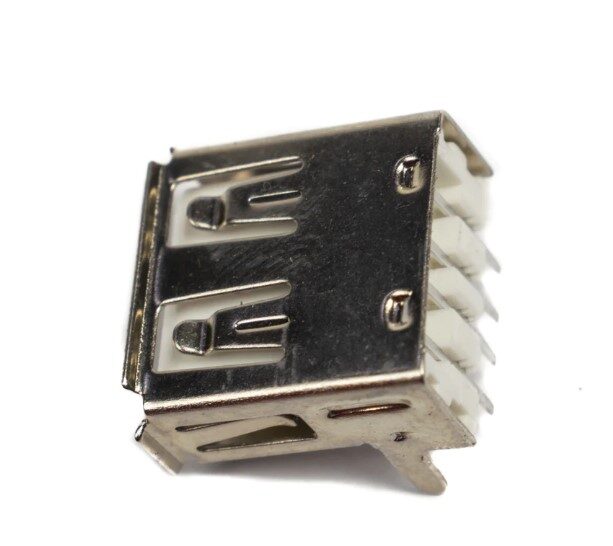

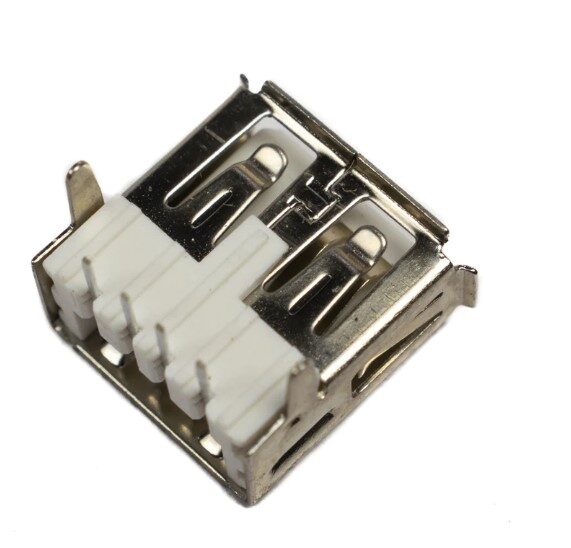

USB Type A Female Connector – USB 2.0 – Right Angle
This USB Type A Female Connector is a Right Angle Connector. It is of USB 2.0 Type A. The connector has 2 mounting points on side, and so it makes a solid mounting on any board. It has 4 pinouts, 2 for Data, GND, and Vcc.
Specification:
Connector Type | USB 3.0 |
---|---|
Connector | USB Type A |
Voltage Rating (V) | 250 V AC |
Current Rating (A) | 1.5 |
Transmission Speed | 5 Gbits/s |
Material: | Metal and plastic |
Contact Material | Copper Alloy, Selective Gold Plated |
Insulation Material | PBT UL 94V-0 |
Contact Resistance | 30mΩ |
Insulation Resistance (MΩ) | 1000 |
Operating Temperature (°C) | -40 to 60 |
Durability | 1500 cycles |
Insertion Force (N) | 35 |
Extraction Force (N) | 10 |
Package Includes
- 1 x Usb Type A Female Connector – Usb 2.0 – Right Angle
