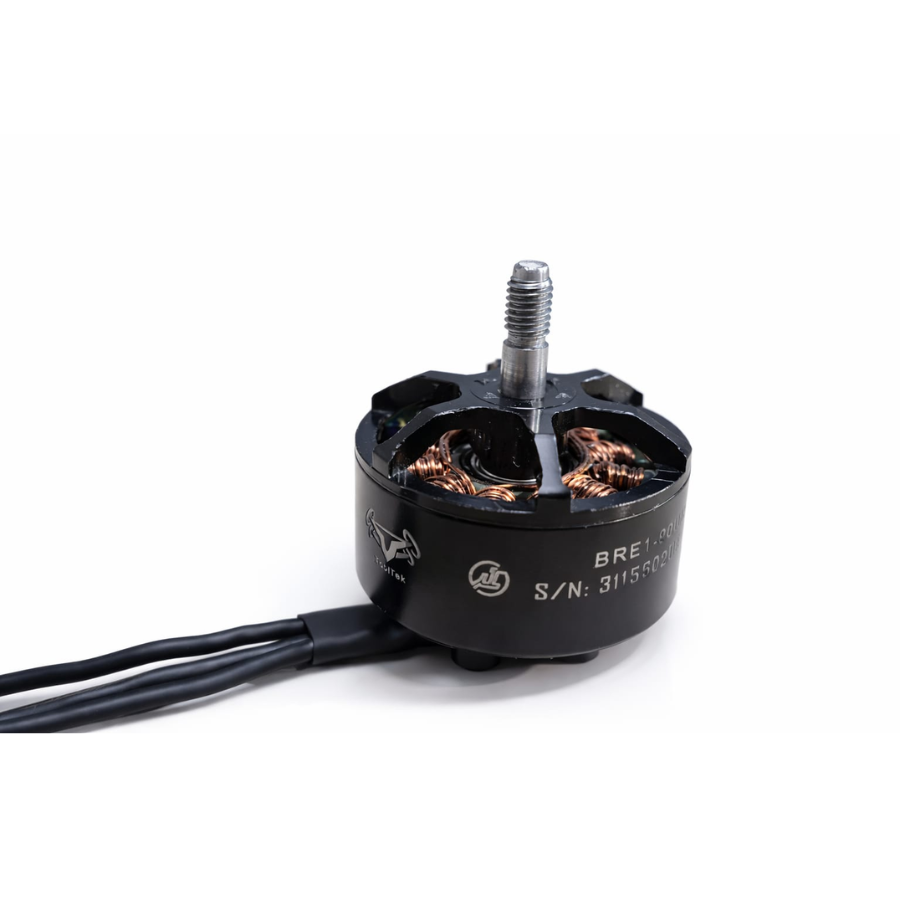

TOBITEK BRE1(3113) BLDC Motor
Description:
The TOBITEK BRE1 (3113) BLDC Motor is a brushless DC motor designed for drone and UAV propulsion applications. Its brushless design supports smooth rotation, efficient power delivery, and reduced maintenance requirements compared with brushed motors. It is intended for integration into compatible aerial platforms using a suitable electronic speed controller (ESC), battery, and propeller.
Key Features:
- Optimized for FPV racing performance
- High thrust-to-weight ratio
- Stable and durable build
Applications:
- FPV Drones
- Racing Quadcopters
Specifications:
| Category | Specification | Details |
|---|---|---|
| System | Maximum Thrust | 2 kgf |
| System | KV Rating | 900 KV |
| System | Total Weight | 96 g |
| System | Take-off Weight | 1–1.2 kg |
| System | Voltage Range | 6S |
| Motor | Stator Size | Ø31 × 13 mm |
| Motor | Motor Size | Ø37.3 × 46.5 mm |
| Motor | Maximum Power | 2100 W |
| Motor | Maximum Current | 65 A |
| Motor | Efficiency | TBD |
| Motor | Temperature Range | TBD |
| Motor | Bearing Type | TBD |
| Motor | Magnet Material | TBD |
| ESC | Model | Hobbywing V2 (80A, 3S–6S) |
| ESC | Voltage Range | 3S–6S |
| ESC | Continuous Current | 80 A |
| ESC | Burst Current | TBD |
| ESC | Weight | TBD |
| Propeller | Model | 8040 |
| Propeller | Weight | 9 g |
Datasheet:
https://cdn.zbotic.in/wp-content/uploads/2026/10/BRE1-3113-datasheet.pdf
Pacakge Includes:1xTOBITEK BRE1(3113) BLDC Motor
How to Run Stepper Motor Without Arduino Using EasyDriver
Most stepper motor tutorials assume you have an Arduino or microcontroller to generate the step pulses. But what...
Read More →
Motor Heat Sink: When and How to Add Cooling to Motor Drivers
One of the most common causes of failed motor driver boards is heat. The A4988 overheats and cuts...
Read More →
L293D Motor Driver IC: Pinout, Circuit & H-Bridge Explained
The L293D motor driver IC is one of the most taught, most used, and most misunderstood components in...
Read More →Technical Specifications
| Brand | TOBITEK |
|---|---|
| SKU | AI5165 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The TOBITEK BRE1(3113) BLDC Motor is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
