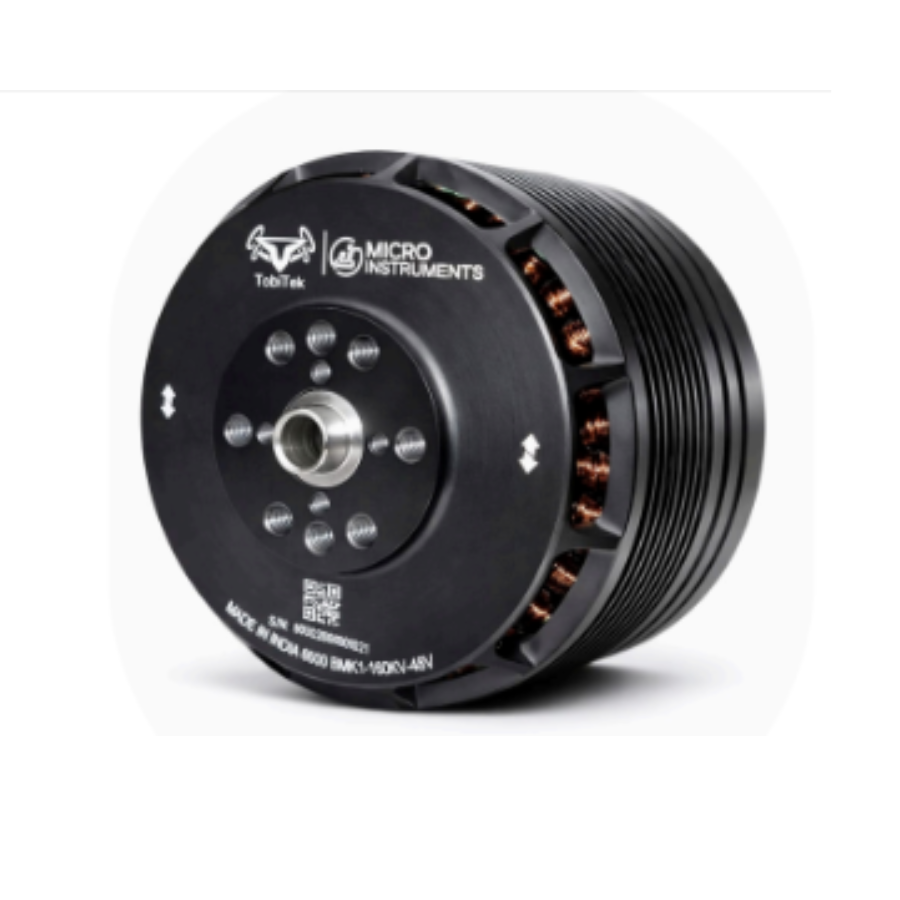

TOBITEK BMK1(8030) BLDC Motor
Description:
The TOBITEK 160KV Drone Motor is designed for high-thrust UAV and multirotor propulsion applications. It delivers up to 23 kgf of maximum thrust with a maximum power rating of 5800W. Featuring a 36N42P configuration, a 10 mm shaft, and imported 6901 2RS bearings, it is designed for compatible 12S battery systems and heavy-duty drone builds.
Specifications:
| Parameter | Specification |
|---|---|
| Brand | TOBITEK |
| KV Rating | 160 KV |
| Maximum Thrust | 23 kgf |
| Recommended Battery | 12S |
| Maximum Power | 5800 W |
| Peak Current | 120 A |
| Motor Weight | 900 g |

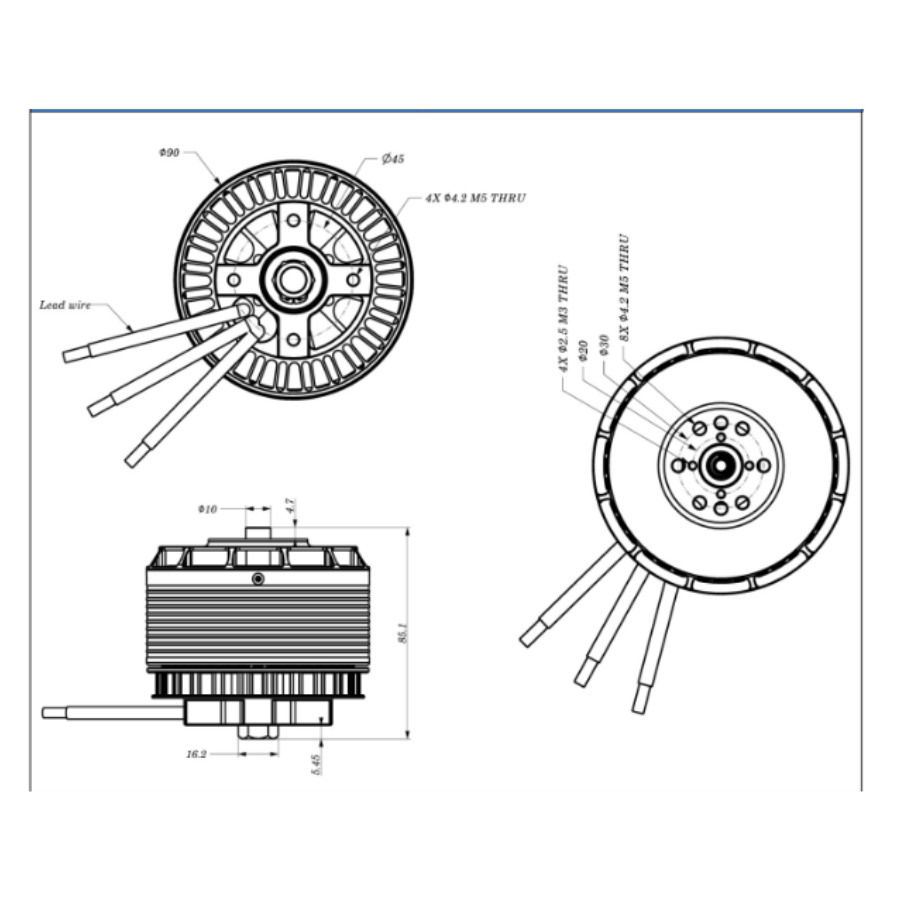

| Stator Dimensions | Ø80 × 30 mm |
| Motor Dimensions | Ø90.0 × 85.1 mm |
| Shaft Diameter | 10 mm |
| Configuration | 36N42P |
| Bearing Type | Imported 6901 2RS |
| Lead Wire Length | 250 mm |
| Coil Insulation Test Voltage | 500 V |
| Copper Wire Temperature Class | 220 |
| Magnet Temperature Rating | 120°C |
| Recommended ESC | Welkrinim 200A |
| Recommended Propeller | APC 27 |
Features:
-
160KV Rating: Designed for compatible heavy-duty drone propulsion systems.
-
High Thrust Output: Delivers up to 23 kgf of maximum thrust.
-
Powerful Performance: Supports up to 5800W maximum power.
-
12S Battery Compatibility: Recommended for 12S battery systems.
-
Robust Motor Design: Features a 36N42P configuration.
-
Durable Bearings: Equipped with imported 6901 2RS bearings.
-
Heavy-Lift Applications: Suitable for compatible UAV and multirotor builds.
-
Compatible Components: Recommended Welkrinim 200A ESC and APC 27 propeller.
Model: BMK1 160KV (8030)
Large VTOL drone motor built for endurance and heavy lift applications, delivering high thrust with robust power handling.
- Designed for VTOL endurance applications
- High thrust capacity
- Built for heavy lift drones
Datasheet :
Package Include:
1x TOBITEK BMK1(8030) BLDC Motor
ArduPlane Setup: Complete Guide to Building a Fixed-Wing Autonomous UAV (2026)
ArduPlane is the world's most capable open-source autopilot system for fixed-wing unmanned aerial vehicles. Developed by the ArduPilot...
Read More →
Walksnail Avatar HD: Budget Digital FPV System India
Table of Contents What is Walksnail Avatar HD Walksnail vs DJI FPV System Avatar HD VTX and Camera...
Read More →
EV Gear Motor for DIY Electric Bike: Torque & Power Sizing
Table of ContentsWhy Build Your Own Electric Bike?Types of Motors Used in DIY E-BikesHow Much Power Do You...
Read More →Technical Specifications
| Brand | TOBITEK |
|---|---|
| SKU | AI5170 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The TOBITEK BMK1(8030) BLDC Motor is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
