This is the 40mm variant of the TEC1-12706 40x40mm Thermoelectric Cooler 6A Peltier Module in Thermoelectric Peltier Elements. Available at ₹269.04 (₹228.00 + GST) with free shipping across India.

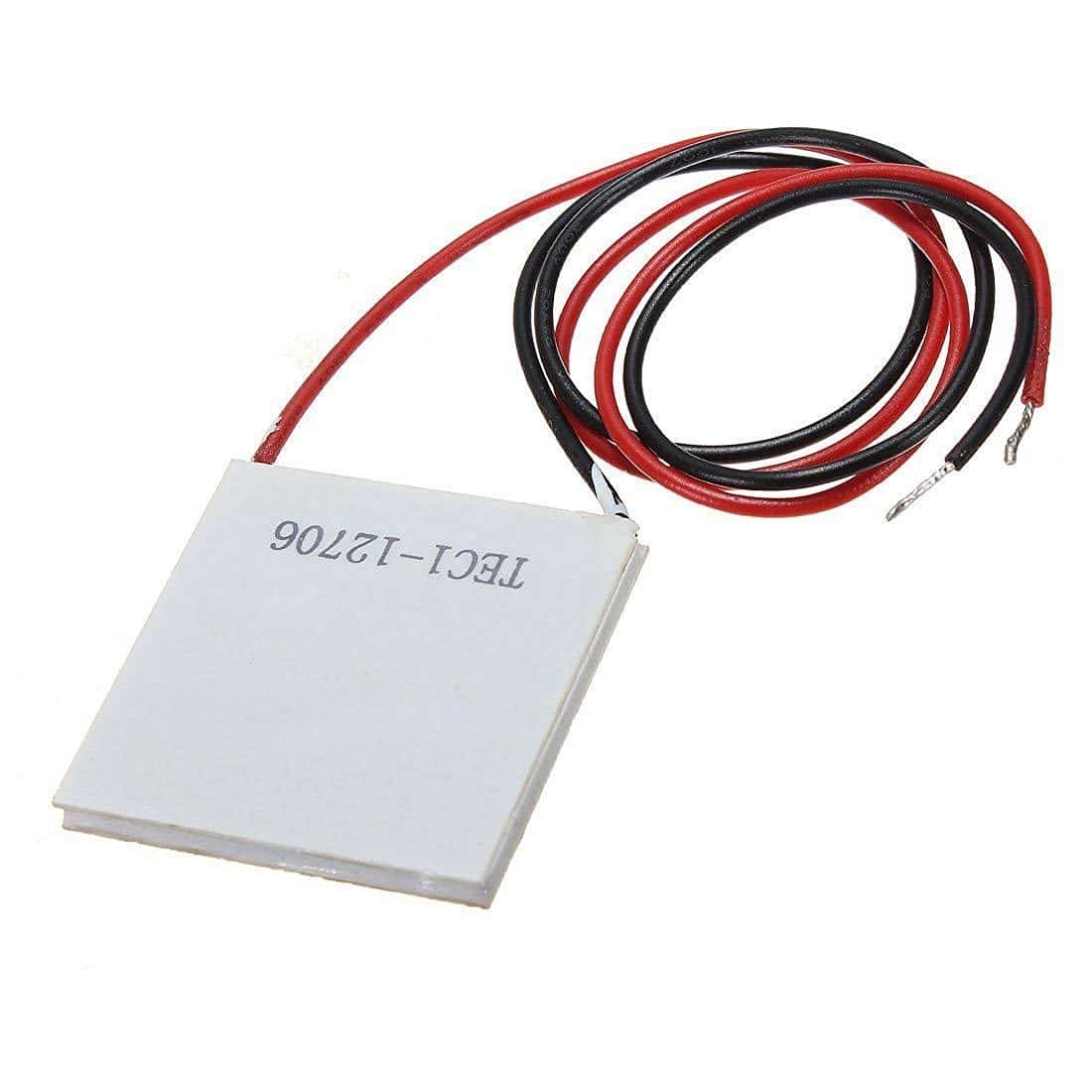

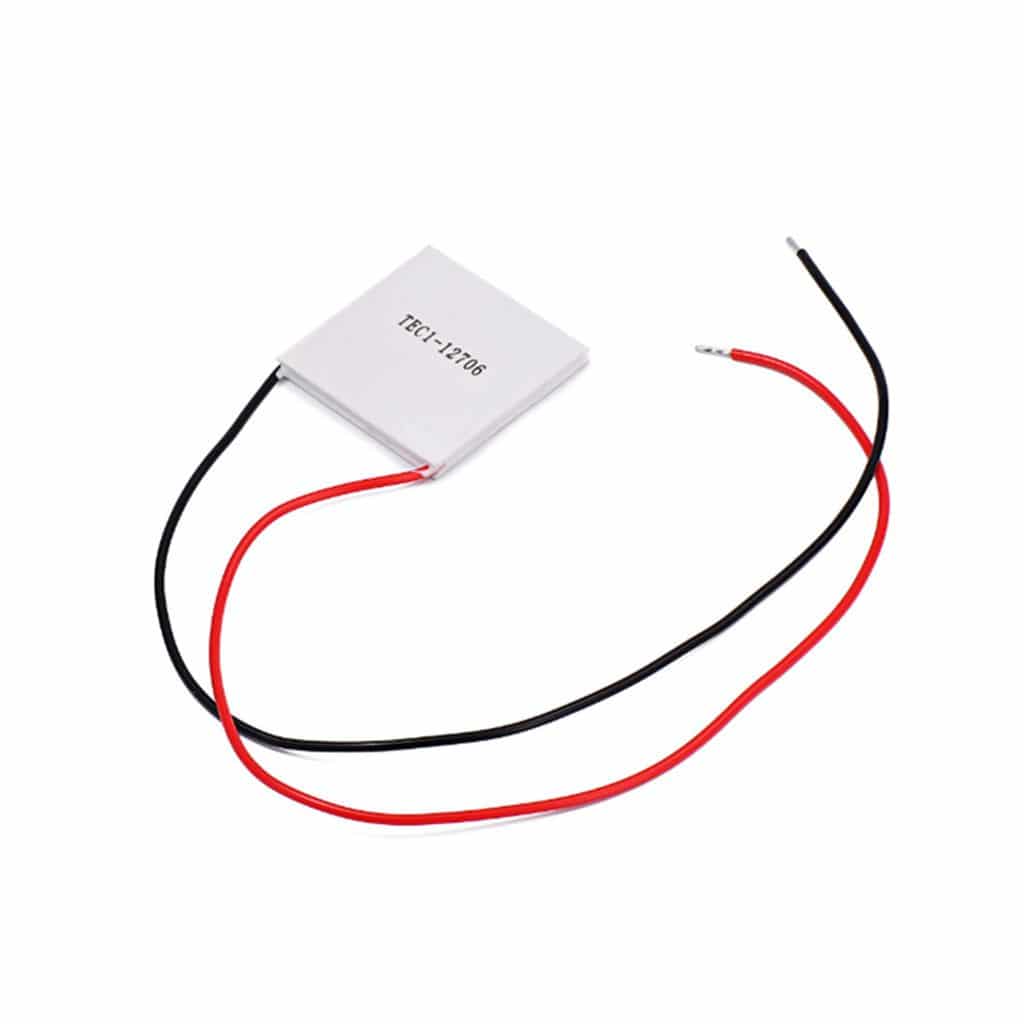

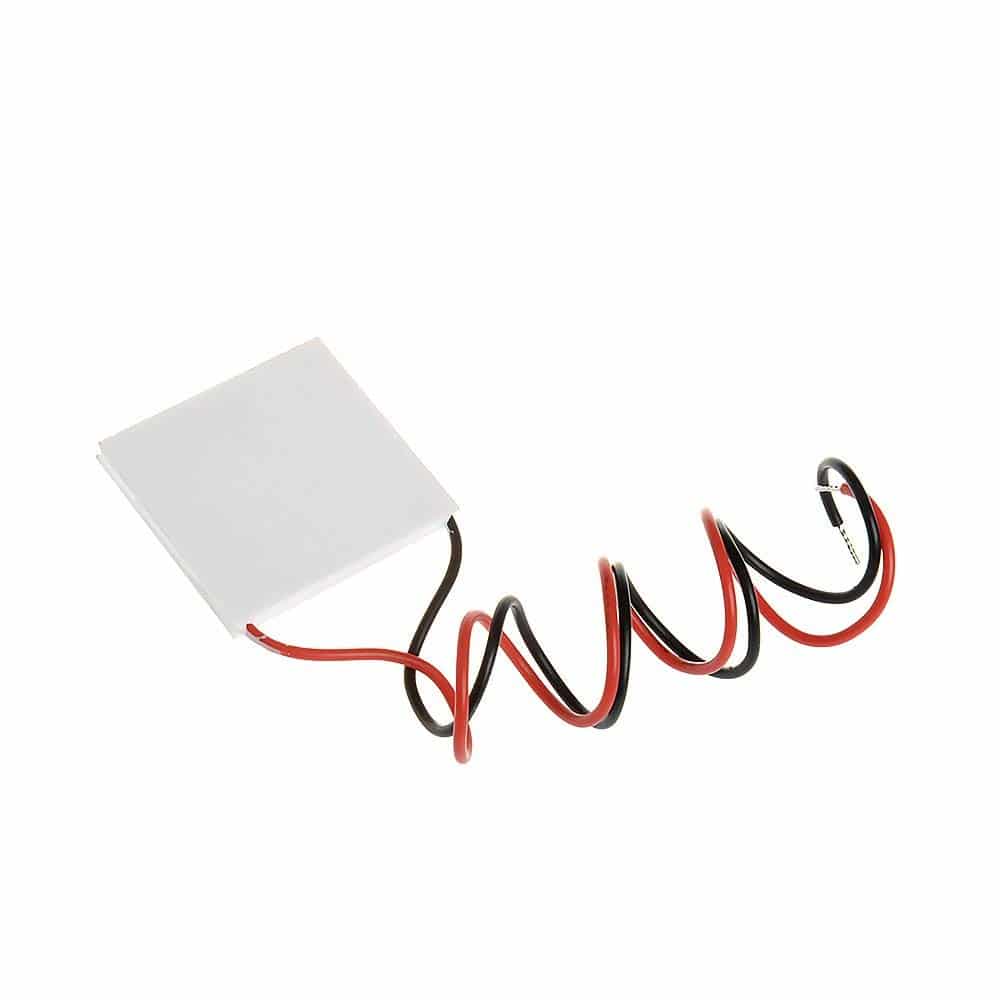

Introducing the TEC1 12706 40×40 mm Thermoelectric Cooler 6A Peltier Module, the perfect solution for cooling DIY projects or electronic devices with ease. Utilizing the Peltier Thermoelectric Effect, this compact module features 127 semiconductor pairs in a 40 x 40 mm footprint, capable of efficiently cooling or heating with a temperature range of up to 90°C.
Also known as TEC or Peltier Modules, these devices operate on a simple principle: they generate a temperature difference across their surface, causing one side to heat up while the other cools down. This versatility allows either side to be used for cooling or heating based on your requirements. Additionally, the temperature difference can even be harnessed to generate electricity.
As a compact heat pump powered by DC electricity, the thermoelectric cooler module transfers heat from one side to the other when activated, creating distinct hot and cold sides. This innovative technology finds applications in various sectors, including computer CPUs, CCDs, portable coolers, and medical devices.
Operating Tips
Max. Operating Temperature: 138 Degree C
Do not exceed Imax or Vmax when operating a module.
Please carry out moisture protection options (sealing) in final application use.
Life expectancy: 200,000 hours
Failure rate based on longtime testing: 0.2%.
Features
Small module.
Operable up to 138°C.
Easy transition between the hot side to the cool side and vice-versa just by reversing the polarity of the supply.
Quality tested cooling cells.
Solid-state, vibration-free, noise-free.
Simple to install and operate.
Should use with a heat sink.
Specification:
Model number: TEC1-12706
Operating Voltage: 12V
Maximum Voltage Umax (V) : 15.4V
Maximum Current Imax (A) : 6A
Maximum Power: 92 W
Maximum Temperature: 138°C
Power Cord: 200mm
Package Includes
1 x TEC1-12706 40x40mm Thermoelectric Cooler 6A Peltier Module
The TEC1-12706 40x40mm Thermoelectric Cooler 6A Peltier Module is a versatile thermoelectric peltier elements used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
Integrating into a custom electronics project
Learning and experimenting with circuits
Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
Shipping & Delivery
Free shipping on orders above ₹999 across India
Dispatched within 1-3 business days
Expected delivery: 3-7 business days depending on location
Secure packaging to ensure safe transit of electronic components
Weight
0.02 kg
Dimensions
3 × 4 × 2 cm
15 Days Warranty
Please note that this item is only covered by a standard supplier warranty against manufacturing defects for a period of 15days from the time of delivery. It is important to understand that only manufacturing defects are covered under this warranty, and any other issues will not be considered for reimbursement or replacement. We strongly advise inspecting the product upon delivery to ensure it meets your expectations. In case of any manufacturing defects, we guarantee reimbursement or replacement.
What voids warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
