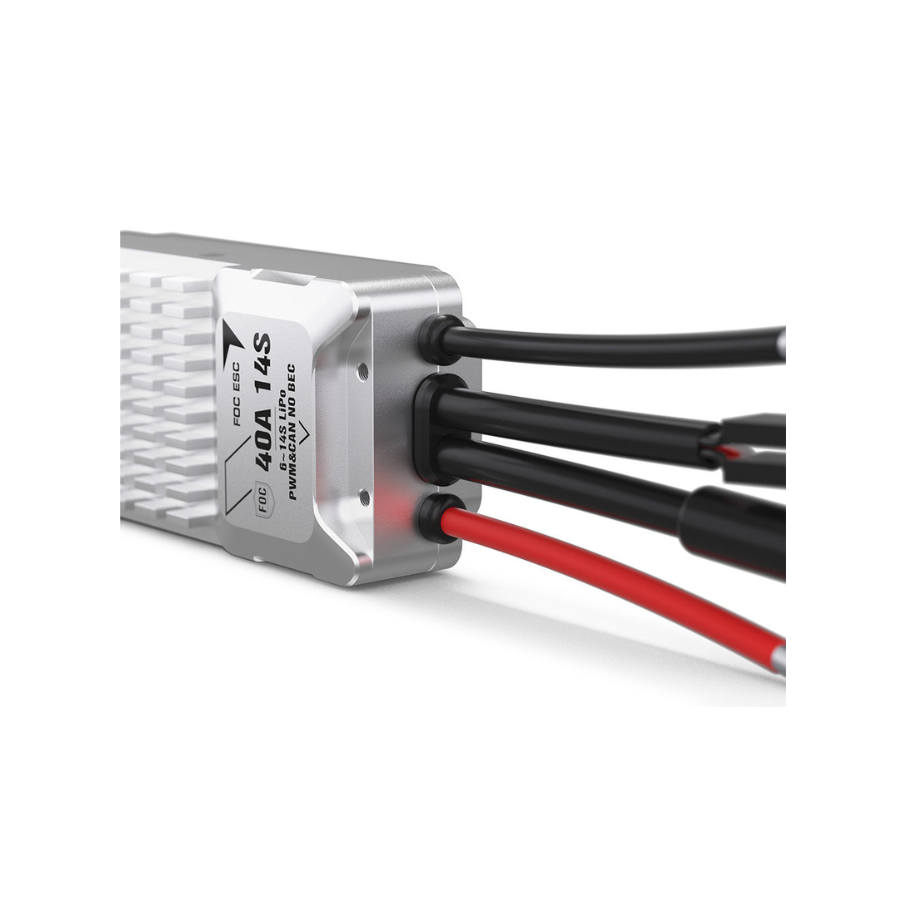

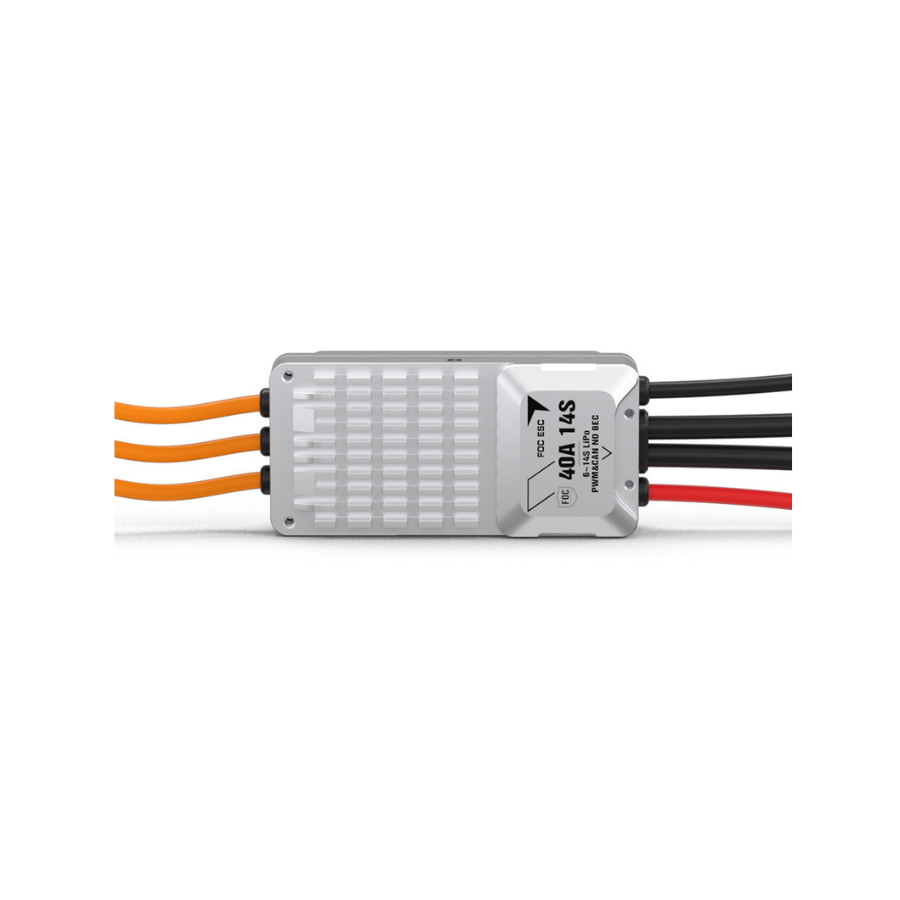

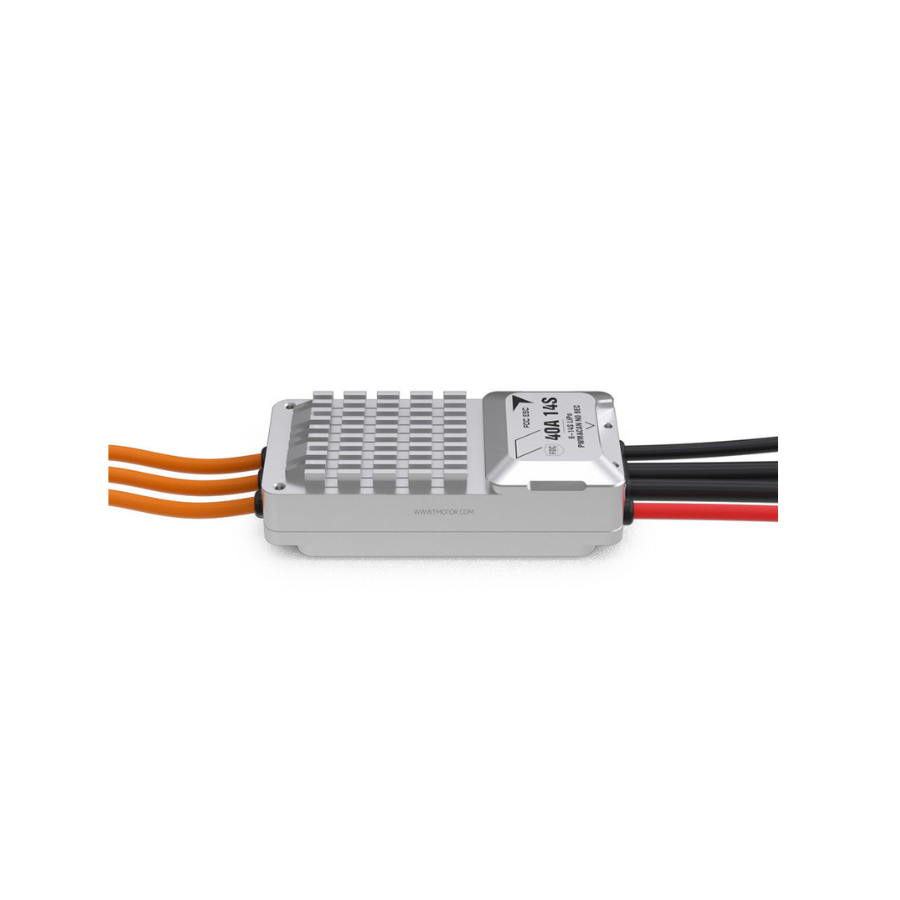

T-Motor V40A 14S VTOL UAV Drone ESC
Description:
The T-MOTOR V40A is a high-voltage Field-Oriented Control (FOC) electronic speed controller designed for professional UAVs, industrial drones, VTOL systems, and heavy-lift multicopters. It supports 6S–14S LiPo systems and focuses on low-noise operation, fast response, and efficient motor control.
Application:
- Industrial UAVs : Stable ESC control for commercial drones
- Heavy-Lift Multirotors : Smooth high-voltage propulsion systems
- VTOL Aircraft : Efficient transition and cruise control
- Mapping & Survey Drones : Low-noise precision flight systems
- Agricultural Drones : Reliable long-duration ESC operation
- Cinematic UAVs : Reduced vibration and smoother throttle response
- Research Platforms : CAN-enabled advanced UAV integration
Specifications:
| Parameter | Details |
|---|---|
| Model | V40A 14S |
| ESC Type | BLDC FOC ESC |
| Input Voltage | 18–60V |
| Battery Support | 6S–14S LiPo |
| Continuous Current | 20A |
| Peak Current (<10s) | 40A |
| Protocol | PWM / CAN |
| BEC | No |
| ESC Dimensions | 62 × 30 × 18 mm |
| Weight (Including Cables) | 69 g |
| Weight (Without Cable) | ~50 g |
| Power Cable | 14AWG Silicone Wire |
| Motor Cable | 16AWG Silicone Wire |
| Signal Cable | Shielded Cable |
| Throttle Range | 1040–1940 μs |
| Refresh Frequency | 50–500 Hz |
| Response Speed | 300 ms |
| Standby Consumption | ≤50 mA @ 48V |
| Communication Support | CAN Bus + PWM |
Packing Includes:
- 1 x T-Motor V40A 14S VTOL UAV Drone ESC
- 1 x Accessories pack
