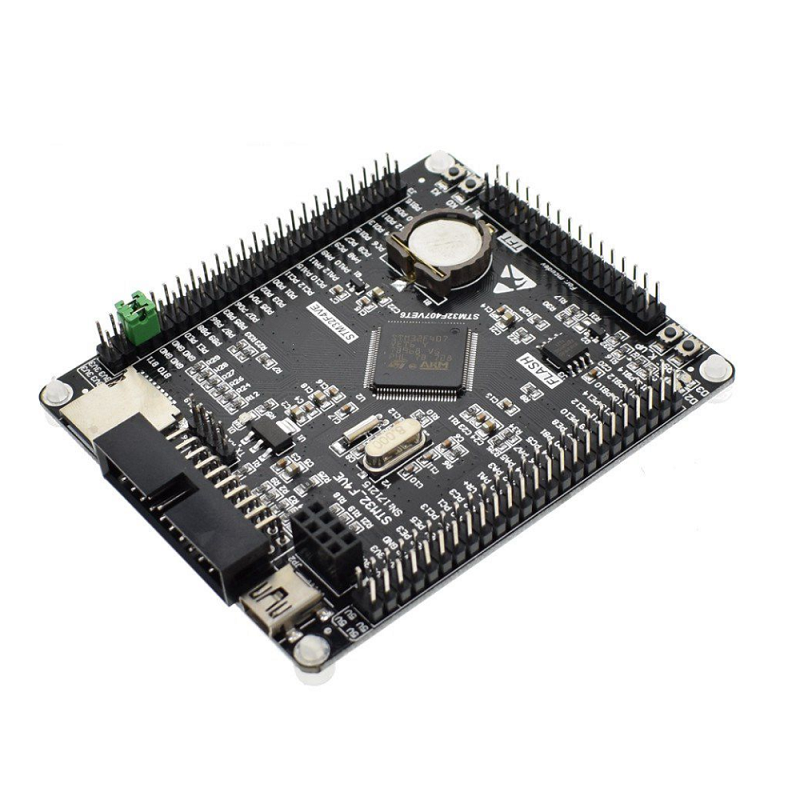

STM32F407VET6 Arm Cortex-M4 core with DSP and FPU
The STM32F405xx and STM32F407xx family is based on the high-performance Arm® Cortex®-M4 32-bit RISC core operating at a frequency of up to 168 MHz. The Cortex-M4 core features a Floating point unit (FPU) single precision which supports all Arm single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security.
The STM32F405xx and STM32F407xx family incorporates high-speed embedded memories (Flash memory up to 1 Mbyte, up to 192 Kbytes of SRAM), up to 4 Kbytes of backup SRAM, and an extensive range of enhanced I/Os and peripherals connected to two APB buses, three AHB buses, and a 32-bit multi-AHB bus matrix.
All devices offer three 12-bit ADCs, two DACs, a low-power RTC, twelve general-purpose 16-bit timers including two PWM timers for motor control, two general-purpose 32-bit timers. a true random number generator (RNG). They also feature standard and advanced communication interfaces.
NOTE : STM32F407VET6 and STM32F407ZGT6 on chip working is same.
Features:
- Core: Ar 32-bit Cortex-M4 CPU with FPU
- LCD parallel interface, 8080/6800 modes
- Low-power operation
- 3×12-bit, 2.4 MSPS A/D converters
- 2×12-bit D/A converters
- General-purpose DMA
- Up to 17 timers
- Up to 140 I/O ports with interrupt capability

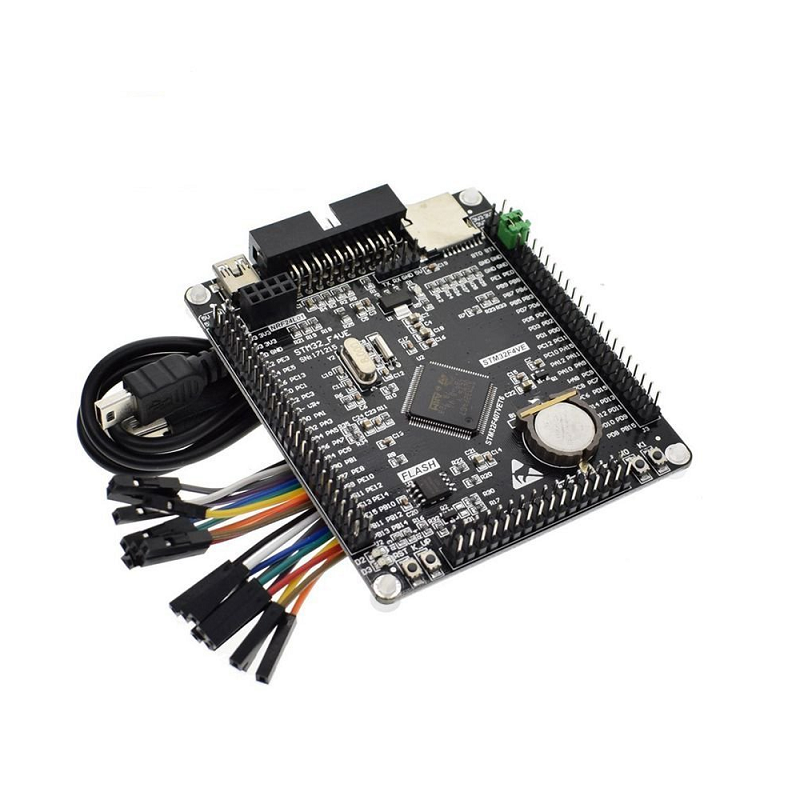

Package Includes:
1 x STM32F407VET6 Arm Cortex-M4 core with DSP and FPU
10 x Female-Female Jumper Cable
1 x USB Cable
Datasheet:
STM32F407VET6 Arm Cortex-M4 core with DSP and FPU Overview
The STM32F407VET6 is a high-performance 32-bit microcontroller based on the ARM Cortex-M4 core with single-precision FPU and DSP instructions. Running up to 168 MHz, it combines up to 1 Mbyte of Flash and 192 Kbytes of SRAM for demanding embedded applications in industrial control, audio processing, and robotics.
Key Features of STM32F407VET6 Arm Cortex-M4 core with DSP and FPU
- ARM® Cortex®-M4 CPU core with DSP extensions and single-precision FPU
- Maximum clock speed of 168 MHz for real-time performance
- Embedded memories: up to 1 Mbyte Flash, 192 Kbyte SRAM, plus 4 Kbyte backup SRAM
- Multiple AHB and APB buses for flexible peripheral connectivity
- SWD debug port for in-circuit programming and debugging
- Genuine STM32F407VET6 modules with fast shipping from Zbotic
Applications and Use Cases
- Digital signal processing in audio and communications devices
- Motor control and servo drives in industrial automation
- Embedded networking and IoT gateway nodes
- Advanced robotics and unmanned vehicle controllers
- Medical instrumentation and data acquisition units
How to Use STM32F407VET6 Arm Cortex-M4 core with DSP and FPU
Begin by mounting the STM32F407VET6 on a compatible carrier board or PCB with required power rails (1.8–3.6 V). Connect an SWD-compatible programmer (e.g., ST-LINK) to the SWDIO and SWCLK pins. Install STM32CubeIDE or another ARM-GCC toolchain, configure the clock to 168 MHz, write your firmware using the HAL or CMSIS-DSP libraries, then compile and flash the code via SWD.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What is the maximum operating frequency of the STM32F407VET6?
The STM32F407VET6 runs at up to 168 MHz, making it suitable for high-speed signal processing and control tasks.
Which debugging interface does the STM32F407VET6 support?
This MCU supports the Serial Wire Debug (SWD) interface for programming and in-circuit debugging with tools like ST-LINK.
How much on-chip memory does the STM32F407VET6 provide?
It features up to 1 Mbyte of embedded Flash memory, 192 Kbytes of SRAM, and an additional 4 Kbytes of backup SRAM for critical data retention.
Technical Specifications
| Model | STM32F407VET6 |
|---|---|
| SKU | AI5267 |
| Weight | 0.11 kg |
| Availability | Out of Stock |
Applications & Use Cases
The STM32F407VET6 Arm Cortex-M4 core with DSP and FPU is a versatile arm microcontroller used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
