Skyzone SKY04X Pro FPV Goggles

Skyzone SKY04X Pro FPV Goggles:

The SKY04X PRO is the upgrade version of SKY04X, with new optics and a new OLED panel, the skyzone 04x pro can give pilot 52 degrees of field of view, giving huge immersive fpv experience, also with a new OLED panel, the 1920*1080 resolution, and a 100FPS frame rate, use can have way better experience when using the digital VRX system. The skyzone 04x pro new matte painting also avoids fingerprints and reduces glare.

Features:

1. IPD Adjustment: Interpupillary distance from 58-71 mm.
2. Receiver: 5.8GHz 48CH V3.3 Steadyview receiver for stable signals.
3. DVR Capability: Records in H.264 at 60 fps.
4. Voltage Input: Compatible with 2~6S LiPo batteries.
5. HDMI Input: Accepts 720P input at 100 FPS.
6. Head Tracker: 3-axis accelerometer and gyroscope for tracking.

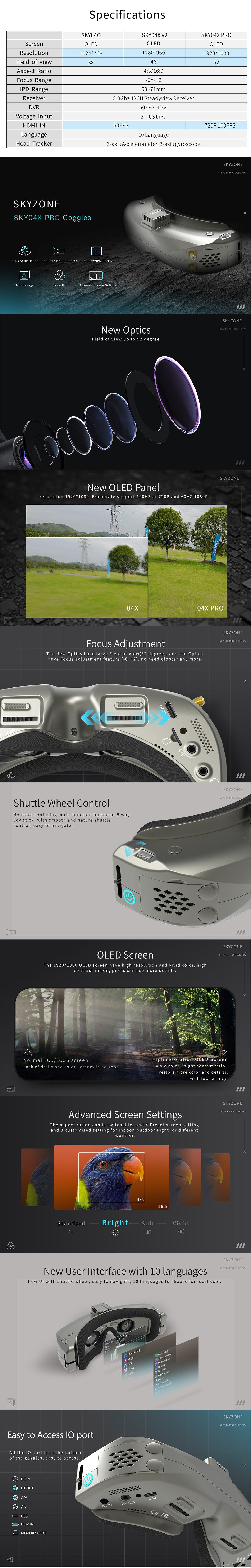

Specification

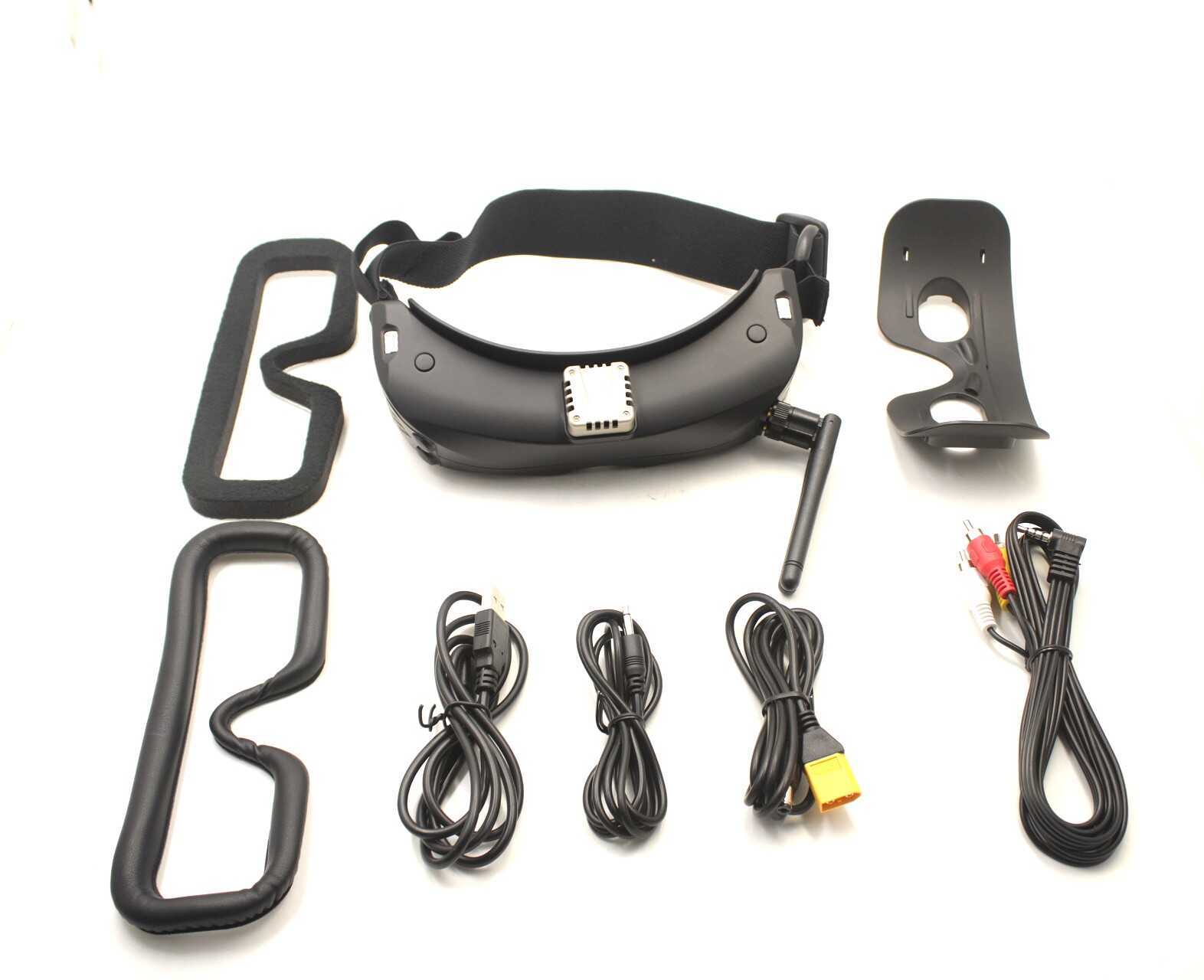

Package includes:

1x SKY04X Pro Goggles
1x Steadyview V3.3 Receiver Module
2x Faceplate (wide and narrow)
1x Sponge with Velcro
1x Zipper case
1x Power cable
1x Headtracker cable
2x 5.8GHz 2dB antennas
1x Video/Audio Cable
1x USB-C Cable

Skyzone SKY04X Pro FPV Goggles Overview

The Skyzone SKY04X Pro FPV Goggles are high-performance video goggles designed for drone pilots seeking a crisp, immersive first-person view. Equipped with a 1920×1080 OLED display and a 52° field of view, these goggles deliver smooth, high-frame-rate visuals for racing, freestyle, and long-range flights.

Key Features of Skyzone SKY04X Pro FPV Goggles

• High-resolution OLED Screen: 1920×1080 resolution at 100 FPS for clear, detailed imaging.
• Immersive Field of View: 52° view angle enhances situational awareness and immersion.

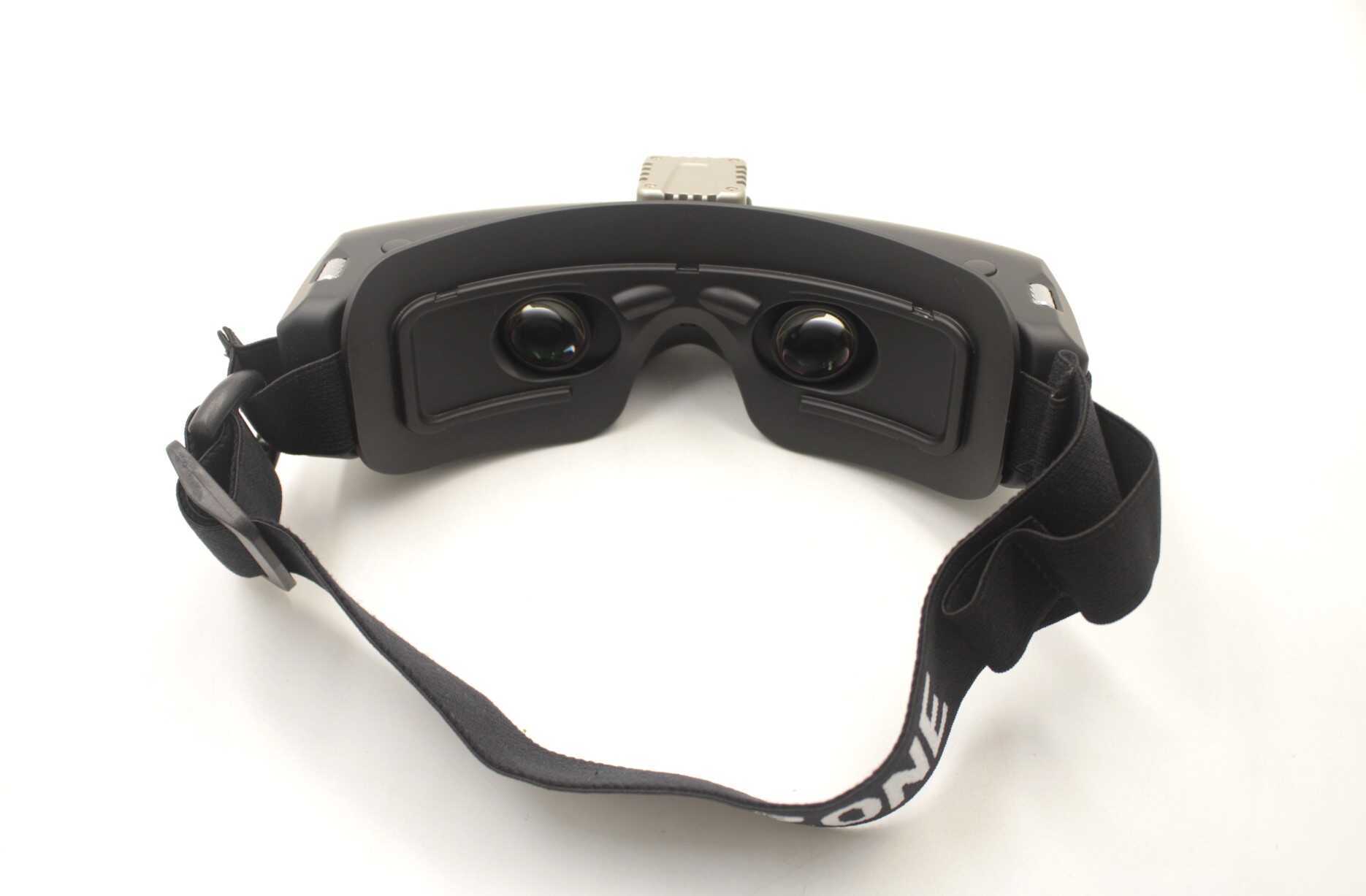

• Adjustable Optics: IPD range of 58–71 mm and focus adjustment from –6 to +2 diopters.
• Integrated 5.8 GHz Receiver: 48-channel V3.3 Steadyview module for stable analog video reception.
• On-board DVR: Records H.264 video at 60 FPS directly to a microSD card.
• Modular Inputs: HDMI input supports 720p at 100 FPS; powered by 2–6S LiPo batteries.
• Anti-Glare Finish: Matte paint coating resists fingerprints and reduces reflections.
• Fast Shipping from Zbotic: Dispatched within 24 hours for in-stock orders.

Applications and Use Cases

• FPV Drone Racing: Capture every split-second maneuver with low latency and high frame rate.
• Freestyle Flying: Enjoy wide-angle visuals and precise focus control for cinematic tricks.
• Long-Range Exploration: Reliable 5.8 GHz reception for extended line-of-sight flights.
• Aerial Cinematography: HDMI input enables live digital feeds from drones or ground cameras.
• Training and Simulation: Use DVR playback to review flights and improve pilot skills.
• Head-Tracking Control: Integrate with compatible drones or camera gimbals for dynamic viewpoint shifts.

How to Use Skyzone SKY04X Pro FPV Goggles

Insert a charged 2–6S LiPo battery into the rear power bay, then place a microSD card for DVR. Power on the goggles and select your video channel via the on-screen menu. Adjust interpupillary distance and diopter focus for a sharp, comfortable view. For HDMI input, connect your external video source, switch to HDMI mode, and enjoy high-frame-rate digital feeds. Use the built-in receiver to bind and tune 5.8 GHz channels, then record or review flights directly on the goggles.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

What video formats and frame rates does the DVR support?

The onboard DVR records H.264-encoded video at up to 60 FPS on a microSD card, enabling smooth playback and easy editing.

Can I use these goggles with both analog and digital video systems?

The built-in 5.8 GHz 48CH Steadyview receiver supports analog FPV signals. For digital HDMI sources, switch to HDMI input mode (720p at 100 FPS).

How do I power the SKY04X Pro and monitor battery voltage?

Power the goggles with a 2–6S LiPo battery via the built-in power port. The on-screen display shows real-time voltage to help you land before low-voltage cut-off.
