Looking for T100 5a 2x50w? Original SKYRC T100 5A 2X50W Dual Balance Charger is available at Zbotic with fast shipping across India.

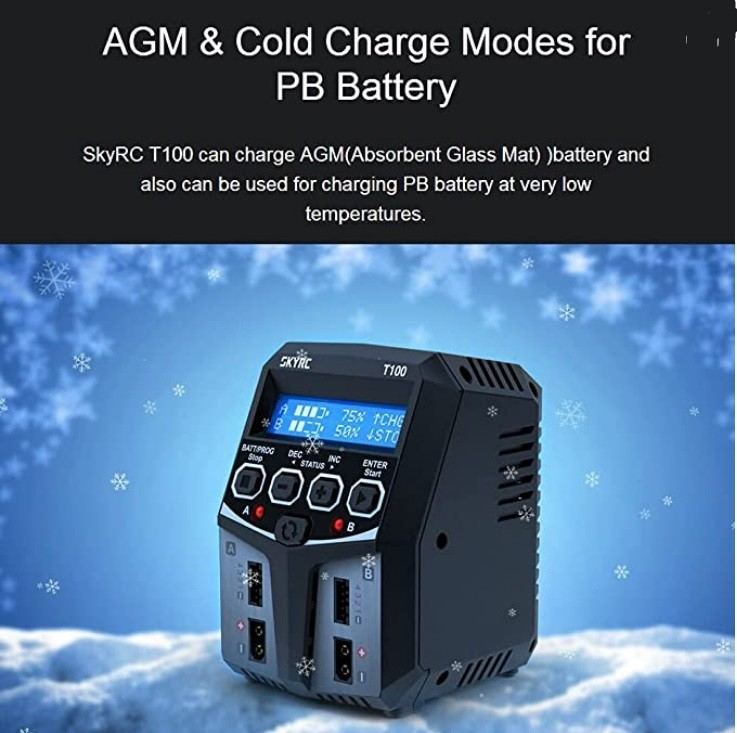

SkyRC T100 is a twin-channel charger with two independent circuits which can charge batteries of varying chemistries (LiPo / LiFe / Lilon / LiHV / NiMH / NiCd / Pb) simultaneously. Its sleek design allows easy front-loading plug-in convenience of balancing and XT60 ports. It is not only compact in size but also powerful in output with maximum 100W charging power and 5A charging current which makes charging more sufficient. With the new AGM and cold charge modes, the user is free to charge their PB and AGM batteries in cold days.
Features:
- SKYRC T100 is a twin-channel charger with two independent circuits
- Its sleek design allows easy front-loading plug-in convenience of balancing and XT60 ports
- It is not only compact in size but also powerful in output with maximum 100W charging power
- Allows you to plug 2 batteries into one charger simultaneously

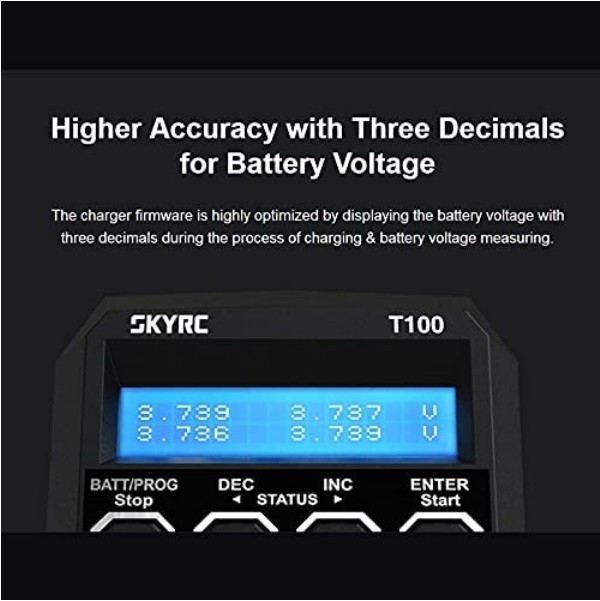

- Higher Accuracy with Three Decimals for Battery Voltage
- The charger firmware is highly optimized by displaying the battery voltage
Specifications:
- Balance Cells: 2-4 cells
- Safety Timer: 1-720minutes & OFF
- Battery Types/Cells:
LiPo/LiFe/LiIon/LiHV: 2-4 cells
NiMH/NiCd: 6-8 cells
Pb:6/12V - Battery Capacity Range:
LiPo/LiIon/LiFe/LiHV: 100-50000mAh
NiMH/NiCd: 100-50000mAh
Pb: 100-50000mAh Battery Types/Cells:
LiPo/LiFe/LiIon/LiHV: 2-4 cells
NiMH/NiCd: 6-8 cells
Pb:6/12V - Battery Capacity Range:
LiPo/LiIon/LiFe/LiHV: 100-50000mAh
NiMH/NiCd: 100-50000mAh
Pb: 100-50000mAh - Charge Voltage:
LiPo: 4.18-4.25V/cell
LiFe: 3.58-3.7V/cellLiIon: 4.08-4.2V/cell
LiHV: 4.25-4.35V/cell - NiMH/NiCd: Delta peak detection: 3-15mV/cell; Default: 4mV/cell
-
Charge Method:CC/CV for Lithium batteries.
Delta-peak Sensitivity for NiMH/NiCd batteries.
CC/CV and float charge for PB batteries. - Case Size: 90x100x127mm
Specification-
| Backlight | Blue |
|---|---|
| Input Voltage (VAC) | 100-240 |
| Charge Voltage(V) | 50Wx2 |
| Charge Current(A) | 0.1~5.0 |
| Balance Current(mA) | 300mA/cell |
| Case Material | Plastic |
| Net weight (g): | 500 |
| Shipping Weight | 0.671 kg |
| Shipping Dimensions | 15 × 13 × 10 cm |
Packages Includes:
1 x SKYRC T100 5A 2X50W Dual Balance Charger
Original SKYRC T100 5A 2X50W Dual Balance Charger Overview
The Original SKYRC T100 5A 2X50W Dual Balance Charger is a compact, twin-channel battery charger designed for hobbyists and professionals. With two independent circuits delivering up to 50 W per channel and 5 A maximum current, it balances and charges LiPo, NiMH, Pb and other battery types simultaneously, right from a front-loading XT60 and balance port configuration.
Key Features of Original SKYRC T100 5A 2X50W Dual Balance Charger
- Twin-channel independent circuits for simultaneous dual-battery charging
- 50 W output per channel, 100 W total power with up to 5 A charging current
- 2×16 blue-backlit LCD display for clear real-time status monitoring
- Front-loading XT60 port and balance connectors for quick, tool-free hookups
- Supports LiPo, LiFe, Lilon, LiHV, NiMH, NiCd and Pb batteries, with AGM and Cold Charge modes
- Genuine SKYRC unit with fast shipping from Zbotic across India
Applications and Use Cases
- Charging LiPo packs for RC drones, cars, helicopters and multicopters
- Balancing multi-cell battery packs in competitive RC racing setups
- Refurbishing and topping up NiMH/NiCd packs for RC planes and ground vehicles
- Maintaining 6 V/12 V lead-acid and AGM batteries in winter using Cold Charge mode
- Powering lab tests by charging Lilon cells for electronics development
- Workshop battery management for robotics prototypes and small UAVs
How to Use Original SKYRC T100 5A 2X50W Dual Balance Charger
Plug the charger into an AC 100–240 V outlet, connect your battery’s main lead to the XT60 port and its balance lead to the matching balance connector. Power on the unit, use the front panel buttons to select battery chemistry and desired charge current, then start charging. Monitor cell voltages and current on the blue-backlit LCD, and disconnect when the cycle completes.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can I charge two different battery chemistries at the same time?
Yes. Each channel on the T100 operates independently, allowing you to charge, for example, a LiPo pack on one side and a NiMH pack on the other simultaneously.
How do I enable Cold Charge mode for a lead-acid battery?
After connecting your Pb or AGM battery, navigate the menu to select “Cold Charge,” confirm the mode, then set your desired current. The charger will gently condition the battery at low temperature.
What input voltage range does the SKYRC T100 support?
The charger accepts AC input from 100 V to 240 V, making it compatible with power outlets worldwide without any manual voltage adjustment.
Battery Discharge Curve: Understanding Voltage Profiles
The battery discharge curve is a graph of cell voltage versus capacity (mAh) or time during discharge at...
Read More →
Server UPS: Raspberry Pi Managed Shutdown on Power Cut
A server UPS for Raspberry Pi ensures clean shutdown during power cuts, preventing SD card corruption and data...
Read More →
RC Battery Guide: LiPo Selection for Cars and Drones
Table of ContentsLiPo Battery Basics for RC C Rating Explained Choosing Battery for RC Cars Choosing Battery for...
Read More →Technical Specifications
| Brand | SKYRC |
|---|---|
| Current Rating | 5A |
| Package Quantity | 50 pcs |
| SKU | AI5767 |
| Availability | Out of Stock |
Applications & Use Cases
The Original SKYRC T100 5A 2X50W Dual Balance Charger is a versatile skyrc used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
